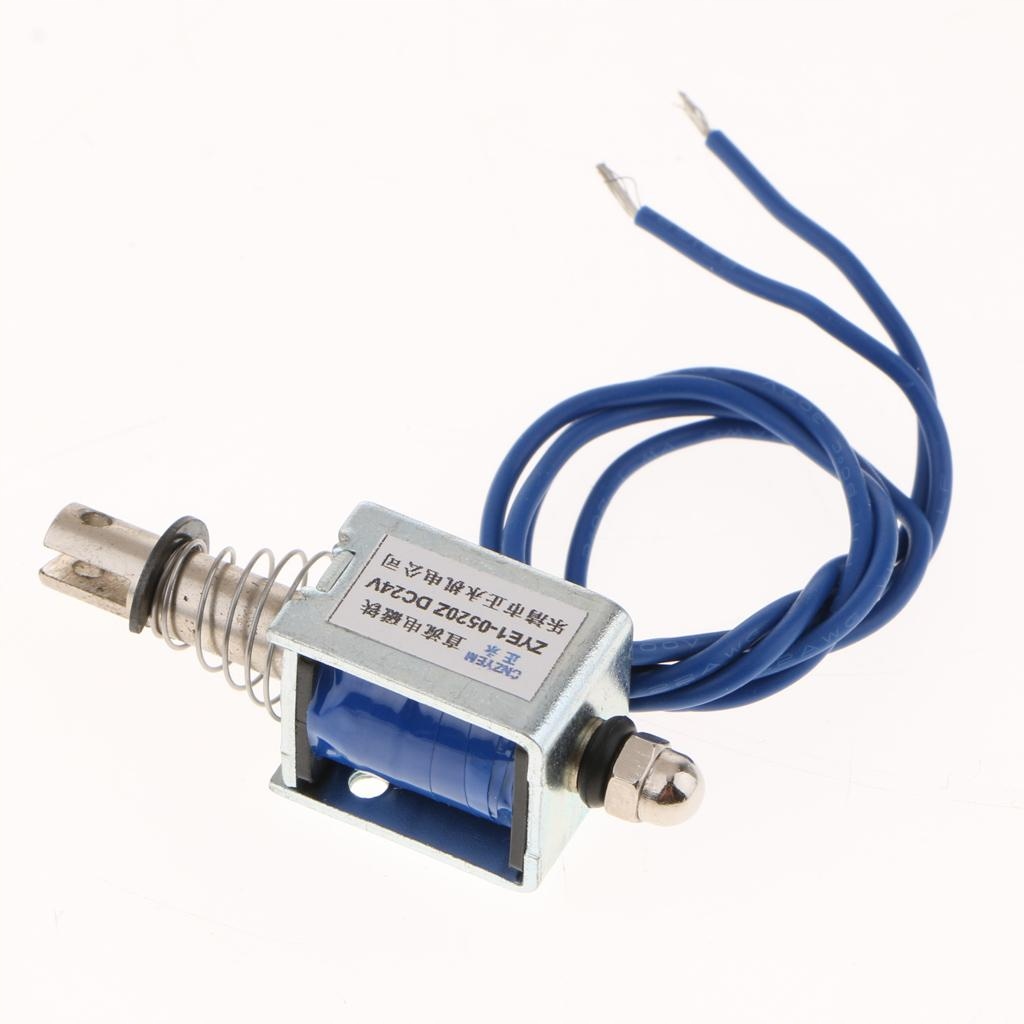

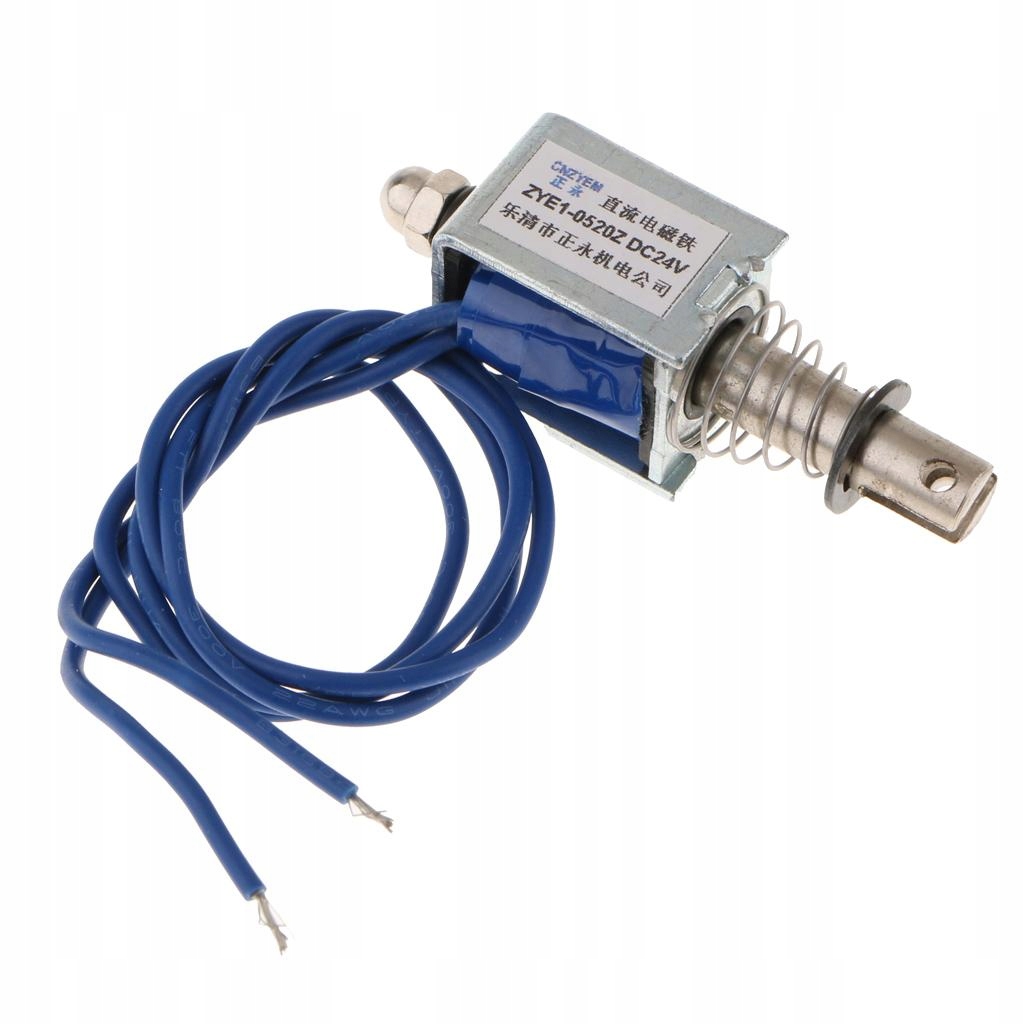

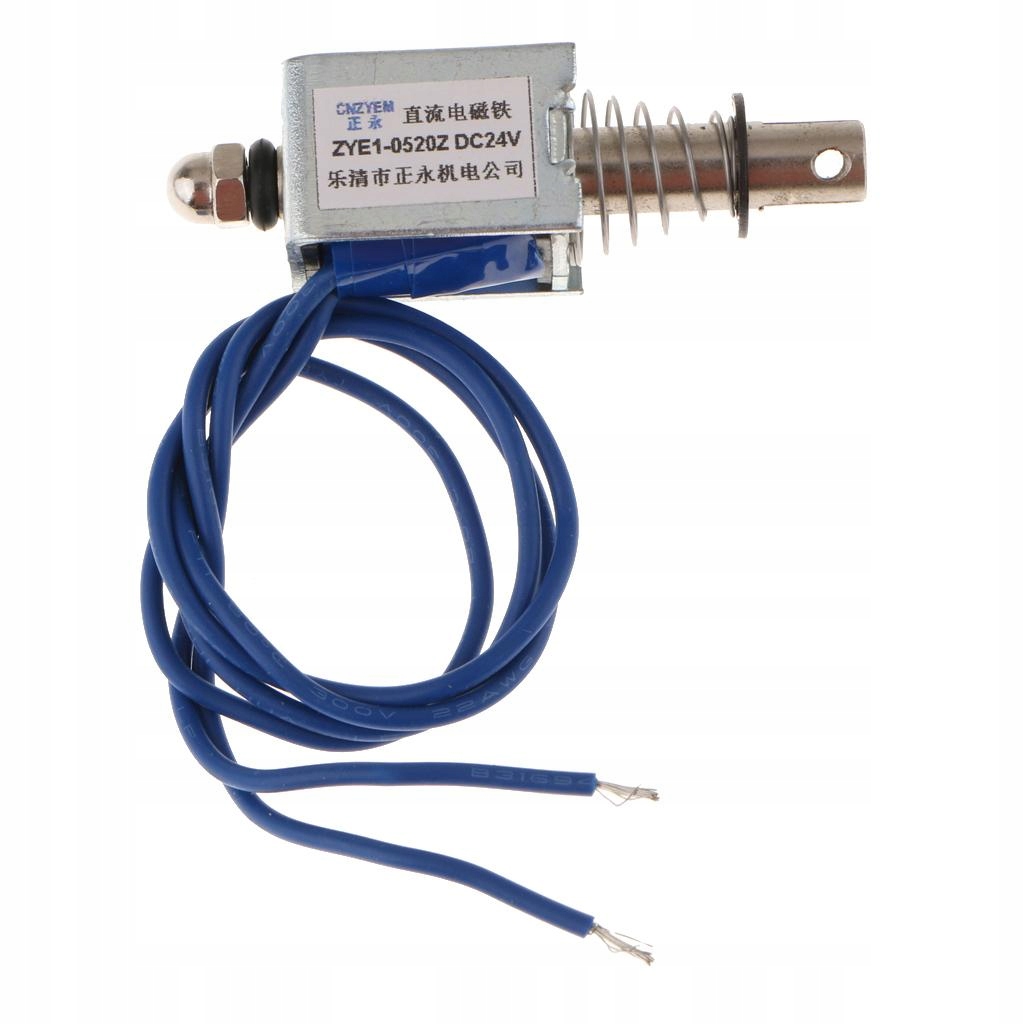

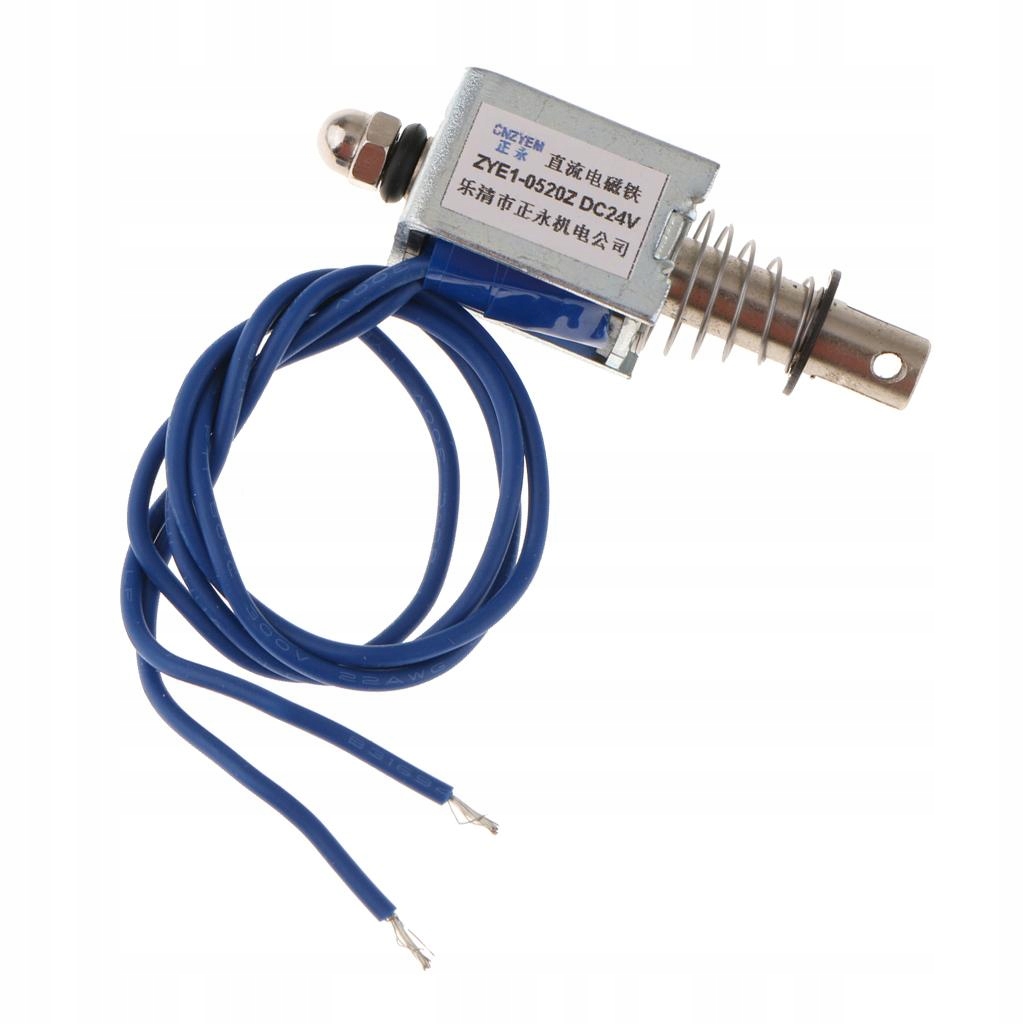

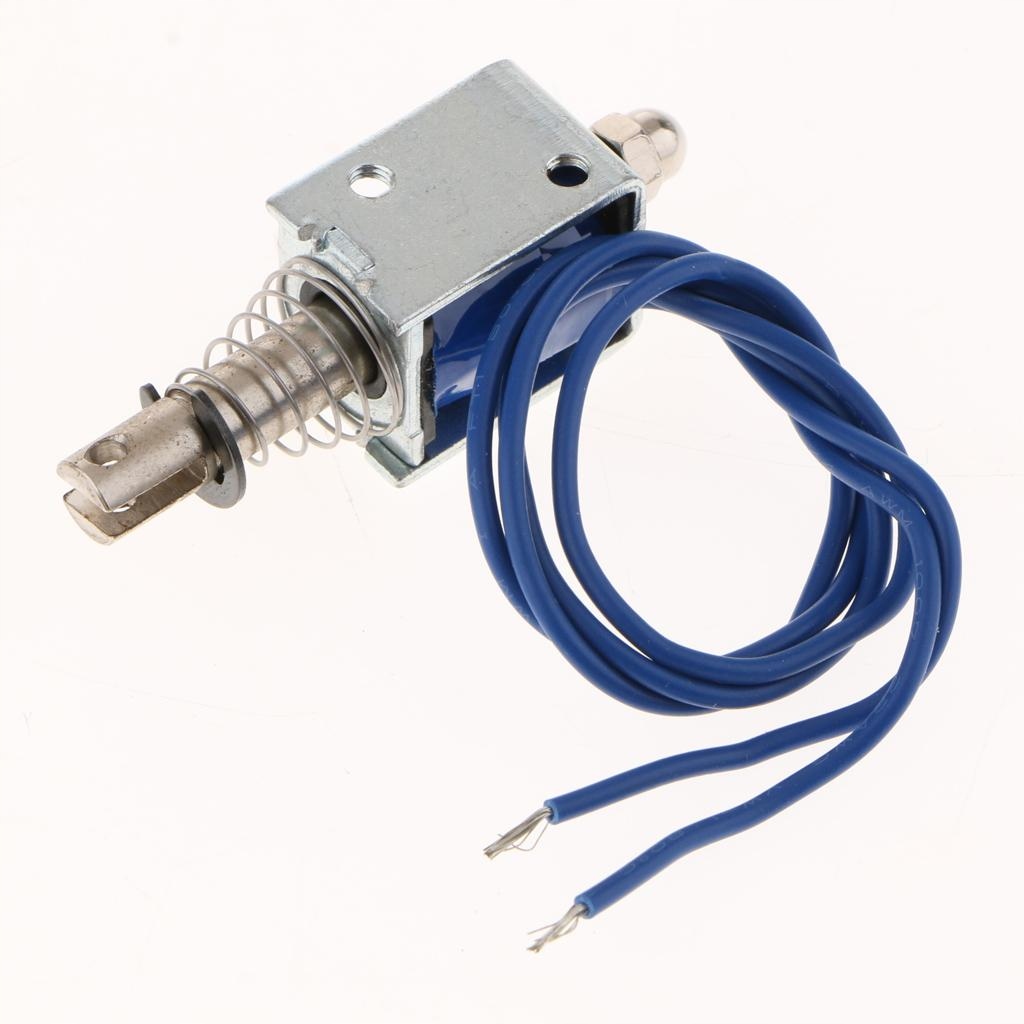

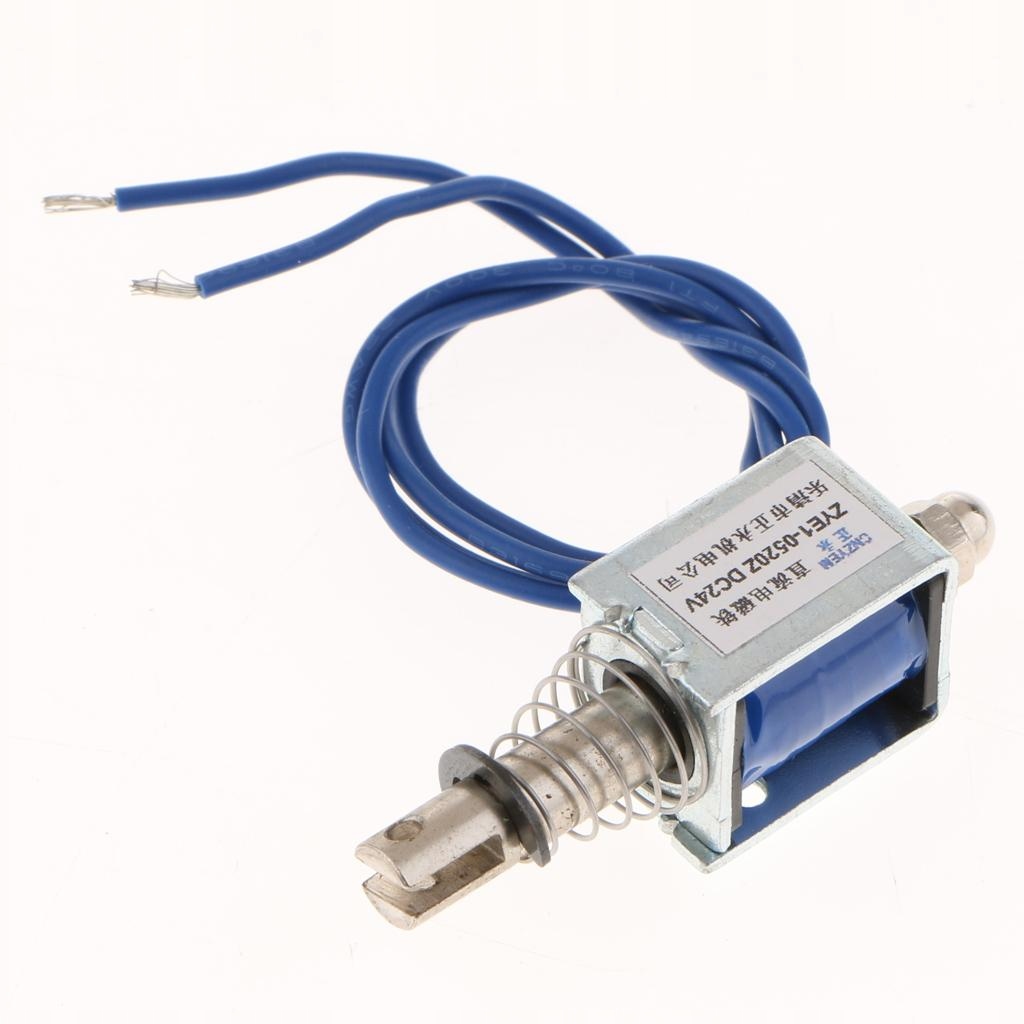

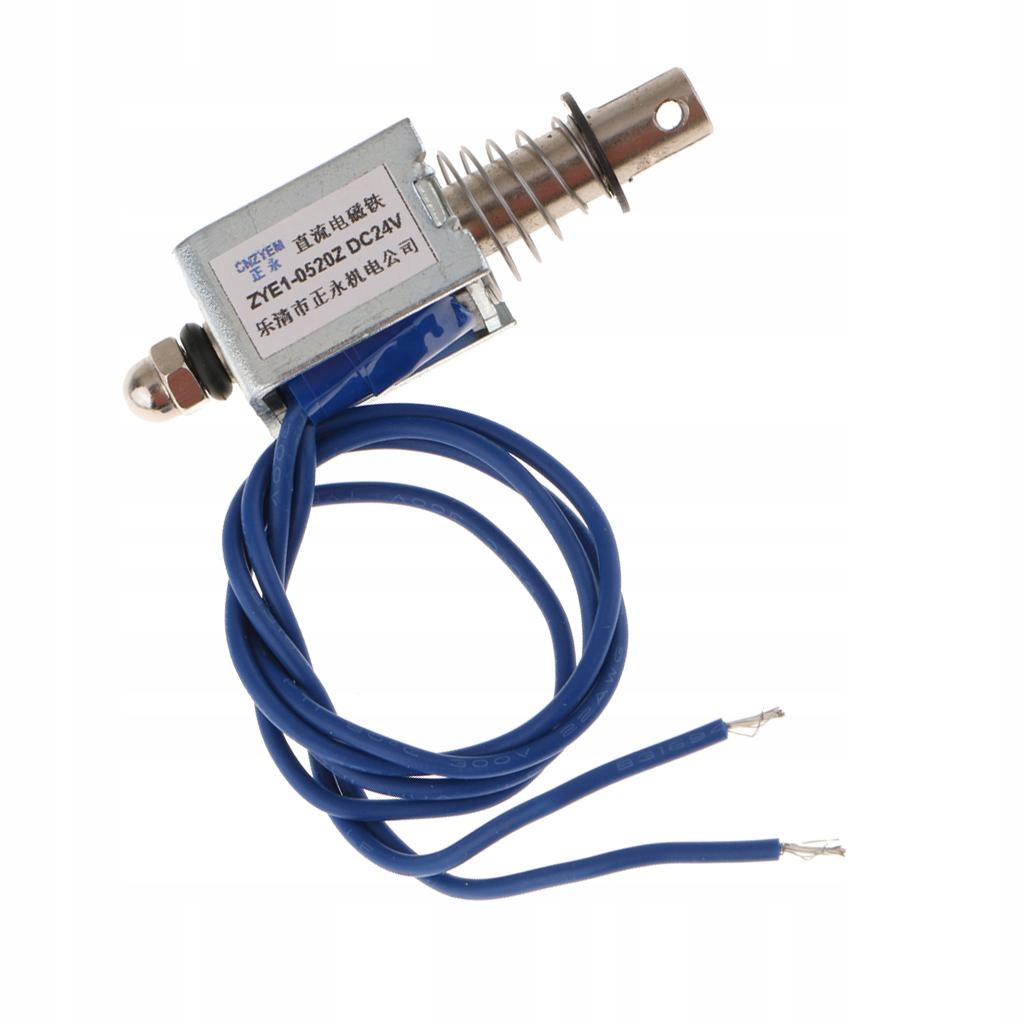

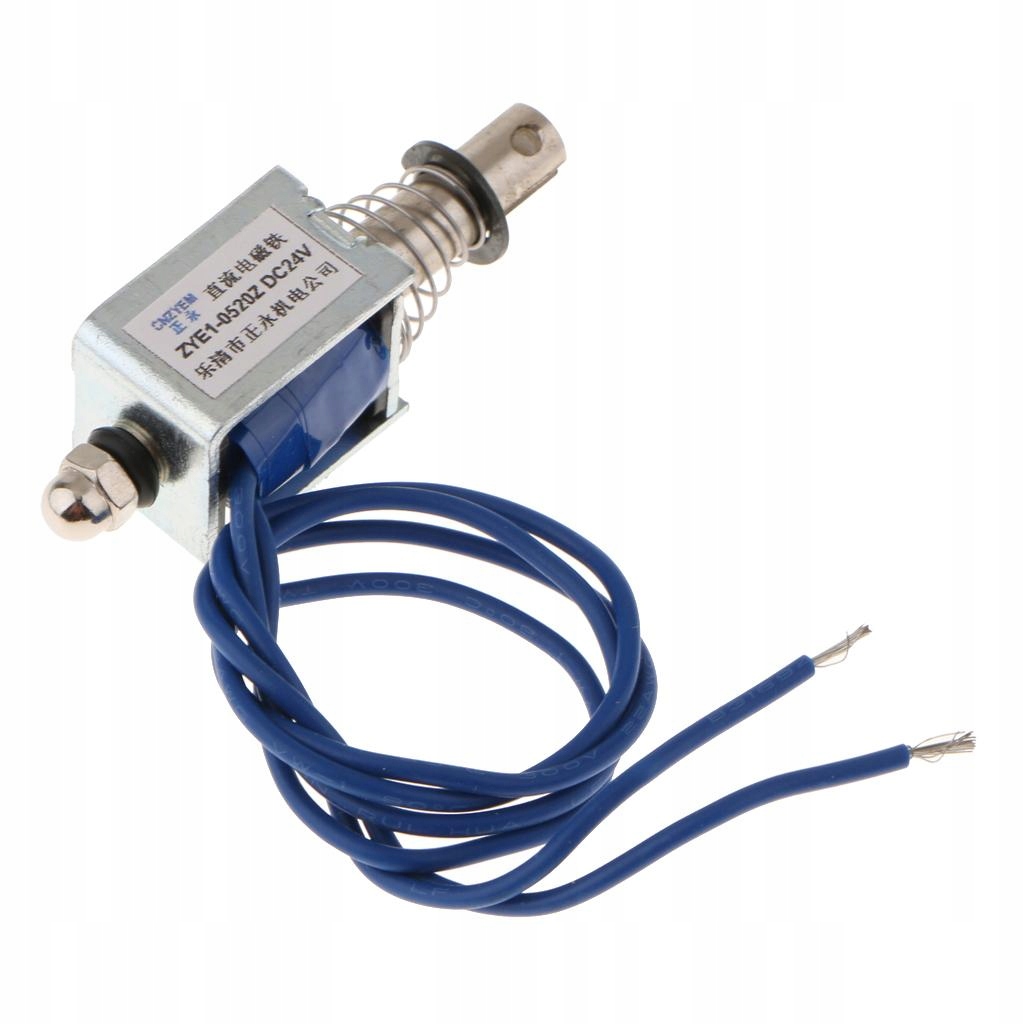

ZYE1-0520Z Open Frame Linear Mini Push Pull Solenoid Electromagnet Reset

Description:

Product name: DC solenoid electromagnet

Rated Voltage: DC24V Type: push pull

Push type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.

DC

Solenoid Electromagnet mainly used machines, transport

equipment, office facility household appliance, mechanical, etc.

Used widely in home appliances,vending machines, game machine,auto door lock.

Specification:

Size: 47x13x16 mm / 1.85x0.51x0.62 inch

Line length: approx. 230mm

Operating temperature: -5 ° C -40 ° C

Operating humidity: 45%-85%

Storage temperature: -40 ° C -75 ° C

Storage humidity: 0%-95%

Temperature : 65 (level A)

Lifetime: cycles or more can be used under load

Ambient temperature: 23±

Relative humidity: 50±10%

Atmospheric pressure: 1013MPa

Insulation

resistance: When measured with a 500VDC insulation resistor, the

insulation resistance between the coil and the yoke must be at least

100MΩ.

Insulation strength: The insulation strength between the coil and the yoke should be at least 600VAC/1 minute.

Package Includes:

1 Piece Push-Pull Type Electromagnet
