ZMORPH VX PRODUCT DESCRIPTION AND TECH-SPECIFIATION

INTRODUCTION

A ready to use ZMorph VX description and tech-specification for your store and website.

PRODUCT DESCRIPTION

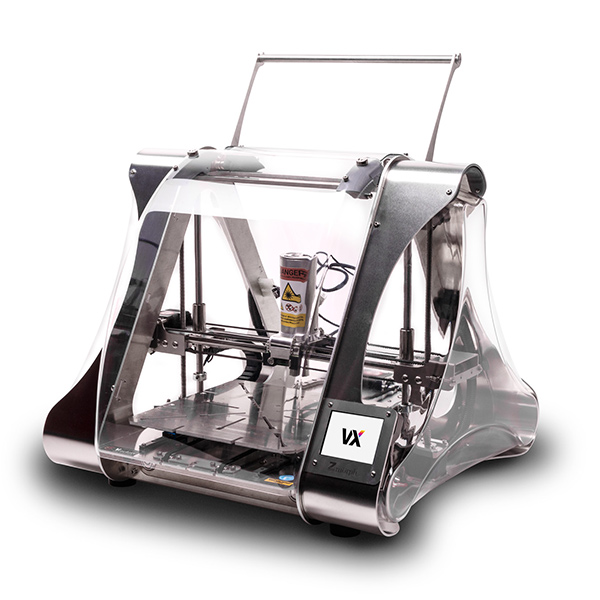

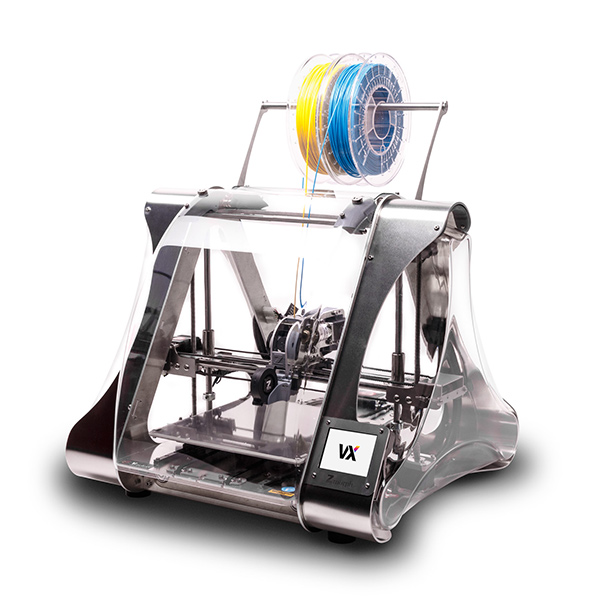

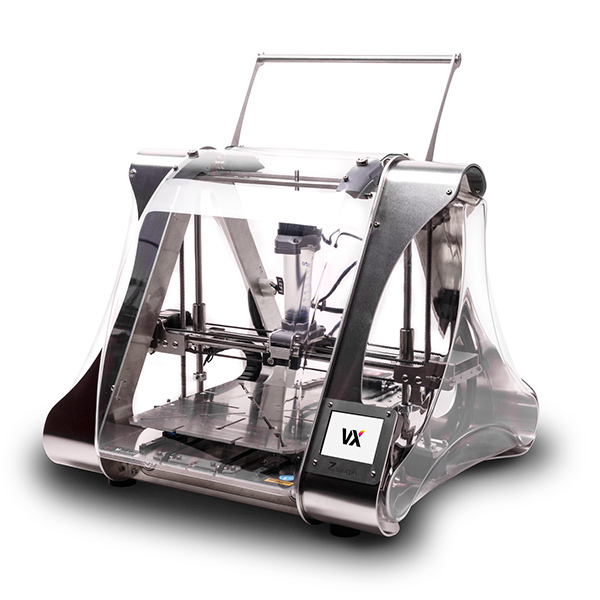

The complete desktop solution for multi-material rapid prototyping, crafts, and low volume production. ZMorph Vx is the most versatile and the most practical multitool 3D printer that you can put on a desk. With three different fabrication methods and dozens of available materials, ZMorph is designed to be your workhorse, versatile object making machine and a problem solver.

UNIQUE FEATURES

• 3D printing, CNC, and laser, all in one machine
• Vast arrange of fabrication materials
• Interchangeable toolheads and worktables with easy switching procedure
• Top grade 3D printing with advanced two-material printing features, like image mapping and color blending
• Autocalibration
• LCD touchscreen
• Sturdy aluminum construction with high-quality components, designed to withstand high torques of CNC milling and high speeds of 3D printing
• Enclosed build chamber with fully protected electronics
• Innovative Closed Loop System
• Free Voxelizer software license

MATERIALS

• 3D printing
• ABS and derivatives
• PLA and derivatives
• PVA
• PET
• ASA
• Nylon
• HIPS
• Termochrome
• TPU
• Flex materials
• Upgrade your ZMorph with other ZMorph toolheads and access more fabrication materials, like wood, machining wax or modeling board

PRODUCT SPECIFICATION

Construction: High precision sliding rails on X and Y axis, made from structural steel and stainless steel. Omron endstops, precisely machined aluminum X carriage, rigid and durable. Non-slip trapezoidal nuts on Z axis made out of high-quality POM, add-on slot

Frame and Covers: High-quality aluminum 4 mm and 3 mm (precise and very rigid), stainless steel 2 mm and 3 mm. Covers made from 3mm PET

Work Area: 250 x 235 x 165 mm (toolhead dependent)

Software Compatible with: Voxelizer, Simplify3D, Cura, Slic3r

Communication: USB and LAN (access to WiFi after plugging to WiFi router). Standalone printing supported via panel + internal SD card

Electronics: Sunbeam 3.0 with ARM LPC1769 processor, equipped with 5 stepper motor drivers: 3 for XYZ axis, 2 more for the double material extruder. Internal disc drive accessible via USB

Heated Worktable: super-flat, precisely machined working table with exchangeable borosilicate glass sheets with temperature up to 120 ℃

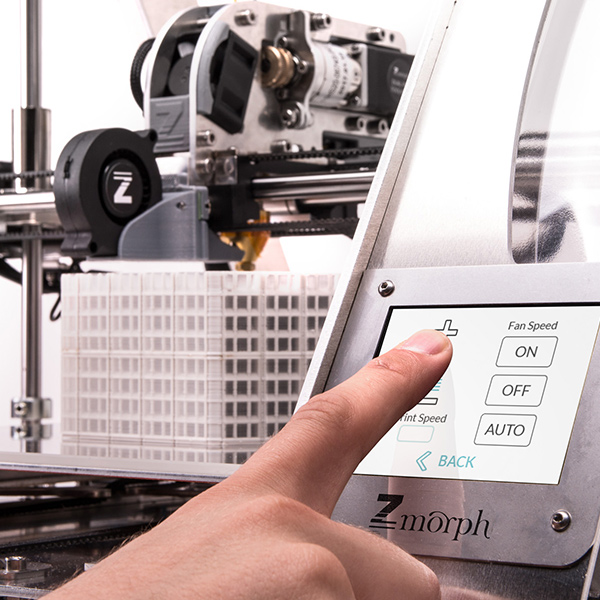

Display: LCD color touchscreen

Mechanical Positioning Precision: 14 microns for X and Y axes, 0.6 microns for Z axis

Layer resolution: 50 – 400 microns

Interchangeable Nozzles: Included: 0.3 mm, Available: 0.2 mm, 0.4 m

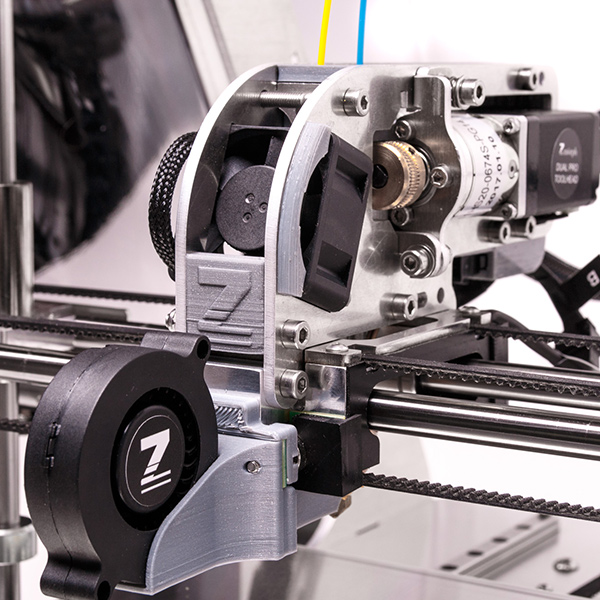

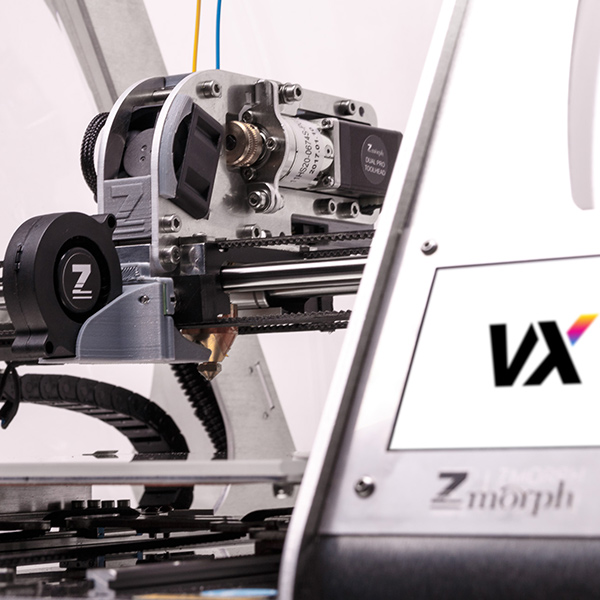

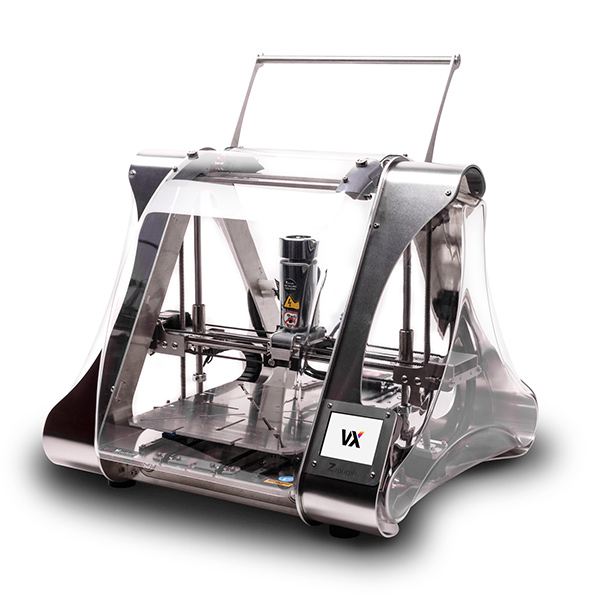

Interchangeable Toolheads: Included: 1.75 Plastic Extruder, Available: Dual Plastic Extruder, Laser, CNC, Thick Paste, 3.0 Plastic Extruder

Interchangeable Worktables: Included: Heated worktable for 3D printing, Available: CNC worktable for milling and cutting

Calibration: Tensometric autocalibration

Maximum 3D printing temperature: 250 ℃

Dimensions:  530 x 555 x 480 mm

Other: Silent X and Y stepper drivers – reducing motor noise by 50%, ER-11 collet in CNC Pro Toolhead, Laser Toolhead operating at 2.8 W power
