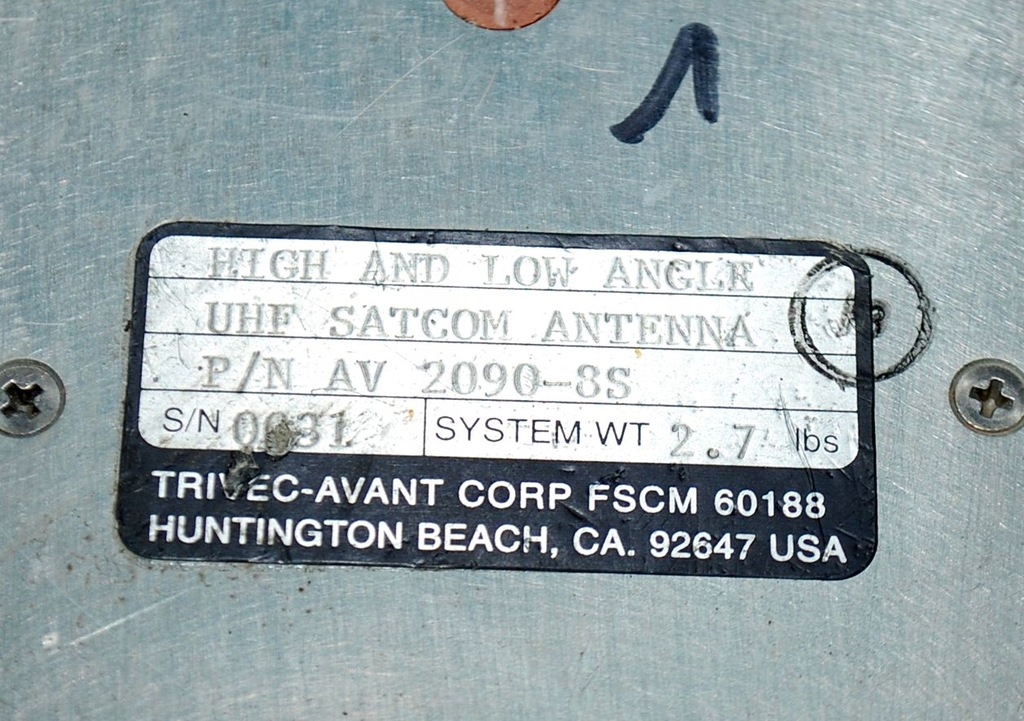

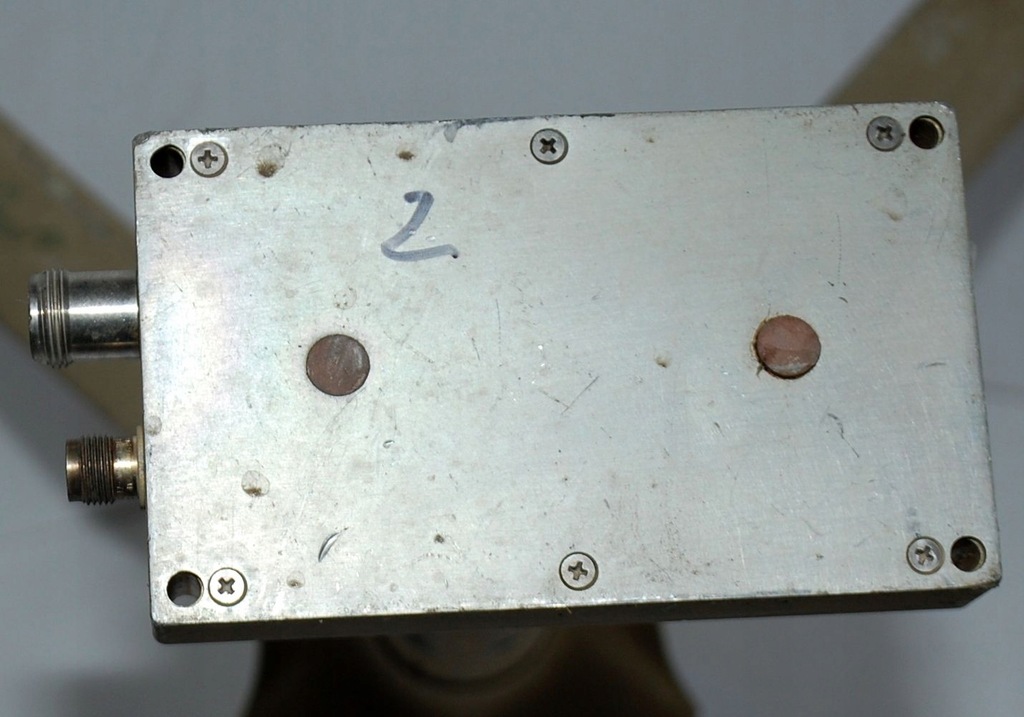

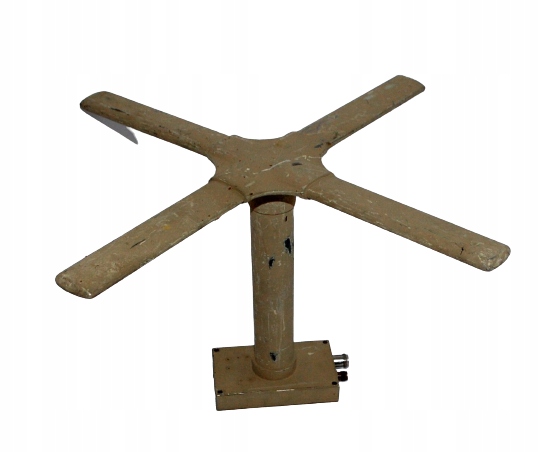

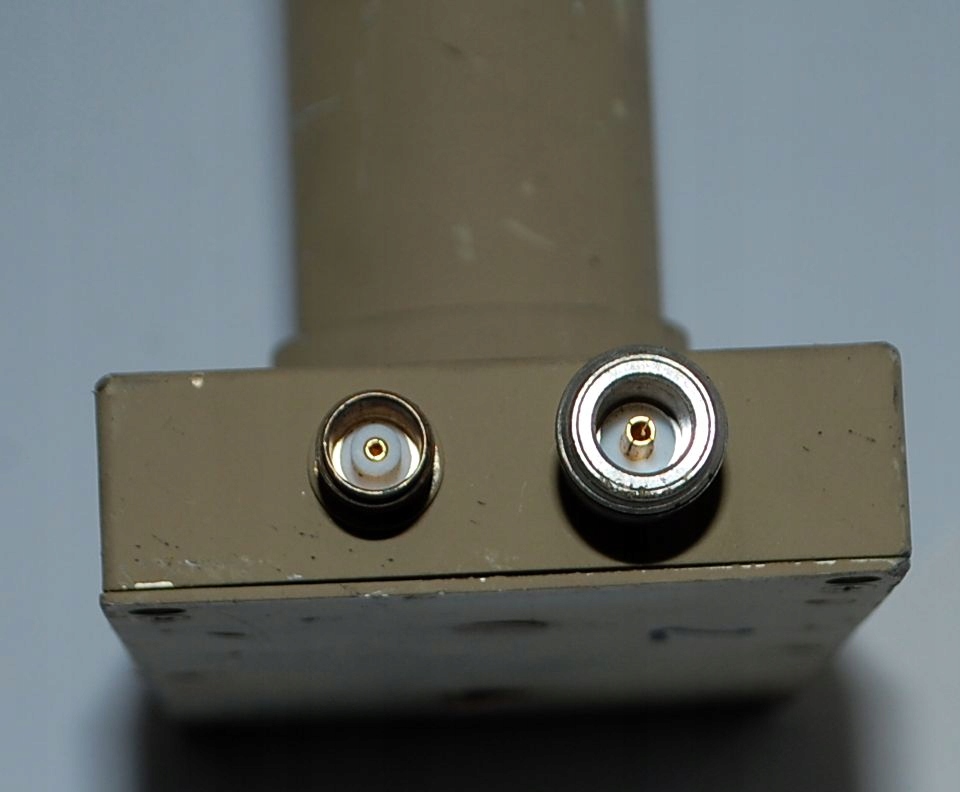

Antena wojskowa kontrakt US ARMY X-Wing UHF SATCOM Antenna AV2090-8S

stan bardzo dobry w pełni sprawna

pasuje do radia AN/PRC-117F, AN/PRC-117G, AN/PSC-5, AN/PSC-5D

dane dotyczą modelu 7S

• Frequency High Angle: 225-400MHz
• Frequency Low Angle: 240-400MHz
• VSWR High Angle: 1:5:1
• VSWR Low Angle: 3:0:1
• Polarisation Low Angle: Right Hand Circular
• Polarisation Low Angle: Vertical, Linear
• Gain High Angle: +8 dBic
• Gain Low Angle: +3.0 dBil
• Power Handling: 200 Watts CW
• Axial Ratio: 3 dB at half power points
• Weight: 2.75 pounds
