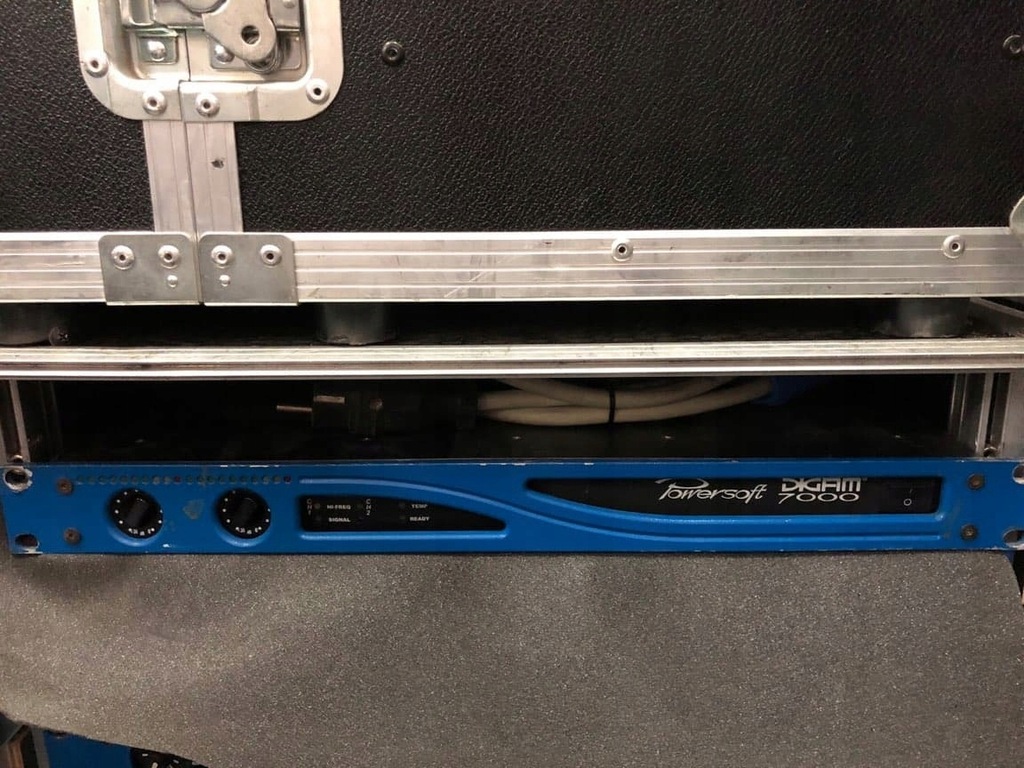

Wzmacniacze Powersoft DIGAM 7000.

Specyfikacja:

Power RMS x Channel (1KHz, 0.5% THD) 8 W = 1050 W

4 W = 1910 W

2 W = 2900 W

Power RMS x Channel in stereo working (1KHz, 0.5% THD) 8 W = 1050 W

4 W = 1910 W

2 W = 3500 W EIAJ 1% THD

Bandwidth (1W, 8W) 10 Hz ¸ 40 kHz

Damping factor (8W) 100 Hz = 300

10 kHz = 300

Slew Rate (8W) 50v/ms (input filter bypassed)

S/N ratio 100 dB/A

Distorsion

THD Max < 0.5% from 0.1W at full power (typically < 0.1%)

Intermodulation SMPTE Max < 0.5% from 0.1W at full power (typically < 0.1%)

Intermodulation DIM 100 Max < 0.02% from 0.1W at full power (typically < 0.01%)

Inputs Balanced to ground, XLR male/female paralleled

Impedance 10 KW each leg, balanced to ground

Sensitivity 1.12V (full rated output power 8 W)

Gain 38.2 dB or 26dB removing the internal jumpers

Outputs Neutric 4-pole speakon connectors (pins 1+ 2+ paralleled, 1-

2- paralleled)
