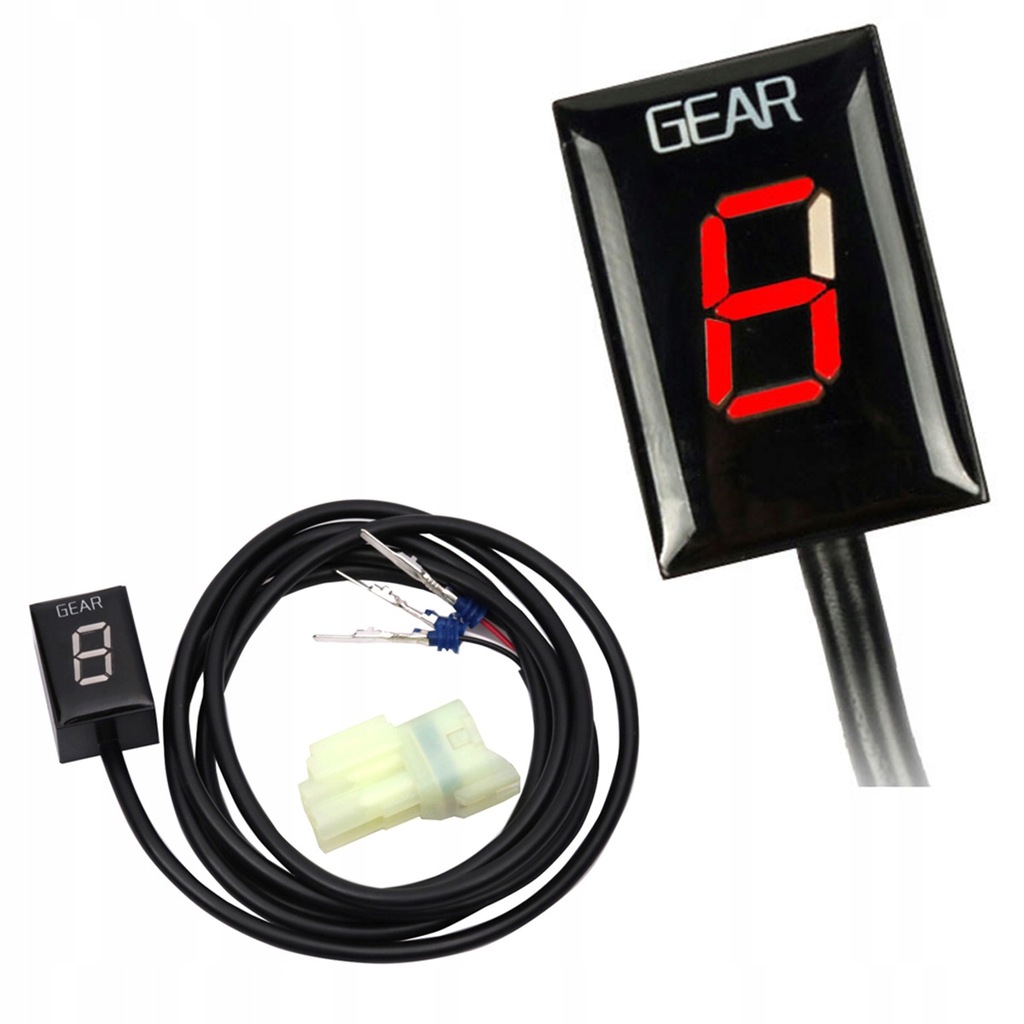

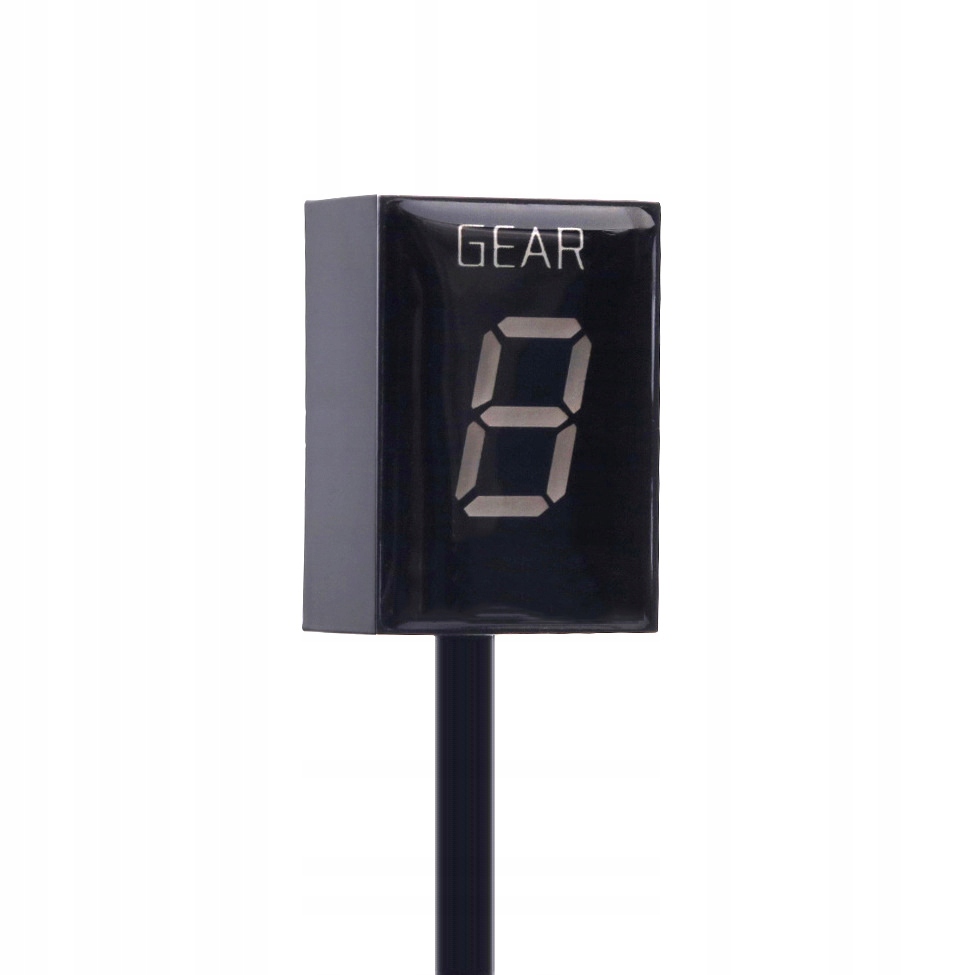

Honda Motorcycle Gear Display Manual Product Features:
Product Features:
- This product is suitable for Honda motorcycles with electronic fuel injection engine and without gear display function.
- This product can only display the gear when the engine is running, the gear is engaged and the clutch is released.

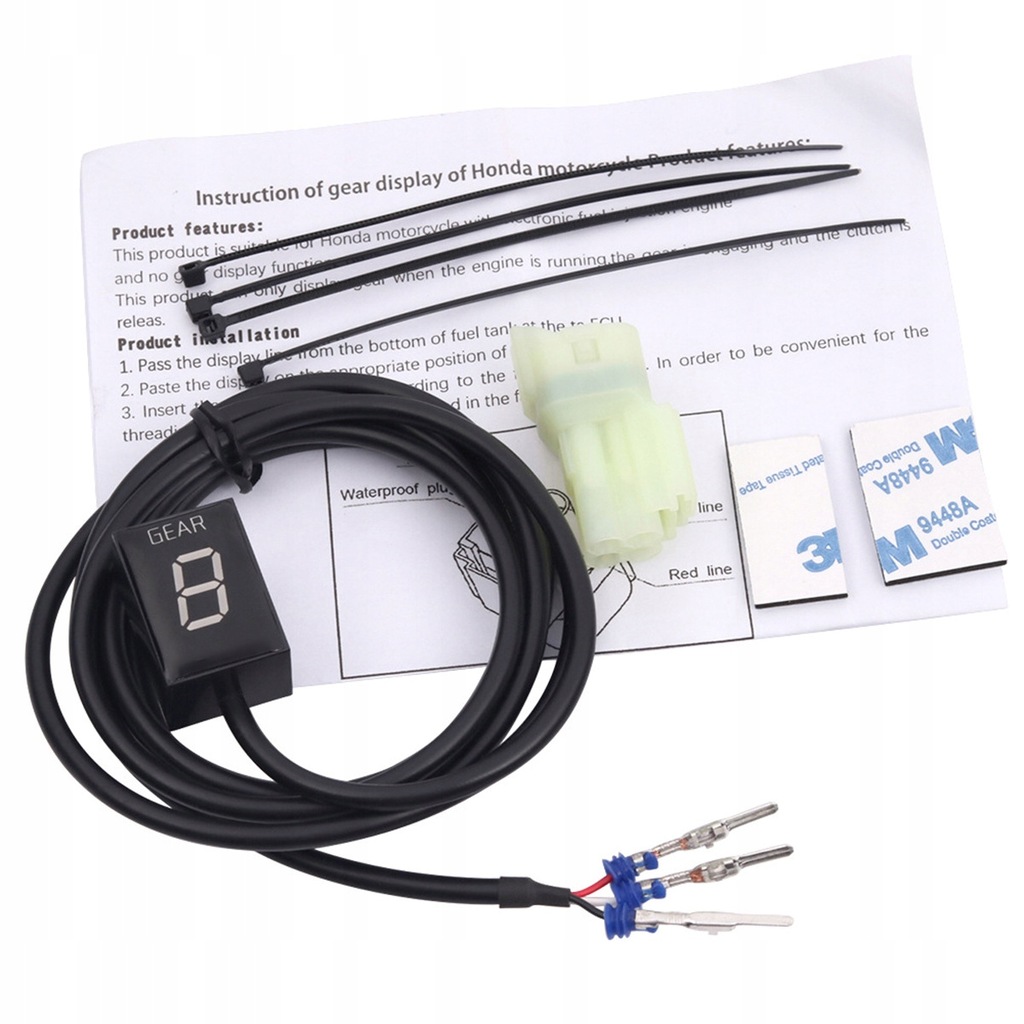

Product Installation
- Run the display line from the bottom of the fuel tank to the ECU.

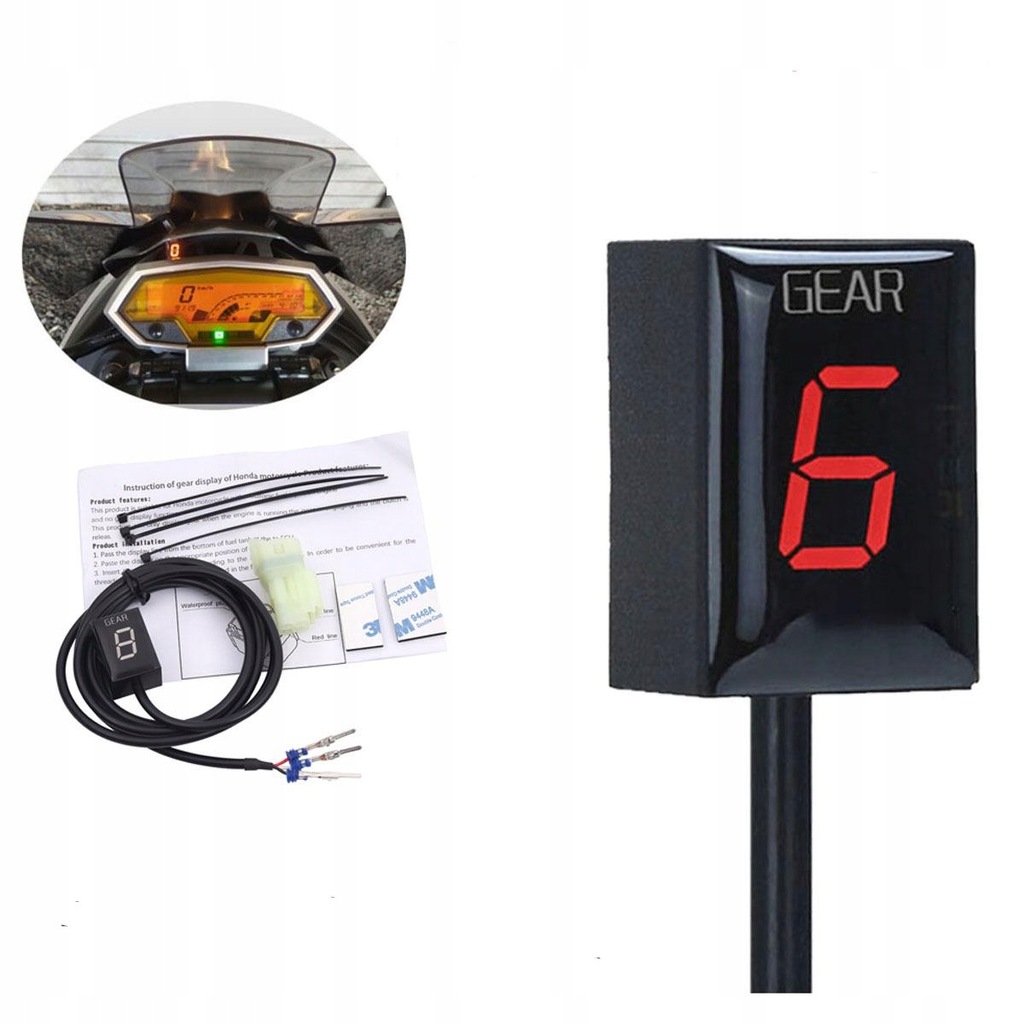

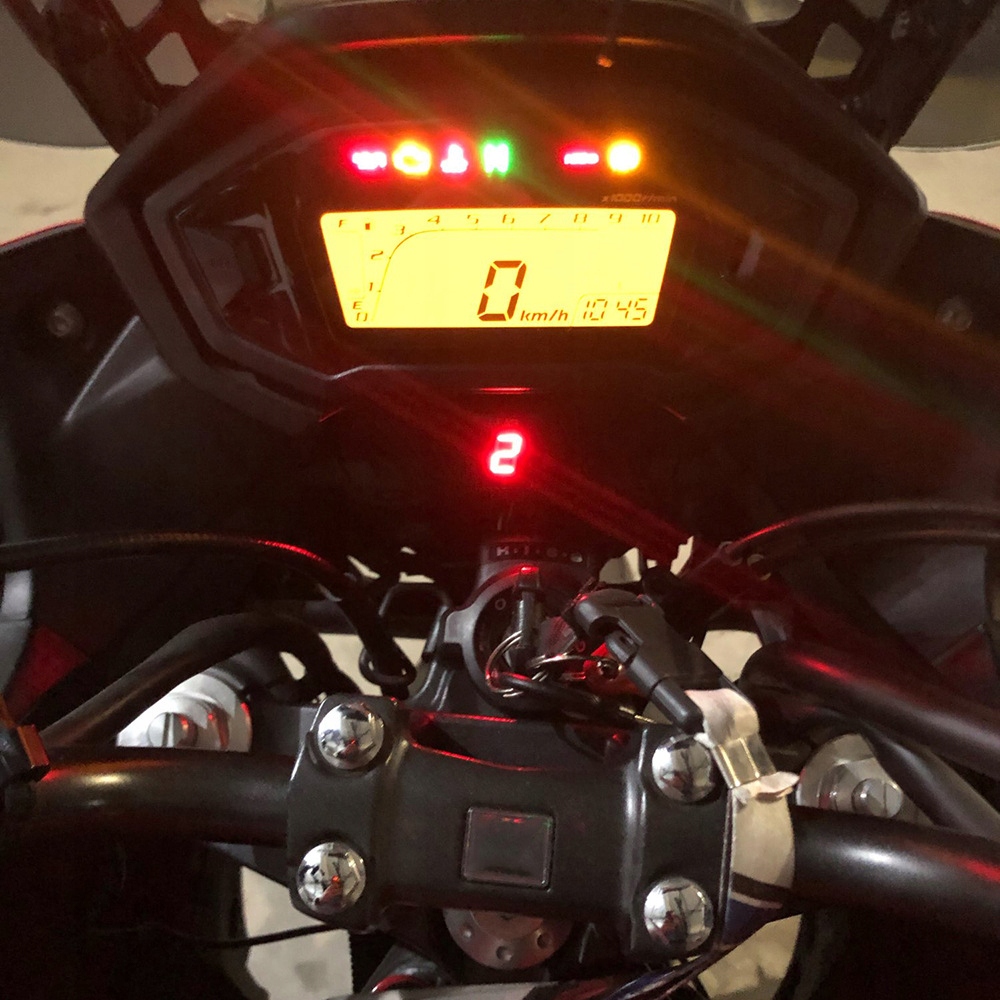

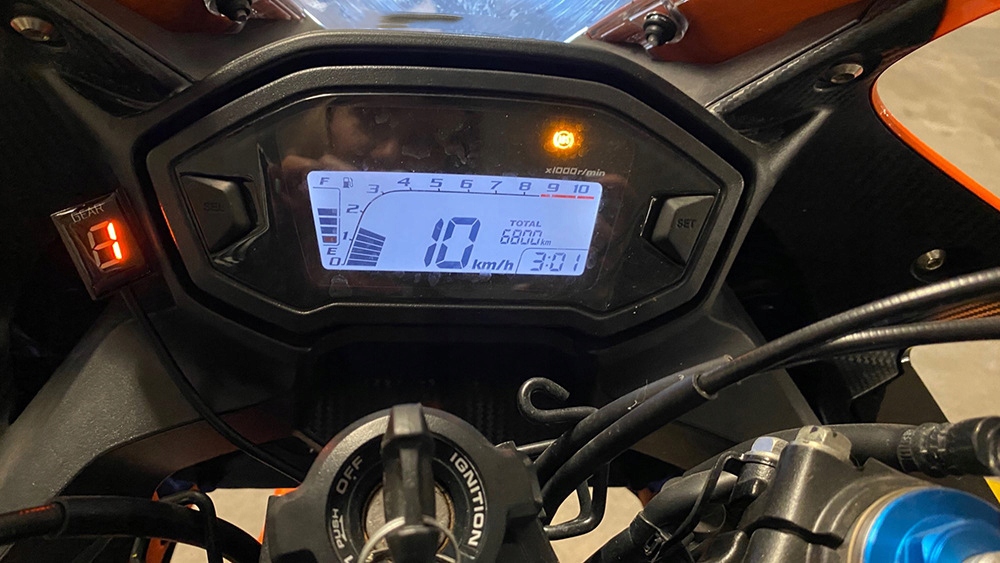

- Paste the display in the corresponding place on the front.

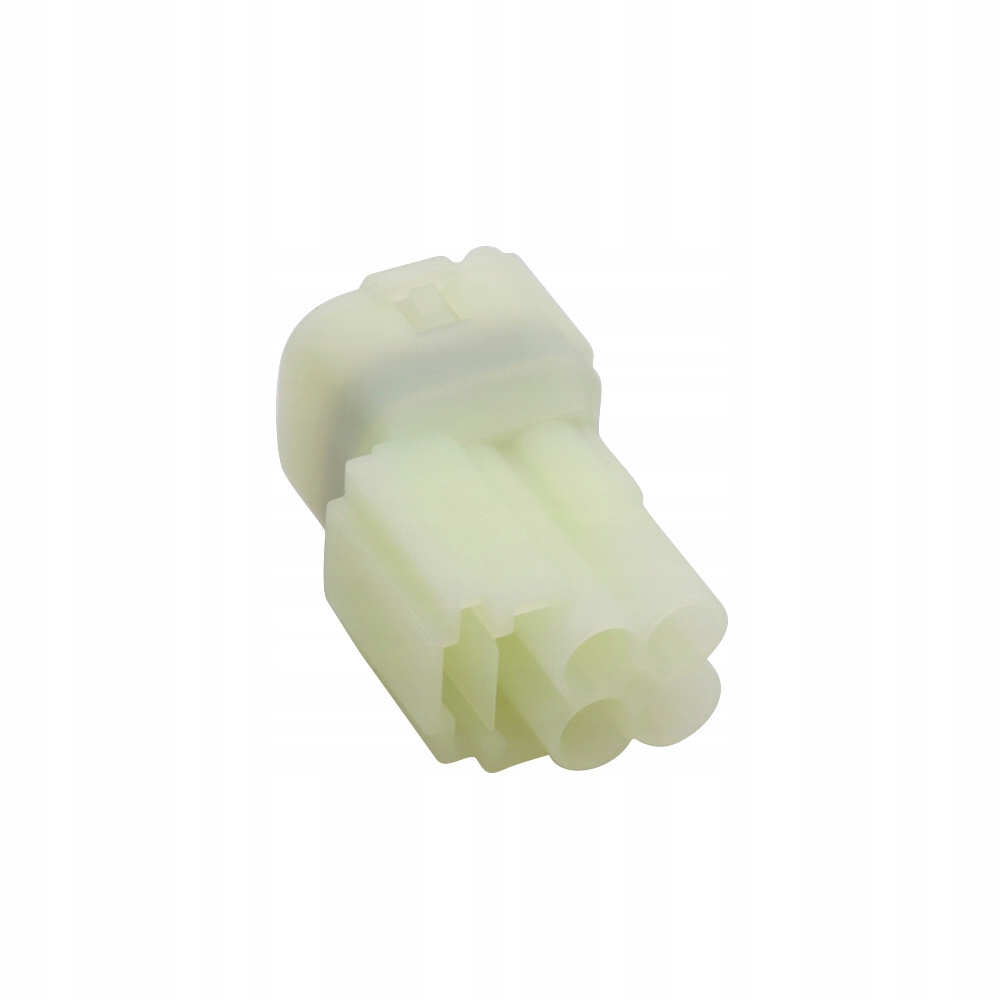

- Insert the pin into the plug according to the figure below. In order to facilitate users to screw, the pin is not inserted at the factory.
- Insert the plug into the matching socket on the ECU. Ensure safe and reliable contact between the plug pin and the socket.
- Terminate the wires. Make sure that they do not pull the wire pin when turning and that the wire pin does not rub against the high-temperature working parts. Fix the wiring harness tightly with matching cable ties.
Gear display setting
Due to the factory inspection, the remaining product information may not match your motorcycle, we first clear the information from the memory. If the gear display is not set correctly, you can also clear the information from the memory and set it again.
method of eliminating information from memory
Open the Switch key, then close yt while displaying "5,4,3", repeat five times, then you can eliminate the information from memory.
Reset the gear information that matches your motorcycle
- Raise the rear wheel or find an empty street.
- Make sure the engine is in neutral. Then fold the support frame and open the key. Start the engine when the gear displays "L". Engage the first gear and release the clutch, when it displays "1", the display will flash continuously and save the information.
- Engage the second gear and release the clutch, when it displays "n-2", the display will flash continuously and save the information. Repeat this procedure until all six gears are set.
- If there is any incorrect setting or incorrect display, clear the information from the memory and set it again.
- For Honda CB250F (with digital trip/odo) 2015
- For Honda CB300F 2015-2018
- For Honda CB400SF 2008-2017
- For Honda CB400X 2013-2016
- For Honda CB400F 2013-2015
- For Honda CB500F 2013-2018
- For Honda CB500X 2013-2018
- For Honda CB600F Hornet 2007-2013
- For Honda CB650F 2014-2018
- For Honda CB1000R 2008-2018
- For Handa CBR1000RR 2004-2018
- For Honda CB1100 (without ABS) 2010-2013
- For Honda CB1100 (ABS) 2010-2013
- For Honda CB1300 S/F 2003-2015
- For Honda CBF600 2008-2012
- For Honda CBF1000 F/FA 2006-2009
- For Honda CBR250 2015
- For Honda CBR300R 2015-2018
- For Honda CBR400R 2013-2015
- For Honda CBR500R 2013-2018
- For Honda CBR600F 2011-2013
- For Honda CBR600RR 2003-2018
- For Honda CBR650F 2014-2018
- For Honda CMX300 Rebel 2017
- For Honda CMX500 2017
- For Honda CRF250L/M All years
- For Honda Crossrunner All years
- For Honda CTX700 (without DTC) 2014-2017
- For Honda Fury 2010-2018
- For Honda Interstate 2010-2016
- For Honda NC400X 2013-2015
- For Honda NC700 S/X 2012-2017
- For Honda NC750 S/X 2014-2018
- For Honda NT700V Deauville 2006-2015
- For Honda Sabre 2010-2012
- For Honda Stateline 2010-2017
- For Honda VFR800 Interceptor 2005-2013
- For Honda VFR800X All years
- For Honda VT400 (FI model) 2009-2014
- For Honda VT750C (FI model) 2007-2017
- For Honda VT750S (FI model) 2007-2009
- For Honda VT1300 (all) 2010-2016
- For Honda VTX1800 2005-2012
- For Honda XL125V Varadero 2007-2014
- For Honda XL700V Transalp (non-ABS) 2008-2014
- For Honda XL700V Transalp (ABS) 2008-2014
- For Honda XL1000V Varadero 2003-2012
- For Honda TRX ATV (FI model) all years
- For Honda CB300R 2018-2019
- For Honda GL1800 2005-2017
- For Honda CTX1300 2014-2015
- For Honda ST1300 2008-2015
- For Honda VTR250 2009-2014
