WIFI Signal Booster

Effectively increase the Internet coverage in your home!

Compatible with all 2.4G routers. It has the ability to configure WPS and connect to LAN.

In addition, it can be configured in the browser.

Two working modes

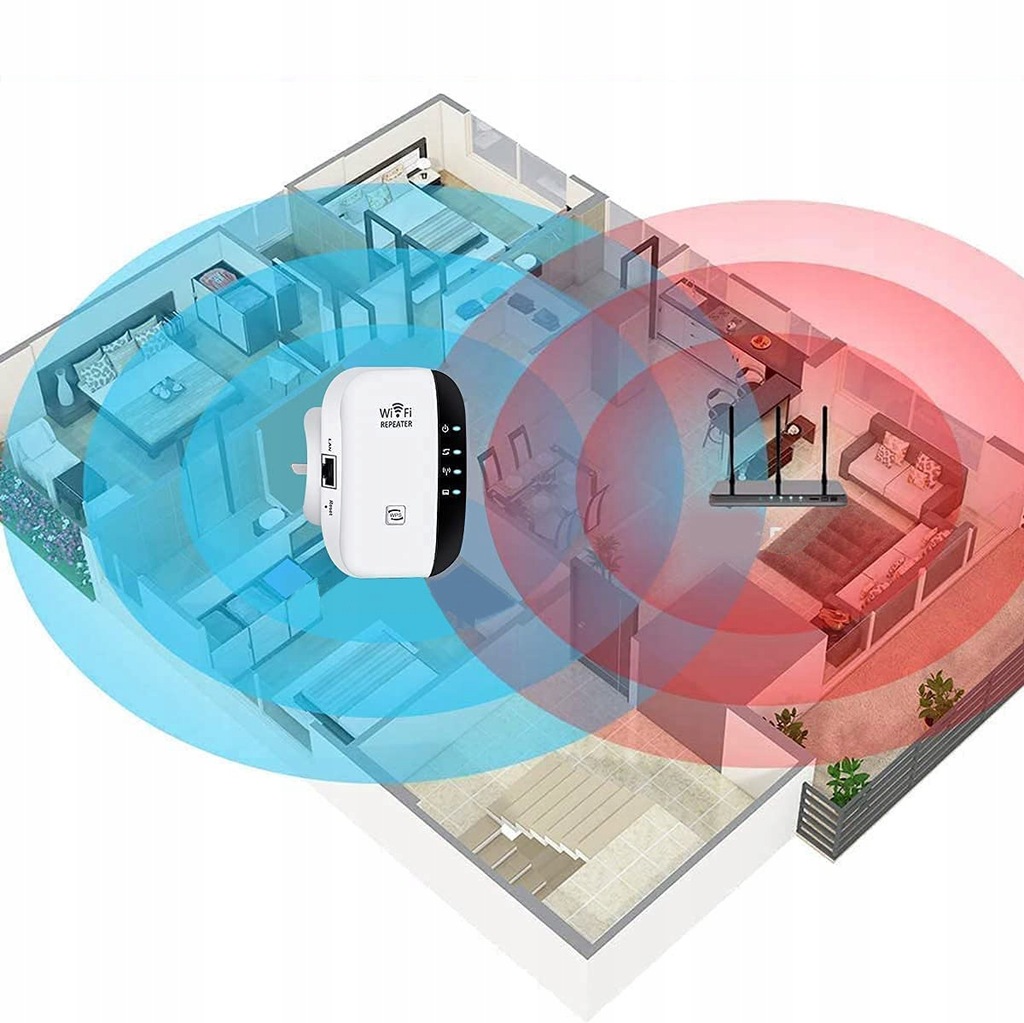

1. Repeater mode: Connect the repeater to your router wirelessly and boost the signal. Advantages? You can expand the reception range of your home WiFi network without laying cables.

2. AP mode: Connect your internet router to the repeater using a LAN cable, creating two independent network broadcasting points - just like setting up 2 routers at home! Advantages? This solution allows you to maintain signal quality and data transmission speed.

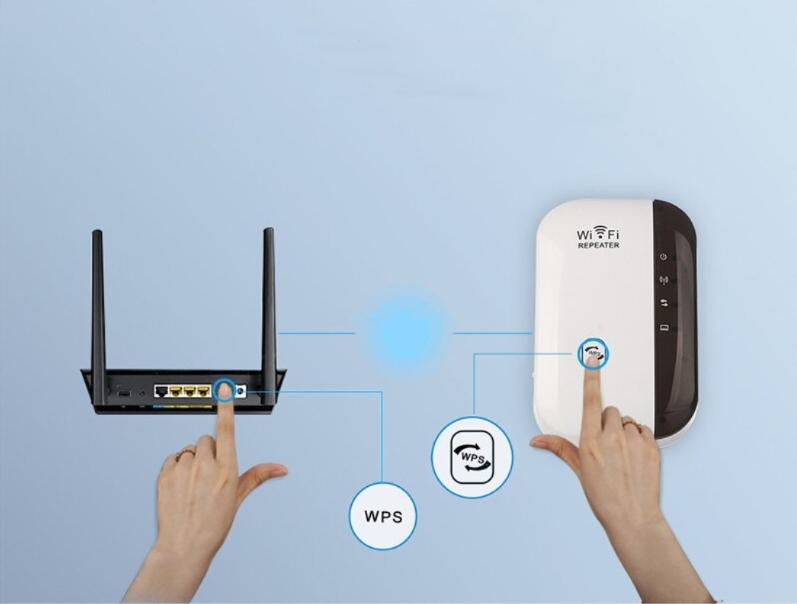

Easy connection - Can the router and repeater connect in one click? Yes! With WPS, all you need to do is connect our amplifier to power and press the WPS button on both devices at the same time. Press them for about 2 seconds and you're done!

Specifications:

Specifications:

Power supply: AC 230V/50Hz

Operation mode: Access point, router, repeater

Two-way LAN port - for receiving or transmitting signals

Number of users using the device: Up to 10 people

Wireless range: Up to 100m

Frequency: 2.4GHz

Data transmission: Up to 300 Mb/s

Transmission strength: <20dBm(EIRP)

Antenna: 2x built-in

Chipset: MTK7628KN

Security: WEP, WPA/WPA2, WPS (64/128 bit)

Standard: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Number of RJ45 LAN ports: 1 10/100Mbps port

Compatibility: Windows, iOS, MAC, Linux

Operating temperature: 0℃～40℃

Device size: 82mm x 53mm x 85mm

You can also configure the device in a few steps:

Connect to the device via LAN cable using a smartphone or computer

Enter the address 192.168.11.1 in the browser

Select the operating mode (Repeater, Access Point)

Enter your network details and you are done!

The default login details are:

User: Admin

Password: Admin

️Package includes:

✔️ Repeater

✔️Original packaging

✔️ User manual

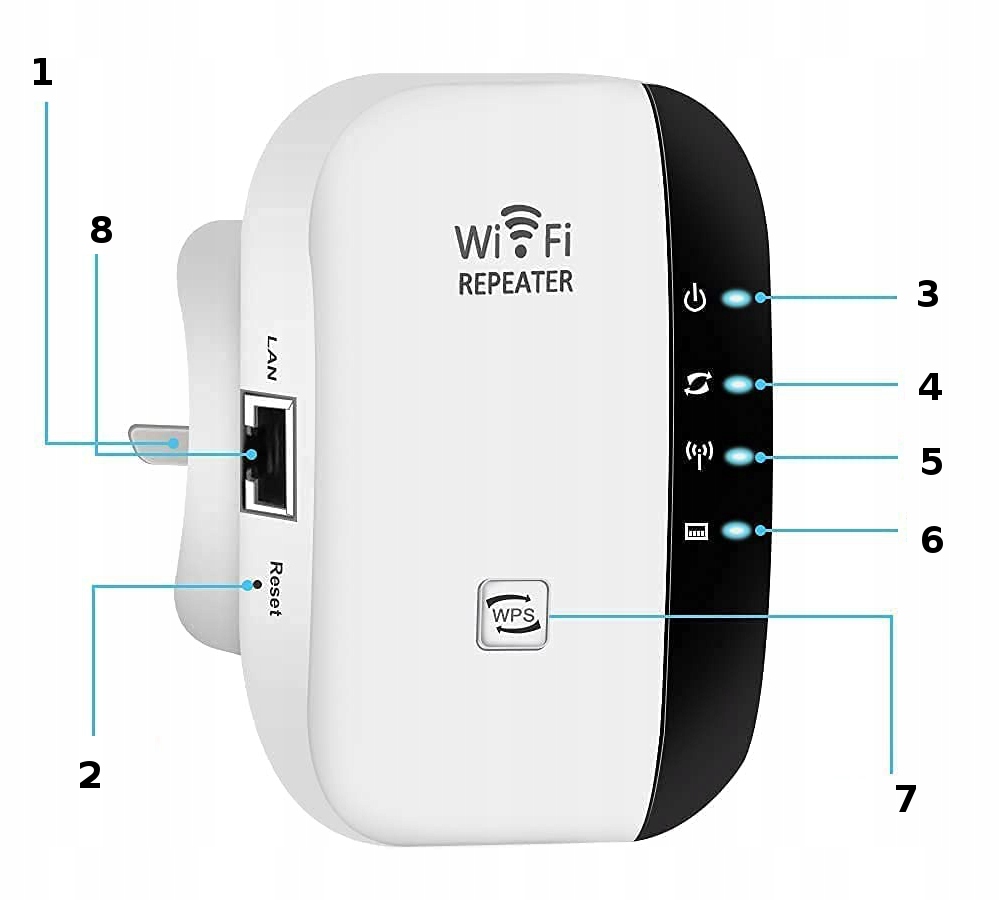

1. Polishing plug to socket

2. Device reset

3. Operation signal

4. WIFI signal

5. WPS signaling

6. LAN signaling

7. Button to start WPS

8. LAN socket
