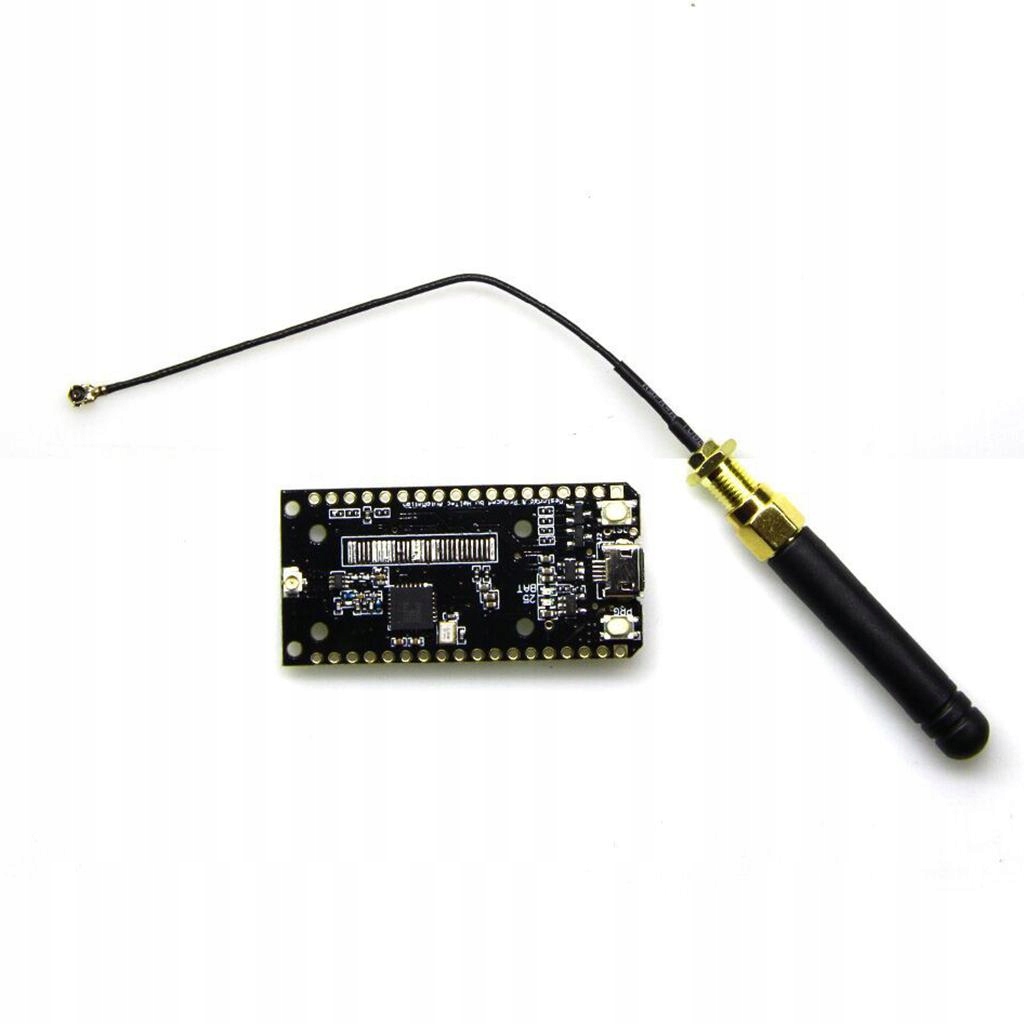

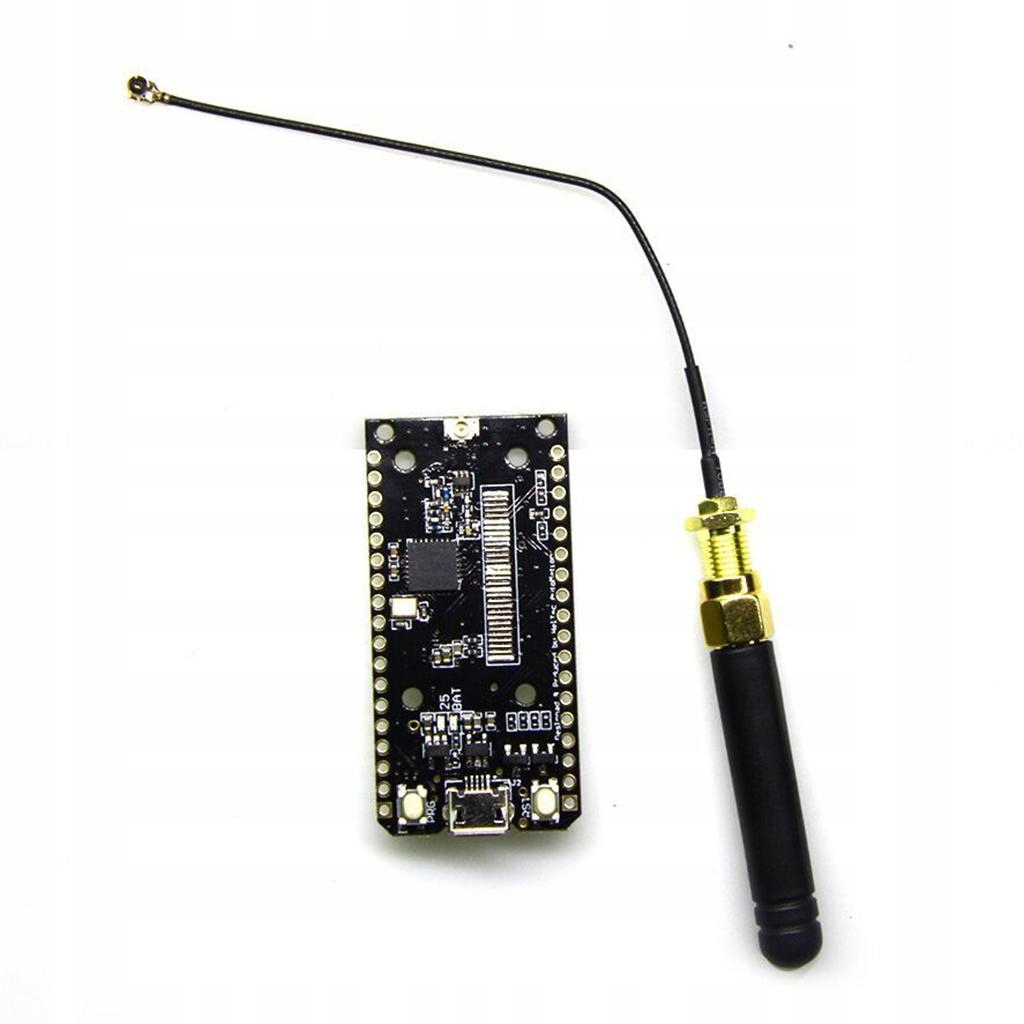

ESP32 Bluetooth WIFI Module with Antena Internet Development Board

Description:

The main chip uses Lexin ESP32, Tensilica LX6 dual-core processor.

The main frequency is 240MHz, the computing power is up to 600DMIPS, the chip has 520 KB, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP.

The product is based on WIFI 32 added SX1276 chip, namely LoRaTM remote modem, frequency 868 / 915MHz.

Sensitivity is about -148dBm, power output + 20dBm, high reliability.

Onboard 128MByte flash memory, Wi-Fi antenna, lithium battery charging circuit and interface, CP2102 USB to serial chip, perfect support for Arduino development environment.

Specification:

Material: PC Board

Size: Approx. 52 x 25 x 8mm / 2.05 x 0.98 x 0.31inch

Working voltage: 3.3V to 7V

Support for Sniffer, Station, softAP and Wi-Fi Direct modes

Data rate: 150Mbps @ 11n HT40, 72Mbps @ 11n HT20, 54Mbps @ 11g, 11Mbps @ 11b

Transmit power: 19.5dBm at 11.5dB, 16.5dBm at 11g, 15.5dBm at 11.5dB

Receiver sensitivity up to -98 dBm

UDP continues to throughput at 135 Mbps

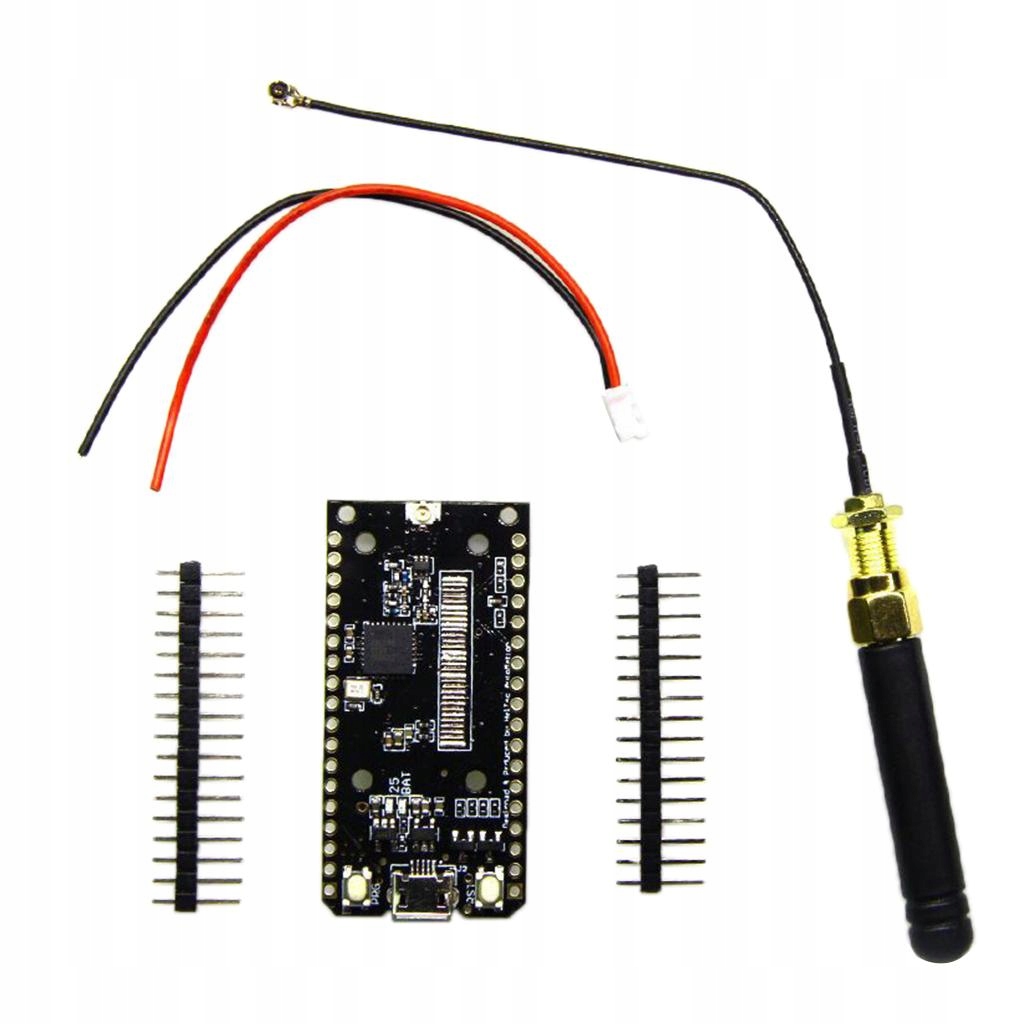

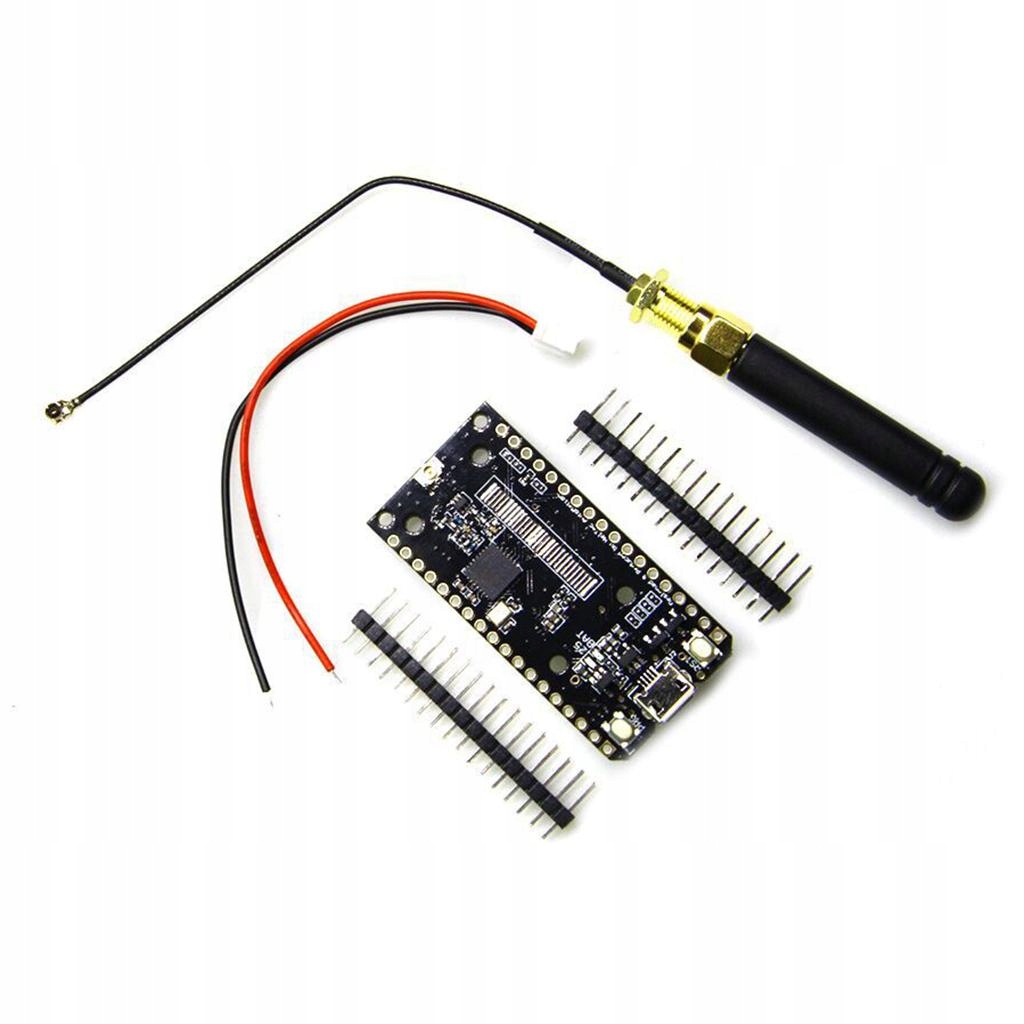

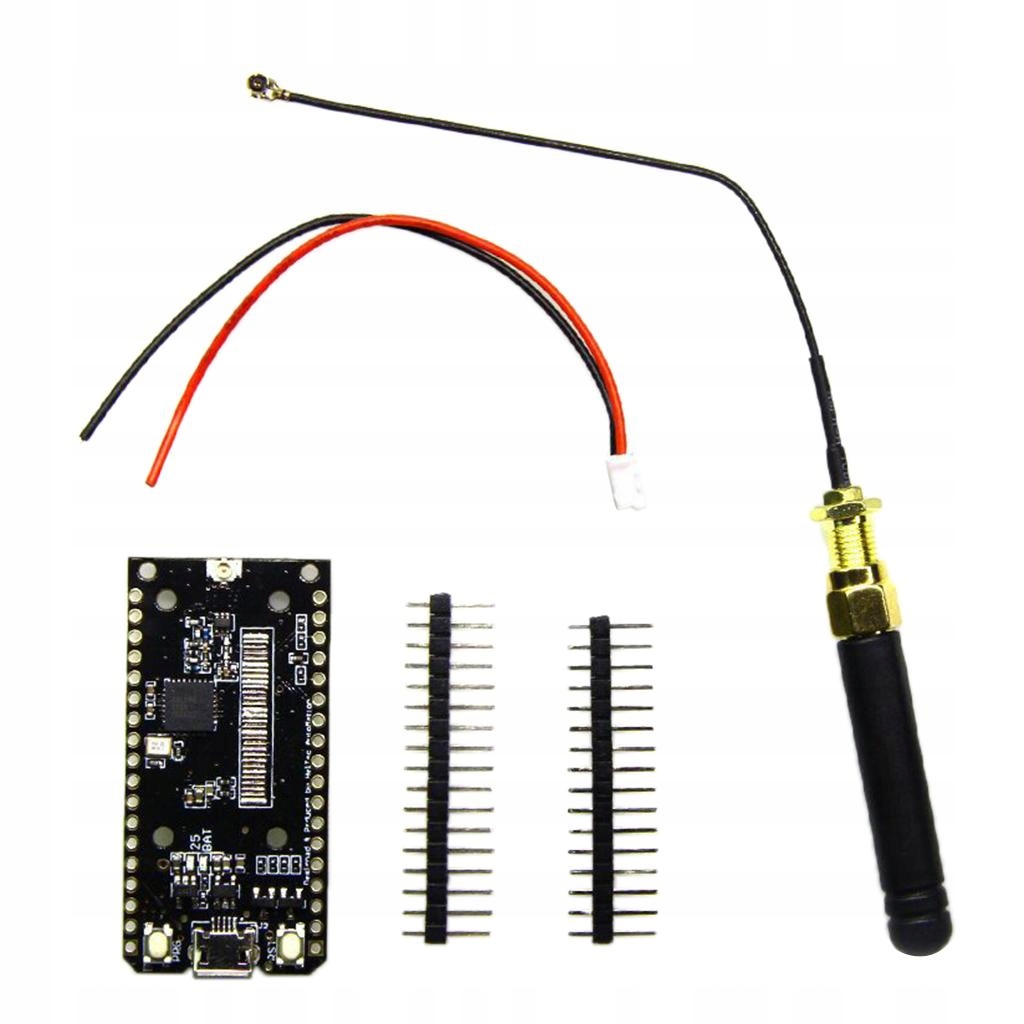

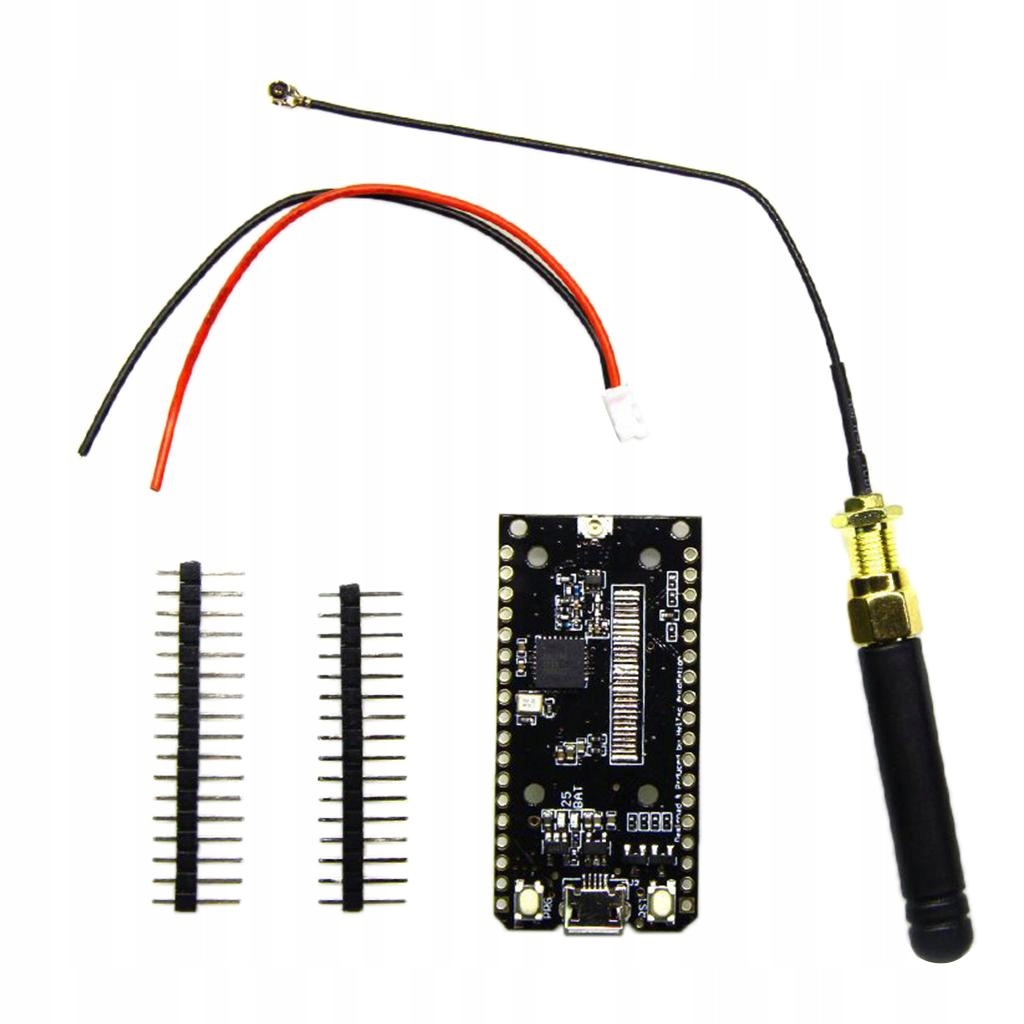

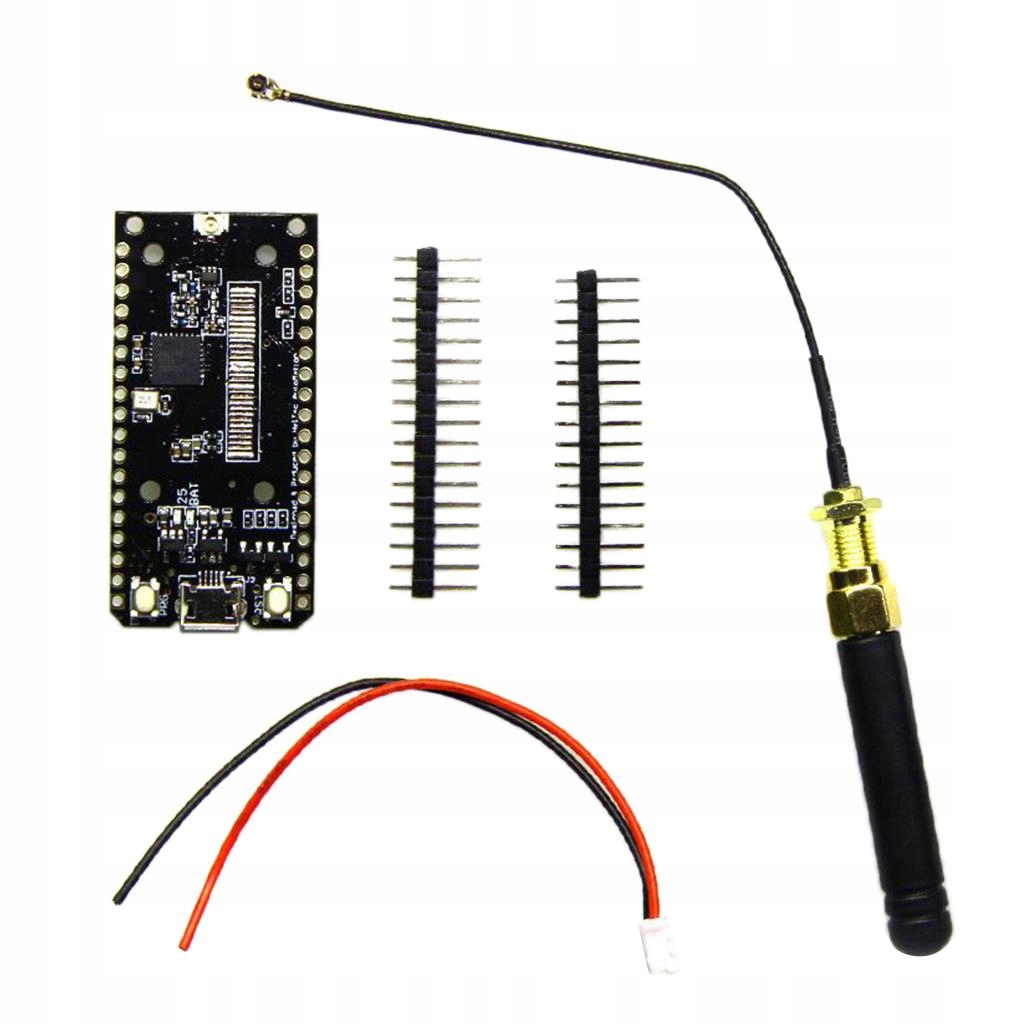

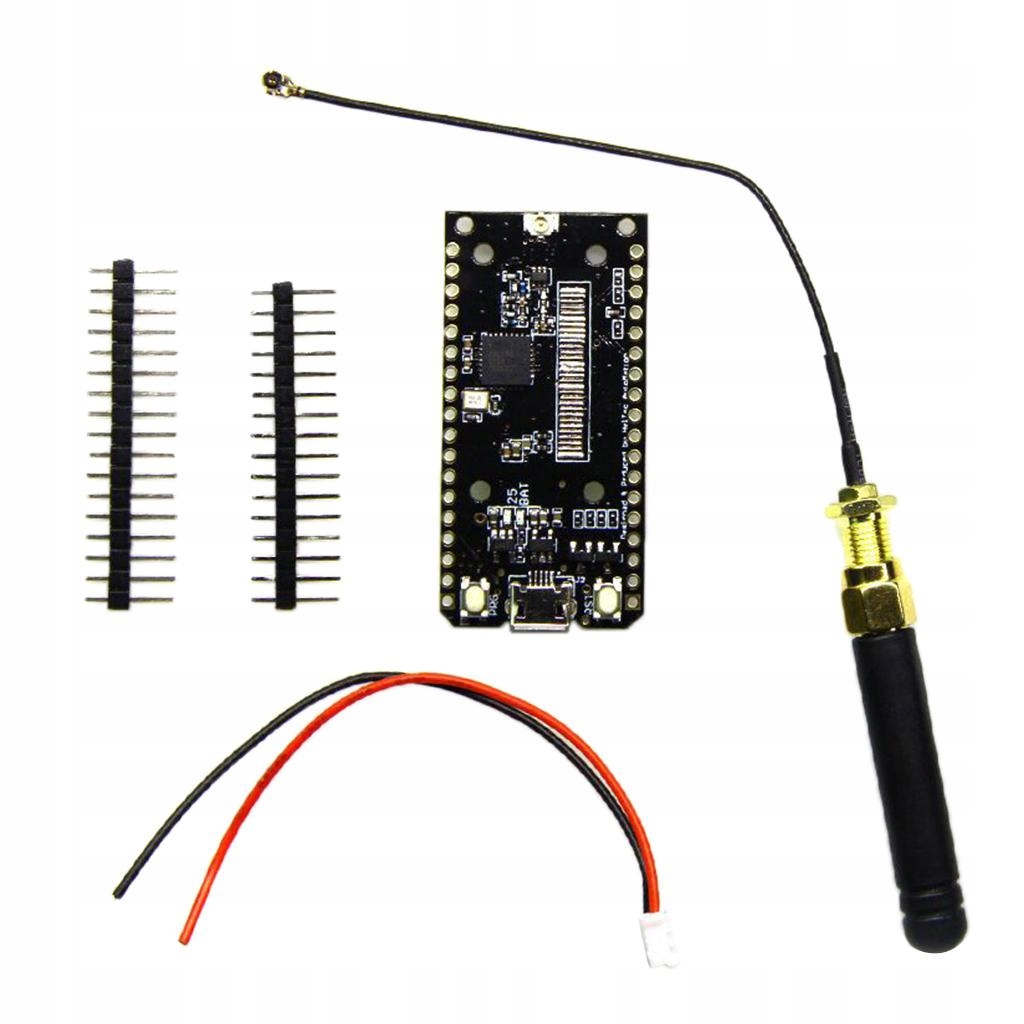

Package Includes:

1 Piece ESP32 868MHz WIFI Module

1 Piece Antenna

1 Piece Line

2 Pieces Pins
