Description

Do you need a safe and practical multimeter to check your electric appliances or to repair them? If yes, this can be your best choice. and of , it is very durable and professional.

Features

Color: Orange

Material: ABS

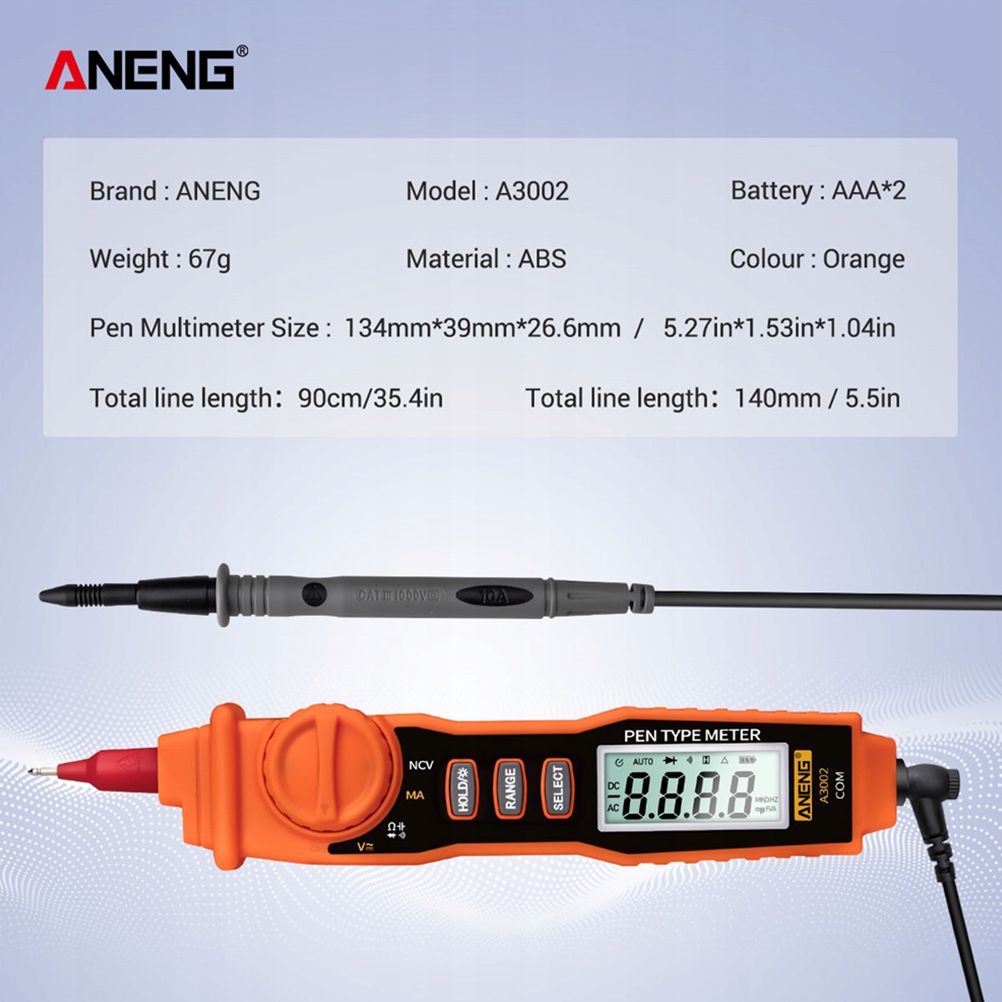

Size: 13.4X3.4X2.9cm/5.27X1.34X1.14in

Multifunction: this multi meter can measure voltage, AC current, resistance, continuity, capacitance, measuring diode.

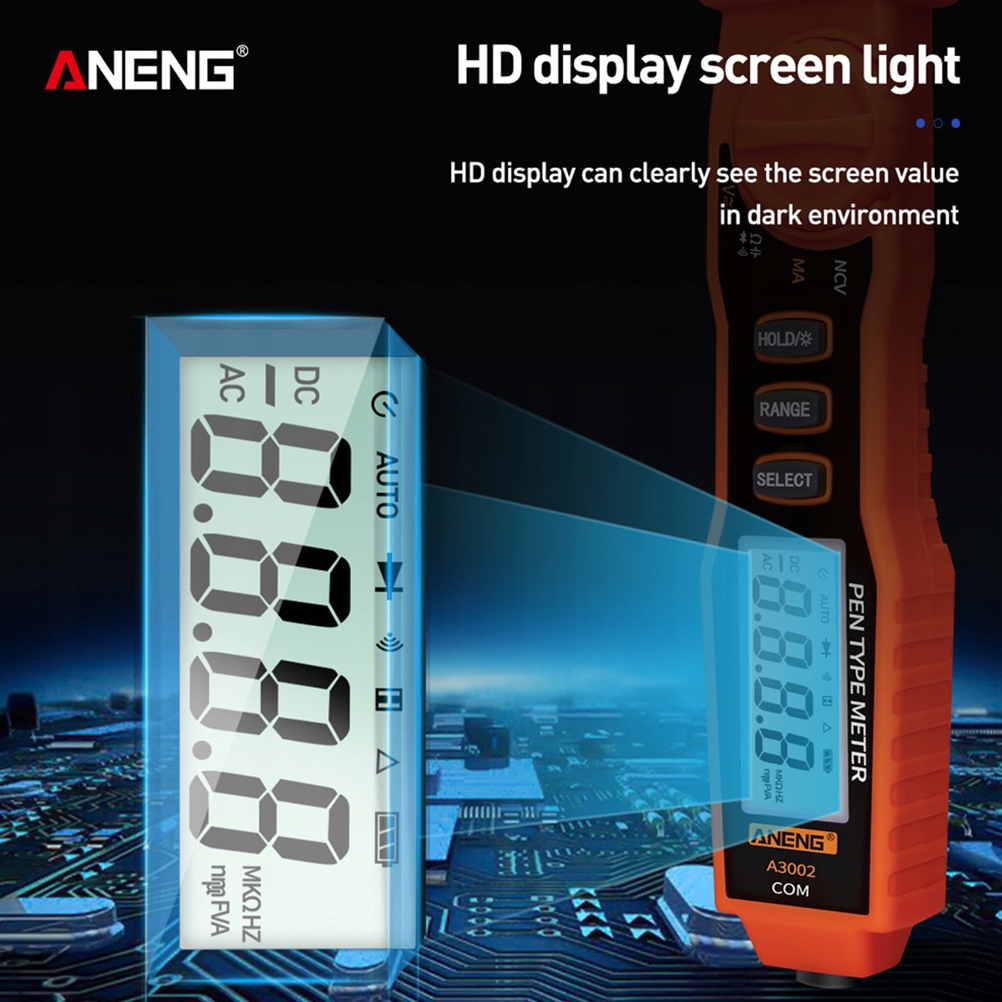

Easy to read: This multi meter has a large screen for easy reading.

Data retention: Simply press the "hold" button to maintain the measured data for easy operation.

LED flashlight: LED working lamps have high brightness and low power consumption, which help to illuminate the working space in the dark.

Simple operation: The measuring range can be adjusted manually. Just press the "Select" button to select the function.

Portability: Compact size, compact design, light weight, perfect into the toolkit.

Specification:

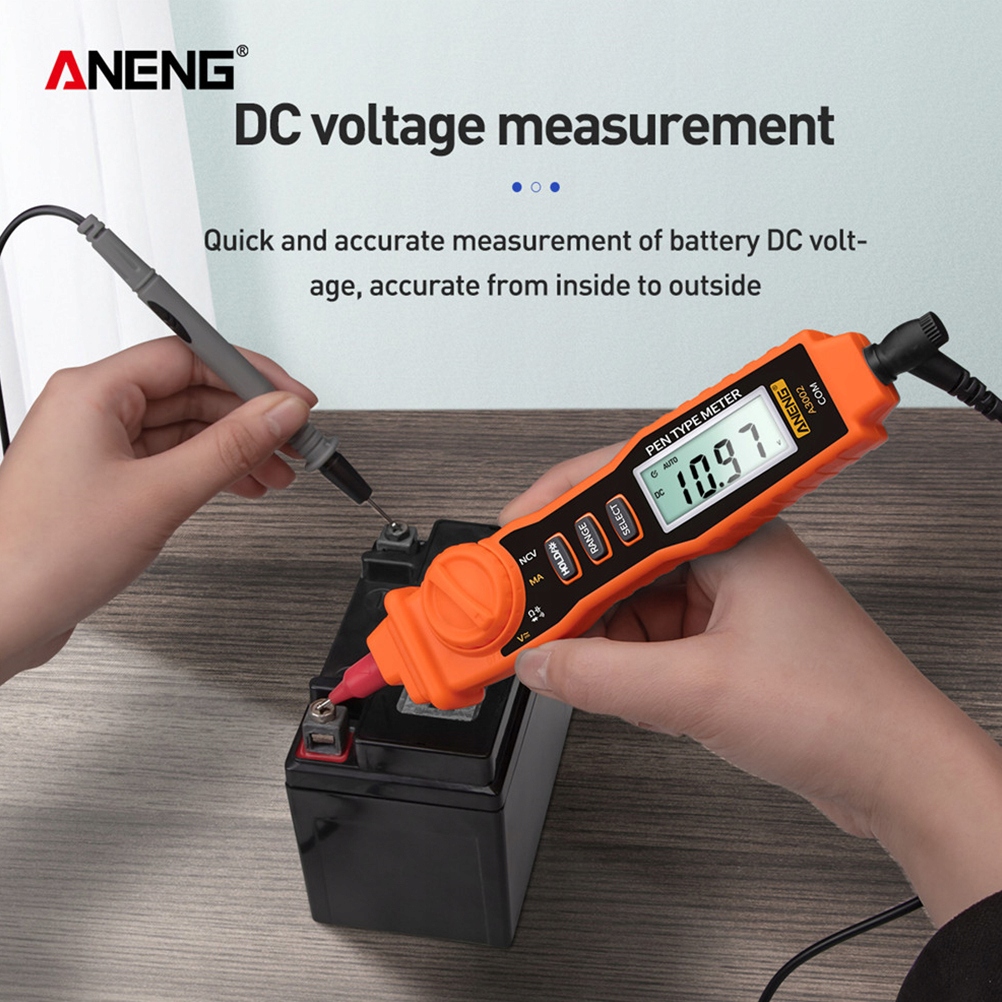

DC voltage: range 400mV~600V;Resolution: 0.1MV ~1V;Accuracy ±(1% reading +2D)

AC voltage: range 4mV~600V;Resolution: 1mV~1V;Accuracy ±(1.2% reading +3D)

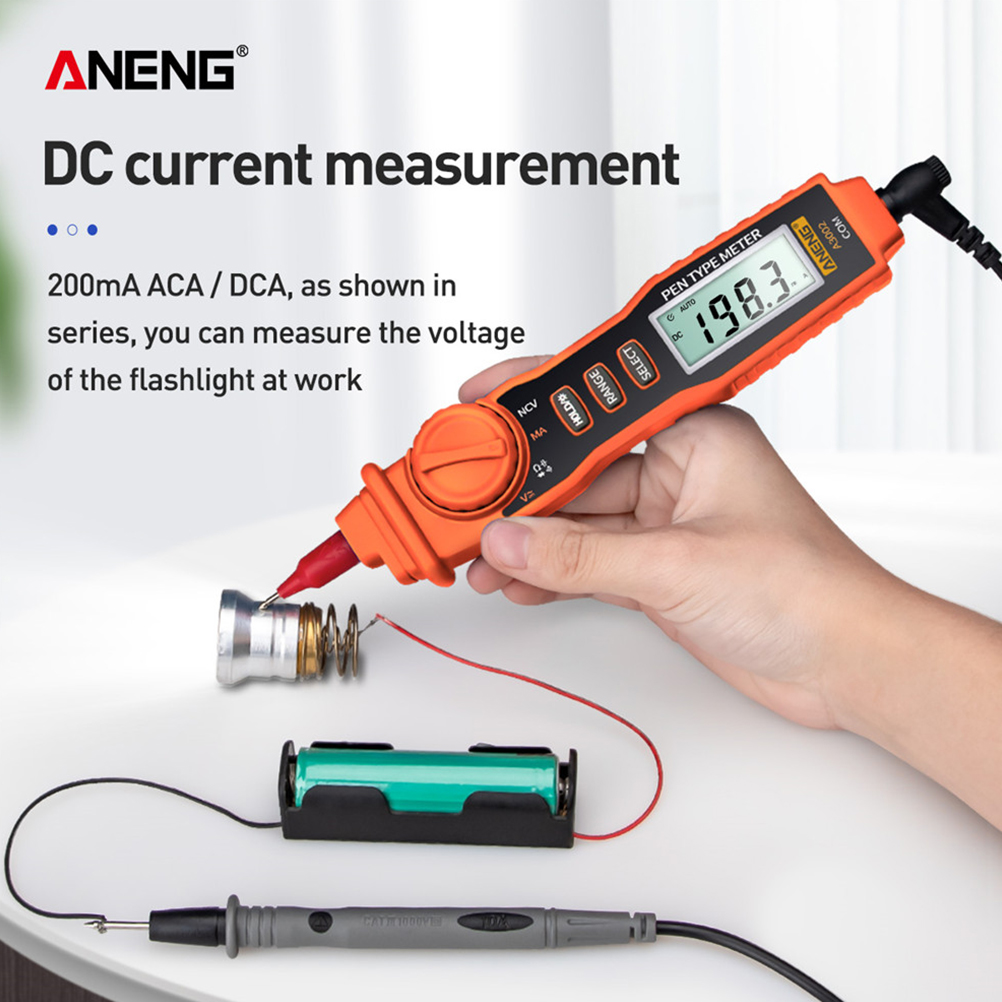

DC current: range: 40mA~200mA;Resolution: 0.01mA~0.1mA;Accuracy ±(1% reading +5D)

AC current: range of 40mA~200mA;Resolution: 0.01mA~0.1mA;Accuracy ±(1.2% reading +8D)

On off buzzer: The builtin buzzer will sound if the resistance is less than 30 ± 200

Resistance: range 400Q ~40MQ;Resolution 0.10~10kN;Accuracy ±(0.8% reading +1D)

Capacitance: range 4nF~4mF;Resolution 0.001nF~1uF;Accuracy ±(3% reading +5D)

packageList

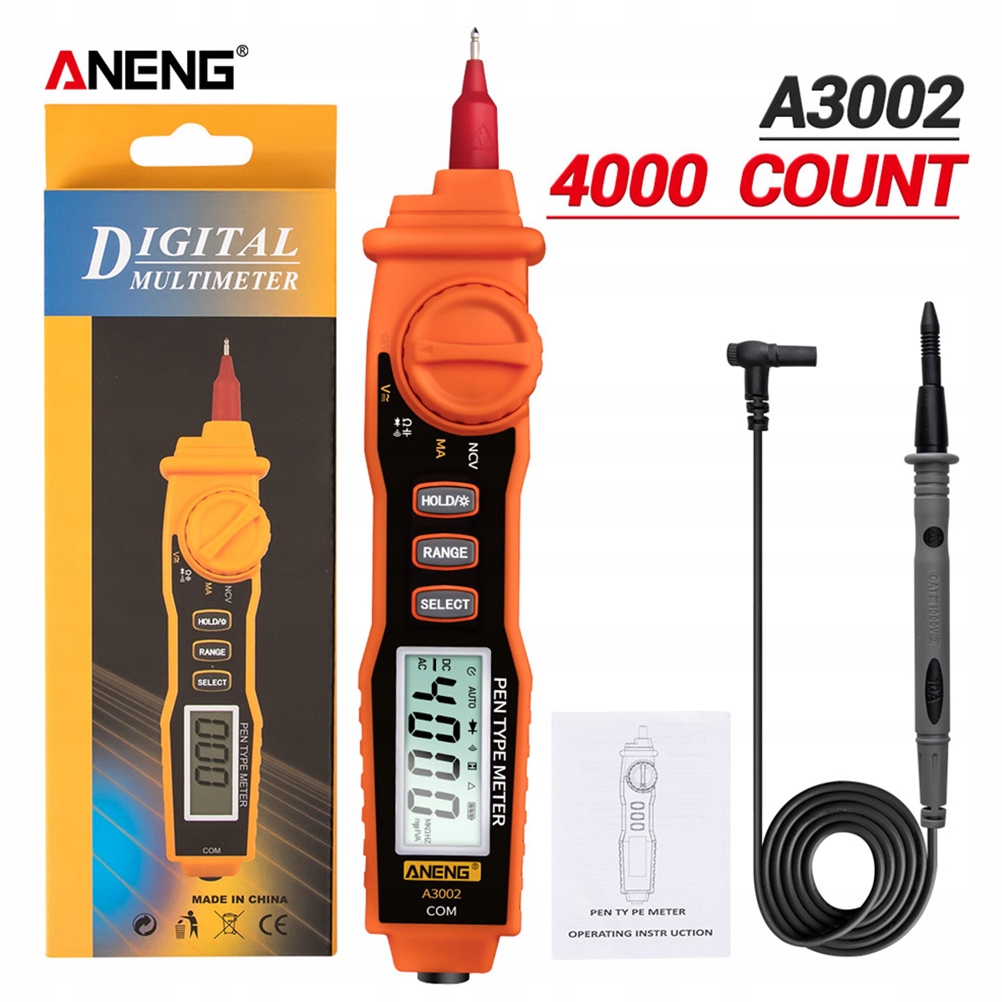

1 X Pen-type digital multimeter

1 X Test line

1 X Instruction Manual
