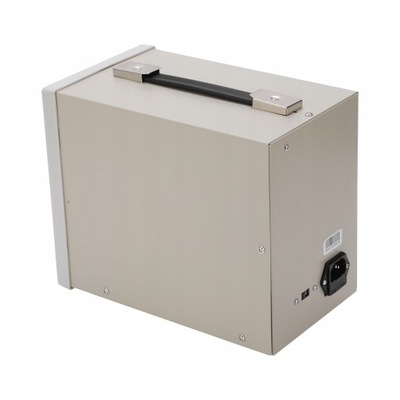

TSG17 100KHz150MHz High Function Generator - 17162572407

Feature:1. Advanced circuit design, the electronic components it uses are very good to ensure that the accuracy deviation is very small.

2. High frequency signal is provided, it generates 100KHz~150MHz signal frequency, ±3% third harmonic can reach 450MHz.

3. Large-scale signal conversion, 1KHz modulation signal can reach 80% or 100% modulation, external modulation can be freely modulated at 50Hz~20KHz.

4. Cast iron material, it is wear-resistant and durable, which can greatly extend the service life.

5. Small size, light weight and portability, can be used to measure in many situations.

. TSG17 100KHz150MHz High Function Generator

Specification:Article type: signal generator

Model: TSG-17

Material: Iron

Plug: EU 10A-18A/250V

Purpose: It can supply high frequency energy or standard high frequency signals to various electronic devices and circuits.

Frequency band A: 100 KHz-300 KHz

B: 300 KHz-1 MHz

C: 1 MHz-3,2 MHz

D: 3MHz-10MHz

E: 10MHz-35MHz

F: 32MHz-150MHz

Frequency range 100KHz-150MHz

Frequency accuracy ±5%

Output waveform RF/AM signal waveform

Output Impedance 600 Ω

RF> 100Mvrms (Frequency Range ≤35MHz)

Level control 1mV-100mV

External modulation 150HZ-1,5KHz, amplitude modulation is adjustable in the range of about 0-30%.

Working environment 50Hz-20KHz

. TSG17 100KHz150MHz High Function Generator

How to use: Turn on the equipment, connect the wires and start measuring after adjusting the range.

. TSG17 100KHz150MHz High Function Generator

Package List:1 x Signal Generator

1 x Signal Test Line

1 x Manual

. TSG17 100KHz150MHz High Function Generator
