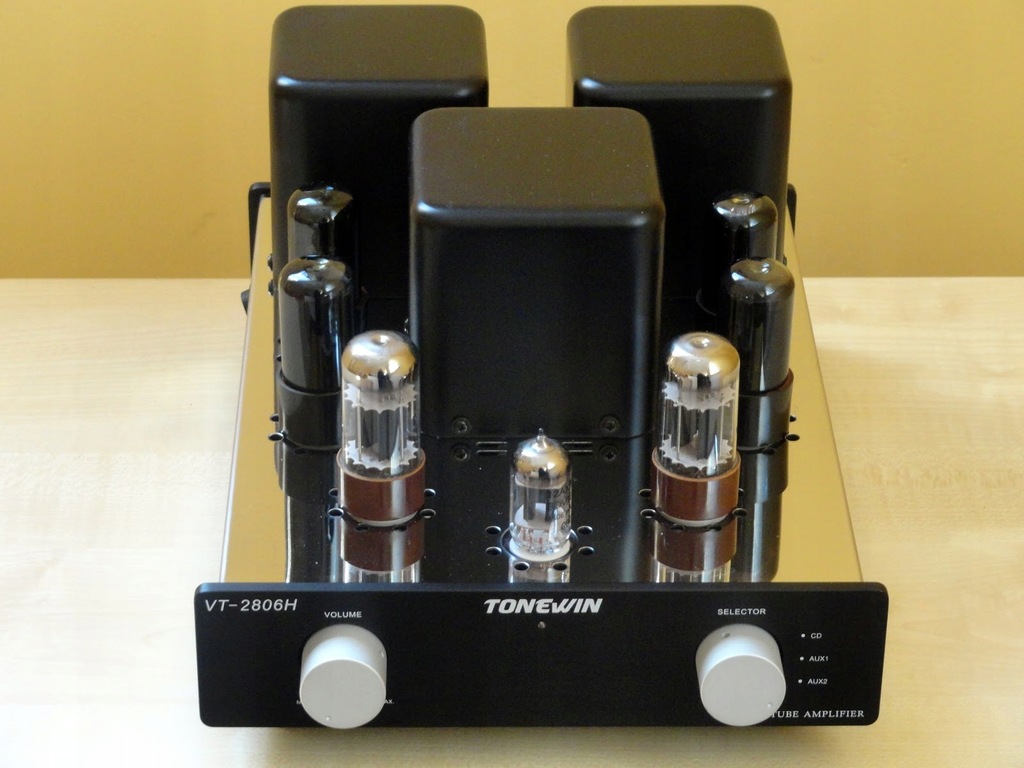

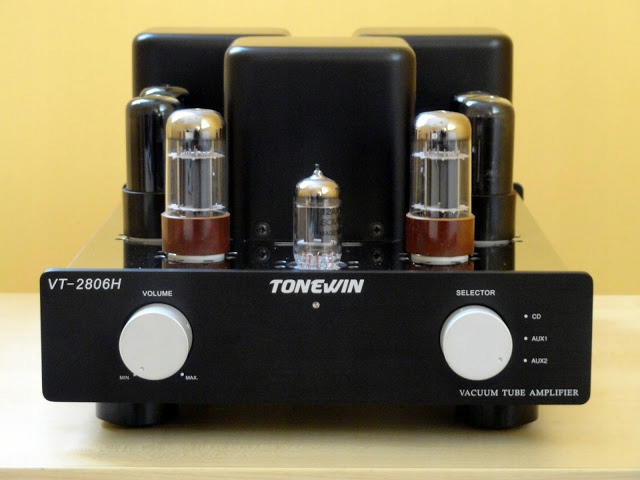

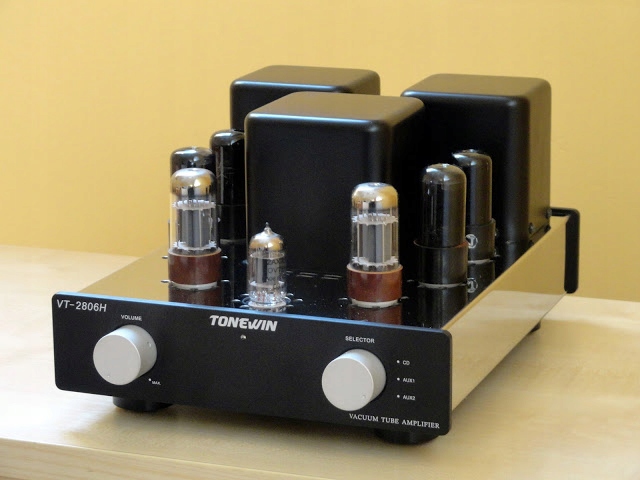

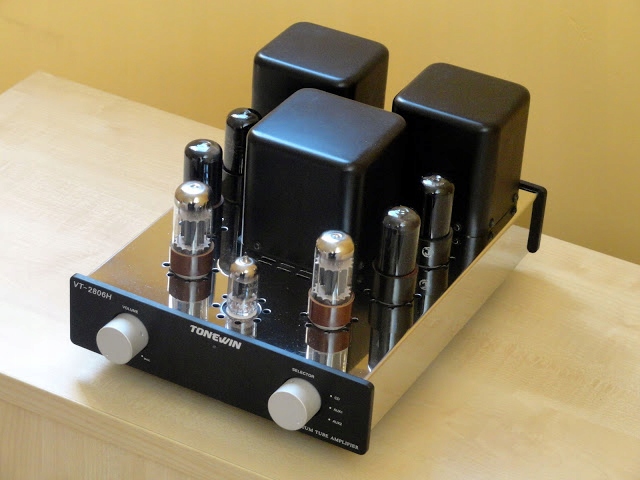

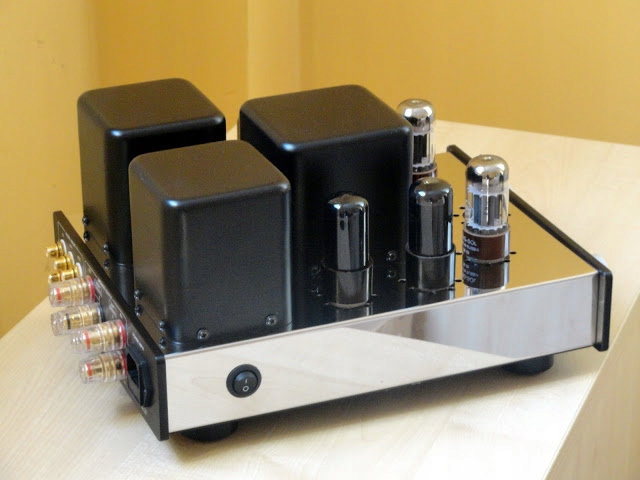

Tonewin Model No.:VT-2806H

cena to 50% nowego w USA

stan idealny jak nowy, oryginalna dokumentacja i podwójny karton

nowe lampy mocy NOS z lat 60

nowe audiofilskie lampy sterujące

blog ze zdjęciami i opisem sprzedawanego wzmacniacza

https://6v6tube.blogspot.com/

obecnie produkowany i sprzedawany tylko przez firmę w USA przez:

Audio Nirvana  6V6  Ultralinear amplifier

David Dicks

CommonSense Audio

34 Wild Horse Way

Chesterfield, Missouri 63005

USA

zobacz:

http://www.commonsenseaudio.com/

http://www.positive-feedback.com/Issue61/audionirvana.htm

https://www.facebook.com/AudioNirvana/

http://tonewin.en.hisupplier.com/product-131118-Amplifier.html

http://miraclefull.com/product_show.asp?id=443

http://www.ultrahighendreview.com/audio-nirvana-monitor-loudspeaker-and-6v6-ultralinear-integrated-amplifier/

http://audiofederation.com/blog/2014/10/12/commonsense-audio-audio-nirvana-firestone-audio-rmaf-2014

Dane techniczne

INPUT IMPEDANCE: 100Kohm (RCA)

OUTPUT IMPEDANCE: 4 ohm-8 ohm

OUTPUT POWER: 12W (ULTRALINEAR) CLASS AB P-P

DAMPING FACTOR: >3

FREQUENCY RESPONSE: 20Hz-20KHz -1dB

T.H.D.: <1% 20Hz-20KHz (RCA OUTPUT)

TOTAL GAIN: 28dB

INPUT SENSITIVITY: 300mV-600mV

S/N: >90dB (HUM NOISE <1.5mV)

CHANNEL BALANCE: <1dB 20Hz-20KHz (MAX. VOLUME)

CHANNEL SEPRATION: >65dB 20Hz-20KHz

TUBE COMPLEMENT:

6P6S (6V6) x 4 NOS 10.1965 49mA/49mA; 48mA/48mA

6SN7 (6N8P) x 2 NOS Tung-Sol

ECC83 (12AX7) x 1 Haltron 1,07/1,07mA

POWER REQUIREMENT: AC 220V or 110V±5%. 50~60Hz

DIMENSION: 420mm x 310mm x 245mm (W×L×H)

N.W.: 10.50 KGS G.W.: 13 KGS

Audio Nirvana 6v6 Ultraninear Tube Amplifier

45 years of experience tells us that the best sounding 'push-pull' amplifiers use 'ultralinear' output transformers. Our 6V6 Ultralinear is based on several 'classic' circuits, but refined by our audio engineer of many years experience. Powerful, quick, deep, solid state type bass. Extended highs, smooth tube midrange. Why the 6V6? This is basically the ancestor of the EL84/6BQ5, but with a much larger glass envelope. As such, it runs cooler, lasts longer, and has less microphonics. 6SN7 and 12AX7 small signal tubes (the best sounding for each role). Handles three sets of inputs. 12 watts per channel, but with enormous reserves. If your speakers need more power than this, then you're not using quality speakers. High efficiency speakers use large magnets. You can't have great sounding speakers with small magnets. The amplifier uses an enormously powerful toroidal power supply, protected in a real potted case (not a dummy one as many companies use). Output transformers are massive and feature the extra set of windings that ultralinear circuits require--and are handwound in our own factory. Parts are chosen for the best possible sound quality--not because we want to impress you with 'boutique' names. Each amplifier is beautifully hand assembled and tested. To maintain the superb sound, there are no adjustments to be made--ever. Self biasing, no AC or DC balance to adjust. And made with the fewest parts possible and best sounding tubes. Beautiful polished stainless steel chassis--not cheap chrome over pressed steel that will chip and rust. Gold plated solid metal binding posts--not cheap plastic ones that most modern tube amps have. Quality Alps volume pot. 115/230 volt selector. The only amplifier designed with the best sounding speakers in the world--Audio Nirvana Full-Range.
