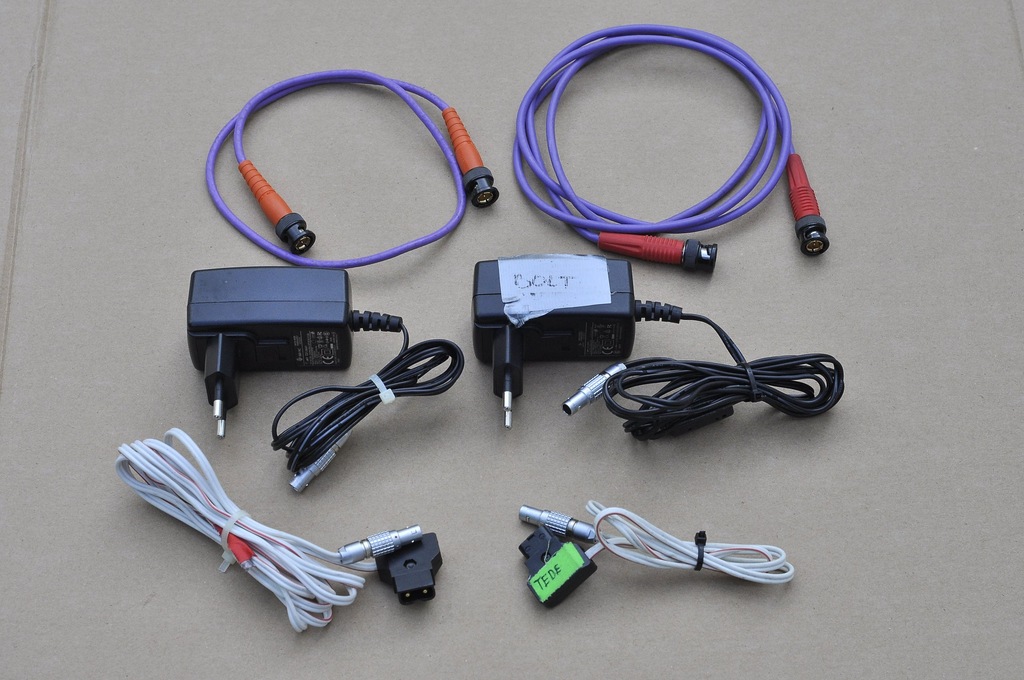

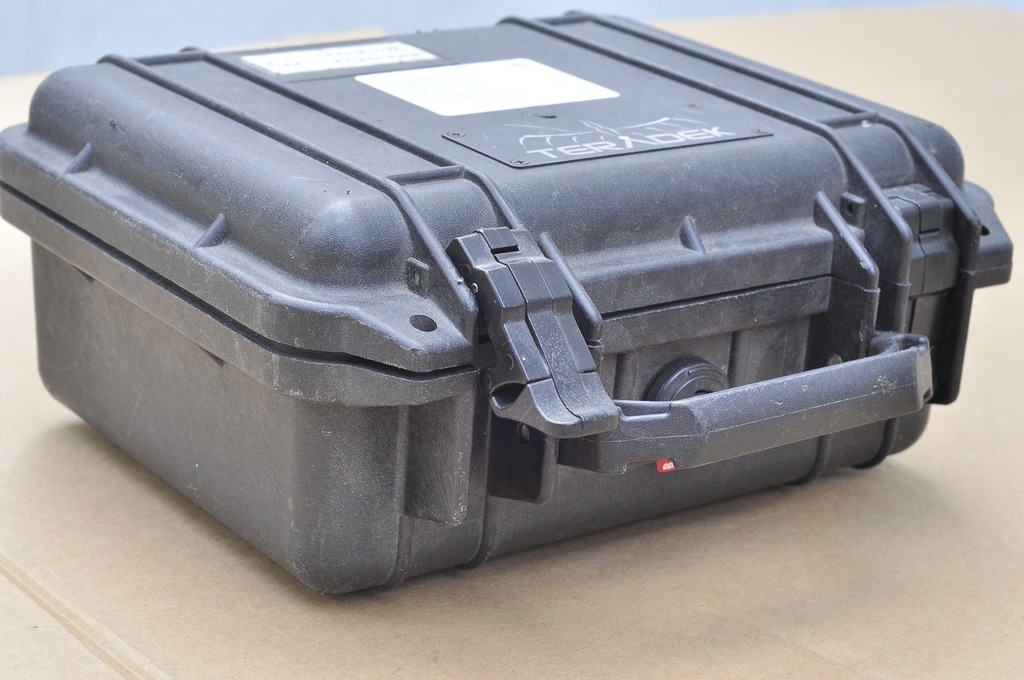

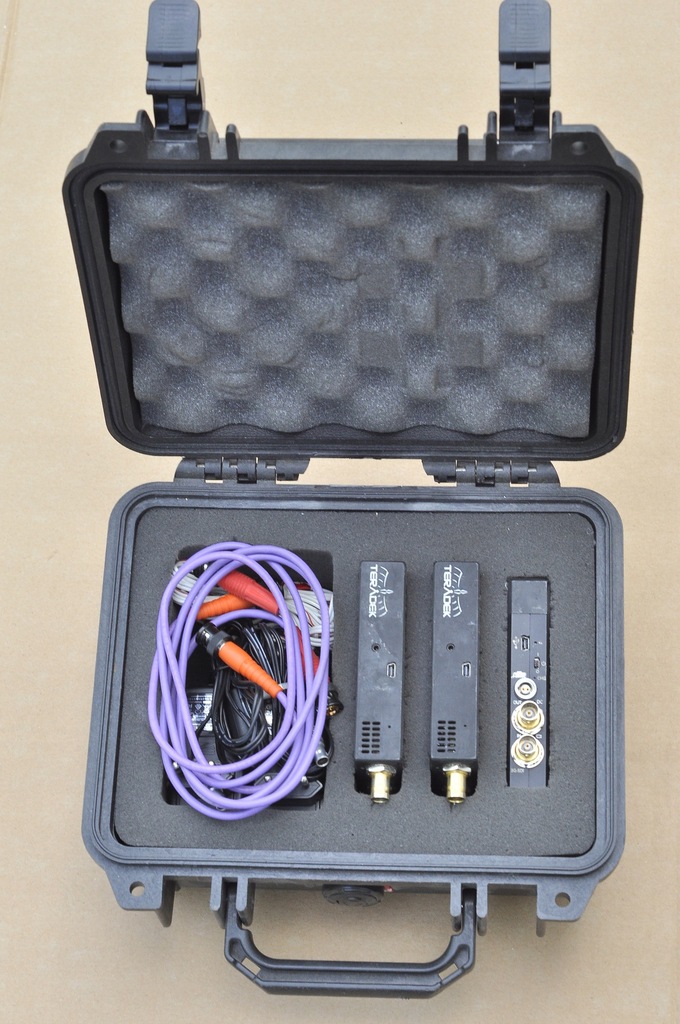

Sprzęt w 100% sprawny w komplecie co widać na zdjęciu, lewy zatrzask w walizce słabiej trzyma

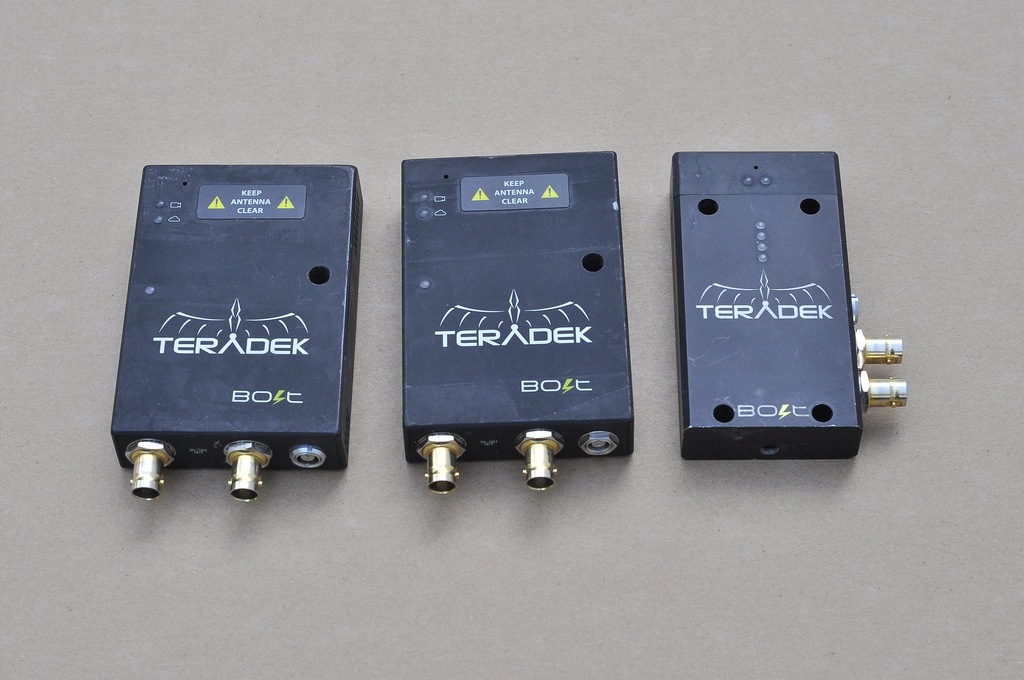

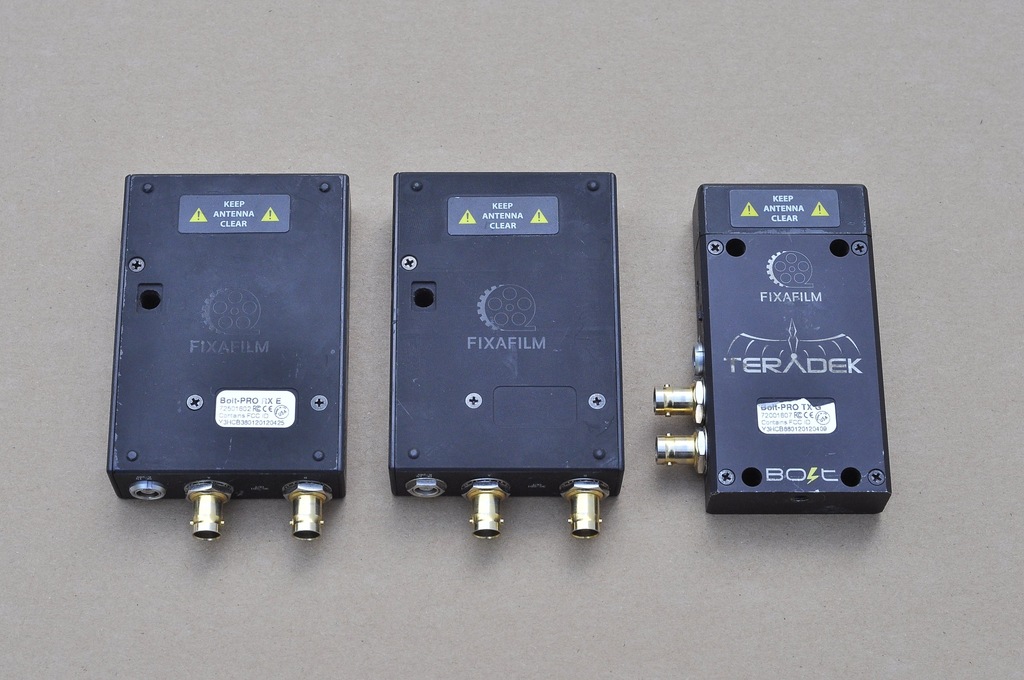

The Teradek Bolt Pro -732 Multicast Wireless Transmission System is a latency-free wireless transmission system that sends 4:2:2, 1080p60 video at up to 300ft. This Bolt Pro system comes in a set of 1 transmitter and 2 receivers. The transmitter features a loop through SD/HD/3G-SDI output, so you can transmit video, and send the output from the camera to a monitor or deck. The transmitter features an internal battery, that can run the unit for up to 60 minutes, and it features 4-LED indicator lights that indicate battery level.

The Bolt Pro system is suitable for exterior and interior shoots, and it features Dynamic Frequency Selection that allows it adjust the frequency bands it is using in real time to avoid interference. This Bolt Pro comes with 2 receivers that feature 2 x SD/HD/3G-SDI outputs, however it can also transmit to a Bolt receiver that features an HDMI output, allowing you to take SDI in, transmit, and output via HDMI or SDI depending on the type of receiver you are using. You can also mix and match SDI & HDMI receiver units, up to a total of 4.

1 TX to Multiple RX

The Bolt Pro system simultaneously transmits full 1080p60 video to up to 4 receivers.

Connectivity

The Bolt transmits uncompressed video using WSDI Pro, which provides a wireless range of up to 300' (91.4m) and can co-exist with other wireless equipment by dynamically adjusting the frequency bands used in real time.

LED Indicators

The transmitter and receiver each feature LED indicators for Video signal, and Link. The transmitter also features 4 LEDS that indicate internal battery strength. On the side of the transmitter are additional LEDS that indicate battery charge, DC power in, and Video Signal. The receiver features Video, Link, and Ready LED indicators.

Rugged & Low Power

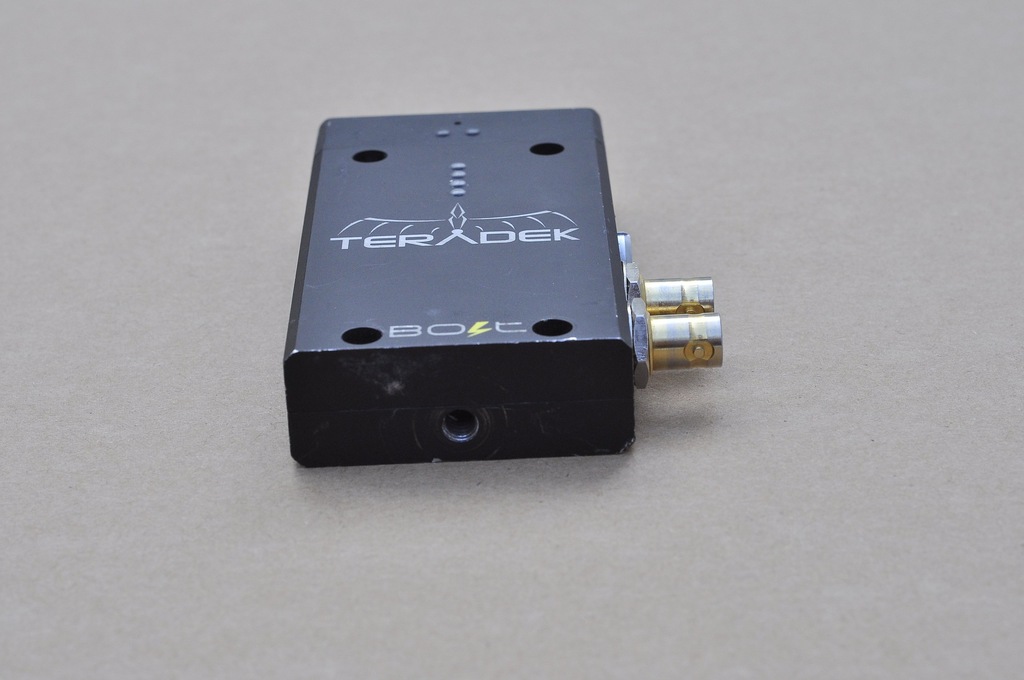

Bolt transmitters are housed in a 7 oz milled aluminum chassis with six 1/4"-20 mounting holes. The receiver is enclosed in a durable ABS plastic shell. The transmitter requires approximately 4W of power, while the receiver consumes only 6W. To power these units for long periods of time, a Lemo to P-tap cable (included) can be used to connect with external power sources such as V-mount or AB Gold-mount batteries.

Bolt Pro's internal Li-Ion battery provides up to 60 minutes of run time and can be charged via its micro USB port or its LEMO DC input.

OVERVIEW

This Teradek Bolt 732 Pro Wireless HD-SDI Multicast Video Transmitter Dual Receiver Set captures up to 1080p wireless video up to 300 feet away. Includes a loop through of 3G-SDI Output on the transmitter. The receivers include dual SD/HD/3G-SDI Outputs. The transmitter runs on approximately 4.5 W of power while the receivers use about 6 W. Both receive DC input power in the 6-28V range.

The transmitter is housed in a milled aluminum chassis with 6x 1/4"-20 mount holes. The receiver features lightweight ABS plastic shell.

The internal rechargable Li-ion battery offers up to an hour of run time. You can recharge the battery via miniUSB or the DC LEMO input port.

Features:

SD/HD/3G-SDI Input

3G-SDI Output, with loop through

Supports up to 1080p60 resolution

Wireless range: up to 300 feet

Charge over miniUSB or DC Input

128 bit AES encryption

2-Channel Audio

Hotshoe mount

Can coexist with WiFi and 5GHz cordless phones

Receiver Size: 2.95 x 4.33" (75 x 110 mm)

Transmitter Size: 2.28 x 4.33" (58 x 110 mm)

Operating Temperature: 32° to 122°F (0° to 50°C)

Transmitter

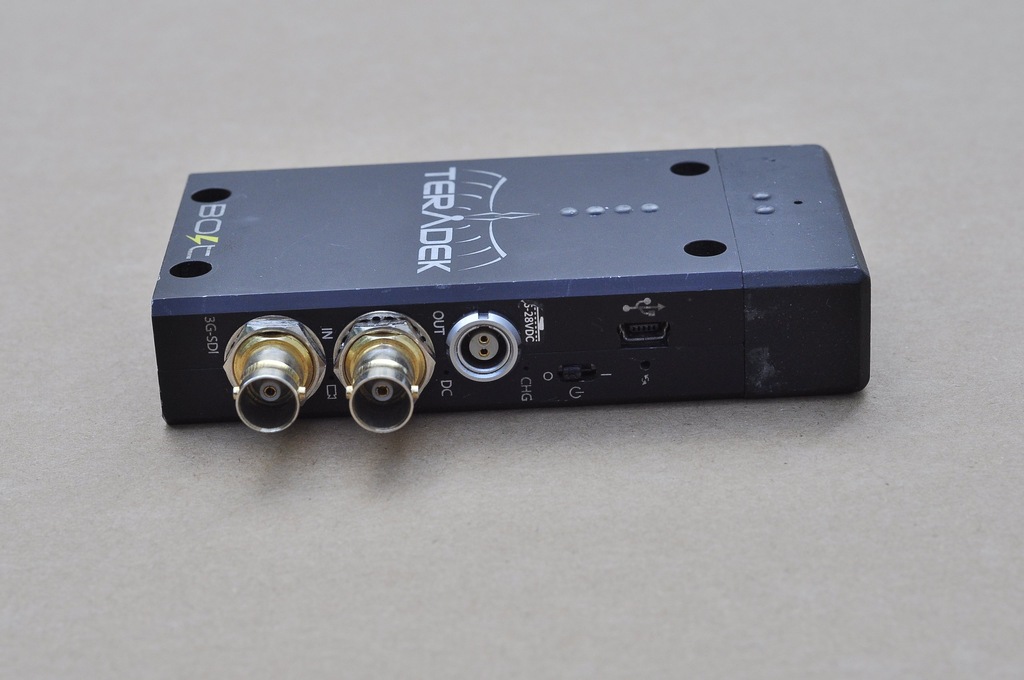

• Input: SD/HD/3G-SDI
• Output: Looping 3G-SDI
• Resolution: Up to 1080p60
• Wireless Range: 300.0' (91.4 m)
• Power: 4.5 W
• Battery: Re-chargeable Li-Ion battery with 60 minutes run time
• Cable: Lemo 6 to 28 VDC input (Pin 1 GND, Pin 2 +DC, 0B 302 series Lemo)
• Encryption: AES128
• Audio: 2-channel
• Chassis: Milled aluminum
• Mounting: Multiple mounting options with 1/4"-20 holes
• Mount: Accessory shoe mount
• Temperature: 32 to 122°F (0 to 50°C)
• Dimensions: 2.3 x 4.3" (58.0 x 110.0 mm)
• Weight: 7.0 oz (198.5 g)

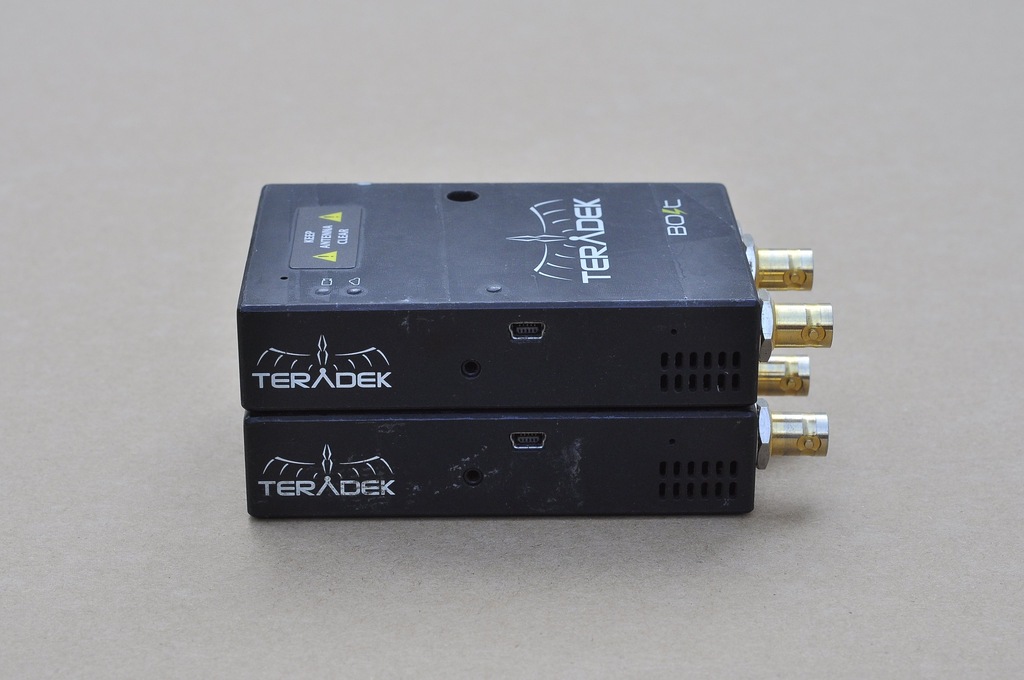

Receiver

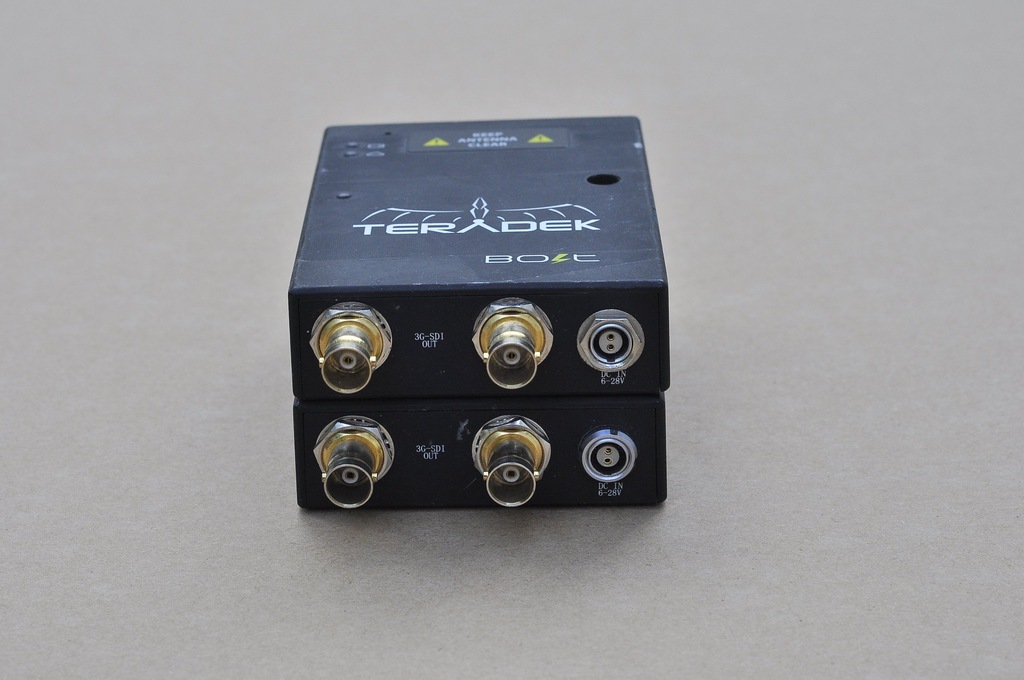

• Output: 2 x SD/HD/3G-SDI
• Resolution: Up to 1080p60
• Power: 6 W
• Cable: Lemo 6 to 28VDC
• Mounting: 1/4"-20 through-hole
• Dimensions: 2.9 x 4.3" (75.0 x 110.0 mm)

SPECIFICATIONS

Key Highlights

1x Transmitter + 2x Receivers

SD/HD/3G-SDI Input

3G-SDI Output, with loop through

1080p wireless video

Range: up to 300 ft

Batteries

Battery Chemistry:

Li-Ion / Lithium-ion

Battery Features:

Rechargeable - via miniUSB or DC input

Operating Time:

Approx. 1 hour

Wireless

Bit Rate Details:

128 Bit AES encryption

TX Output:

1 x BNC - 3G-SDI loop through

Wireless Range:

Up to 300 feet

TX Input:

1 x BNC - SD/HD/3G-SDI

RX Output:

2 x BNC - SD/HD/3G-SDI

Audio Channels:

2-Channel
