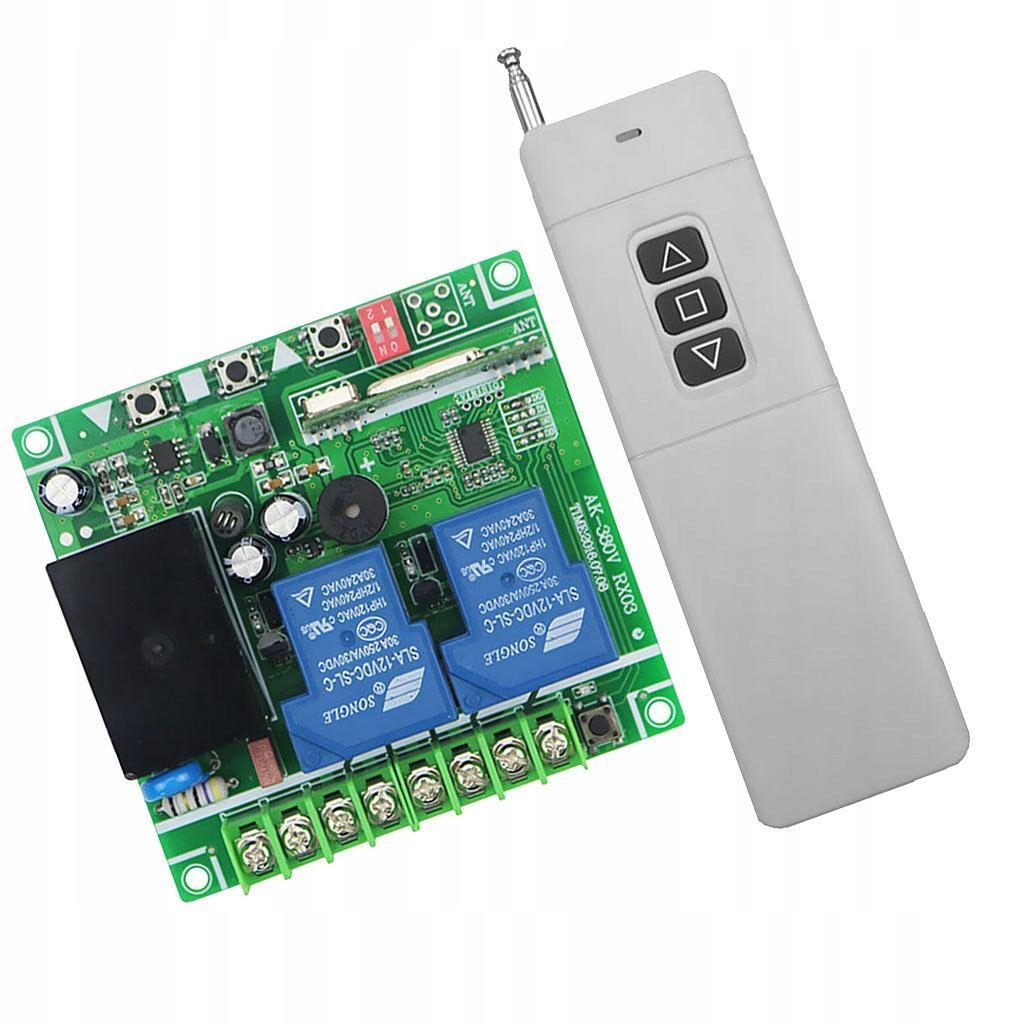

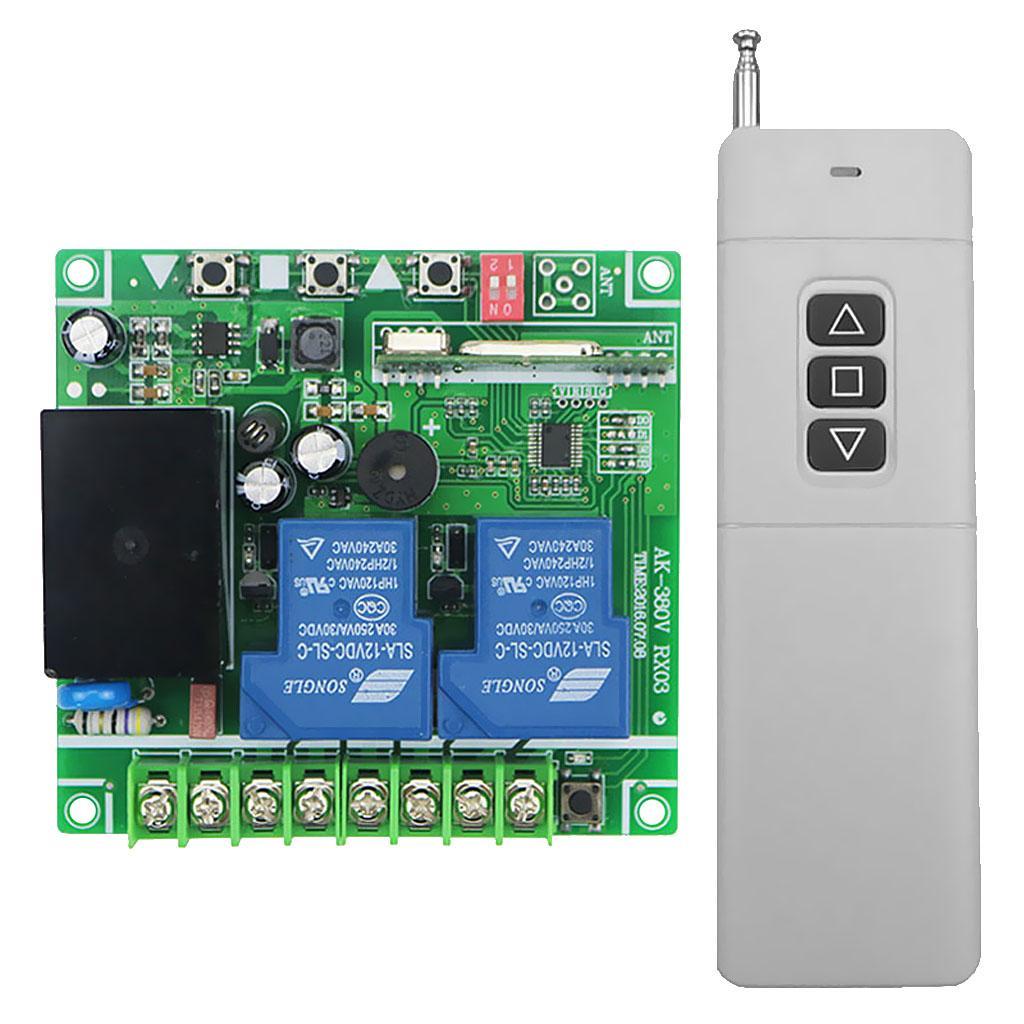

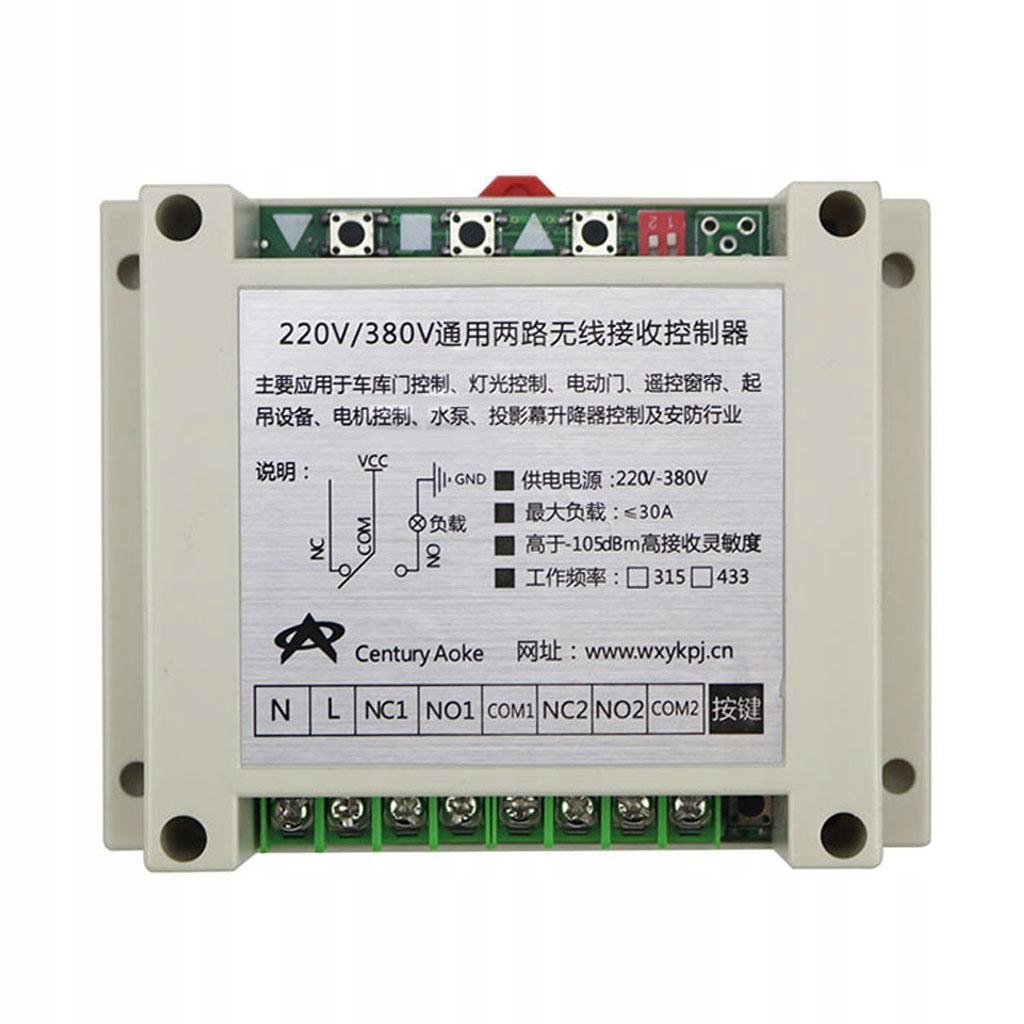

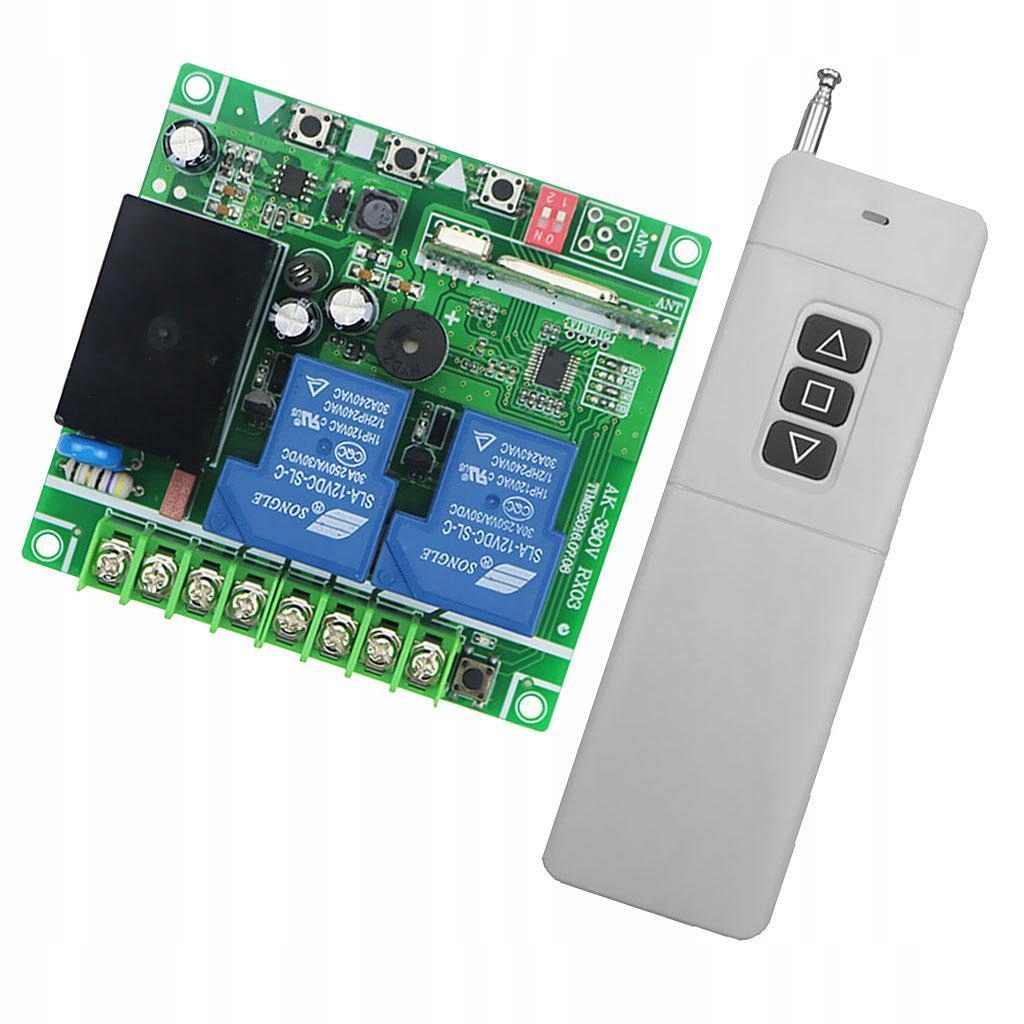

3km AC220-380V Universal with Manual Function Remote Control Switch

Description:

Working voltage: AC220V-380V

Operating frequency: 315MHz/433MHz (optional)

Maximum load: 3000 watts, 1500 watts rated load

Weight: 0.2KG (including shell)

Working way: through the toggle switch, inching, self-locking and interlock

Size(without shell): Approx. 92mm * 65mm * 32mm / 3.62x2.56x1.26inch

Specification:

Instruction

Learning the code:

Press the learning button for 2 seconds, the indicator light (that has entered the learning state), release the learning button, press the remote control any key, the light flashes three times after the light normally turn on that .

Note: The controller can learn fixed code / and other 16 different encoding remote control, will be cleared in turn the first to learn the remote control.

Continue to hold the for about The indicator light turn off from the bright light to flash three times, indicating that success.

Working mode

1.Jog(Momentary)---1,2 are not on the dial (ON direction)

2.Self-lock(Toggle)---2 to the position of N

3.Interlock(Latched)---1 to the position of O

3000-3 Remote Control:

Working voltage: DC 9 v

The working current:>80mA

The static current: 0 ma

Working frequency: 315 MHZ or 433MHZ (optional)

Chip types: fixed code (2262); (1527), etc

Shock resistance: according to customer requirements

Launch distance: 800-3000 m (open environment)

Modulation mode: ASK modulation

Dimension: Approx. 136 * 42.2 * 25 mm / 5.35x1.66x0.98inch

Package Includes:

1 Piece of Remote Control

1 Piece of Switch Module

Note:

This controller can learn the fixed code / 16 different encoding remote control, it will turn clear the earliest remote learning.
