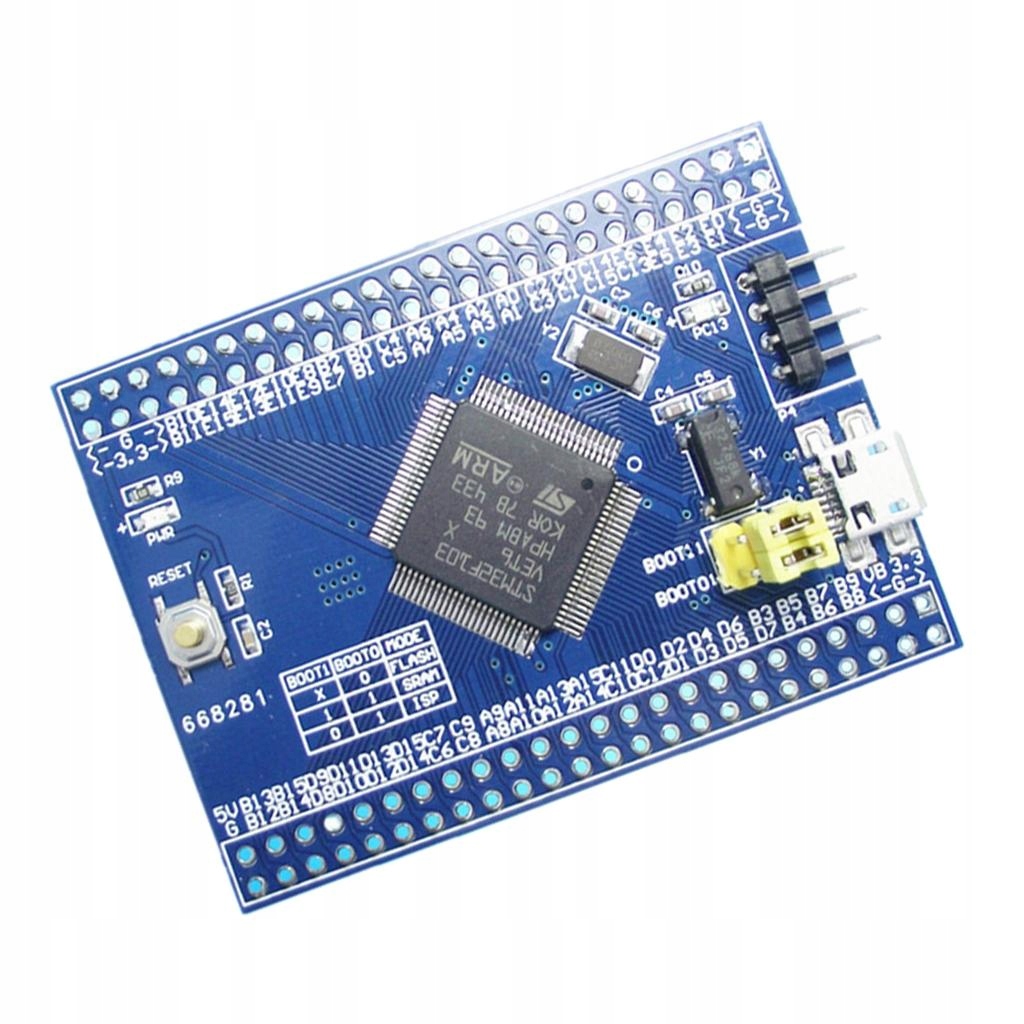

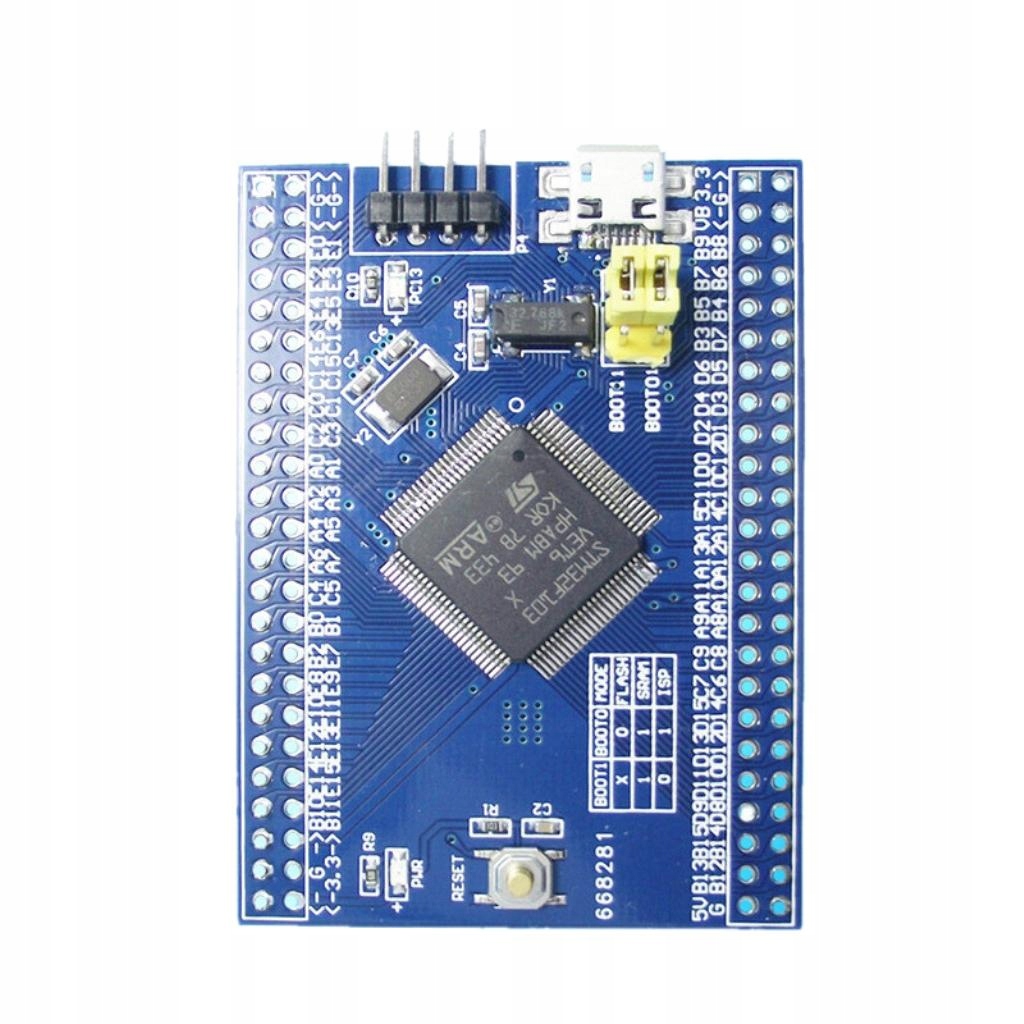

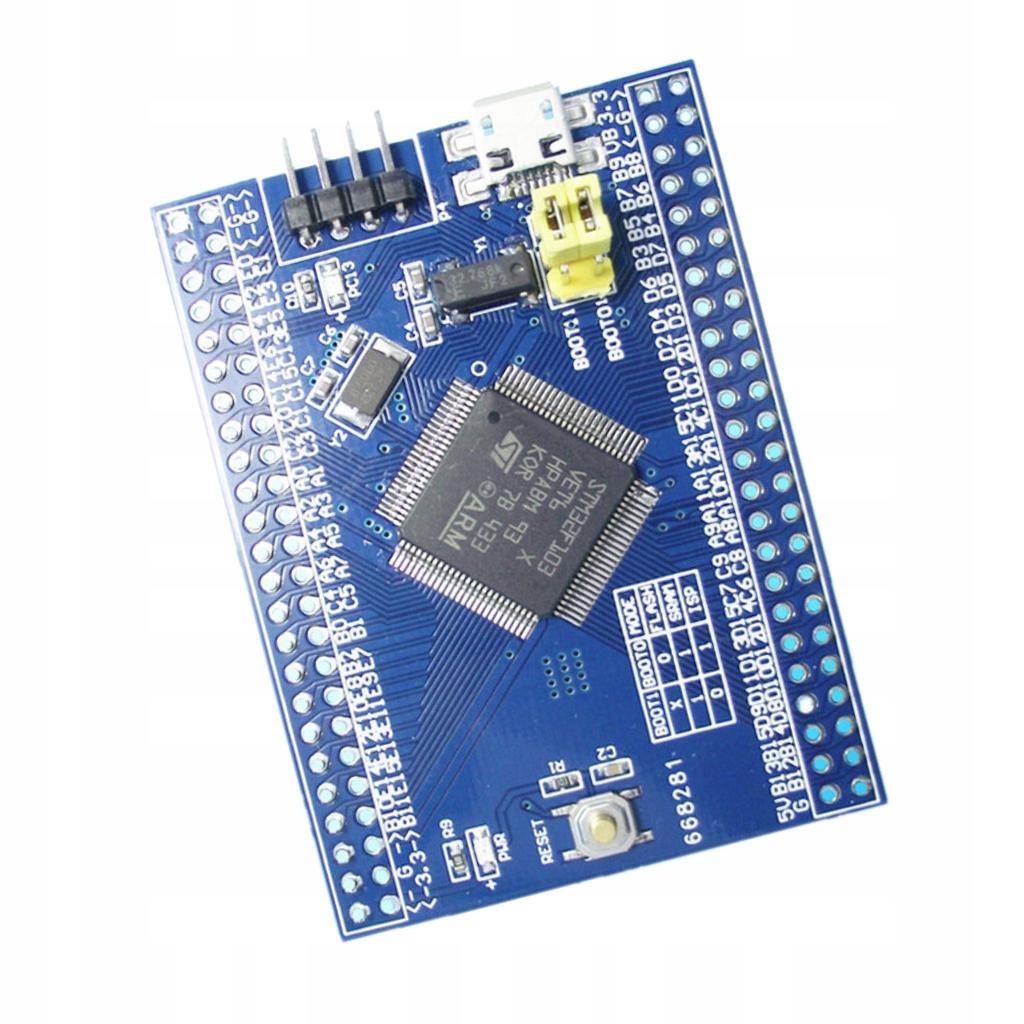

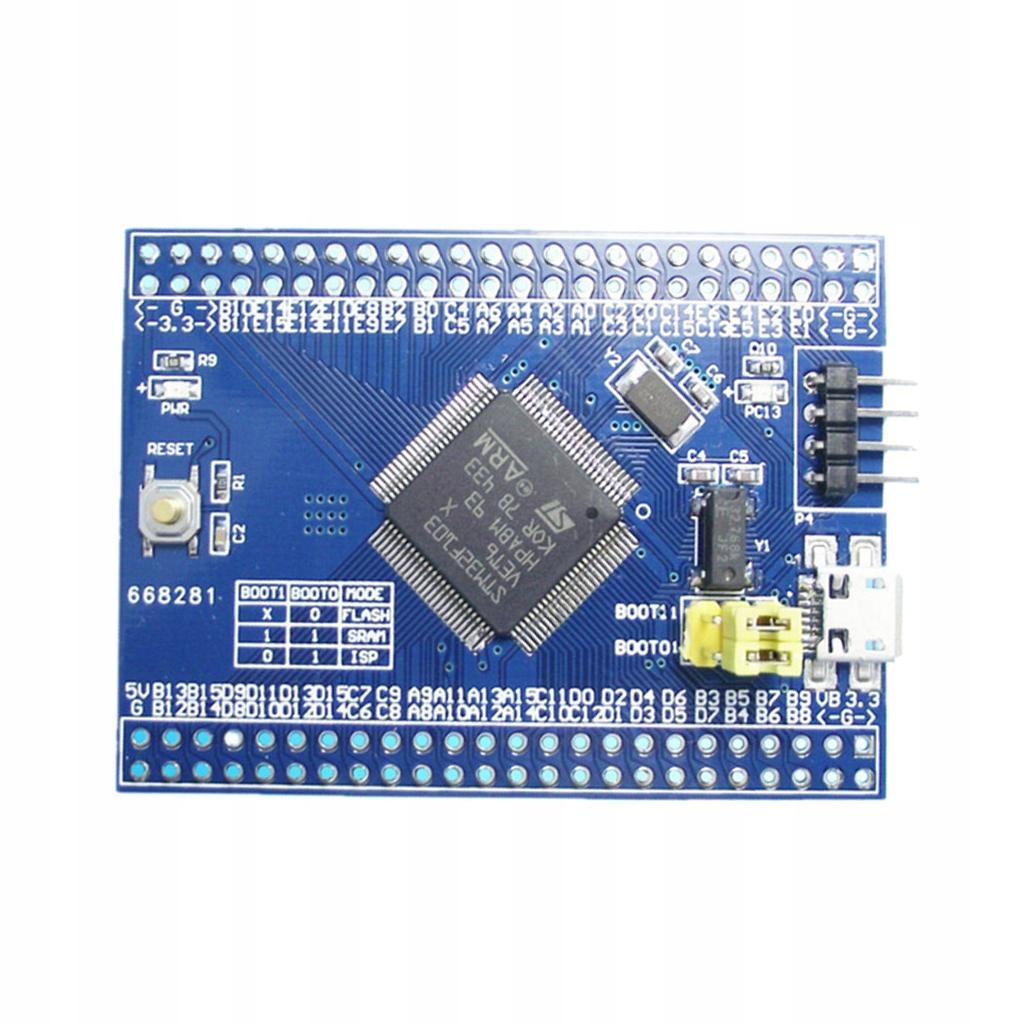

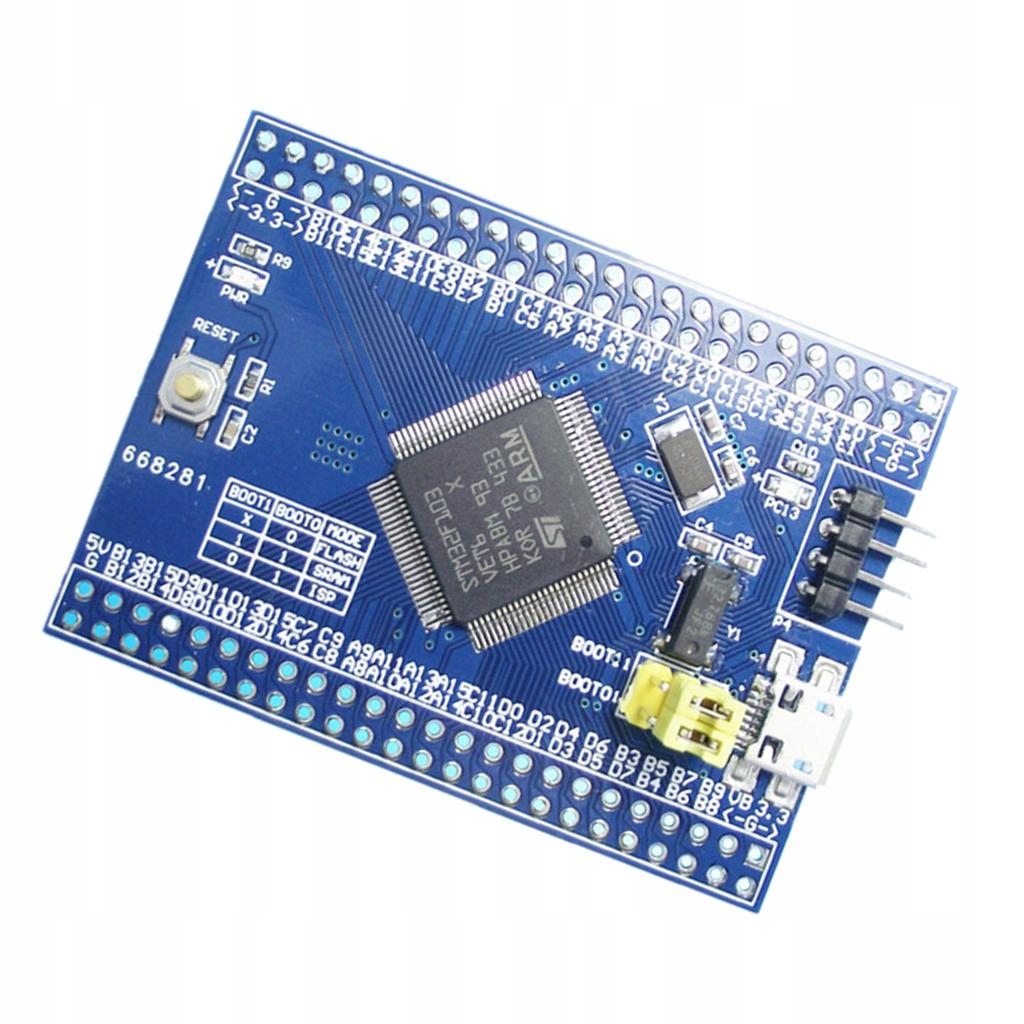

STM32F103VET6 Core Board Minimum System Board STM32 ARM Development Board

Description:

Onboard the most basic circuits based on MCU, such as crystal oscillator circuit, power conversion circuit and USB interface, etc.

The core board brings out the common port resources.

Added peripherals to expand the memory circuit.

The SWD simulation debug download interface is introduced.

It uses the USB interface that is commonly used in smartphones today. It is easy to use and can do USB communication and power supply.

With its own power supply voltage regulator chip, the /outlet is equipped with a tantalum , which has an extraordinary effect in filtering and voltage regulation.

Equipped with high quality 2.54mm spacing of single rows of pins, ensuring excellent conductivecontact.

Specification:

Model: STM32F103VET6

Core: ARM 32 M3

Work Frequency: 72MHz

Flash Memory: 512K Byte Flash,64KByte

Working Voltage: 2.0~3.6V

Power supply: 3.3V regulator chip, maximum output 1000mA

Size: 62.48x44.7mm/2.46x1.76 inch

Color: Blue

Package Includes:

1 Piece STM32F103VET6 Core Board Module
