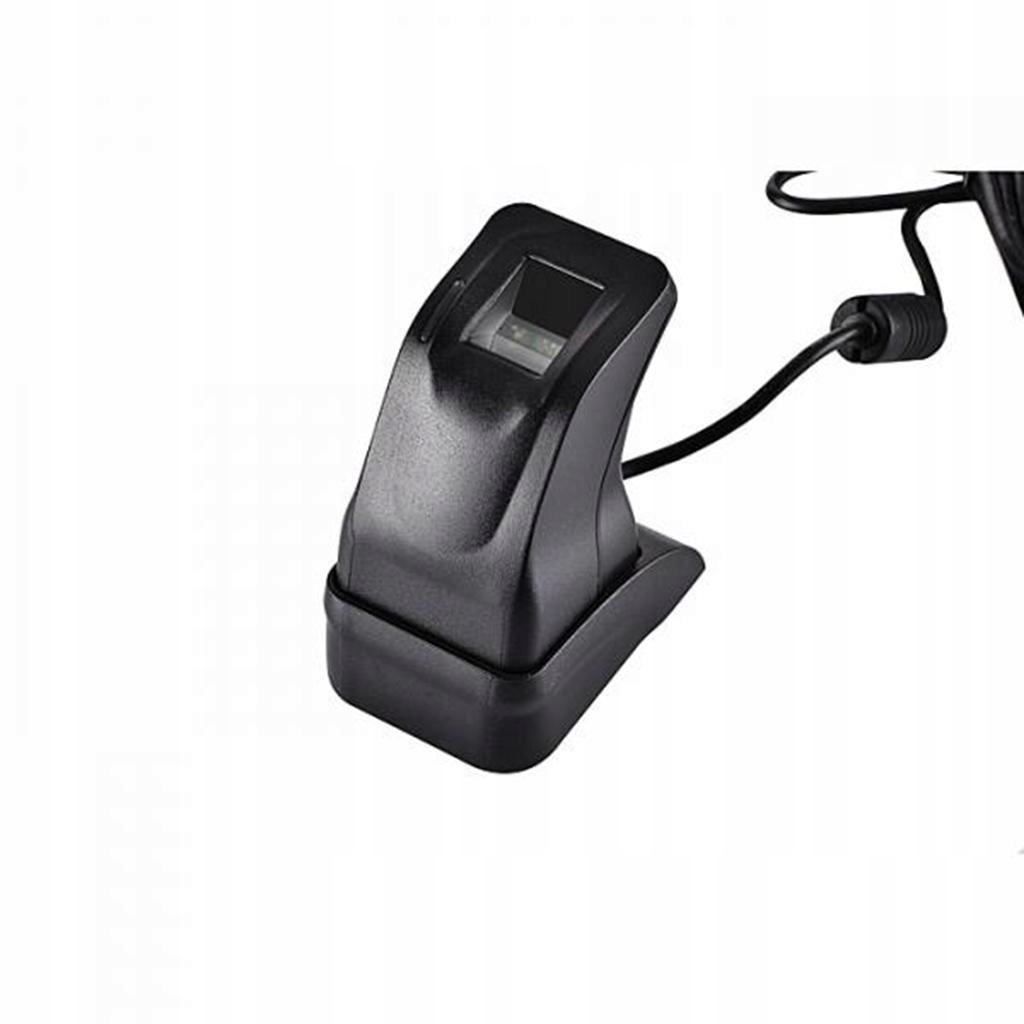

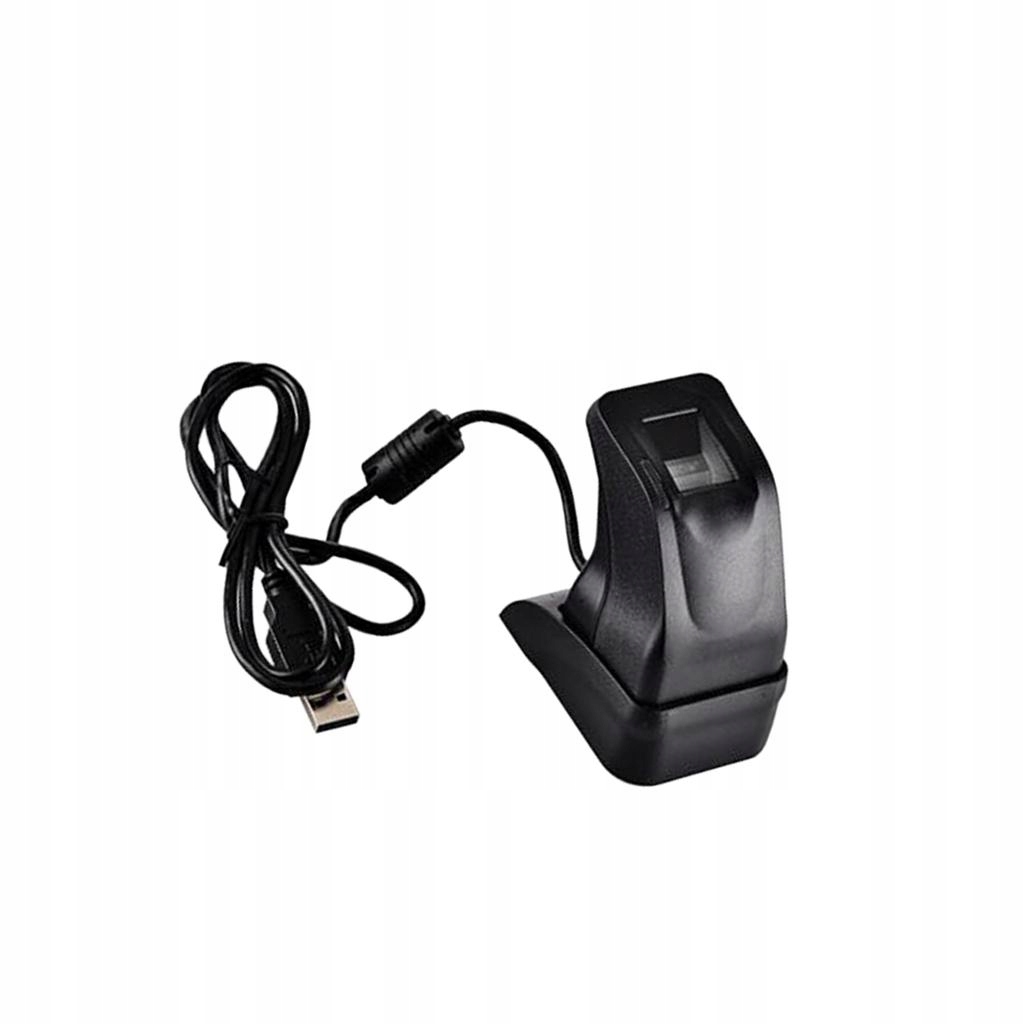

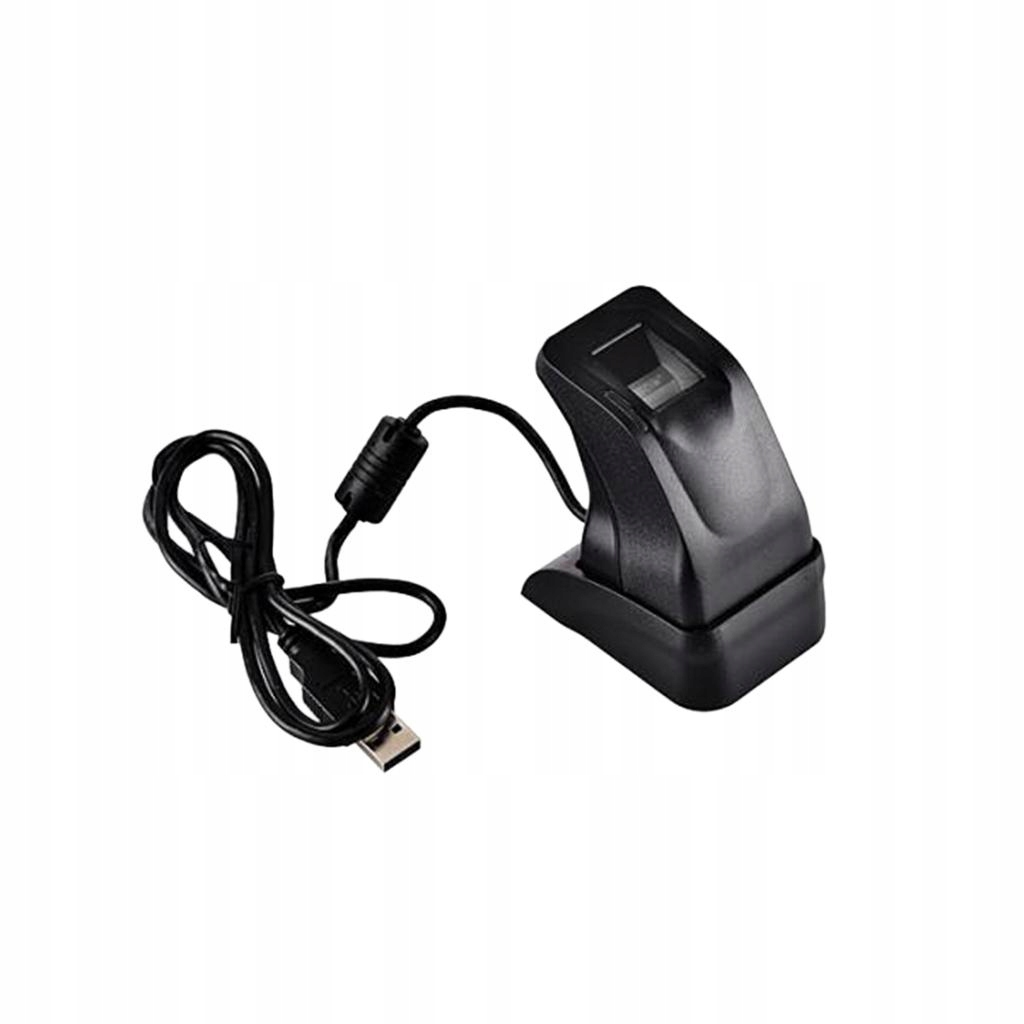

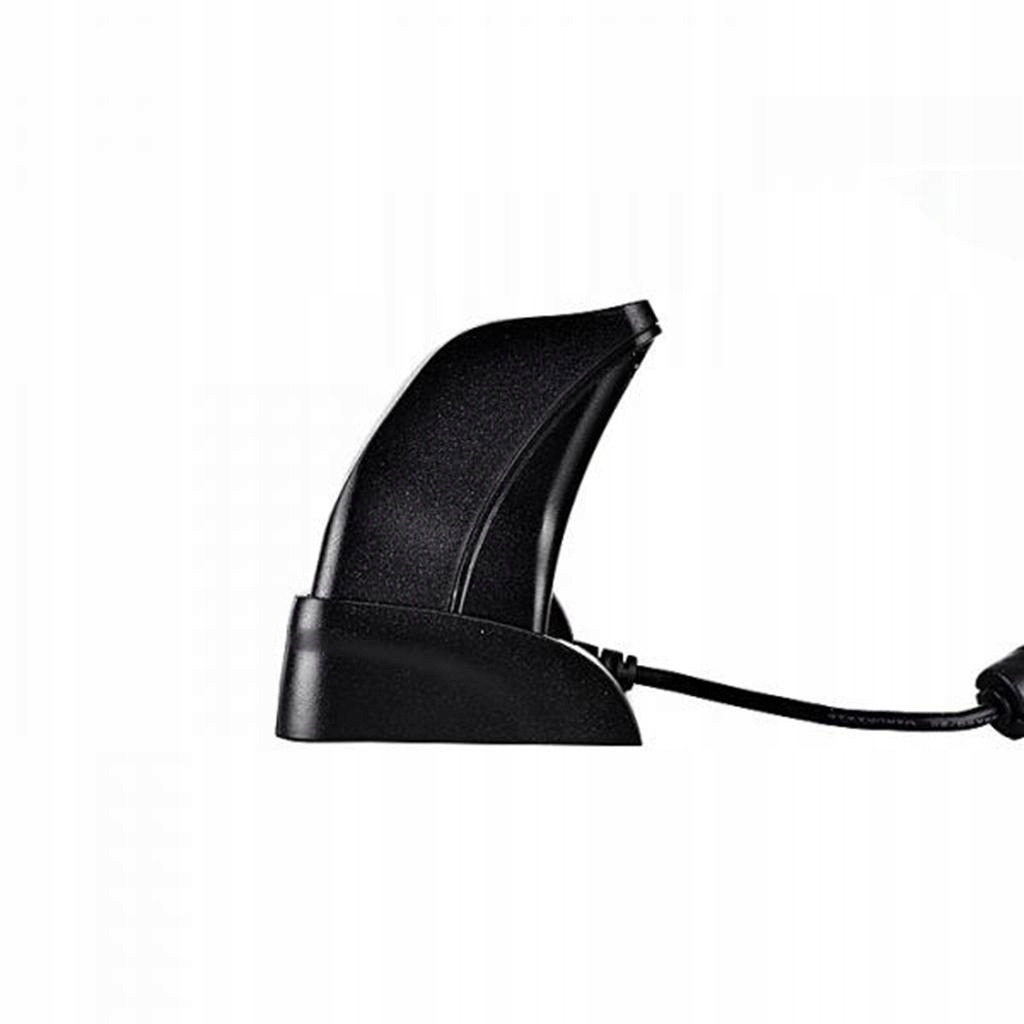

Fingerprint Reader Sensor Thumbprint Scanner Recorder Attendance Machine USB

Description:

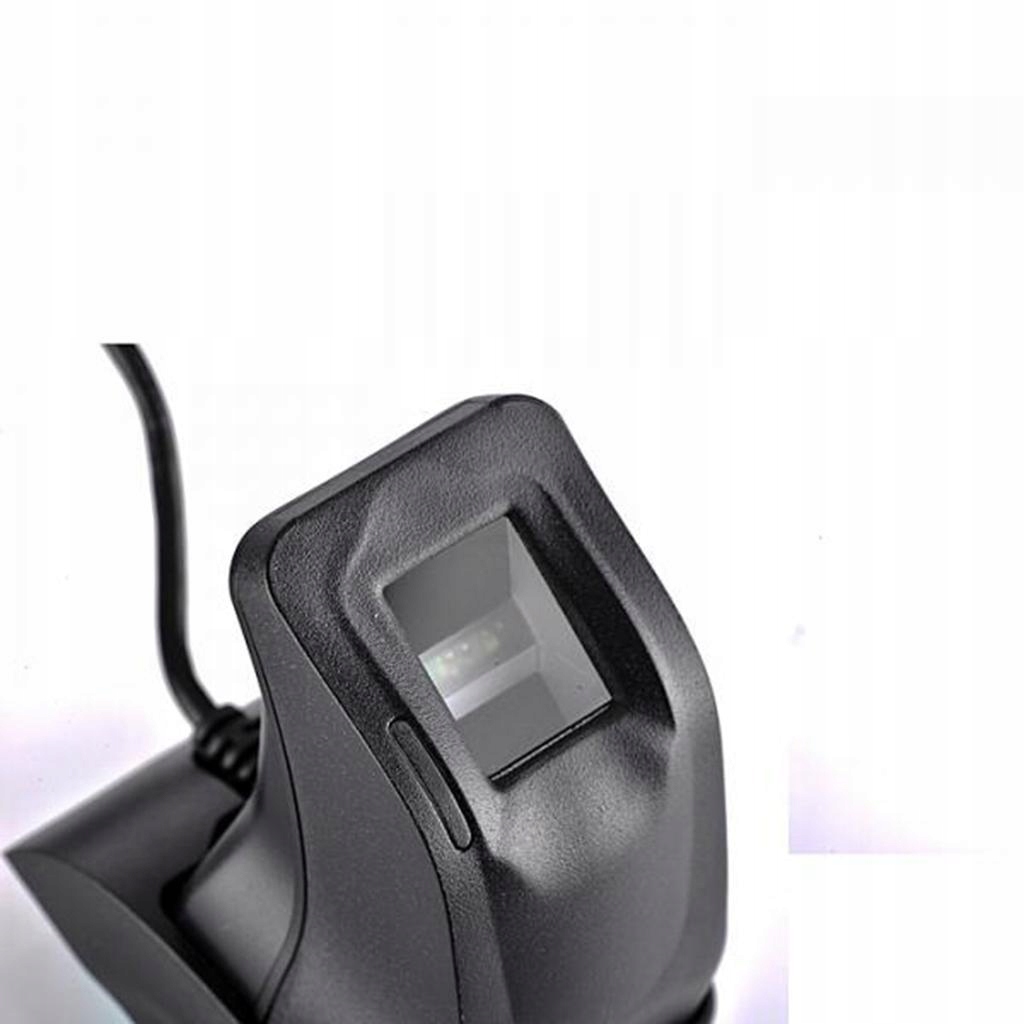

Optical fingerprint scanning technology guarantees superior image quality and product reliability.

High-performance, maintenance-free optical fingerprint sensor. Upload fingerprint images to a personal computer via USB port.

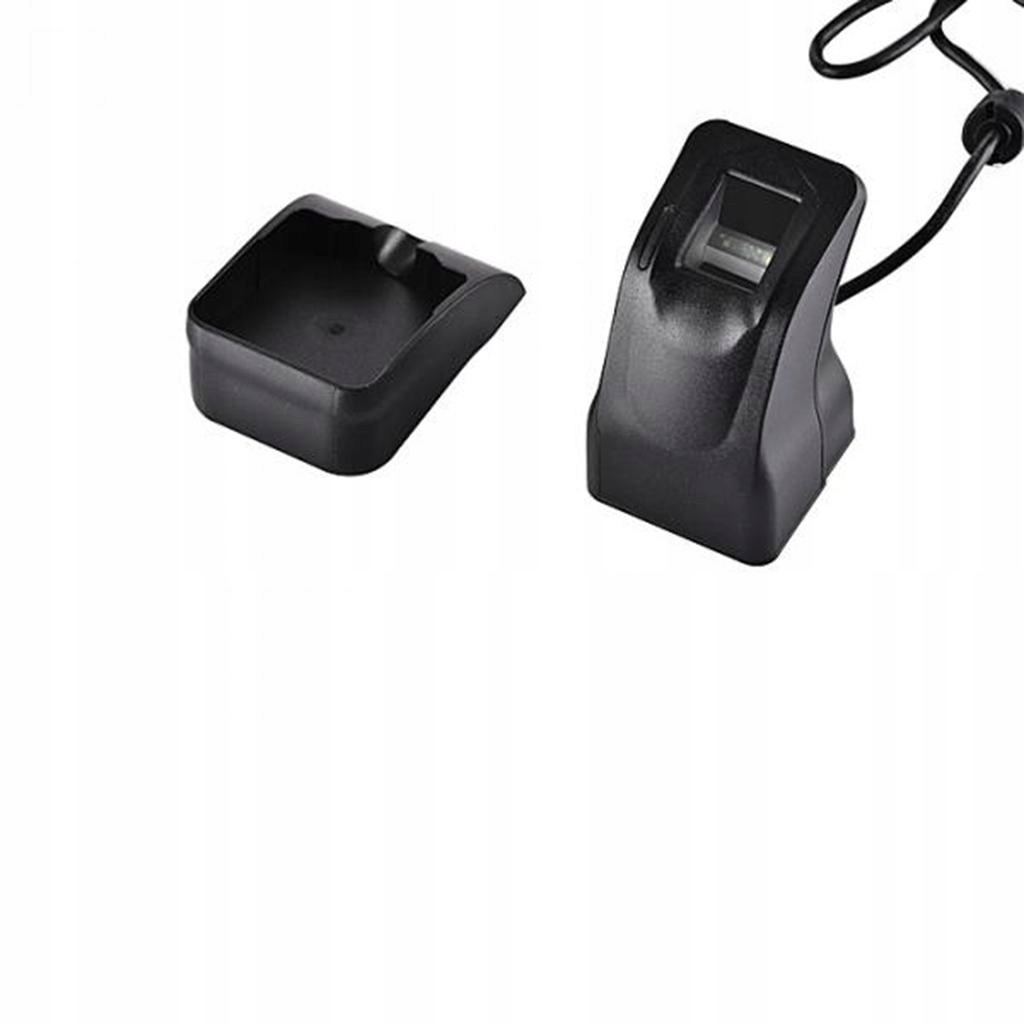

Removable weighted stand and high speed USB interface.

Applications for desktop PC security, mobile PCs, custom applications, home and office use.

Available SDK for secondary development.

Specification:

Material: Plastic

Color: Black

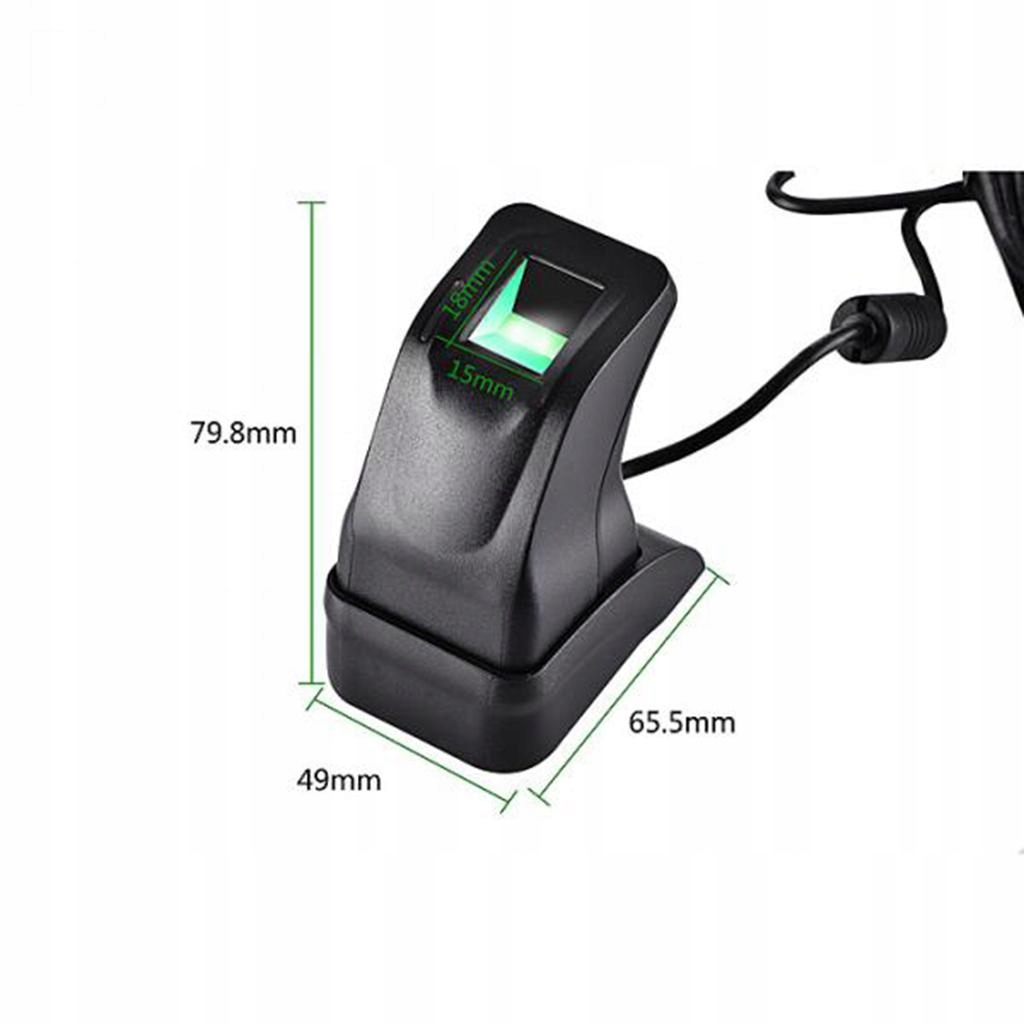

Size: Approx. 79.8x49x65.5mm / 3.14x1.93x2.58inch

Pixel resolution: 500 dpi

Supply Voltage: 5.0V +/- .25V supplied by USB

Supply Current scanning: 170 mA (type.)

Supply Current idle mode: 120 mA (type.)

Supply Current suspend mode: 2 mA (max.)

ESD Susceptibility: >15 KV

Image data: 8-bit grayscale

Temperature, Operating: 5- 35C

Humidity, Operating: 20 Percent - 80 percent non-condensing

Temperature, Storage: -10- 60C

Humidity, Storage: 20Percent - 90Percent non-condensing

Standards Compliance: FCC Class B, CE, VCCI

Package Includes:

1 Piece USB Fingerprint Sensor

1 Piece Driver CD
