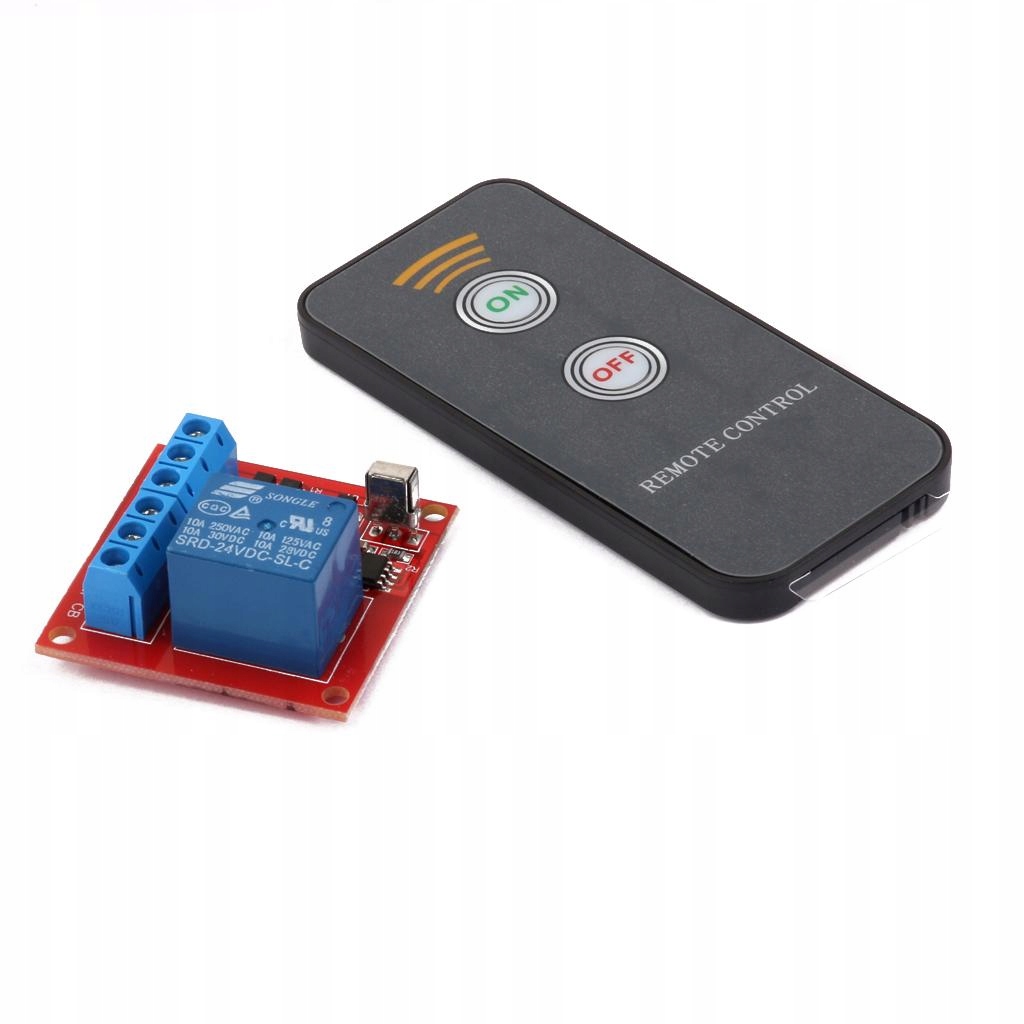

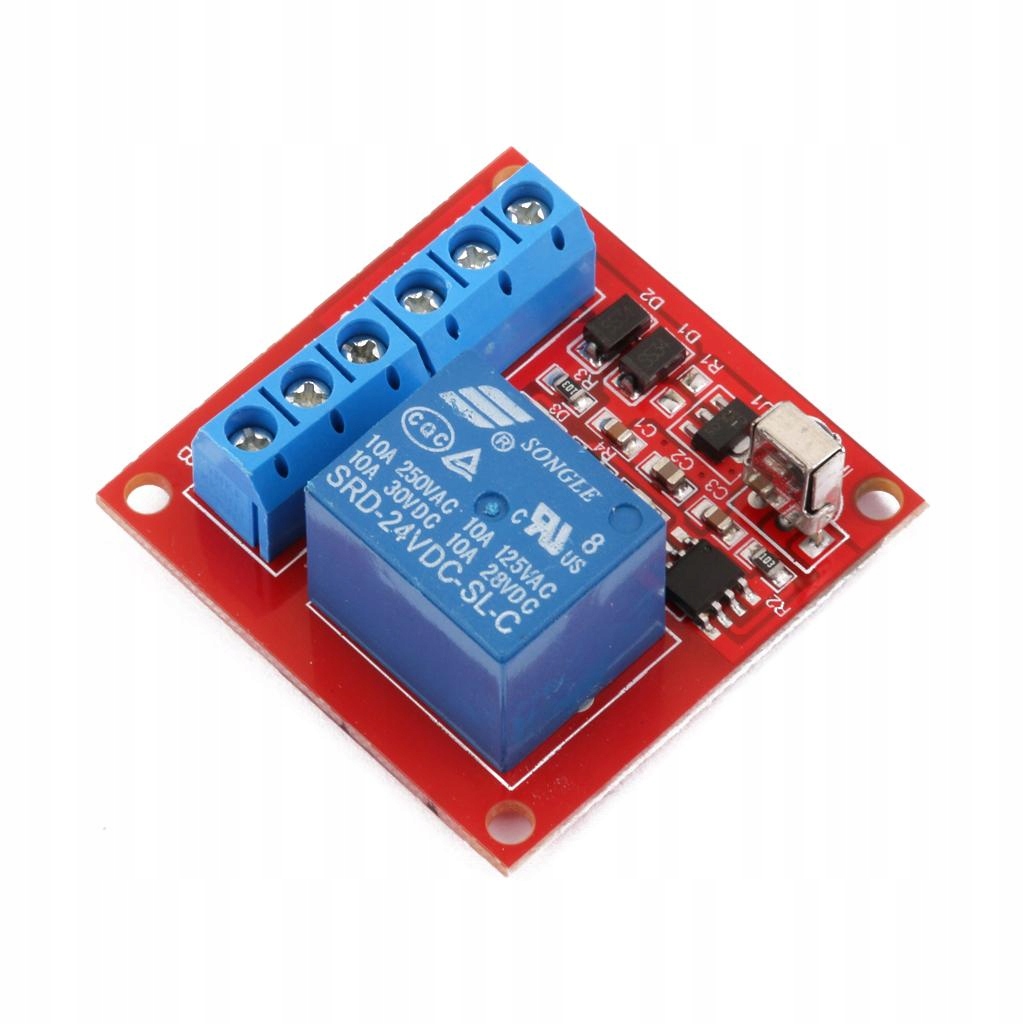

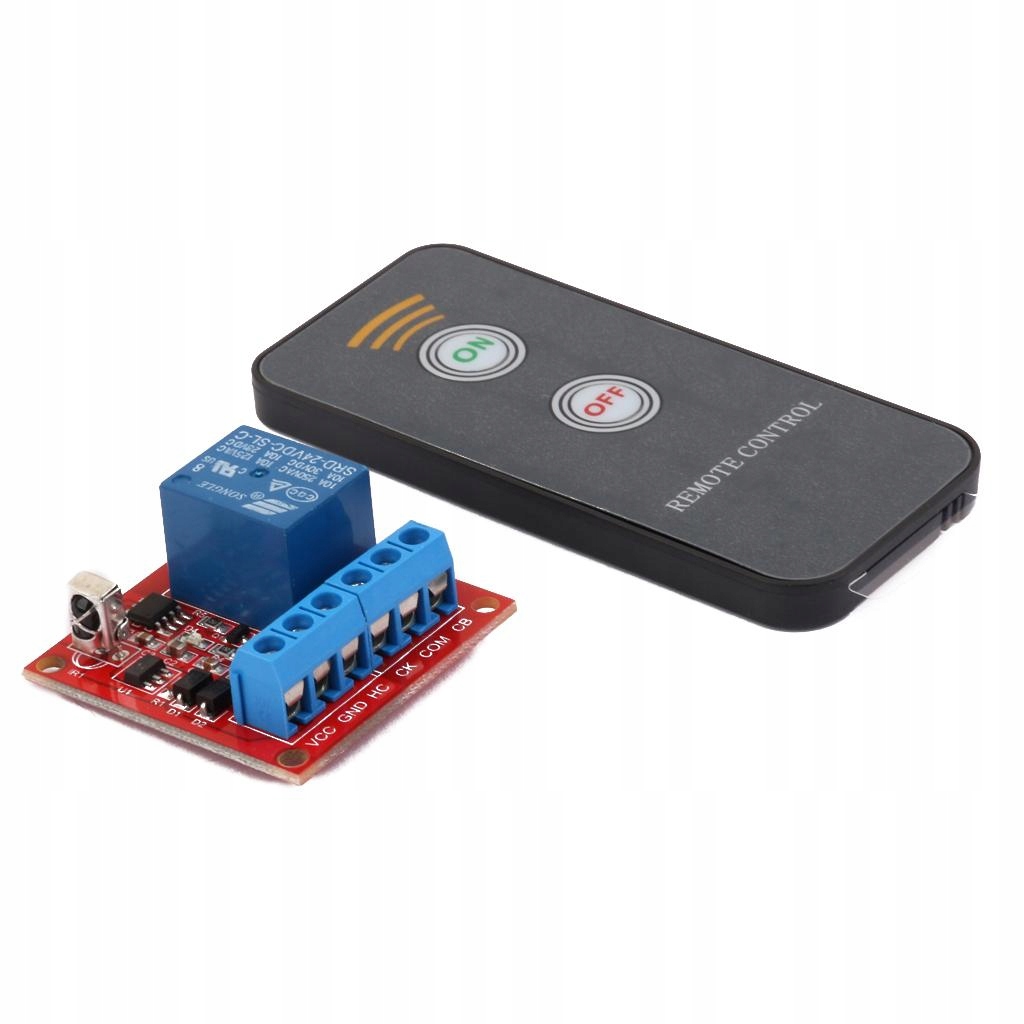

24V Channal 1CH IR Infrared Remote Switch Relay Latching Module

Description:

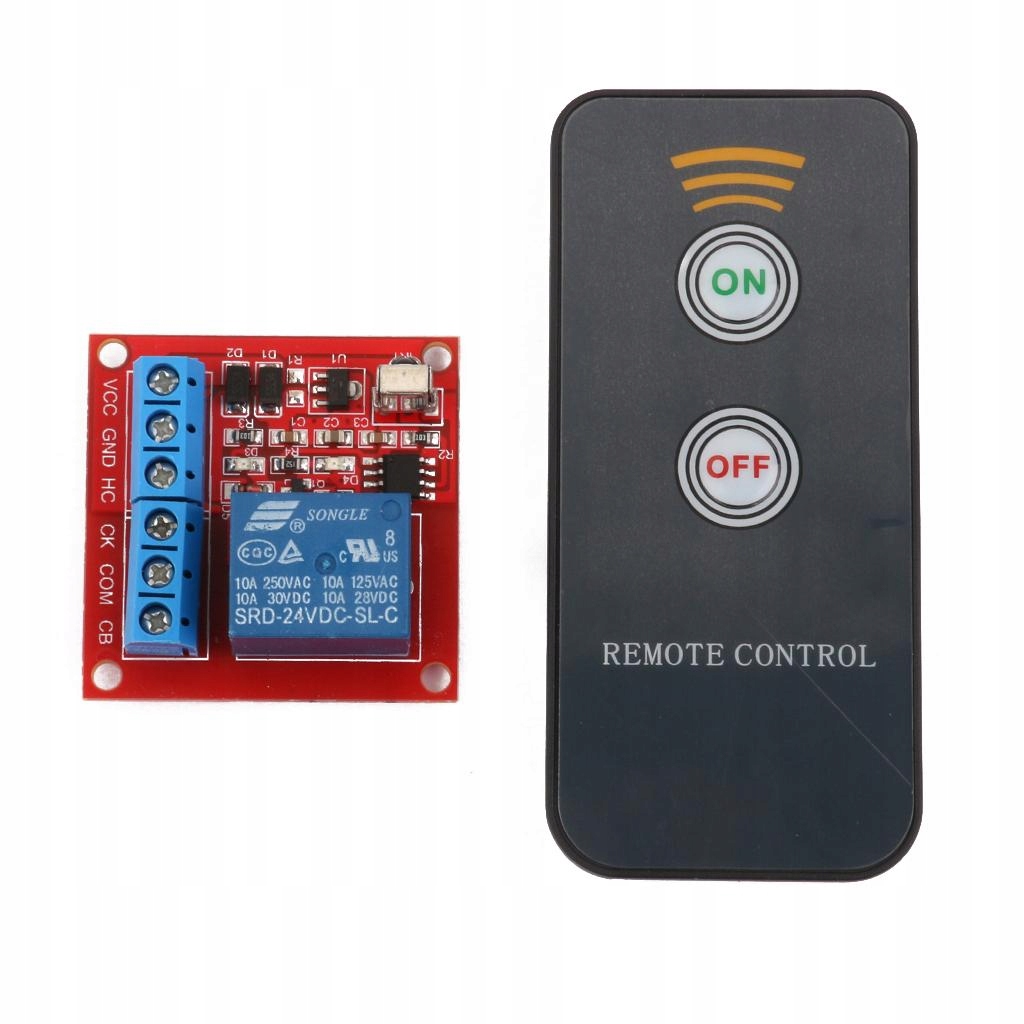

Working voltage: 23-24.5V, VCC: connect positive pole of power supply, GND: connect negative pole of power supply, HC: push button switch, ().(COM).(CB)connecting output

Working current: Approx. 30mA (relay in the suction state)

Static working current: Approx. 6mA (relay in the emission state)

Module size (L x W x H): Approx. 40 x 40x 20mm / 1.6 x 1.6 x 0.78 inch

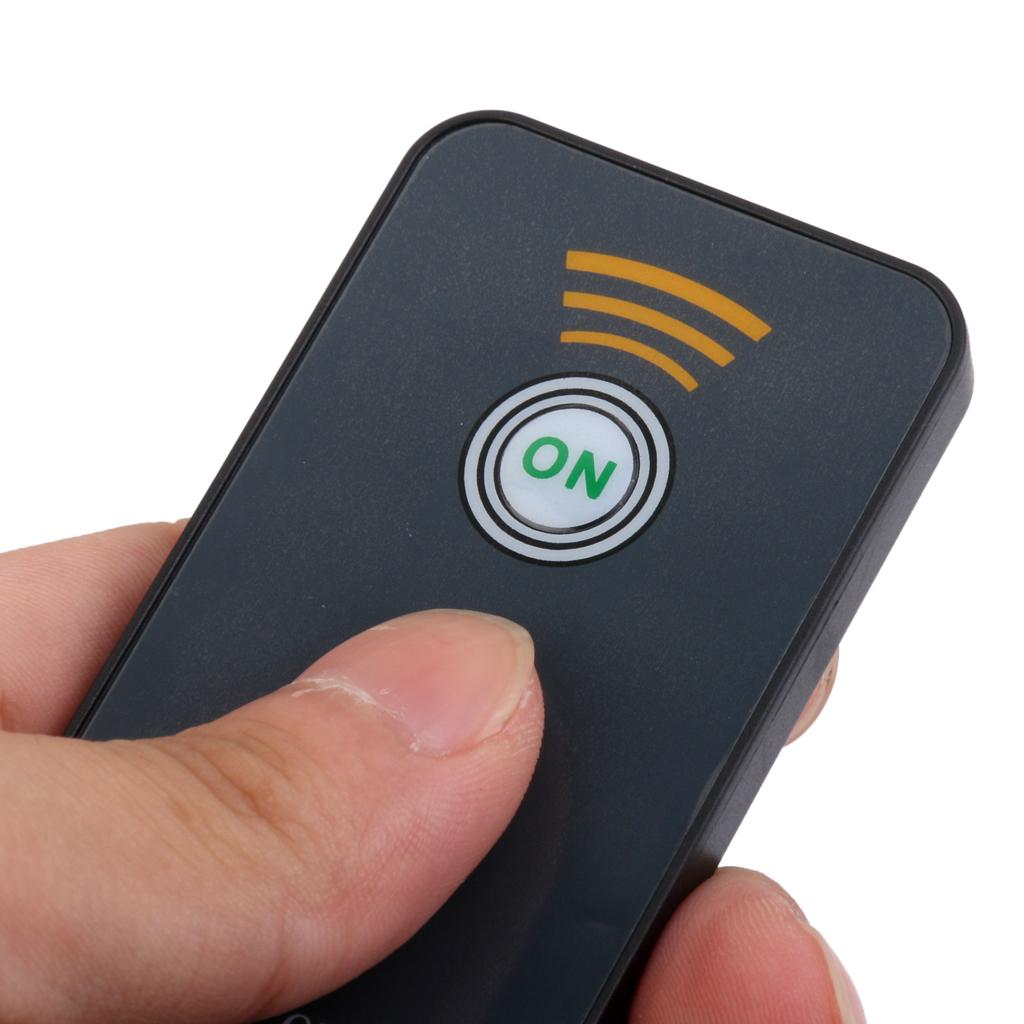

Remote control: Approx. 85 x 40mm / 3.34 x 1.57 inch

Working : Latching

Receiving distance: 3-8 m

Working instructions: LED1 (power indicator light), LED2 (relay switch light)

Module color: Random

The relay load capacity is 250VAC-10A.125VAC-10A.30VDC-10A.28VDC-10A (controlling various household appliances and others)

Paage Includes:

1 x Relay Module

1 control
