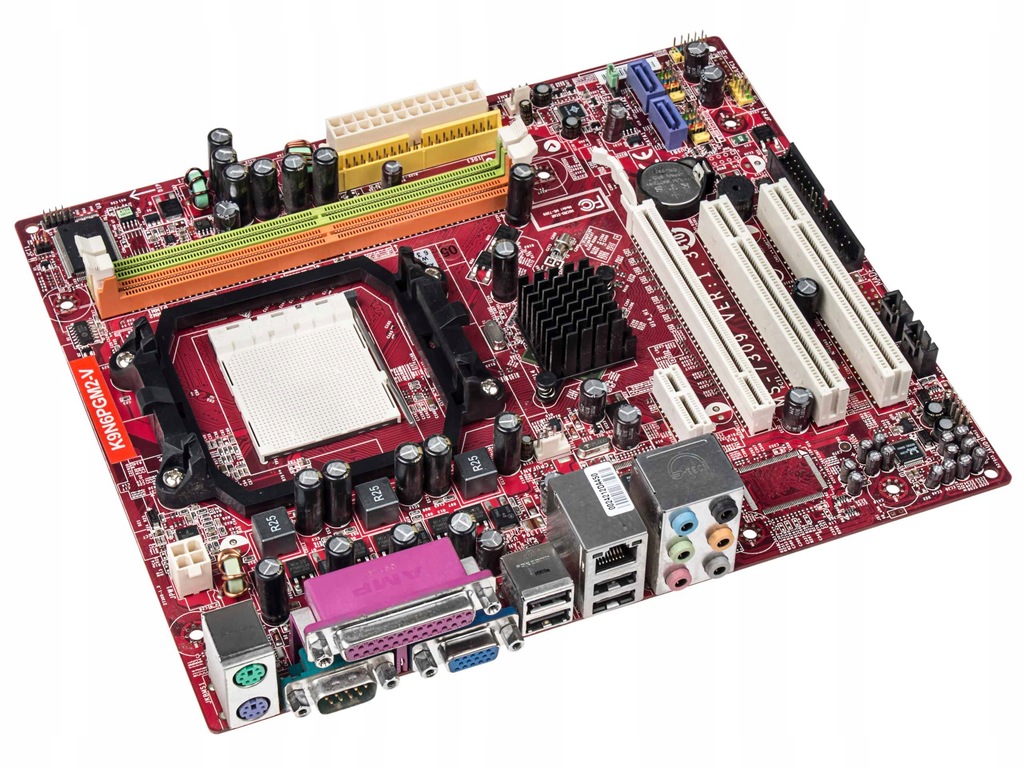

PŁYTA MSI K9N6PGM2-V MS-7309 VER:1.3 DDR2 mATX AM2

• TYP: PŁYTA GŁÓWNA
• PRODUCENT: MSI
• MODEL: MS-7309 VER:1.3
• SOCKET: AM2 for AMD Athlon 64 / Athlon 64X2 CPU
• PAMIĘĆ: DDR2
• PCIE x1: 1
• PCIE x16: 1
• PCI: 2
• SATA: 2
• FORMAT: mATX

PŁYTA GŁÓWNA WYCIĄGNIĘTA Z NOWEGO KOMPUTERA

MASKOWNICA W ZESTAWIE

WERSJA OEM

N-APG 508

Specifications:

• CPU: - Support socket AM2 for AMD Athlon 64 / Athlon 64X2 CPU - Support socket AM2+ for AMD Phenom CPU
• FSB: AM2 CPU supports HyperTransport 1.0/2.0 supporting speed up to 1000MHz
• Chipset: NVIDIA GeForce 6100 nForce430 (MCP61 P/S/V)
• Memory: - Supports Dual DDR2 533/667/800 - 2 DDRII DIMMs (240pin / 1.8V) - Supports a maximum memory size up to 4GB
• Slots: - One PCI Express X16 - One PCI Express X1 slot - Two PCI slots, support 3.3V/5V PCI bus interface
• On-Board IDE/SATA: One IDE port by NVIDIA MCP61 (P/S/V) - Supports Ultra DMA 66/100/133 mode - Supports PIO, Bus Master operation mode - Can connect up to two IDE devices Two SATA II ports by NVIDIA MCP61 (P/S/V) - Supports storage and data transfers at up to 3Gb/s - SATAII 1~2 support RAID 0, 1 mode by NVIDIA MCP61 (P/S/V)
• Audio: Chipset integrated by Realtek ALC861/883/888 - Flexible 8-channel audio with jack sensing - Compliant with Azalia 1.0 Spec
• LAN: Supports 10/100 Fast Ethernet by Realtek 8201CL
• Internal I/O Connector: - 2 x SATA II connectors - 1 x ATA133 connectors - 2 x USB 2.0 connector support additional 4 ports - SPDIF-Out connector - Front panel connector - Front panel audio connector - Chassis intrusion switch connector - Clear CMOS Jumper
• Back Panel I/O Ports: - 1 x Parallel - 1 x PS/2 Keyboard - 1 x PS/2 Mouse - 1 x VGA port - 1 x 6 in 1 audio jack - 4 x USB 2.0 - 1 x RJ45 LAN Jack
• Dimensions: 9.6 in (L) x 8.1 in(W) Micro-ATX Form Factor
