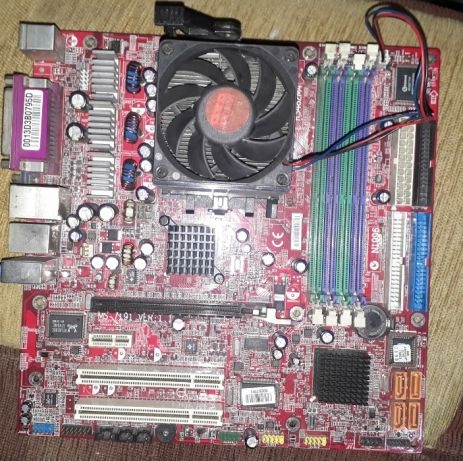

Płyta główna MSI RS482M4-CSIP + Chłodzenie procesora.

Socket 939 idealna płyta dla AMD Athlon 64.

Specyfikacje:

MAINBOARD

Form Factor: micro ATX

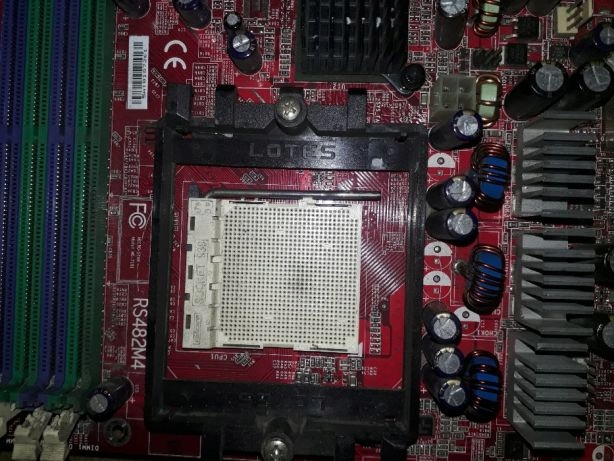

Processor Socket: Socket 939

Compatible Processors: Athlon 64, Athlon 64 FX, Athlon 64 X2

Data Bus Speed: 1000 MHz

Chipset Type: ATI Radeon Xpress 200

I/O Controller: AMD SB450

Power Connectors: 24-pin main power connector, 4-pin ATX12V connector

SUPPORTED RAM

Bus Clock: 400 MHz, 333 MHz

Registered or Buffered: Unbuffered

Features: Dual channel memory architecture

Speed: PC3200, PC2700

Technology: DDR

Max Size: 4 GB

AUDIO OUTPUT

Sound Output Mode: 7.1 channel surround

Type: sound card

Audio Codec: Realtek ALC880

Audio: 8-channel

MAINBOARD FEATURES

BIOS Features: DMI support

Hardware Monitoring: CPU overheating protection

INTERFACES

Storage: ATA-133, Serial ATA-150 (RAID)

EXPANSION / CONNECTIVITY

Expansion Slots: 4x DIMM 184-pin, 1x PCIe x16, 2x PCI (3.3 V/ 5 V), 1x PCIe x1, 1x CPU

Storage Interfaces: SATA-150 -connectors: 4x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1, ATA-133 -connectors: 2x 40pin IDC - 4 devices

Internal Interfaces: 1x floppy

Additional Connectors (Optional): 1x IEEE 1394 (FireWire), 4x USB 2.0

Power Connectors: 4-pin ATX12V connector, 24-pin main power connector

VIDEO MEMORY

Memory Allocation Technology: shared video memory (UMA)

STORAGE INTERFACES

Interface: ATA-133, Serial ATA-150

Connector(s): 2 x 40pin IDC, 4 x 7pin Serial ATA

Supported Devices Qty: 4

RAID (Level): RAID 0 / RAID 1

LAN

Network Interfaces: Ethernet

Network Controller: Realtek RTL8100C
