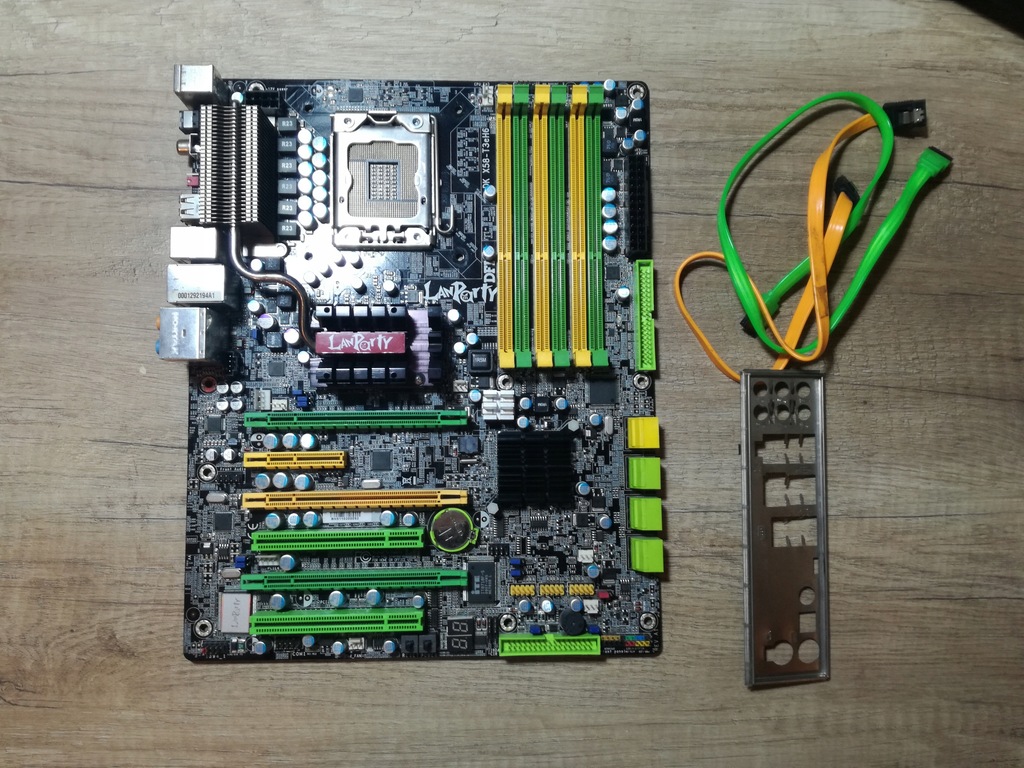

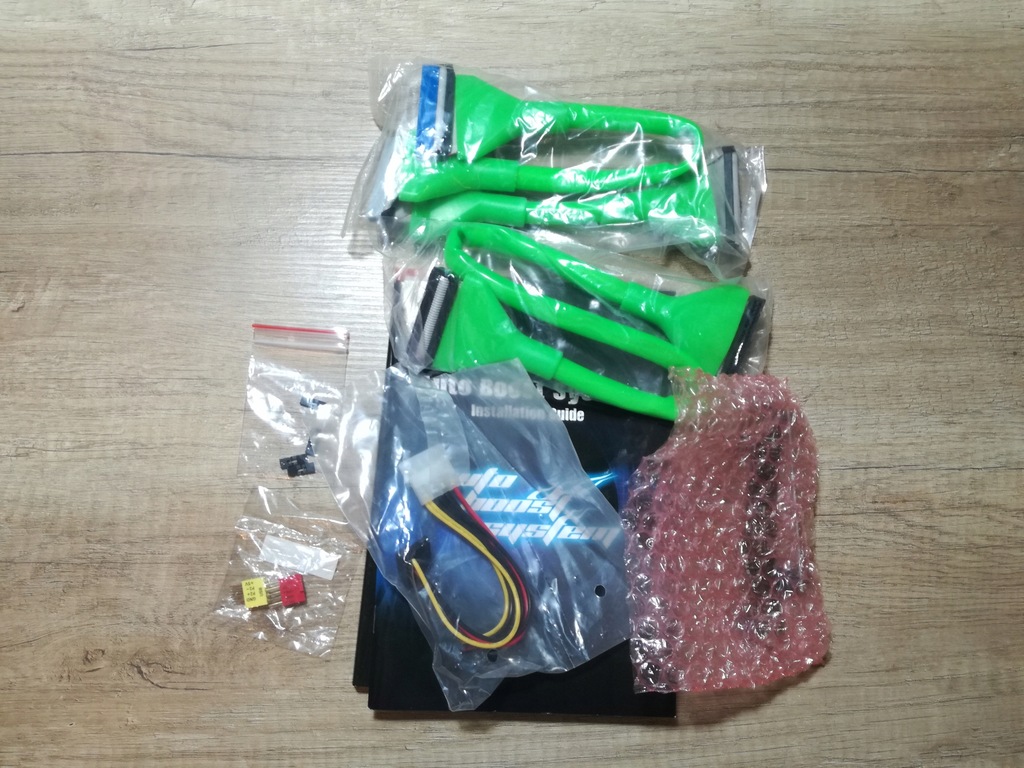

Sprzedam w pełni sprawną płytę DFI DK x58-t3eh6 socket 1366. Zdjęcia przedstawiają wszystkie akcesoria, kable które dołączam.

Specification

CPU

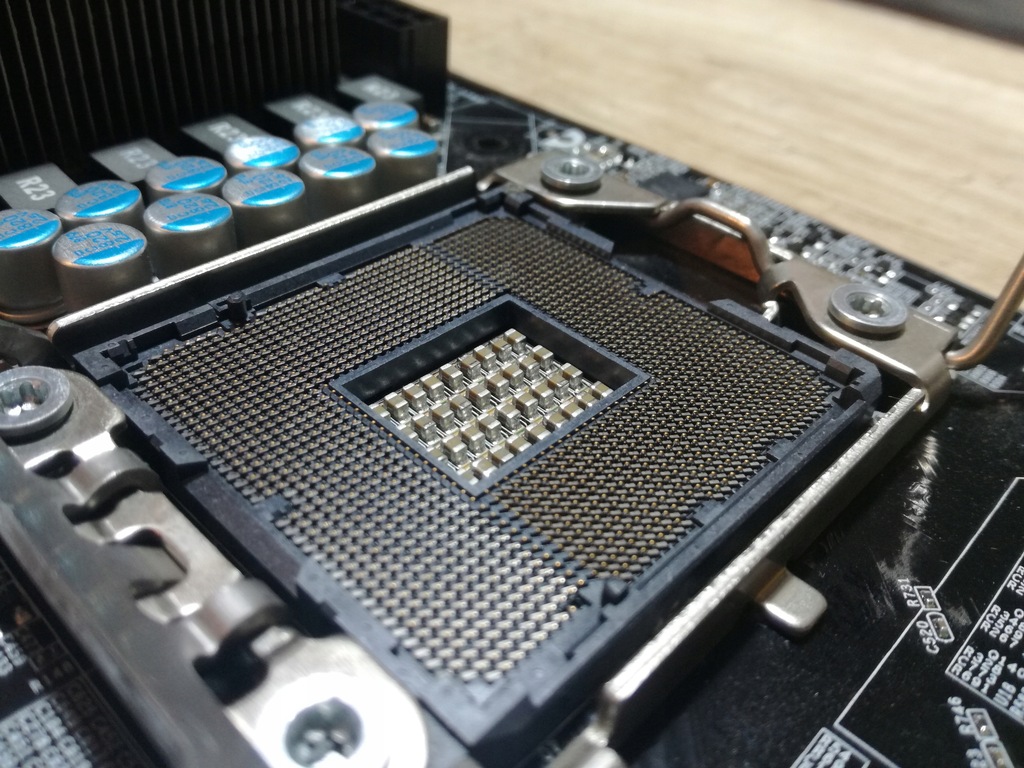

* LGA 1366 socket for Intel® CoreTM i7 processors

* Intel® QuickPath Interconnect (QPI) technology - point-to-point interface that connects to X58; providing a dynamically scalable interconnect for increased bandwidth, lower latency and stability

* Integrated Memory Controller (IMC) supports 3 channels of DDR3

* Intel Hyper-Threading Technology delivers 8-threaded performance

* 6-phase digital PWM provides stable voltage to the CPU

Chipset

* Intel® chipset - Northbridge: Intel® X58 Express chipset - Southbridge: Intel® ICH10R

QPI

* System bus - 4.8GT/s to 6.4GT/s

System Memory

* Six 240-pin DDR3 DIMM sockets

* DDR3 800/1066/1333/1600(O.C.) MHz DIMMs

* Triple-channel memory architecture

* Supports up to 24GB system memory

* Delivers up to 43.2GB/s bandwidth

* Unbuffered x8/x16, non-ECC and ECC, up to 4Gb DDR3 devices

Windows® 32-bit operating system is unable to accurately detect more than 4GB system memory. Therefore, if you are using this operating system, we strongly recommend that you install a less than 3GB system memory.

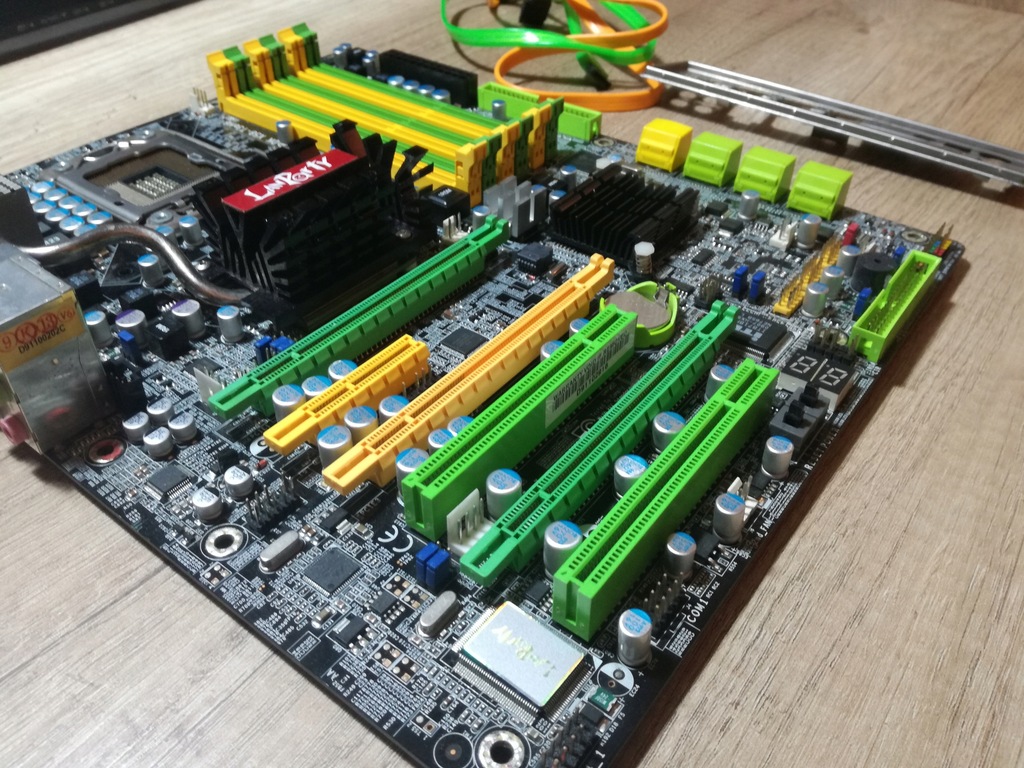

Expansion Slots

* 3 PCI Express (Gen 2) x16 slots - 2-way SLI or Quad CrossFireX configuration at x16/x16/x4 transfer rate lanes

* 1 PCI Express x4 slot

* 2 PCI slots

BIOS

* Award BIOS

* 8Mbit SPI flash memory

* CMOS Reloaded

Graphics

* Multiple GPUs - 3 graphics cards in 2-way SLI or Quad CrossFireX configuration

Audio

* Realtek ALC889 High Definition audio CODEC

* 8-channel audio output

* 108dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality

LAN

* Marvell 88E8053 PCIE Gigabit LAN controller with Teaming technology

* Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards

Storage

* Intel ICH10R chip - Intel Matrix Storage technology - Supports up to 6 SATA devices - SATA speed up to 3Gb/s - RAID 0, RAID 1, RAID 0+1 and RAID 5

* JMicron JMB363 PCI Express to SATA and PATA host controller - Supports up to 2 UltraDMA 100Mbps IDE devices - Supports 2 SATA devices - SATA speed up to 3Gb/s - RAID 0 and RAID 1

IEEE 1394

* VIA VT6308P

* Supports two 100/200/400 Mb/sec IEEE 1394a ports

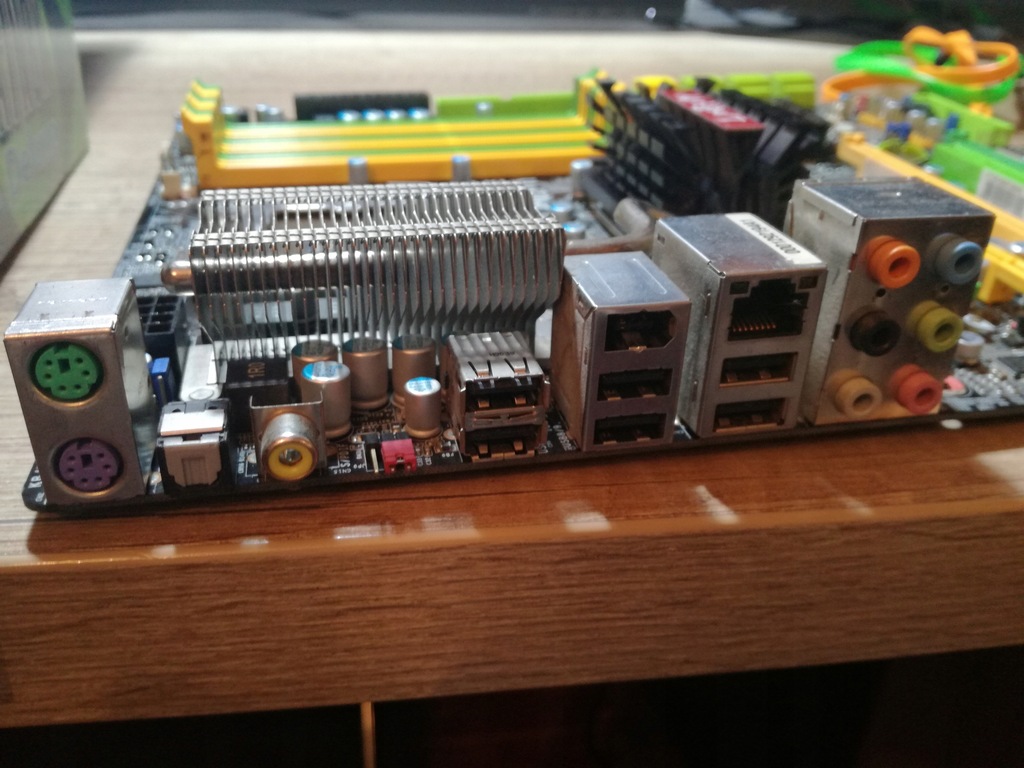

Rear Panel I/O

* 1 mini-DIN-6 PS/2 mouse port

* 1 mini-DIN-6 PS/2 keyboard port

* 1 optical S/PDIF-out port

* 1 coaxial RCA S/PDIF-out port

* 6 USB 2.0/1.1 ports

* 1 IEEE 1394 port

* 1 RJ45 LAN port

* Center/subwoofer, rear R/L and side R/L jacks

* Line-in, line-out (front R/L) and mic-in jacks

Internal I/O

* 3 connectors for 6 additional external USB 2.0 ports

* 1 connector for an external COM port

* 1 connector for an external IEEE 1394 port

* 1 front audio connector

* 1 CD-in connector

* 1 IrDA connector and 1 CIR connector

* 8 Serial ATA connectors

* 1 40-pin IDE connector and 1 floppy connector

* 1 24-pin ATX power connector

* 1 8-pin 12V power connector

* 2 4-pin 5V/12V power connectors (FDD type)

* 1 front panel connector

* 6 fan connectors

* 1 download flash BIOS connector

* 1 diagnostic LED

* EZ touch switches (power switch and reset switch)

Power Management

* ACPI and OS Directed Power Management

* ACPI STR (Suspend to RAM) function

* Wake-On-PS/2 / Wake-On-USB Keyboard/Mouse

* Wake-On-LAN and Wake-On-Ring

* RTC timer to power-on the system

* AC power failure recovery

Hardware Monitor

* Monitors CPU/system/Northbridge temperature and overheat alarm

* Monitors Vcore/Vdimm/Vnb/VCC5/12V/V5sb/Vbat voltages

* Monitors the speed of the cooling fans

* CPU Overheat Protection function monitors CPU temperature and fan during system boot-up - automatic shutdown upon system overheat

PCB

* 6 layers, ATX form factor;

* 24.5cm (9.64") x 30.5cm (
