WITAM

DO SPRZEDANIA MAM :

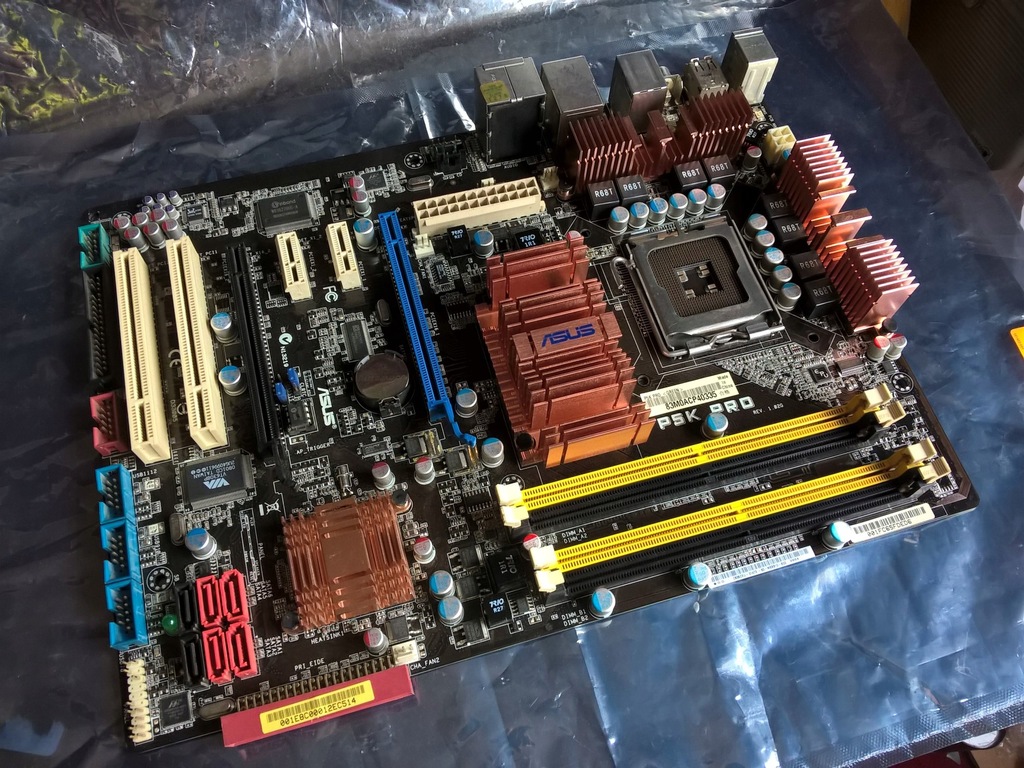

ORYGINALNA PŁYTA GŁÓWNA DO PC

ASUS P5K PRO

- Intel® P35 chipset

- Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 Processors

- ASUS EPU (Energy Processing Unit)

- ASUS 3rd Generation 8-phase Power Design

- Precision Tweaker 2

- ASUS Q-Shield

SPECYFIKACJA:

CPU

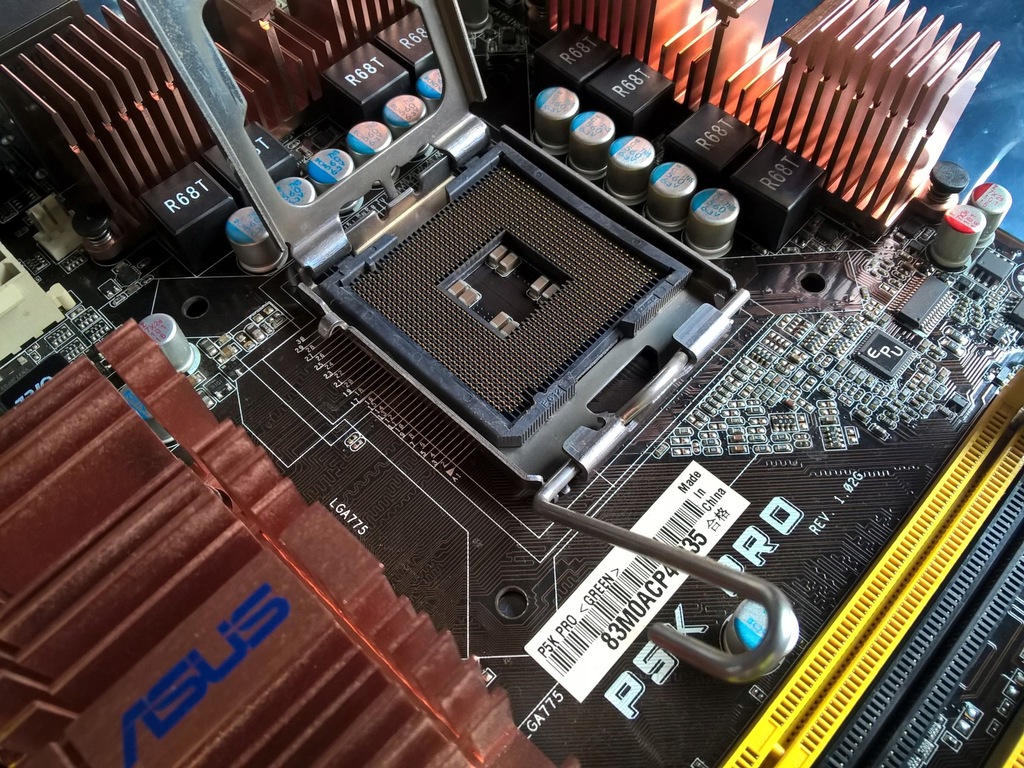

Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors

Compatible with Intel® 05B/05A/06 processors

New power design supports next generation Intel Prescott CPU

• Chipset

  Intel P35

  Intel ICH9R

  Intel Fast Memory Access Technology

• Front Side Bus

  1600/1333/1066/800 MHz

• Memory

  4 x DIMM, Max. 8 GB, DDR2 1066*/800/667 Non-ECC,Un-buffered Memory

  Dual Channel memory architecture

  *The chipset officially supports the memory frequency up to DDR2 800MHz. Tuned by ASUS Super Memspeed Technology, this motherboard natively supports up to DDR2 1066MHz

  Please refer to www.asus.com or user manual for Memory QVL.

  **When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

• Expansion Slots

  2 x PCIe x16 (blue @ x16 mode, black @ x4 or x1 mode) supports

  2 x PCIe x1

  2 x PCI

• Storage

  Southbridge

  6 xSATA 3 Gb/s ports

  Intel Matrix Storage Technology Support RAID 0,1,5,10

  Marvell 88SE6102 PATA controller

  1 xUltraDMA 133/100/66 for up to 2 PATA devices

• LAN

  Marvell88E8056® PCIe Gigabit LAN controller featuring AI NET2

• Audio

  Realtek ALC 883, 8 -Channel High-Definition Audio CODEC

  Coaxial / Optical S/PDIF out ports at back I/O

  Support Enumeration, Multi-streaming

• IEEE 1394

  VIA VT6308P controller supports 2 x 1394a ports (one at midboard; one at back panel)

• USB

  12 USB 2.0 ports

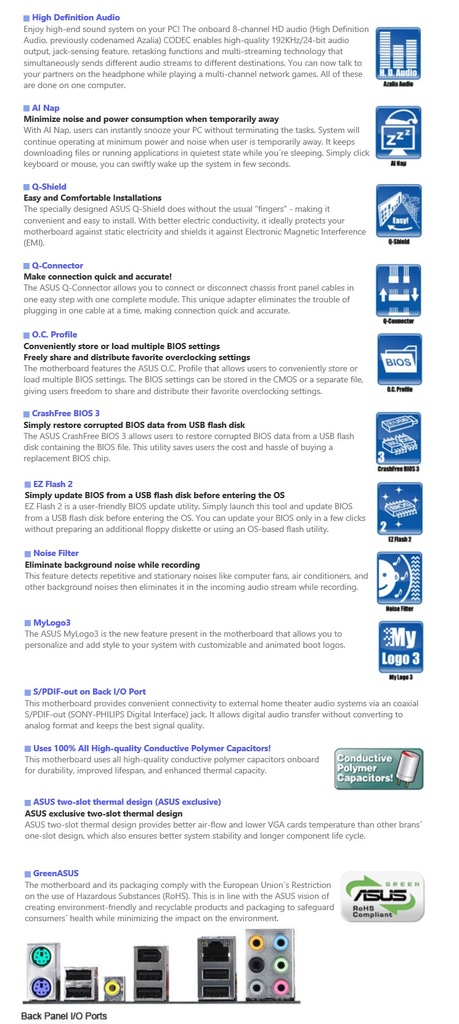

• ASUS Unique Features
• ASUS Power Saving Solution

  - ASUS EPU (Energy Processing Unit)

  - ASUS AI Nap

  ASUS AI Lifestyle

  - ASUS AI Direct Link

  ASUS Quiet Thermal Solution

  - ASUS Q-Fan 2

  ASUS Crystal Sound

  - ASUS Noise Filter

  ASUS EZ DIY

  - ASUS Q-Connector

  - ASUS O.C. Profile

  - ASUS CrashFree BIOS 3

  - ASUS EZ Flash 2

• Special Features

  ASUS MyLogo 3

• Overclocking Features

• Intelligent overclocking tools

  - ASUS AI Booster Utility

  - ASUS AI NOS (Non-delay Overclocking System)

  Precision Tweaker2

  - vDIMM: 64 -step DRAM voltage control

  - vCore: Adjustable CPU voltage at 0.00625V increment

  - vChipset (N.B.): 33-step Chipset voltage control

  - vFSB Termination: 15-step reference voltage control

  - vCPU PLL: 64-step CPU PLL voltage control

  SFS (Stepless Frequency Selection)

  - FSB tuning from 200MHz up to 800MHz at 1MHz increment

  - Memory tuning from 667MHz up to 800MHz

  - PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment

  Overclocking Protection

  - ASUS C.P.R.(CPU Parameter Recall)

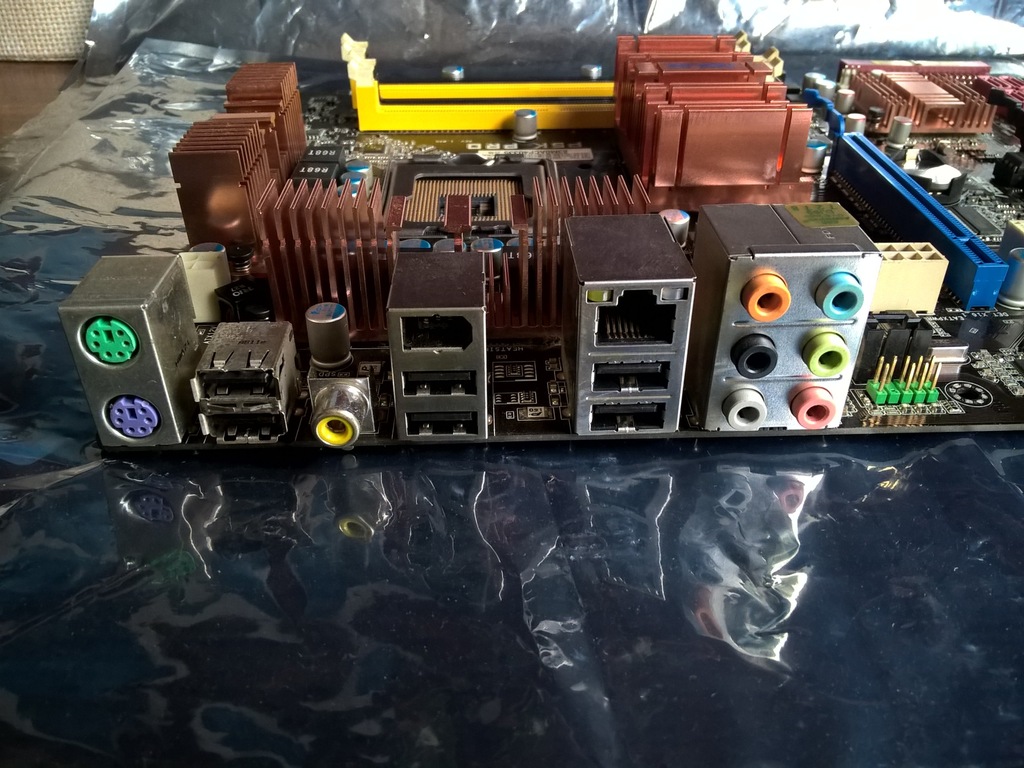

• Back Panel I/O Ports

  1 x PS/2 Keyboard

  1 x PS/2 Mouse

  1 x S/PDIF Out

  1 x IEEE 1394a

  1 x LAN(RJ45) port

  6 x USB 2.0/1.1

  8 -Channel Audio I/O

• Internal I/O Connectors

  3 x USB connectors support additional 6 USB ports

  1 x Floppy disk drive connector

  1 x IDE connector

  6 x SATA connectors

  1 x CPU Fan connector

  2 x Chassis Fan connector

  1 x Power Fan connector

  1 x COM connector

  1 x S/PDIF Out connector

  1 x4-pin ATX 12V Power connector

  24-pin Power connector

  Front panel audio connector

  COM connector

  Chassis Intrusion connector

  CD/AUX audio in

  System Panel

• BIOS

  8 Mb Flash ROM

  DMI 2.0

  AMI BIOS

  PnP

  WfM 2.0

  SM BIOS 2.3

  ACPI 2.0a

  ASUS EZ Flash 2

  ASUS CrashFree BIOS 3

• Manageability

  WfM 2.0,DMI 2.0,WOL by PME,WOR by PME, PXE

• Form Factor

  ATX Form Factor

  12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )

OBSŁUGA PROCESORÓW:

https://www.asus.com/Motherboards/P5K_PRO/HelpDesk_CPU/

STEROWNIKI DOWNLOAD:

https://www.asus.com/Motherboards/P5K_PRO/HelpDesk_Download/

UWAGA!!!

PŁYTA TESTOWANA 100% SPRAWNA!

PŁYTA SPRAWDZANA POD OBCIĄŻENIEM, TESTOWANA, WSZYSTKO WPORZĄDKU!

W ZESTAWIE BLASZKA MASKOWNICA PORTÓW

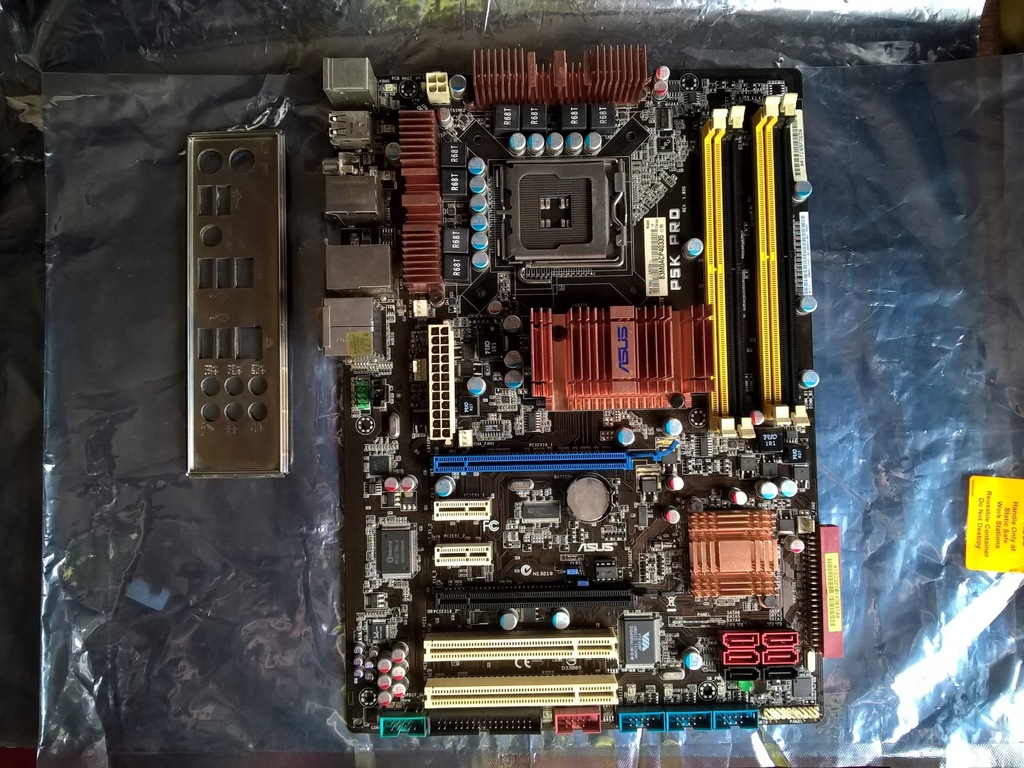

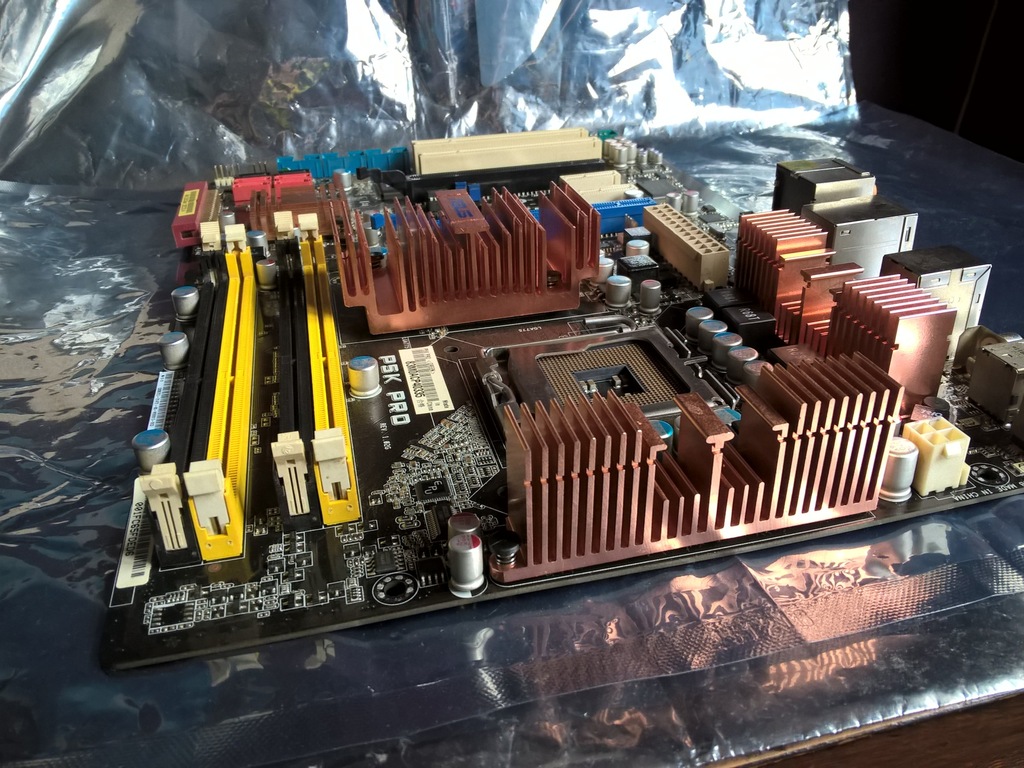

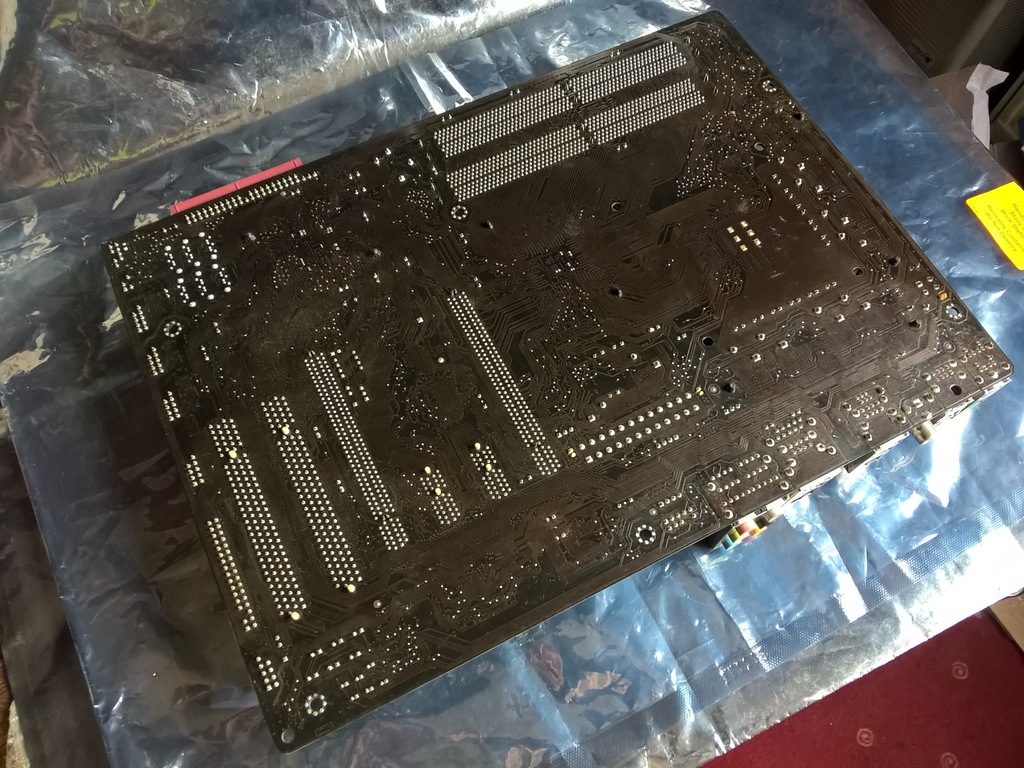

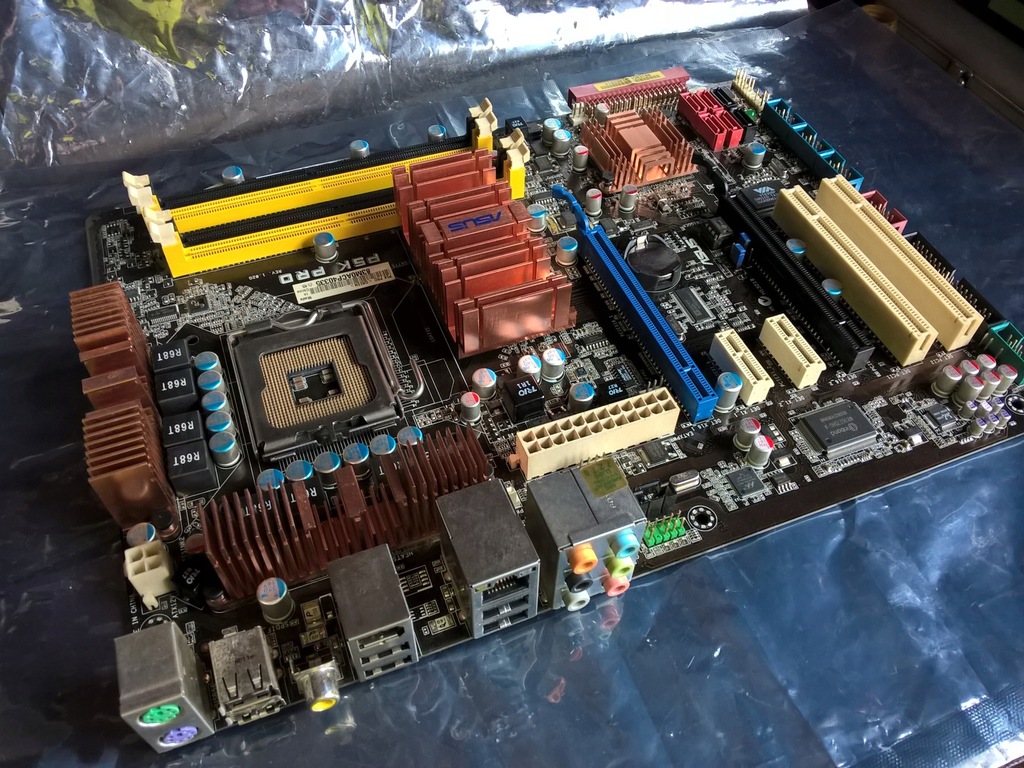

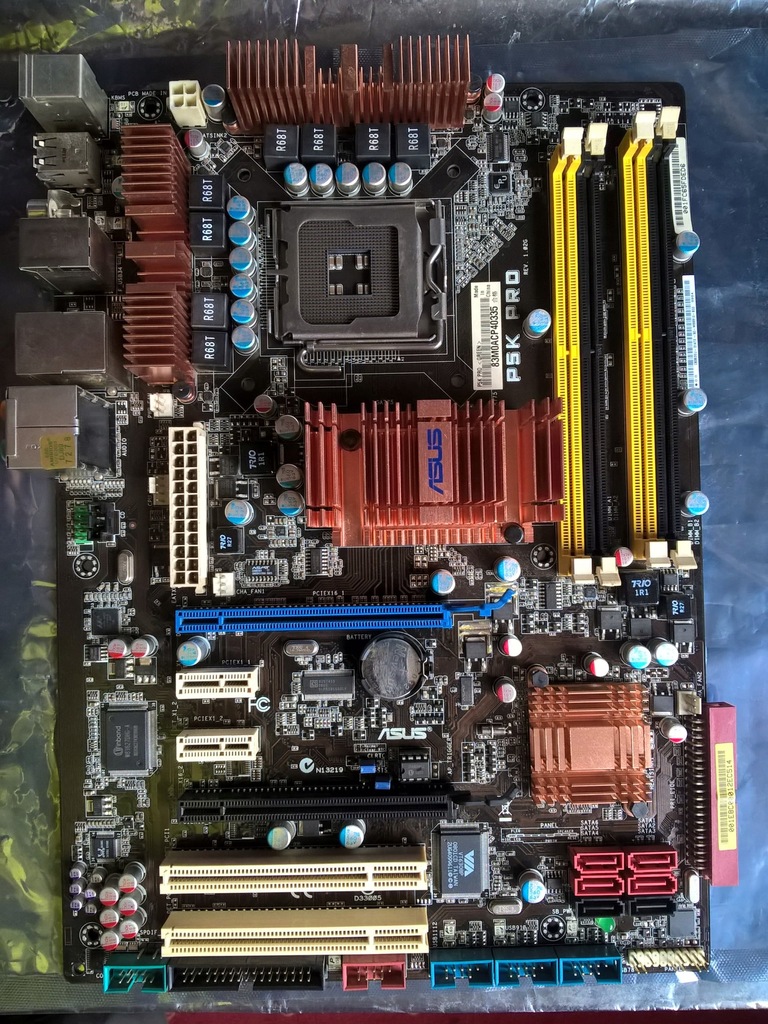

REAL FOTO !!!

GWARANTUJĘ PEWNOSĆ DOSTAWY !!!

SZYBKA I BEZPIECZNIE ZAPAKOWANA PACZKA !!!

MOŻLIWY ODBIÓR OSOBISTY W OKOLICY GDYNI PO WCZEŚNIEJSZYM KONTAKCIE!

MASZ DODATKOWE PYTANIA, CHCESZ KUPIĆ?

KONTAKT TEL  696-545-930

EMAIL bodyguardnr1@wp.pl

MEGA OKAZJA!!!

ZAPRASZAM DO ZAKUPU!!!
