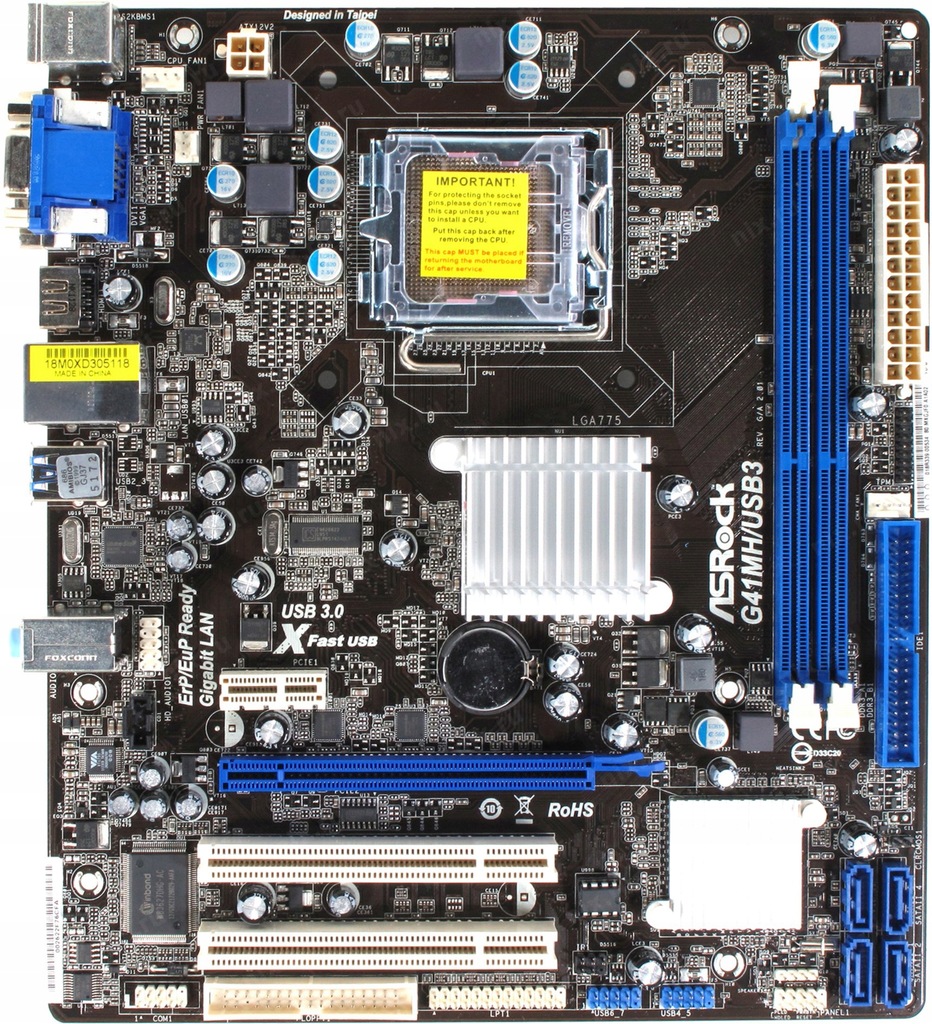

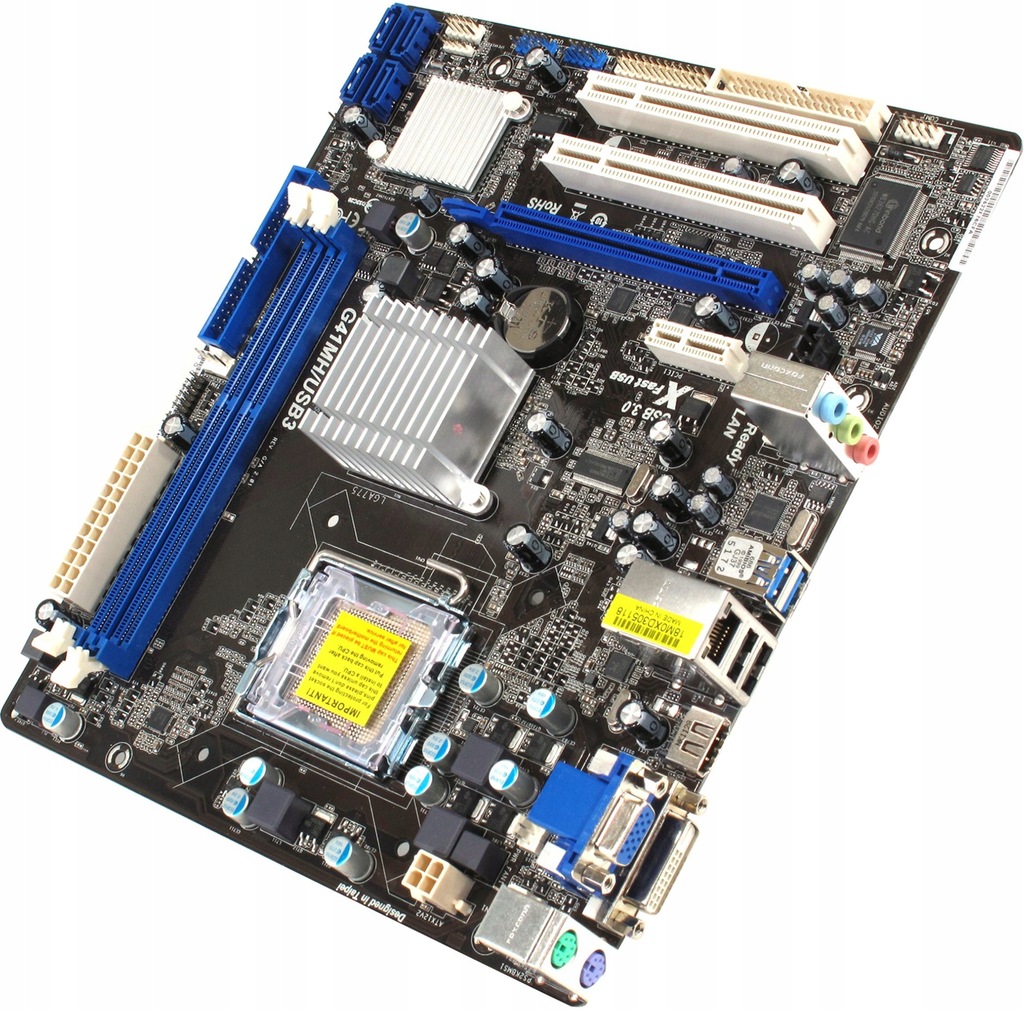

ASRock G41MH/USB3 R2.0

Używana płyta główna. W pełni sprawna.

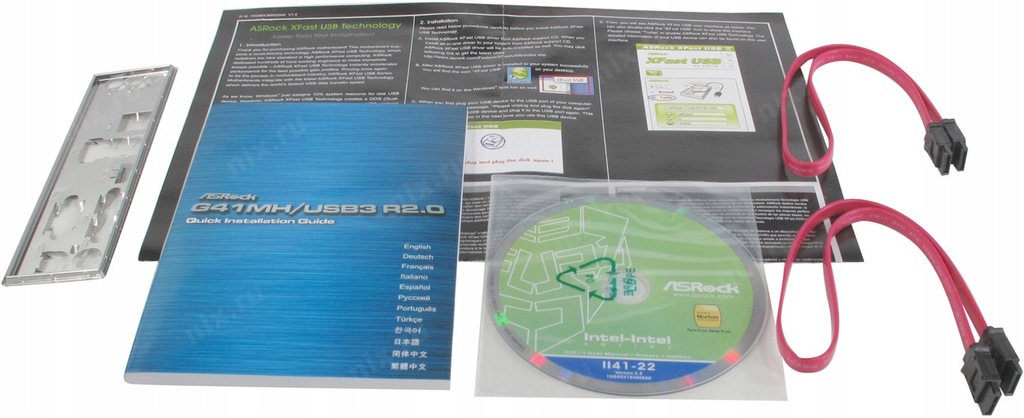

W zestawie:

• płyta główna
• oryginalne pudełko
• tylna blaszka
• płyta CD
• książeczka
• 2x kabel SATA

Gwarancja i rękojmia na przetestowanie: 14 dni.

Na innych moich aukcjach kupisz pamięci 8GB RAM DDR3, procesor Intel C2D E8400 oraz kartę dźwiękową Asus Xonar DX.

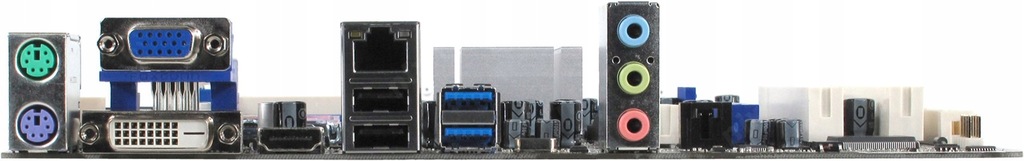

Porty z tyłu, m.in. 3 wyjścia na monitory i 2 porty USB 3.0:

Czarna ulotka nie jest w zestawie.

Specyfikacja ze strony producenta:

CPU

- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors

- Supports FSB 1333/1066/800/533 MHz

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology

- Supports EM64T CPU

Chipset

- Northbridge: Intel® G41

- Southbridge: Intel® ICH7

Memory

- Dual Channel DDR3 memory technology

- 2 x DDR3 DIMM slots

- Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory

- Max. capacity of system memory: 8GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

**In order to maximize the system memory, please install 4GB memory module with 16 cells or 2GB memory modules with at least 8 cells.

BIOS

- 8Mb AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- Supports I. O. T. (Intelligent Overclocking Technology)

Graphics

- Intel® Graphics Media Accelerator X4500

- Pixel Shader 4.0, DirectX 10

- Max. shared memory 1759MB

- Three graphics output options: D-Sub, DVI-D and HDMI

- Supports HDMI Technology with max. resolution up to 1920x1200 (1080P)

- Supports DVI with max. resolution up to 1920x1200 @ 75Hz

- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

Audio

- 5.1 CH HD Audio (VIA® VT1705 Audio Codec)

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Slots

- 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

USB 3.0

- 2 x USB 3.1 Gen1 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s

Connector

- 4 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Print port header

- 1 x COM port header

- 1 x TPM header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

Rear Panel I/O

I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

- 1 x HDMI Port

- 2 x Ready-to-Use USB 2.0 Ports

- 2 x Ready-to-Use USB 3.1 Gen1 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Line in / Front Speaker / Microphone

Unique Feature

- ASRock OC Tuner

- ASRock Intelligent Energy Saver

- ASRock Instant Boot

- ASRock Instant Flash

- ASRock OC DNA

- ASRock APP Charger

- ASRock XFast USB

- Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial,

ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)

Accessories

- Quick Installation Guide, Support CD, I/O Shield

- 2 x SATA Data Cables

Hardware Monitor

- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU, Chassis, Power Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- Micro ATX Form Factor: 9.6-in x 8.4-in, 24.4 cm x 21.3 cm

- Solid Capacitor for CPU Power

OS

- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Certifications

- FCC, CE

- ErP/EuP Ready (ErP/EuP ready power supply is required)
