⭐PIEZO DISC

⭐ GUITAR ACCESSORY

⭐ PICKUPS PIEZO DISC

⭐ PIEZO DIAPHRAGM

⭐ DIAPHRAGM DISC

⭐ PIEZO DISC

✅Features voice legible, contactless, thin and light.

✅27mm brass outer diameter plate.

✅Low voltage and low power consumption.

✅Great for acoustic instrument pickups, stomp boxes, mics, etc.

✅Suitable for clocks, toys, cameras, telephones and so on.

⭐ PACKAGE LIST

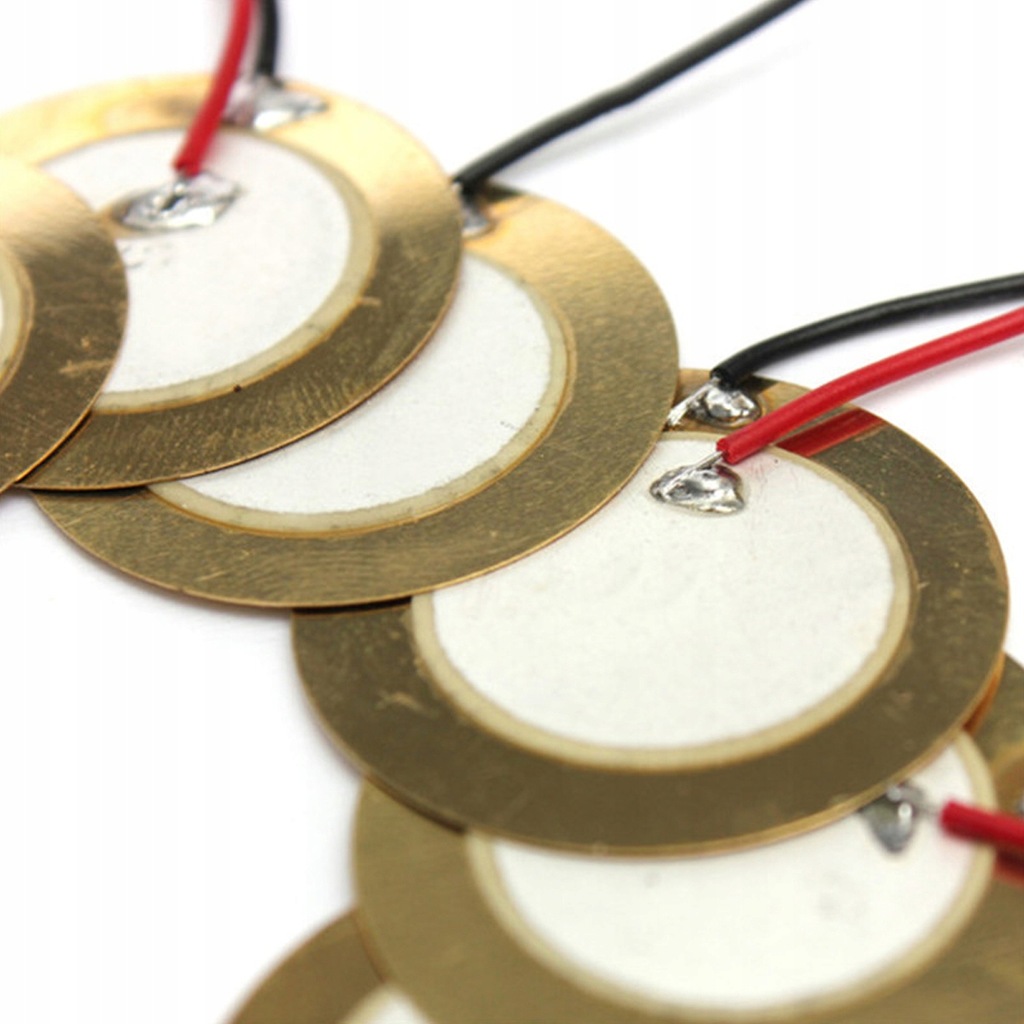

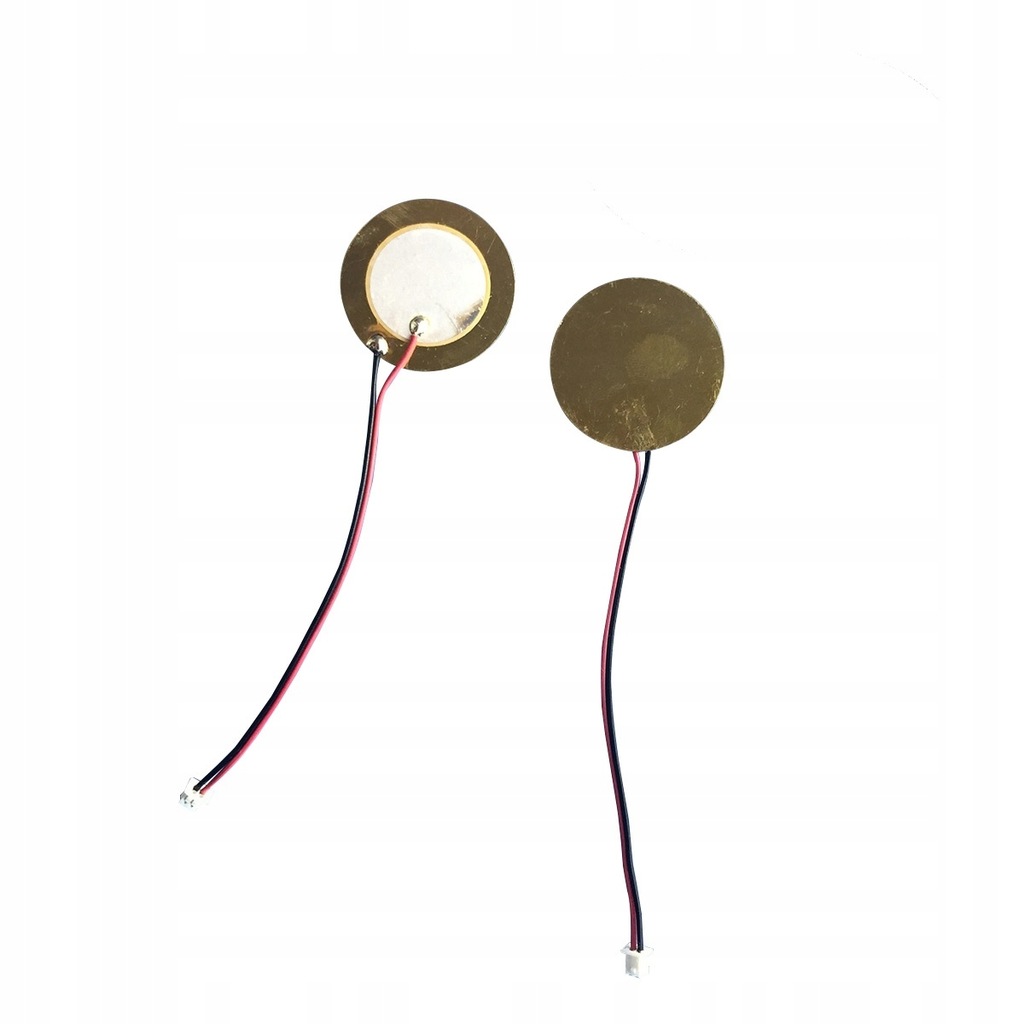

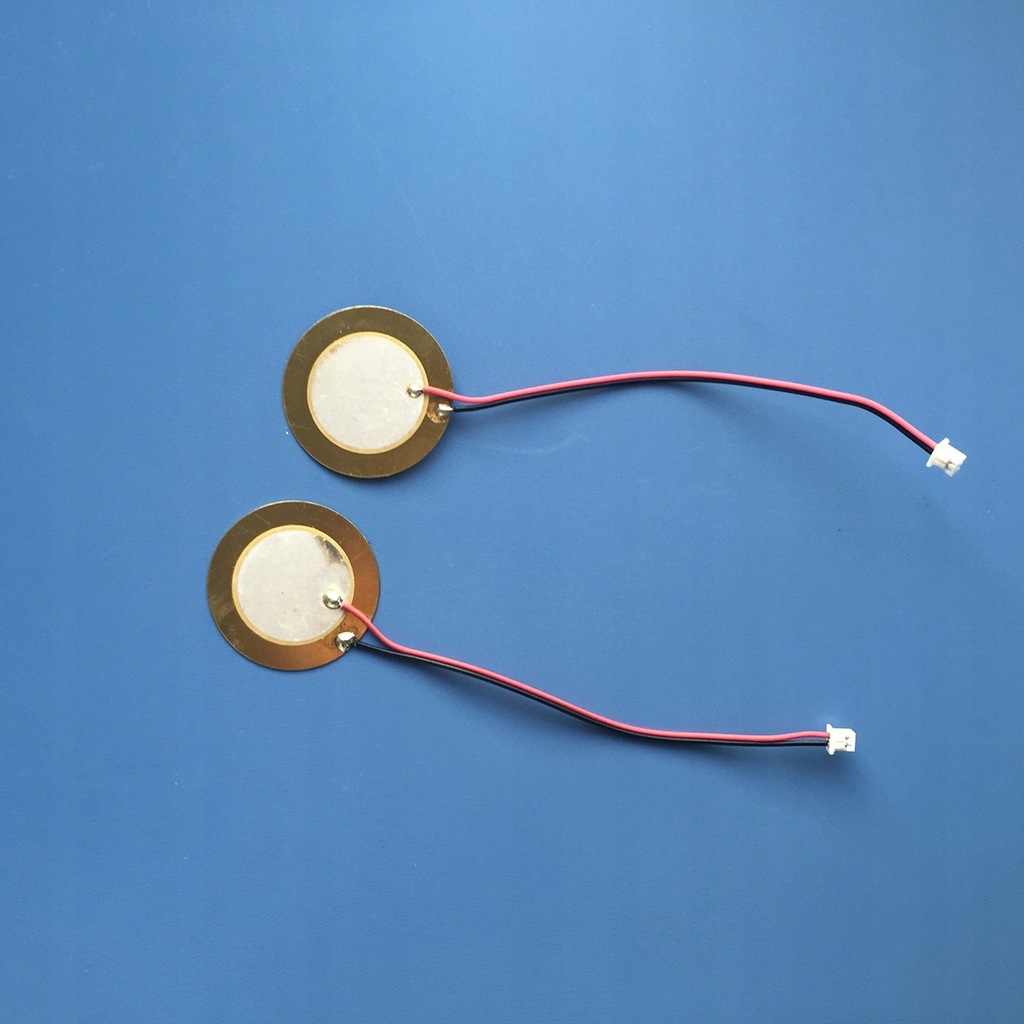

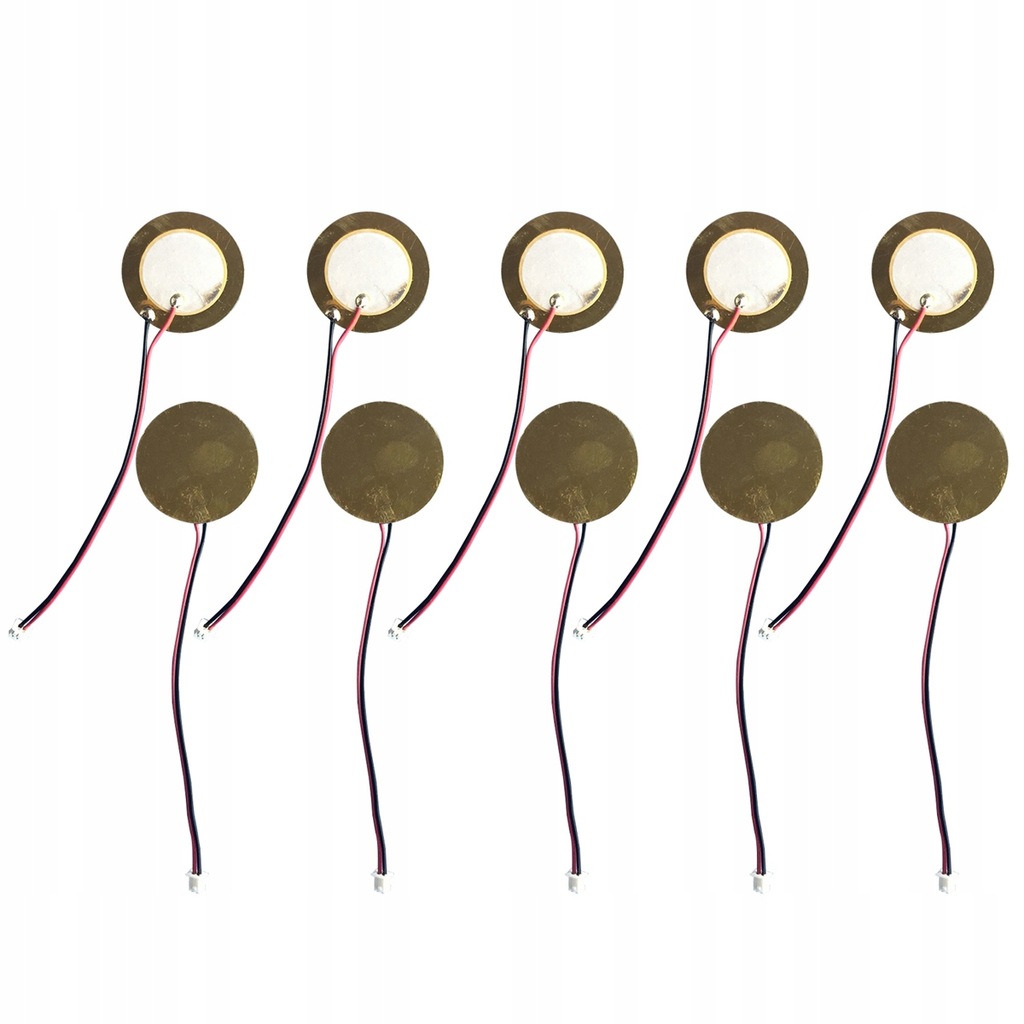

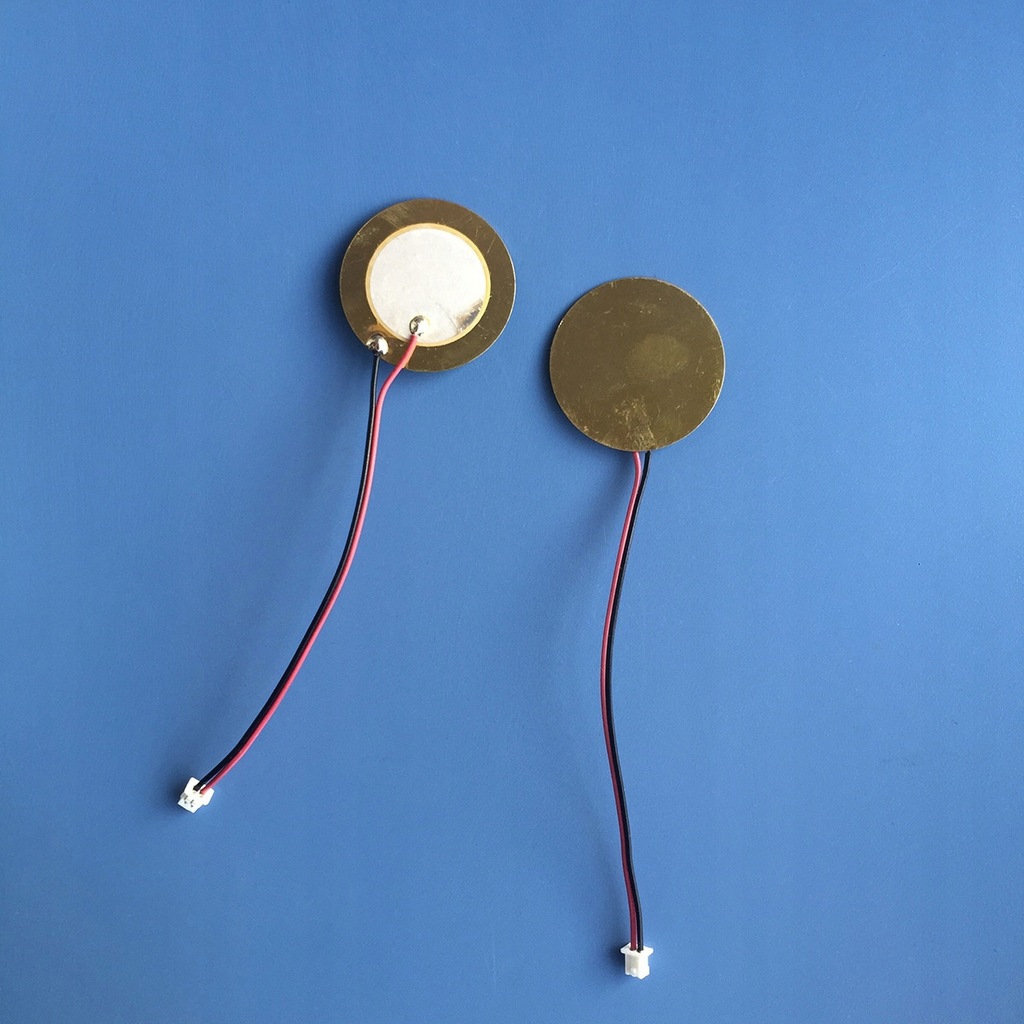

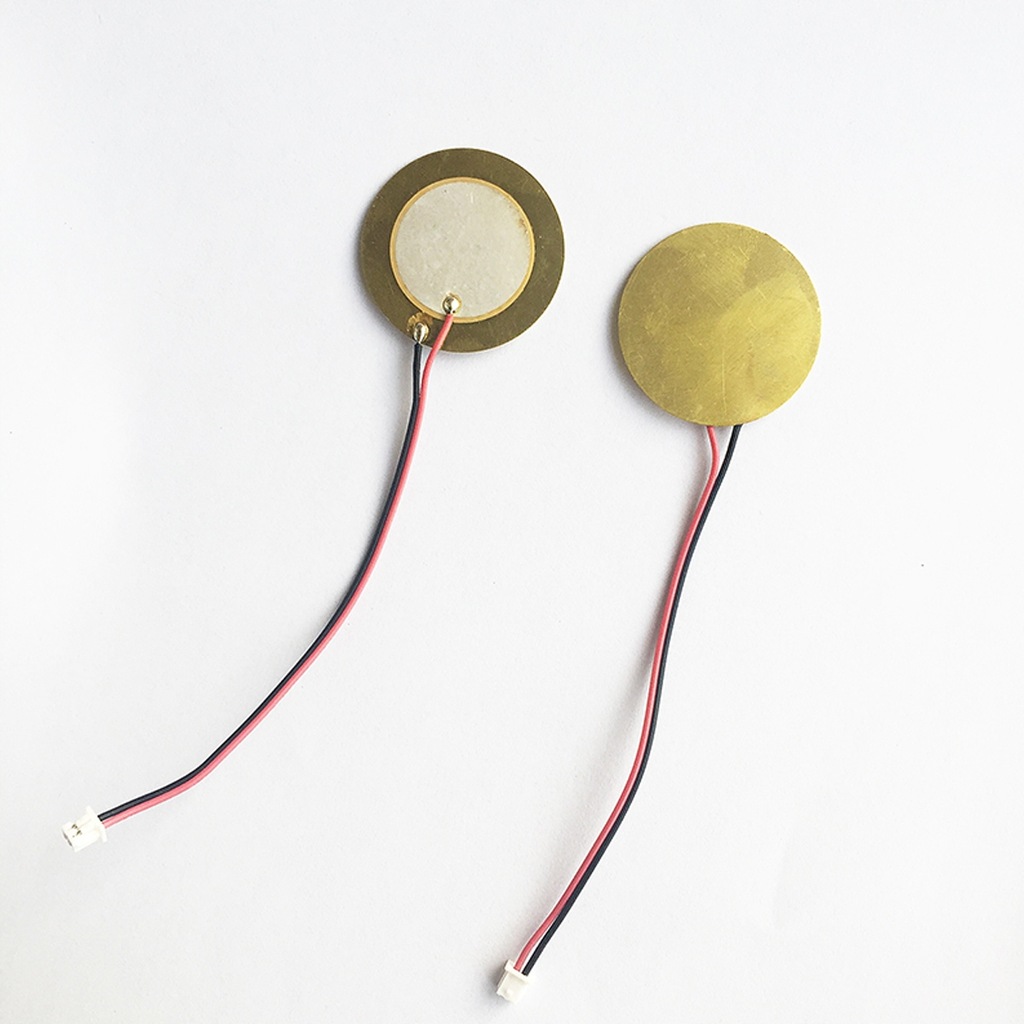

✅10 x 27mm Piezo Disc Diaphragm Elements Thicken Buzzer Copper Sheet Piezoelectric Ceramic Chip with Leadwire

⭐ GUITAR ACCESSORY

✅Piezo discs are great for constructing pickups for acoustic instruments. Many users love them as the pickup in cigar box guitars, and they are a favorite amongst people experimenting with electric drum triggers.This item is well made of premium material for long lasting and practical use.

✅Feature

✅- Color: As shown.

✅- Material: Copper.

✅- Size: Approx. 2.7 x 2.7 cm / 1.1 x 1.1 inch (L x W).

✅- Resonant Frequency: 4.0±0.5 Khz.

✅- Resonant Impedance: 200Ω Max.

✅- Static Capacitance: 25.0nFC30%at 100Khz.

✅- Input Voltage: 30Vp-p max.

✅- Operating Temperature Range: -20-70℃.

✅- Storage Temperature: -30-80℃.

✅- Plate Diameter: D=27.0±0.1mm.

✅- Ceramic Disc Diameter: d=20.0±0.3mm.

✅- Metal Plate Thickness: t=0.20±0.03mm.

✅- Total Thickness: T=0.45±0.05mm.

✅- Lead Wire Specification: UL1571 AWG 28# 2.54mm Terminal.

✅- Features voice legible, contactless, thin and light.

✅- 27mm brass outer diameter plate.

✅- Low voltage and low power consumption.

✅- Great for acoustic instrument pickups, stomp boxes, mics, etc.

✅- Suitable for clocks, toys, cameras, telephones and so on.

⭐ PICKUPS PIEZO DISC

✅Description

✅Piezo discs are great for constructing pickups for acoustic instruments. Many users love them as the pickup in cigar box guitars, and they are a favorite amongst people experimenting with electric drum triggers.This item is well made of premium material for long lasting and practical use.

✅Feature

✅ Color: As shown.

✅ Material: Copper.

✅ Size: Approx. 2.7 x 2.7 cm / 1.1 x 1.1 inch (L x W).

✅ Resonant Frequency: 4.0±0.5 Khz.

✅ Resonant Impedance: 200Ω Max.

✅ Static Capacitance: 25.0nFC30%at 100Khz.

✅ Input Voltage: 30Vpp max.

✅ Operating Temperature Range: 2070℃.

✅ Storage Temperature: 3080℃.

✅ Plate Diameter: D=27.0±0.1mm.

✅ Ceramic Disc Diameter: d=20.0±0.3mm.

✅ Metal Plate Thickness: t=0.20±0.03mm.

✅ Total Thickness: T=0.45±0.05mm.

✅ Lead Wire Specification: UL1571 AWG 28# 2.54mm Terminal.

✅ Features voice legible, contactless, thin and light.

✅ 27mm brass outer diameter plate.

✅ Low voltage and low power consumption.

✅ Great for acoustic instrument pickups, stomp boxes, mics, etc.

✅ Suitable for clocks, toys, cameras, telephones and so on.
