Orange Pi 4 LTS 4GB+16GB EMMC HDMI 4K WiFi Bluetooth

Orange Pi 4 LTS is a single board, extremely compact (56 x 91mm) microcomputer equipped with dual band wireless WiFi and Bluetooth 5.0.

Orange Pi 4 LTS adopts Rockchip RK3399 and 28nm HKMG technology, with a main frequency of up to 1.8GHz. It is equipped with 3GB/4GB LPDDR4 SDRAM, WiFi, BT 5.0, and has up to 4K processing capacity.

The Orange Pi 4 LTS has a large number of interfaces, including HDMI output, USB2.0, USB3.0, USB-C, microSD, MIPI-CSI, Gbps Ethernet, mini PCIE, LCD, and 26pin.

It can be powered by DC or USB-C input.

It can be widely used in tablet, edge computing, artificial intelligence, smart home and other fields.

Orange Pi 3B supports Android 8.1 Ubuntu16.04、Ubuntu18.04、Debian9。

Ruixin Micro RK3399

RK3566 has fast speed and excellent performance in various AI application scenarios.

Up to 4GB RAM

Orange Pi 4 LTS comes in 3GB or 4GB RAM versions.

4K video codec, providing clear images

4K@60fps -Video codecs allow you to obtain clear images and delicate image quality.

Widely applicable scenarios

It can be widely used in tablet, edge computing, artificial intelligence, smart home and other fields.

Wireless WiFi+Bluetooth 5.0

Built in WiFi and Bluetooth 5.0, strong and stable signal, convenient and fast network transmission.

Built in eMMC memory 16GB

Built in 16GB eMMC memory for stable and persistent operation.

Gigabit Ethernet

Built in 1000Mbps Ethernet provides stronger and more stable network connections and higher transmission speeds.

Rich interfaces, easy to expand

The Orange Pi 4 LTS is equipped with various popular interfaces, such as HDMI output, Micro SD, USB2.0, USB3.0, USB-C, 3.5mm jack, and MIPI CSI.

1. Rockchip RK3399/1.8GHz (64 bit ARM dual core Cortex-A72+quad core Cortex A53)

2.16GB EMMC flash memory

3. Ethernet chip (YT8531C)

4.24-pin mini PCIE

5. USB 2.0 host

6. Gigabit Ethernet

7. Wireless network+Bluetooth (CDW.20U5622-00)

8. WiFi antenna

9. USB 3.0 (top) and USB 2.0 (bottom)

10. DC 5V/4A

11. Power management unit (RK808)

12. USB-C 3.0 (5V/4A power port)

13.HDMI

14. Sound

15.ES8316

16. Camera 1

17.2GB LPDDR4

18. LCD2/Camera 2

19.2GB LPDDR4

20. Microphone

21. Debugging TTL UART

22.26 needles

23. Restore button

24. Reset button

25. microSD

26.LCD1

Product parameters:

SoC: Ruixin Micro RK3399

CPU: big.LITTLE Core architecture: dual core Cortex-A72 (large core)+quad core Cortex-A53 (small core), 6-core ARMR 64 bit processor, up to 1.8GHz (4GB)

GPU: Multi core Mali-T860 GPU OpenGL ES1.1/2.0/3.0/3.1、OpenVG1.1、OpenCL、DX11、AFBC

Power management unit: RK808 power management unit

Memory: 4GB LPDDR4

Memory: 16GB eMMC, MicroSD (TF) slot

USB: 2 USB 2.0, 1 USB 3.0, 1 USB-C 3.0

Video output: HDMI 2.0 (highest 4K@60fps ）DP 1.2 display port (highest 4K@60fps ）Dual MIP-DSI (4 lines per channel)

Camera: 2x MIPI-CSl camera connector (MIPI-RXO, MIPI-TX1/RX1)

Audio: Output -3.5mm jack and HDMI2.0a, Input - MIC

Ethernet: 10/100M/1000M Ethernet (YT8531C)

WiFi+BT: CDW.20U5622-00, IEEE 802.11 a/b/g/n/ac, 2T2R • Supports BT 5.0

Debugging UART: 3Pin

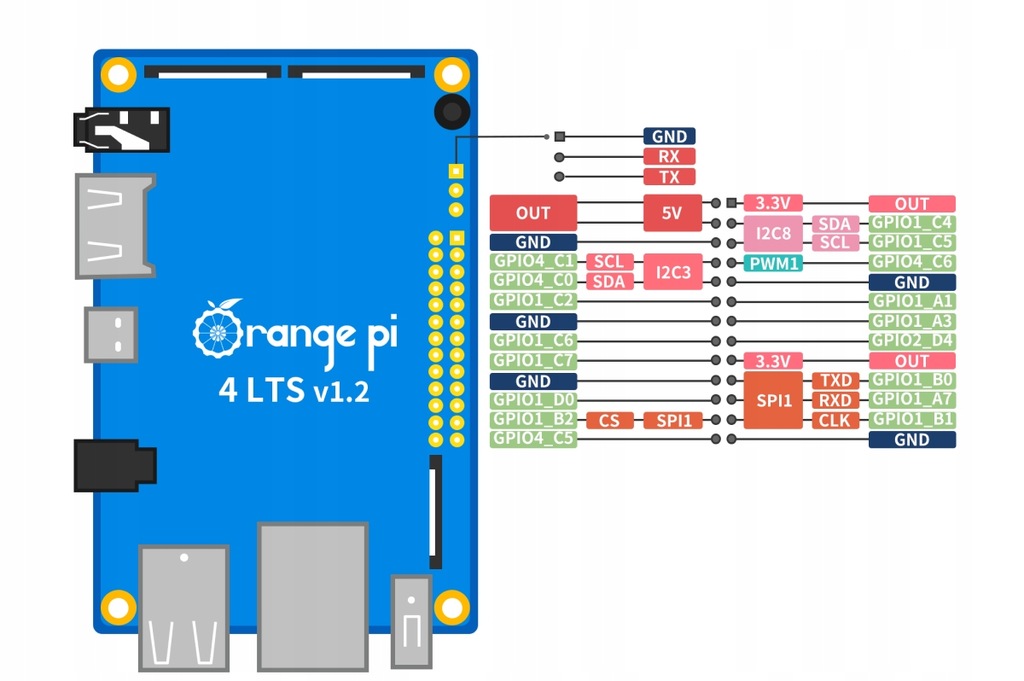

GPIO: 26 needles

PCIE: Mini PCIe port

Button: Upgrade and Reset keys

LED: Power LED and Status LED

Power supply: DC 5V/3A or 5V/4A, TYPE-C 5V/4A

Supported systems: Android, Ubuntu, Debian

Size: 91 x 56 (millimeters)

Weight: 49 grams
