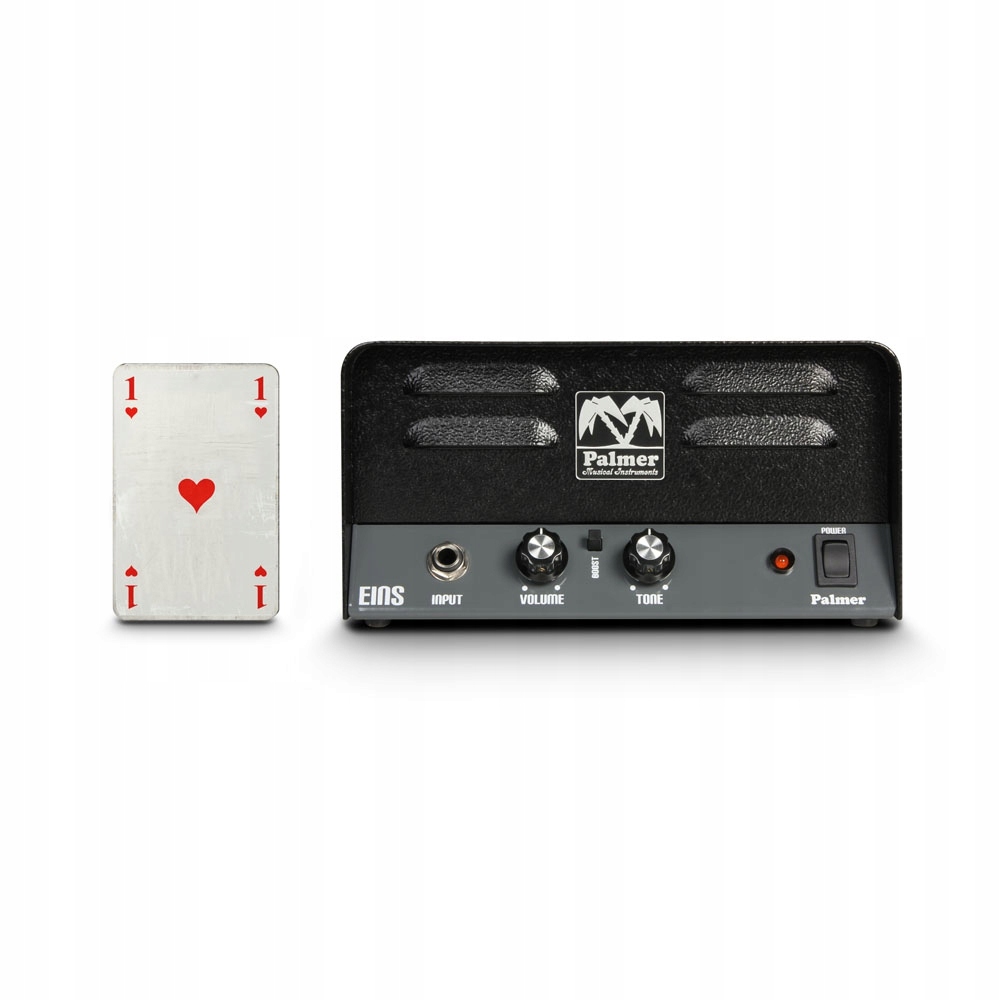

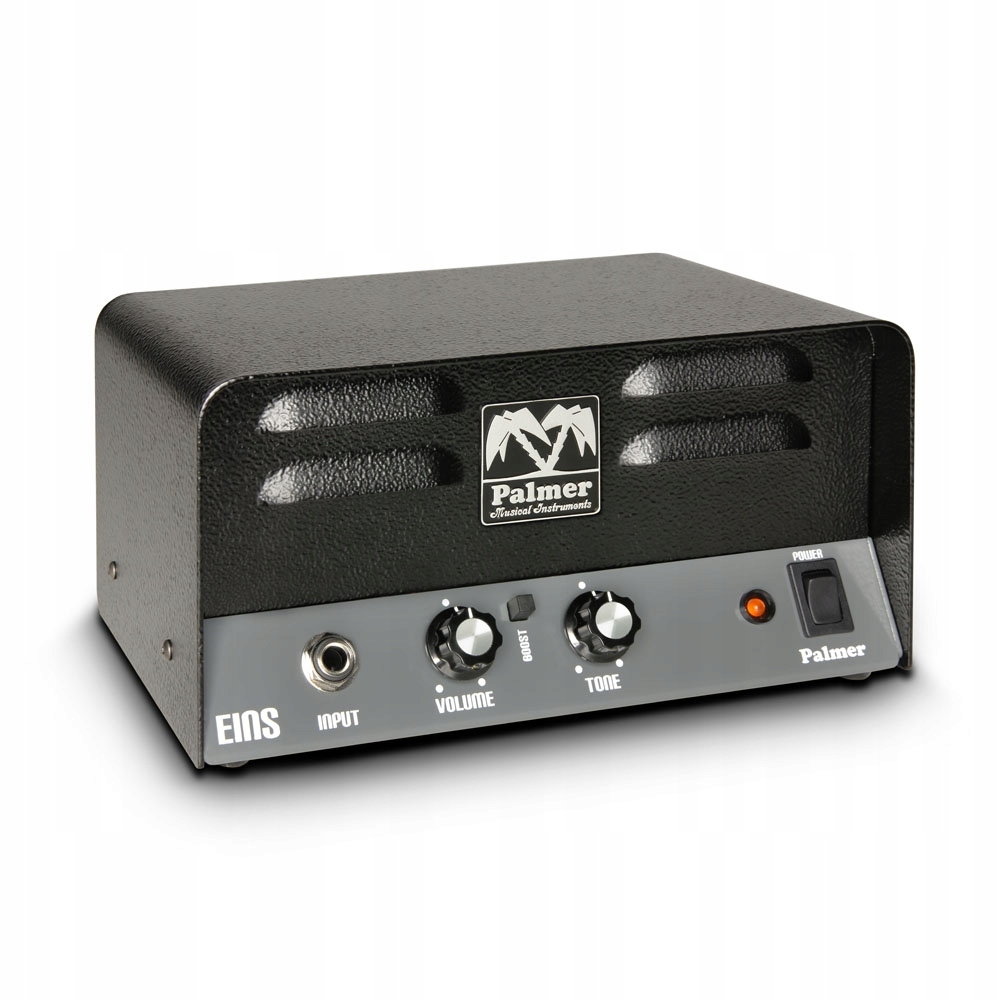

Palmer EINS - incredibly versatile!

For several years, small amplifiers with a capacity of up to 5 W have been becoming more and more popular. These little devices are really nice, but unfortunately some of them are more like toys than real amplifiers. While working on the EINS device, f irma Palmer decided to create a real tube amplifier that also meets professional requirements. The built-in speaker simulator allows you to connect the amplifier directly to the audio connector. Thanks to the built-in Loadbox module, you do not need to connect any column. The unique "HiZ output" allows you to connect the EINS device directly to the instrumental input of any amplifier. In this way, the EINS device can be used as a large amplifier, as a preamplifier or built into the pedal panel (pedalboard).

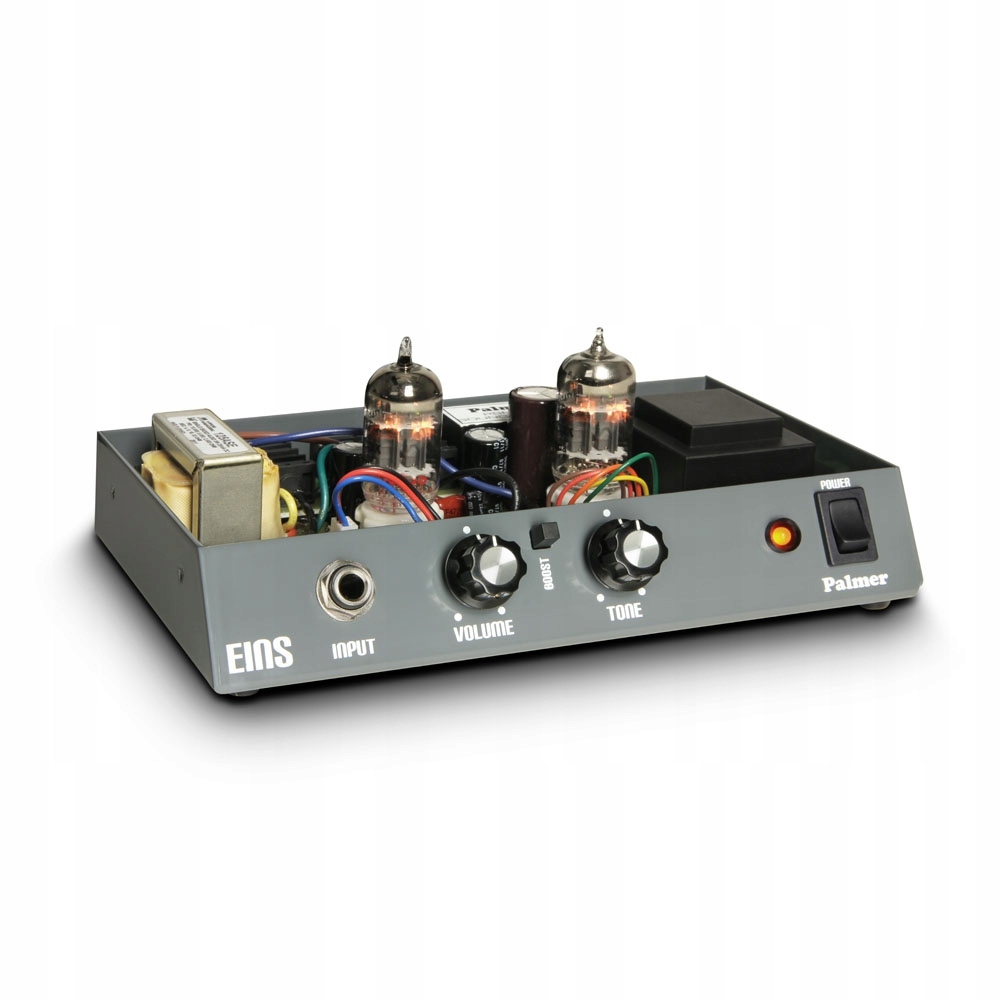

The Palmer EINS is equipped as standard with an ECC83 preamplifier lamp (V1) and an ECC82 power amplifier lamp (V2). The following lamp configurations are possible:

- 1 V1:ECC83 - V2:ECC83: quieter, distortion occurs much faster, a little more amplification, solo sound.

- 2 V1:ECC83 - V2:ECC81: louder than variant 1, quieter than standard configuration, more gain, distortion occurs a little faster.

- 3 V1:ECC81 - V2:ECC82: sound stays clear a little longer, a little more range of signal reserve (headroom), darker sounding distortion.

- 4 V1:ECC81 - V2:ECC83: the quietest configuration, distortion occurs a little later than in the case of variant 1 and can be adjusted very precisely.

Specification:

Product Type: Guitar Amplifiers

Technology: lamp

Class: A

Power: 1 W

Number of Inputs: 1

Input connections: jack 6,3 mm

Input Impedance: 1 MΩ Om(s)

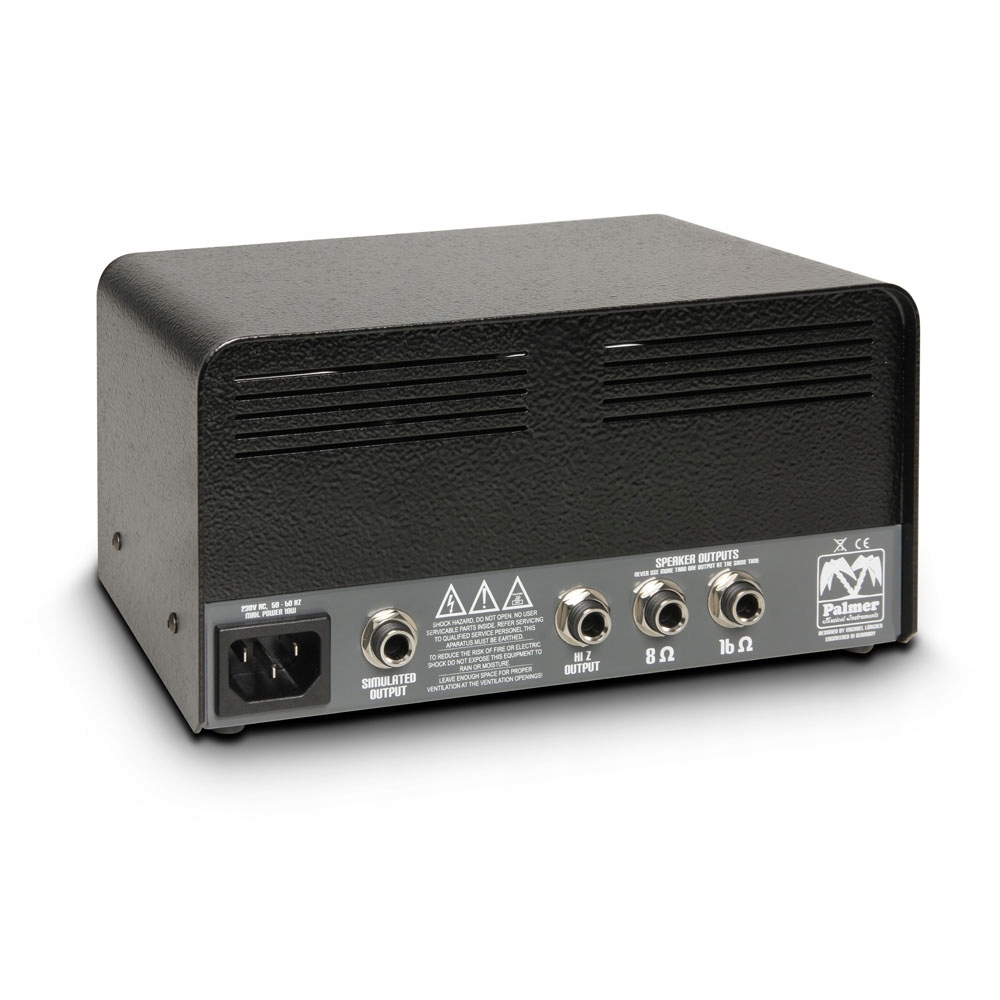

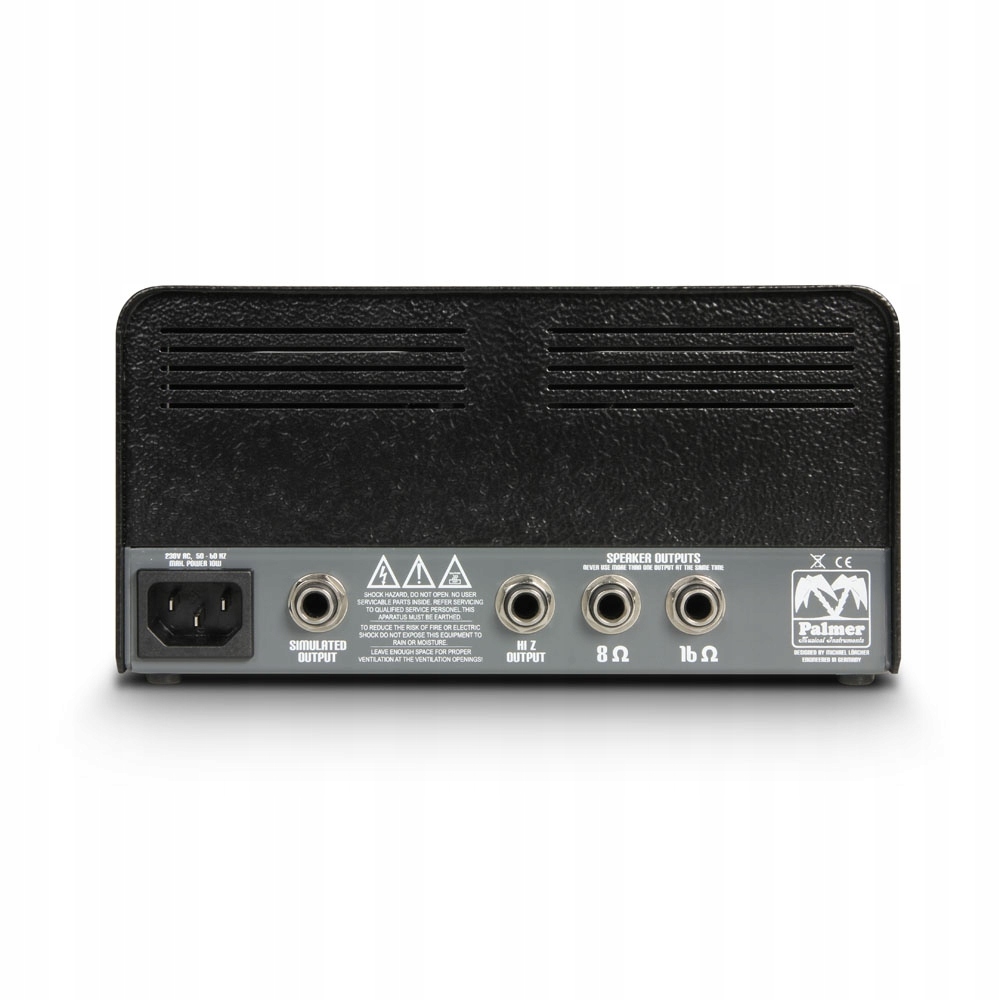

Number of Outputs: 4

Output connectors: jack 6,3 mm

Output Impedance: Speaker Output: 8 and 16Ω, Speaker Simulator Output: 4 kΩ, HiZ Output: 3,3 MΩ Om(s)

Number of Channels: 1

Indicators: Power

Operating Elements: Tone, Level

FX Loop (effects loop): no

Lamps (preamplifier): ECC83

Lamps (power tip): ECC82

Rectifier: semiconductor

Power supply: 230 V AC

Power Consumption: 10 W

Housing Material: Steel Sheet

Width: 206 mm

Depth: 128 mm

Height: 108 mm
