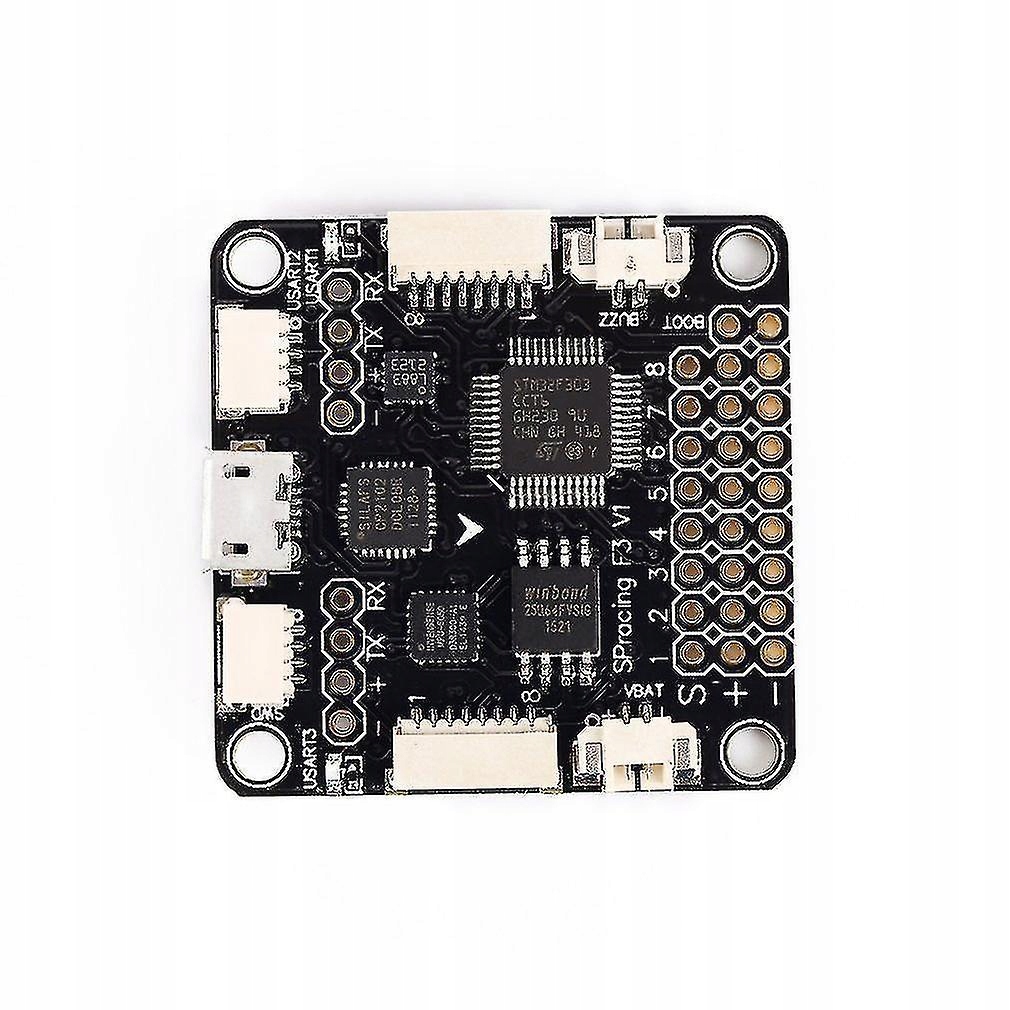

Ocday Deluxe Sp3 Racing F3 Flight Controller Board Aircraft Quadcopter

The product is shipped based on the color or size of the main image of the product page.

Ocday Deluxe Sp3 Racing F3 Flight Controller Board Aircraft QuadcopterThe product is shipped based on the color or size of the main image of the product page, if you have special requirements, please leave us a message.Features:High Capacity FlashDeluxeDesigned to give awesome flight performance based on tried and tested sensorswhilst also providing unparalleled and I/O capabilities in a small and extremely lightweight form-factor using a next-generation CPU.Flight Performance: The SP Racing F3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it's on rails.The SPRacingF3 runs Clean flight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).Flight Logging. On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guessworkDeveloper friendly debugging port (SWD) and boot mode selection, unbrickable bootloaderBroad RC receiver Support. Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receiversBattery Monitoring. Battery monitoring ports for voltage and currentI2C port always powered, perfect for external sensors or always-on OLED ScreenNo-Compromise I/O.Use all the features all the timeMonitoring + Sonar + 8 motors - all at the same timeTiny and light weight.The SPRacingF3 has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for efficient flight calculations that gets more done in less time.Loop times up to 2x as fast as previous-generation STM32F1 based boards.OneShot ESC. Full support for OneShot ESCs for easy PID tuning and a sharper response.Sonar support for precision low-altitude hold.Buzzer port for audible warnings and notifications.The SPRacingF3 gives you all the features you need for the heart of your aircraft, whether you're into FPV racing, acrobatic flying or aerial photography it's perfect.Supports a variety of aircraft, planes and more.Practical - Easy to access connectors and solder pads.Configurable - Choose to use connectors, solder pads or pins.Stackable, Compact, Professional,Neat and Tidy.Software:3 primary flight modes: Acrobatic, Angle and HorizonExtensive control and switch configurationTelemetry Support (HoTT, FrSky, SmartPort, etc)Battery Monitoring and WarningsSignal Strength Monitoring (RSSI)Failsafe systemAltitude Hold Mode (Requires Barometer Sensor)Heading Hold Mode (Requires Compass Sensor)In-flight tuningCustomizable LED colorssupport Android phone (via EZ-GUI GCS)STM32F303 CPU, 72Mhz inc FPUHigh-Capacity FlashMPU6050 accelerometer/gyroWARNINGSGENERAL ADVICEFollow the advice below for best performance and long-life of your flight controller:Apply resin/glue to reinforce JST-SH connectors - helps if you crash your aircraft.Using an enclosure/box for the flight-controller is recommended.Install open-cell foam under the pressure sensor - sandwich some between the FCand frame.Route motor/battery wires as far away from the compass sensor (magnetometer)as possible.Only install the BOOT jumper pins if you need them.Using color coded pin headers is recommended (not supplied), especially for VBATheaders.Do everything you can to prevent vibrations reaching the accelerometer/gyro sensor.Specifications:10 DOFPanel Color: blackBoard size: 35 x 35 x 8mm/1.4 x 1.4 x 0.3 inchNet weight: 23gPackage weight: 29gPackage Including:1 x SP Racing Flight Controller1 x straight pin Header connector1 x Looper Header connector1 x Row Pin Header connector1 x shell casewith some lines and screws
