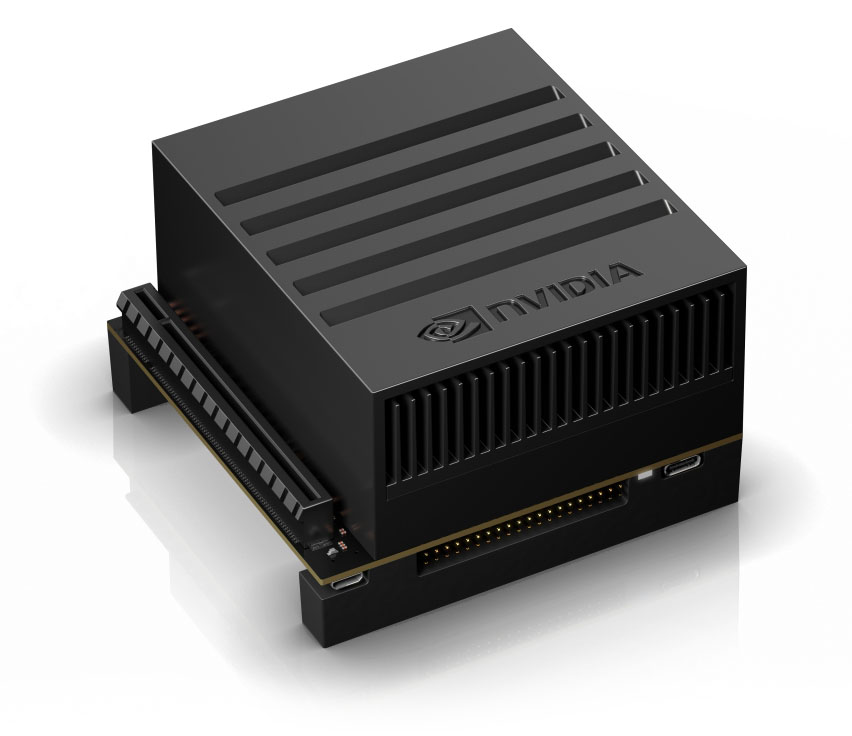

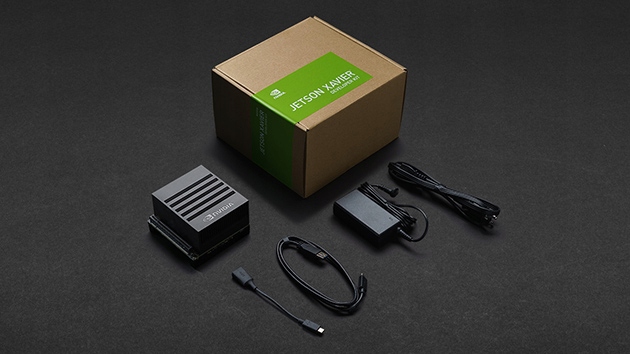

NVIDIA Jetson AGX XAVIER

The NVIDIA® Jetson AGX XAVIER™ Developer Kit is capable to run modern AI workloads and solve problems in optical inspection, manufacturing, robotics, logistics, retail, service, agriculture, smart cities, and healthcare. Plus, it delivers up to 32 TOPS and can operate in as little as 10 W.

Jetson AGX Xavier Developer Kit is supported by NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. It’s also supported by the NVIDIA DeepStream SDK, which delivers a complete toolkit for real-time situational awareness through intelligent video analytics (IVA) and NVIDIA Isaac SDK, which delivers a software toolkit for robot development. These

helps boost performance and accelerate software development, while reducing development cost and effort.

The same JetPack SDK is used across the entire NVIDIA Jetson™ family of products and is fully compatible with NVIDIA’s world-leading AI platform for training and deploying AI software.

512-core NVIDIA Volta GPU with tensor cores

64-bit 8-core NVIDIA Carmel CPU

32GB 256-bit wide LPDDR4X Memory

32GB eMMC 5.1 Storage

I/O

• USB 3.1 Type A/eSATA with 5V power
• USB Type C (DP/USB 3.1)
• Micro USB (for UART console)
• HDMI
• M.2 Key E
• M.2 Key M
• Combined Micro SD/UFS
• PCIe x8 controller on a x16 connector
• Gigabit Ethernet
• GPIOs, UART, I2C, I2S, SPI, CAN*
• Camera Expansion Connector*
• Automation Header*
• Audio Panel Header*
