Witam,

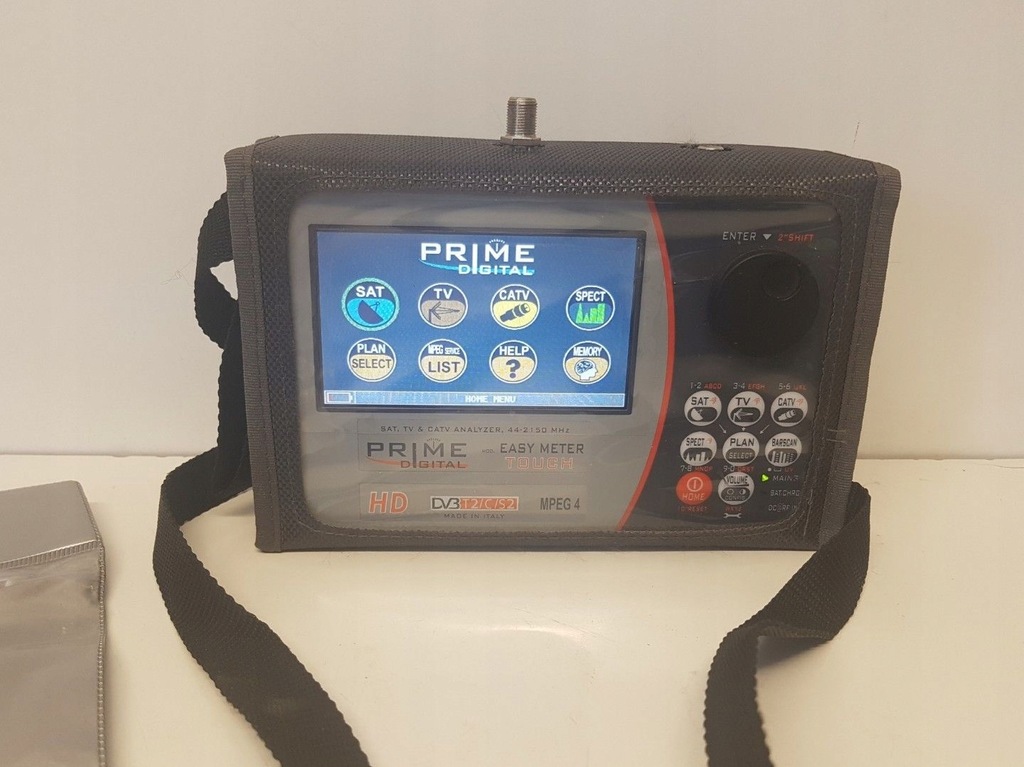

Do sprzedania mam miernik sygnału Prime Dygital Easy Meter Touch.

Accurate & Easy to use, Spectrum with memory peak, DVB-S/S2, DVB-T/T2, DVB-C, Robust metal housing, Analog TV & CVBS Video Input, Rain proof bag, Full MPEG 2 & 4 SD & HD, Long duration LI-PO batteries, Automemory, Autoquality, TFT COLOR display 4,3" 16:10

MEASUREMENTS & SPECTRUM ANALYSIS

• Frequency Range: TV 44 to 880 MHz, SAT 930 to 2.150 MHz. Level accuracy: 3 dB,
• Input Impedance: 75 ohm (interchangeable “F” connector),
• Power range MEAS.: TV 10 to 100 dBµV, SAT 28 to 92 dBµV, 120 dBµV with ext. attenuator,
• Fast spectrum with MAX HOLD: full spect. capabilities with memory peak, variable span and automatic reference level,

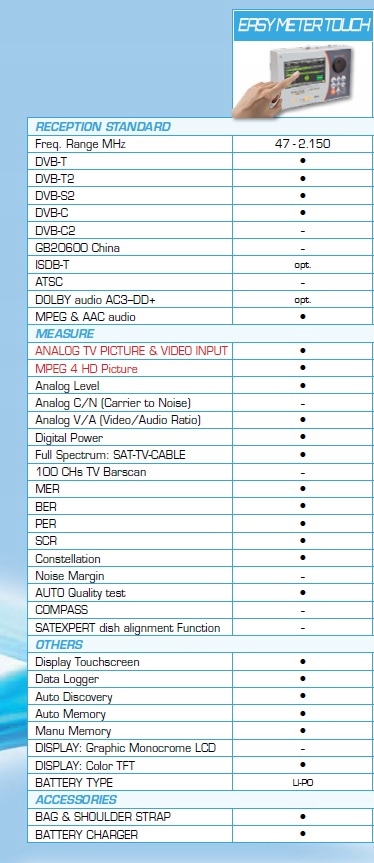

• Meas: All digital and analog measurements, see related table below,
• Quality: Auto quality Test,
• TV Memory plan: World Wide countries with related channels plans pre-memorized,
• SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite.

GENERAL SPECIFICATIONS

• DC voltage at RF input: 5-12-18-24 V (max. 120 mA),
• Battery: Rechargeable Li-Po battery pack, 2/3 hour duration,
• Power supply & Battery charger: 12/18 Vdc,
• USB PC Interface: For SW upgrade and memory plan managment,
• Housing: Metal box and rain proof bag,
• Size: H 123 x W 185 x D 44 mm (meter only),
• Weight: 0,65 Kg
