LSI SAS1068 PCI-X to 8-Port 3Gb/s SAS Controller

Features

8-port SAS/SATA controller

Supports 2, 3, or 4-phy wide SAS port configurations

1.5 and 3 Gb/s SAS and SATA data transfer rates per port, full duplex

Port independent auto-negotiation

Supports SSP, SMP, STP, and SATA protocols

Point to point SAS/SATA drive connection

Independent power states per port

Supports SATA II

Staggered spin-up

Hot Plug

Native Command Queuing

Activity and fault indicators per phy

Port Selector (for dual-port drives)

64 bit, 133 MHz PCI-X host interface

Backward compatible with 33/66 MHz PCI

Supports 3.3V signaling levels

Hot plug/hot swap support

PCI power management

(D0, D3hot, D3cold)

Interrupt Coalescing

Supports SGPIO (SFF-8485)

Flash and local memory interface

636 EPBGA package

Integrated Mirroring, Integrated Striping and Zero Channel RAID support

Benefits

Unmatched performance with Fusion-MPT™ architecture

Based on industry standard ARM® technology

High throughput, low CPU utilization to offload the host processor

3 Gb/s bandwidth across SAS interface

1066 MB/s bandwidth on PCI-X

Time to market reduced with Fusion-MPT™ architecture

Same single driver binary for SAS, SCSI, and Fibre Channel products

Thin, easy to develop drivers

Simpler integration and certification effort

Low risk mitigation

Leverages existing SCSI infrastructure for investment protection

100% Sprawna  - wyjęta z działającego serwera.

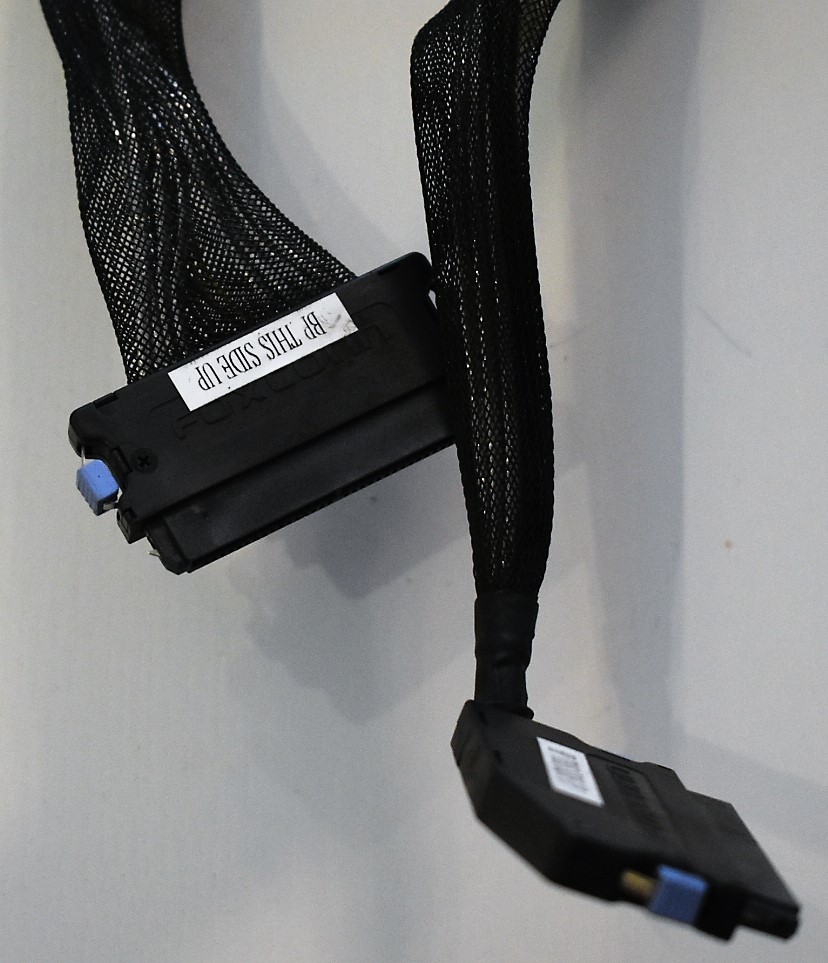

Wraz z kablami

Wraz z akumulatorem do podtrzymywania cache , sprawny - serwer nie zgłaszał problemów
