NIGDY nie używany moduł produkcji NXP zgodny z arduino. Zawiera programator i debugger.

Włączony by pokazać, że działa fabryczne demo.

https://www.embeddedartists.com/products/lpcxpresso/lpc812_max.php

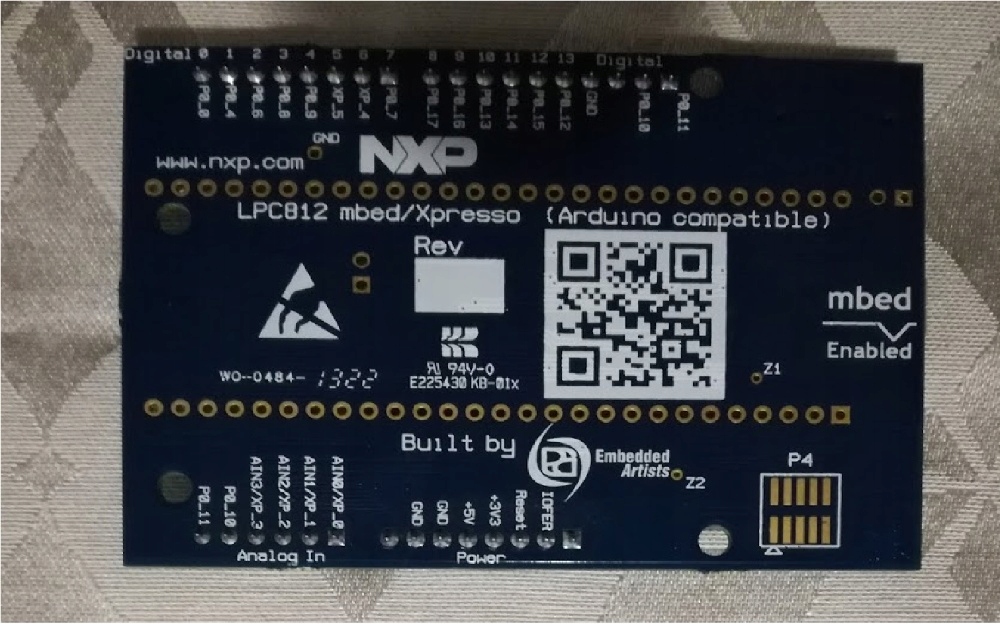

LPC800 / LPC812 MAX Board

Processor NXP's Cortex-M0+ LPC812 microcontroller in TSSOP20 package

Flash Mamory 16 kB

Data Memory 4 kB

Clock Crystal 12.000 MHz crystal for CPU

Power

3.3V external powering, or

5.0V external powering, or

5.0V from USB via mbed HDK debug interface

Connectors

• All relevant LPC812 pins available on LPCXpresso compatible expansion connector (2x27 pin rows, 100 mil pitch, 900 mil between rows)

• Arduino compatible expansion connectors (Arduino shields can be mounted)

• Serial Expansion Connector, 14-pos connector with UART/I2C/SPI/GPIO pins

Other

• RGB-LED

• User push-button

• Supported by the LPCXpresso IDE environment

• Complete on-board mbed HDK

- USB drag-n-drop programming

- CMSIS-DAP interface for Cortex debug interface

- USB virtual serial bort (functional after modifiying soldered jumpers on the board)

• Supported by the mbed SDK and online tools
