LM386 -miniature Amplifier Board PCB Module DIY 3V-12V

Description:

The circuit board is made of FR4-A high quality PCB, and it is tinned and beautiful.

Power supply: DC005 and the 2P pin next to it are the power supply interface.

Voltage: 3-12V

Audio input: The 3.5MM audio dock on the board and the pin next to it are audio input ports, which can be selected according to personal convenience.

Speaker: 2P pin is the speaker interface, the speaker is non- component, so the speaker will not out if you pick it up.

Specification:

Material: electronic components

PCB board size : approx. 37 x 35mm/ 1.46 x 1.38inch

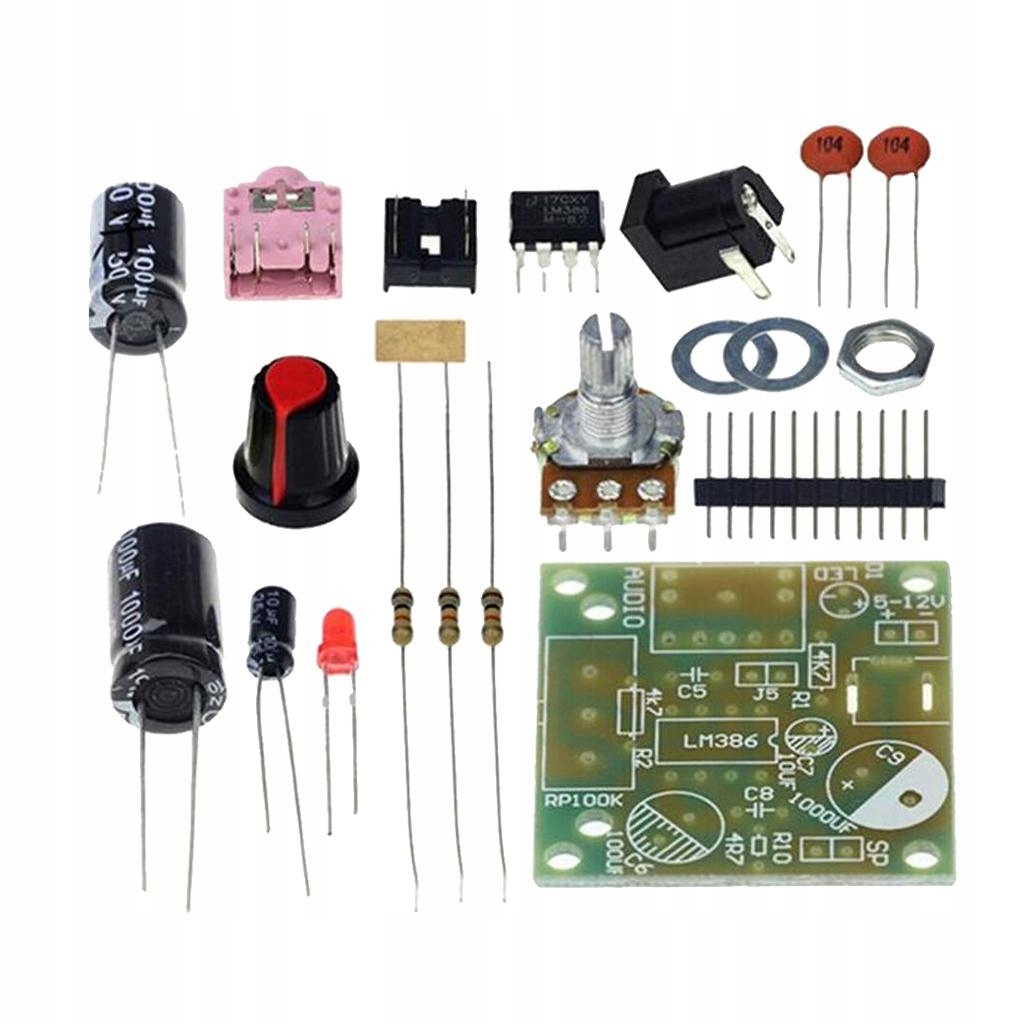

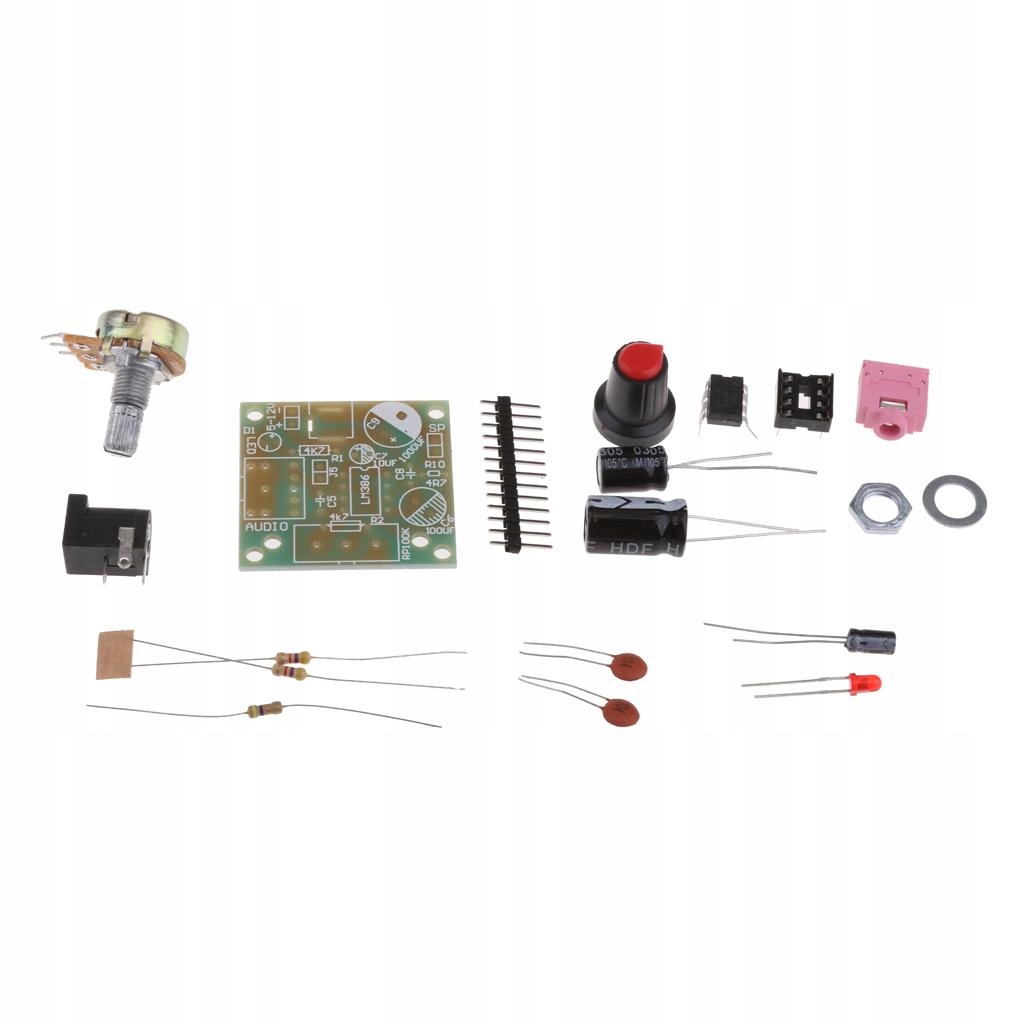

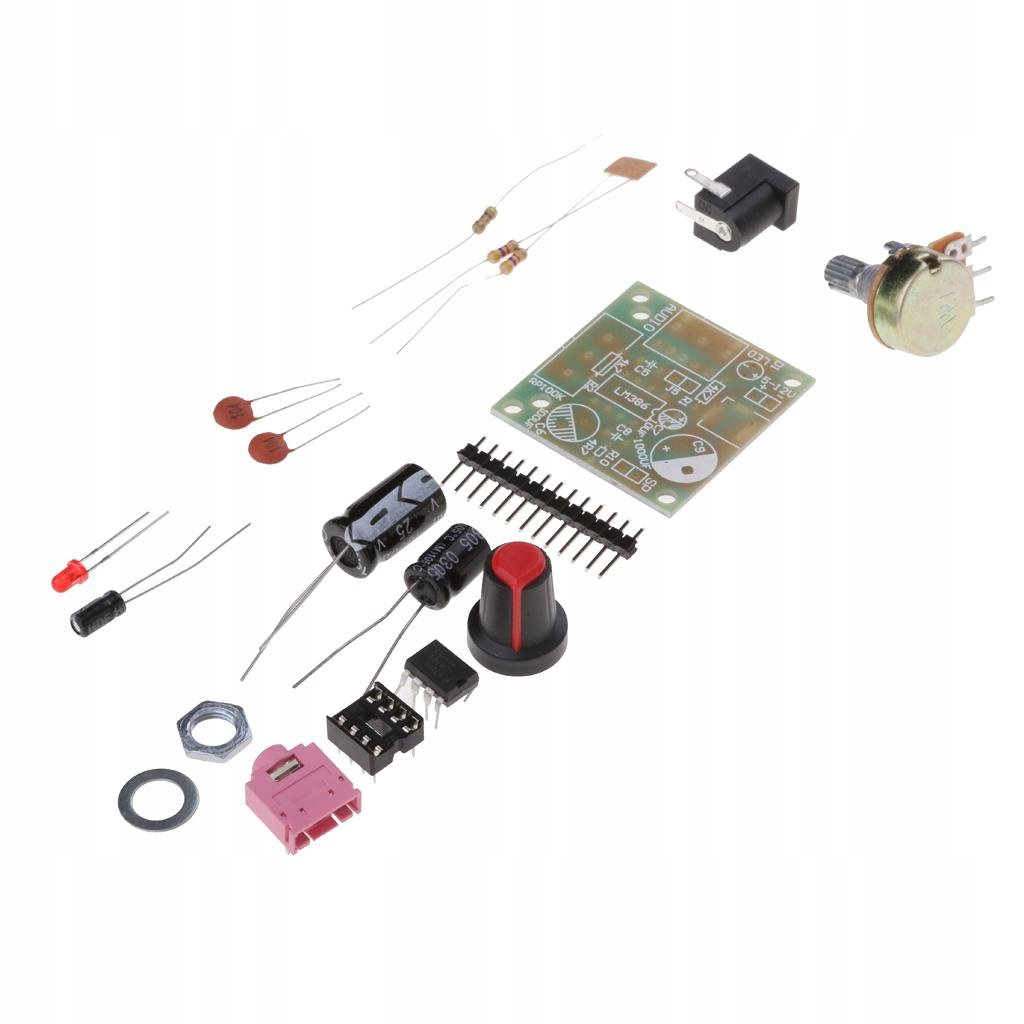

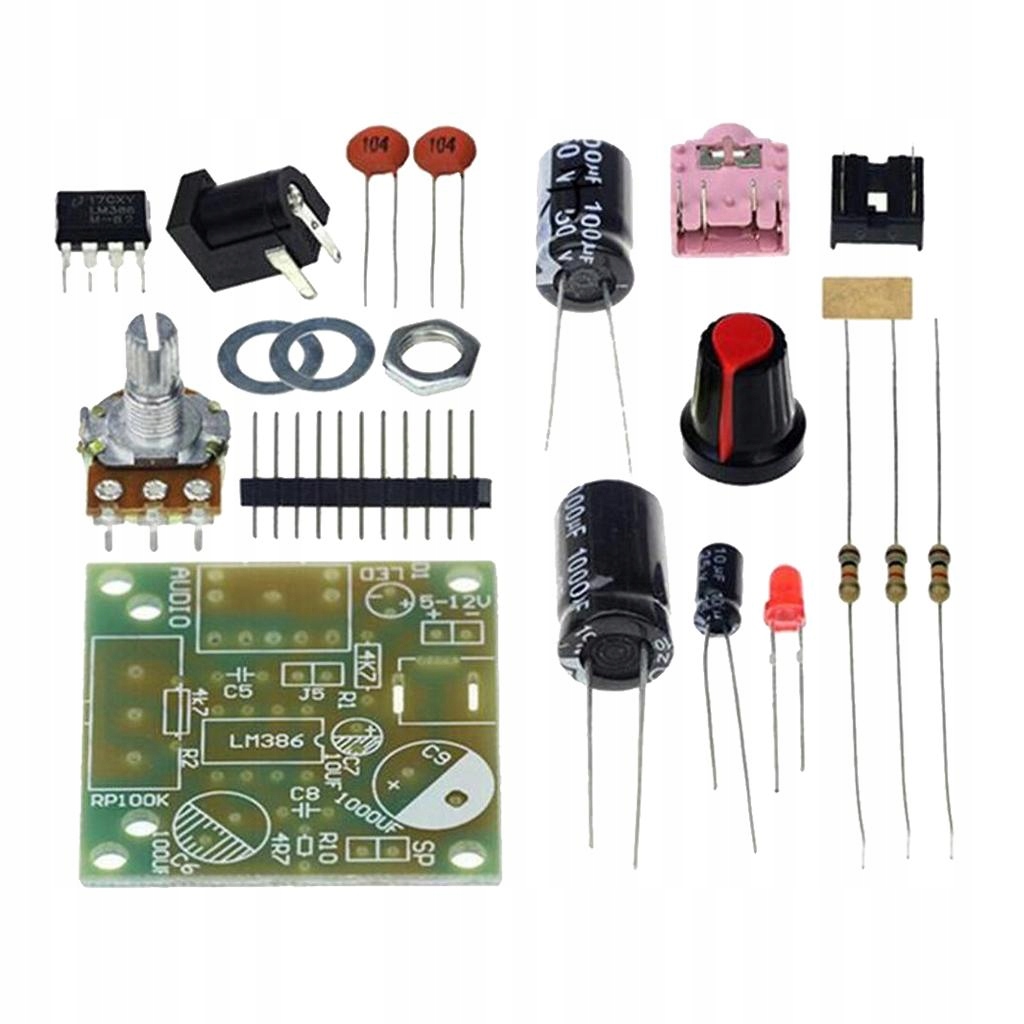

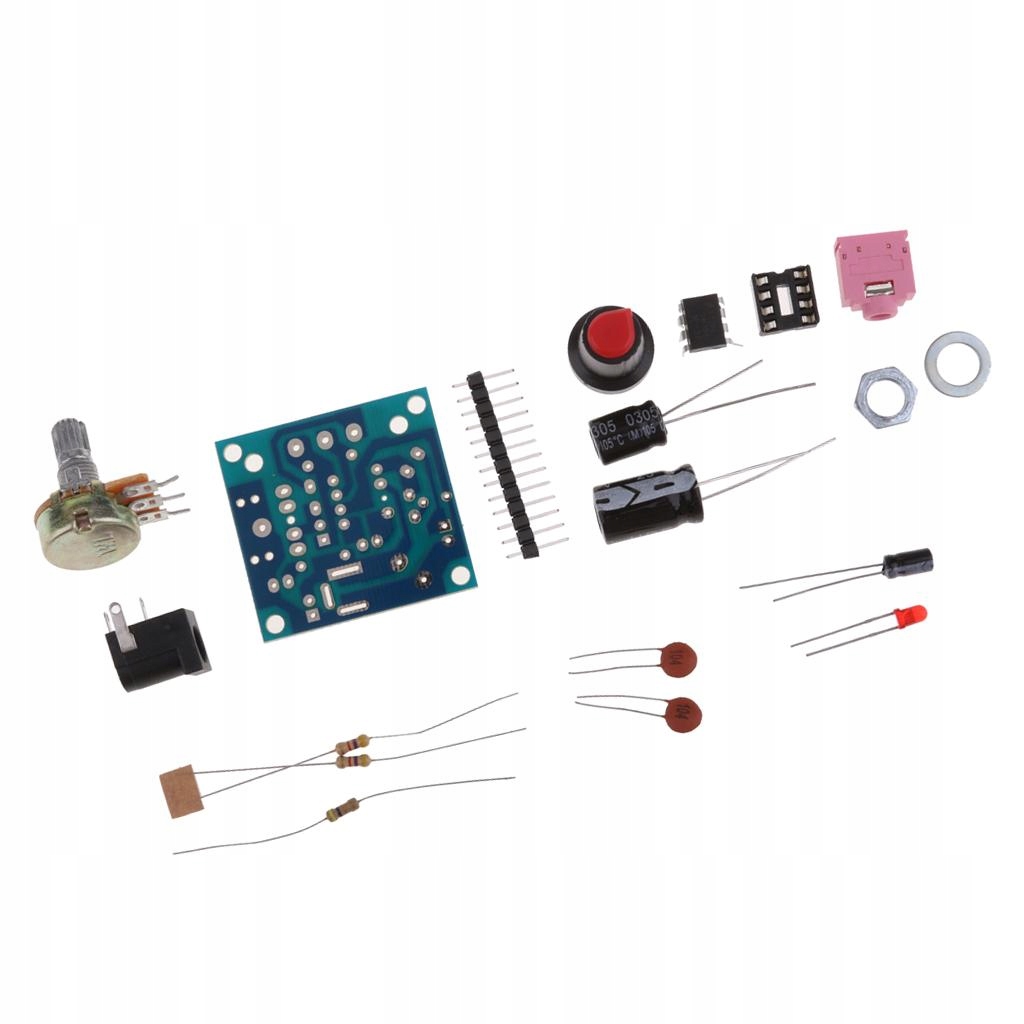

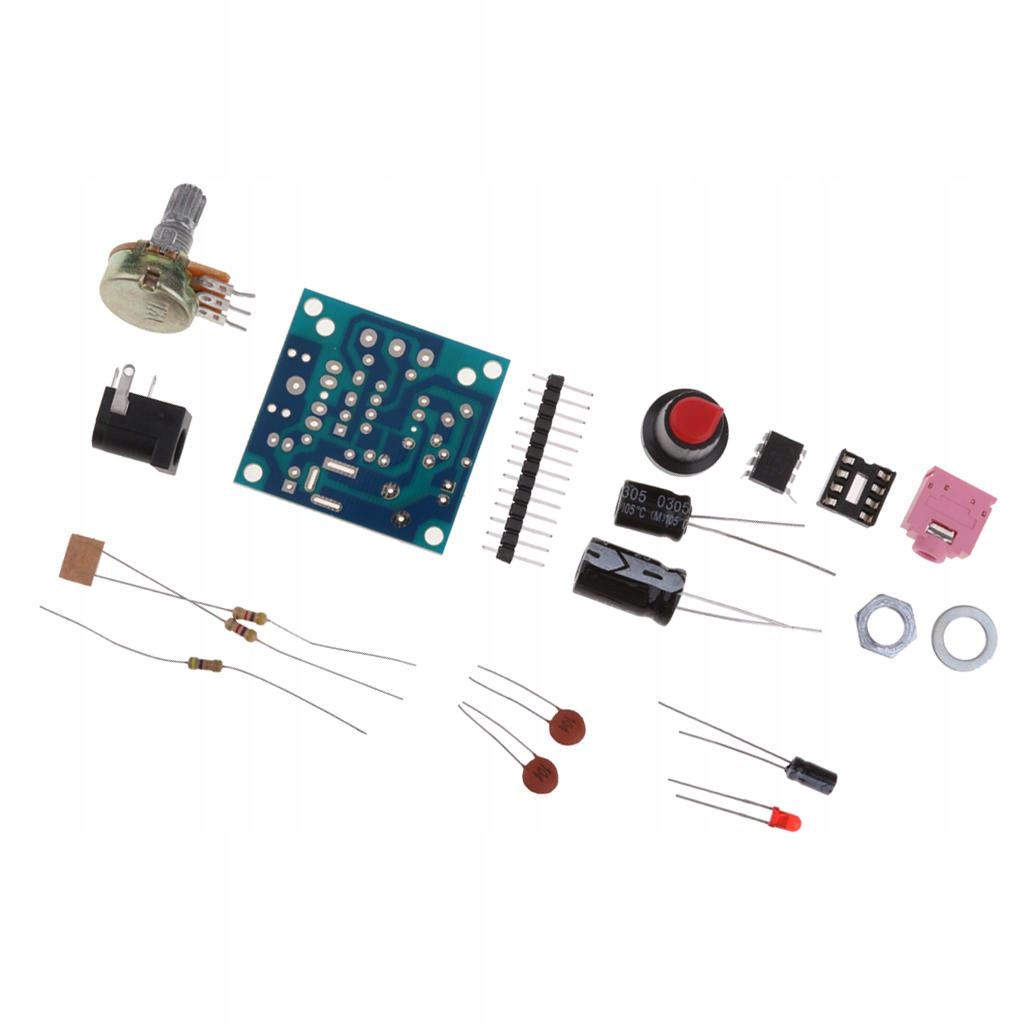

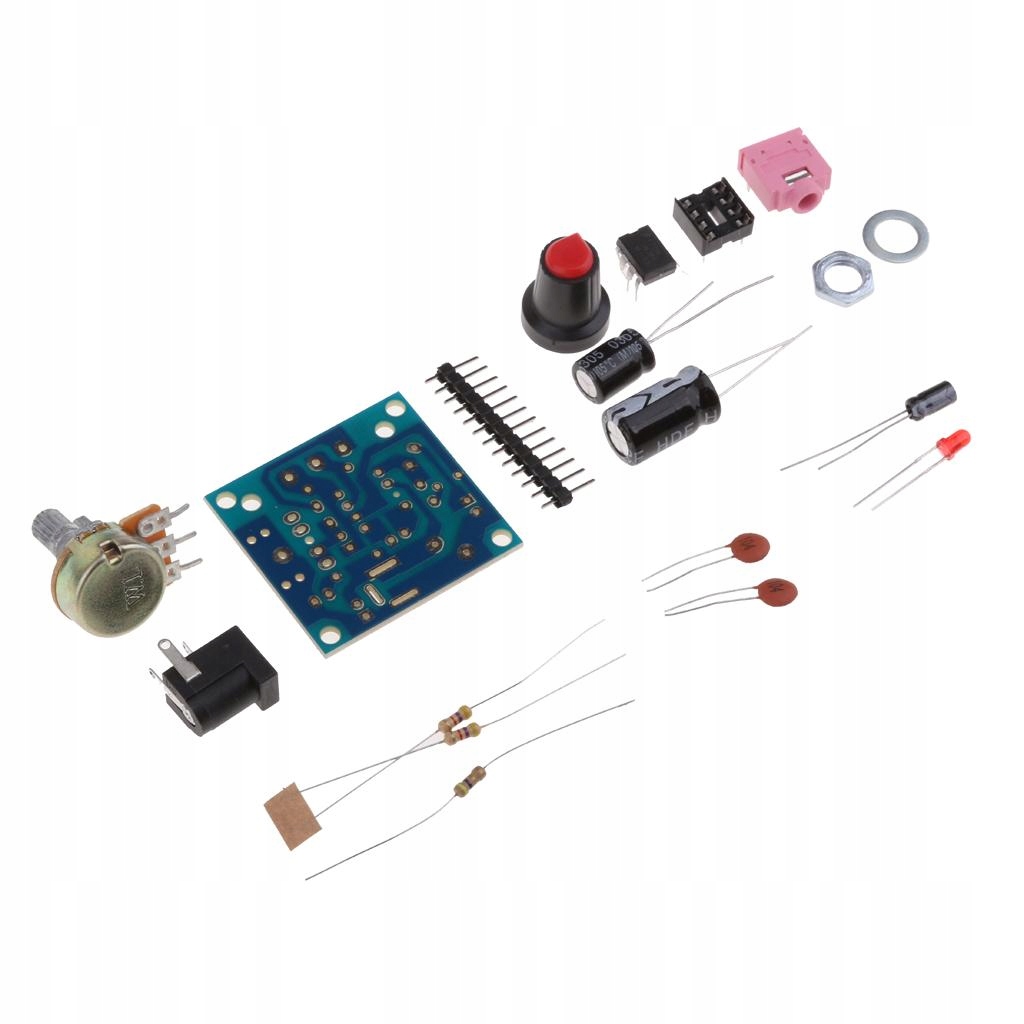

Package Includes:

A set of materials

1 Piece PCB

1 Piece 100K adjustable resistance

1 Piece Potentiometer knob housing

6 Pieces Pin header

2 Pieces 4.7K resistor

1 Piece 10 ohm resistor 1

2 Pieces 104 ceramic 2

1 Piece DIP8 IC socket

1 Piece LM386

1 Piece DC005 seat

1 Piece 3MM LED

1 Piece 10UF

1 Piece 100UF

1 Piece 1000UF

1 Piece 3.5 audio seat

Note:

Please allow 1-3mm error due to manual measurement.

Please make sure you do not mind before you bid.

might be a little different from the actual product due to color display of different monitors.

Thanks for your understanding and enjoy your shopping moment.
