TBS 6922 SE to następca karty TBS 6922. Nowoczesna karta PCIe z pojedyńczym tunerem do oglądania TV. Obsługuje oba DVB-S2 i DVB-S programy odbierania. Dostępne są sterowniki Linuxa oraz Windows, wiec można uzywać jej w komputerze.

Specyfikacje:

Częstotliwości odbioru: 950~2150 MHz

Sygnał: -69~-23dBm

DVB-S2/DVB-S DIRECTV 8PSK QPSK demodulator

Symbol rate:

DVB-S QPSK 1~45Msps

DVB-S2 QPSK/8PSK 1~45Msps

Carrier capture range: ±10MHz

-DVB-S2 CCM

QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10

-DVB-S

QPSK+1/2, 2/3, 3/4, 5/6, 7/8

Support data burst & tone burst

Support DiSEqC2.X and motor

Wymagania Systemowe:

Windows 2000/XP/Vista/7/8/10 lub Linux

DirectX9.0 lub nowszy

Slot PCI Express x1,x4, x8 or x16 slot

Antena satelitarna

Sprzęt używany, w pełni sprawny.

tel 501737301

Description:

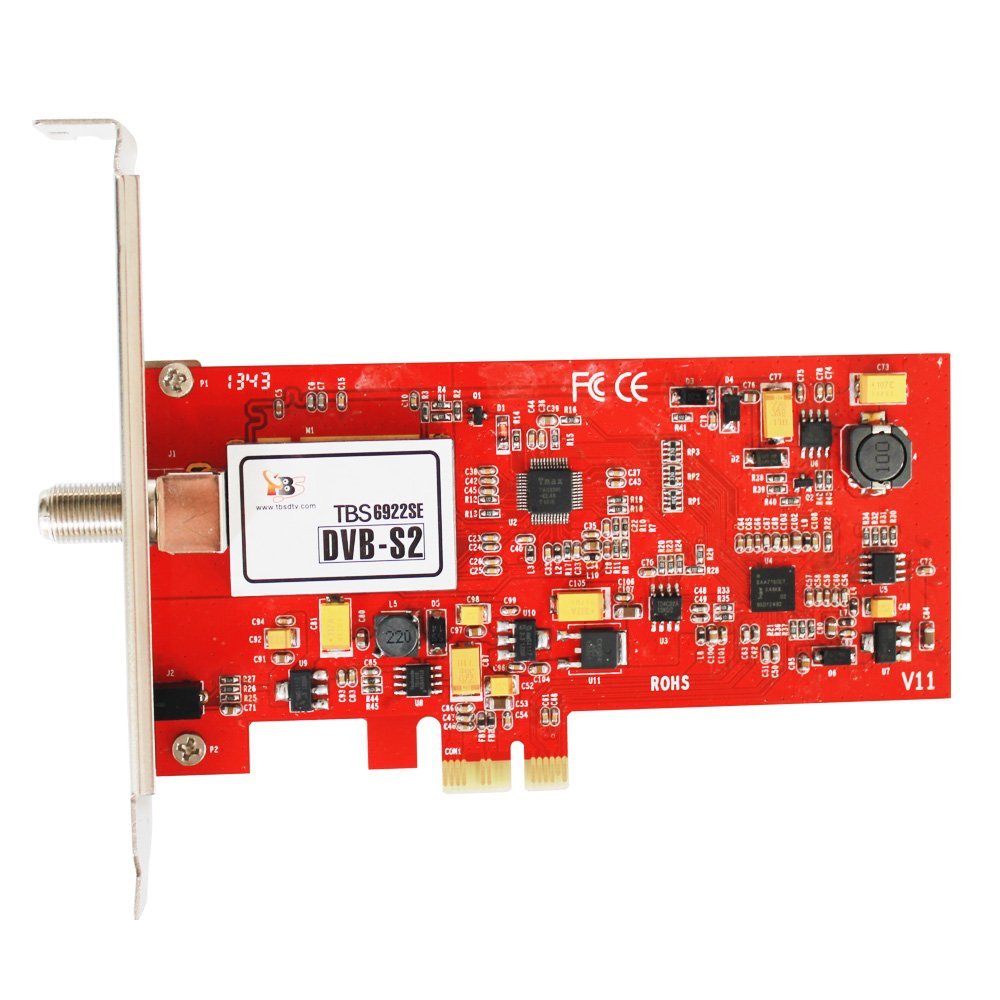

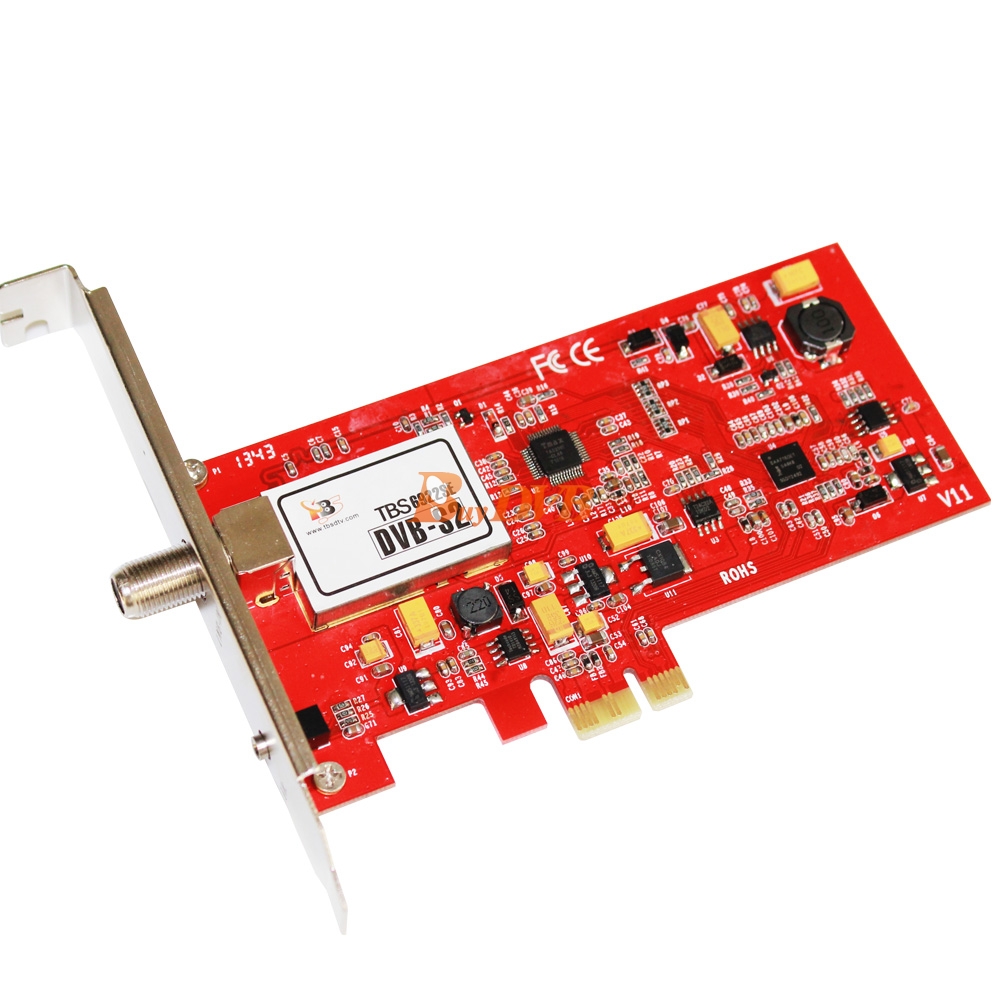

TBS6922SE DVB-S2 TV Tuner PCIe Card is the latest release of TBS PCI Express series satellite TV cards with a single Tuner for watching digital satellite TV programmers. It supports both DVB-S2 and DVB-S programs receiving. Also taking the advanced DVB-S2 RF and demodulator chipset and built with the highest quality components such as tantalum capacitors.

So You can use TBS6922SE DVB-S2 TV Tuner PCIe Card to watch UK Freesat or any other Free To Air satellite TV programs in your region, you can also use it to record those programs in your PC with High-speed Data download. It’s ideal for building up HTPC or IPTV streaming server. It’s ready with Windows BDA driver and Linux driver up to the latest kernel 3.X (Tested on Ubuntu, Fedora, Opensuse and other Linux distributions). It’s compatible with Windows7 Media Center, MediaPortal, DVBlink, DVBDream, DVBViewer, ProgDVB, Skynet, TSreader, XBMC, MythTV, VDR and many other popular software.

Main Features:

Watch satellite TV & listen to radio on PC

DVB-S2/DVB-S SD or HD TV receiving

Broadband internet via satellite *

High-speed data download via satellite *

Real time and scheduled program recording (PVR)

Time shifting to pause live TV

Unicable/one cable compatible

Blindscan support

High reliability

Applications:

HTPC

IPTV streaming server

Specifications:

Receiving frequency: 950~2150 MHz tuning range

Input level: -69~-23dBm

DVB-S2/DVB-S DIRECTV 8PSK QPSK demodulator

Symbol rate:

DVB-S QPSK 1~45Msps

DVB-S2 QPSK/8PSK 1~45Msps

Carrier capture range: ±10MHz

-DVB-S2 CCM

QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10

-DVB-S

QPSK+1/2, 2/3, 3/4, 5/6, 7/8

Support data burst & tone burst

Support DiSEqC2.X and motor

Low profile size: 128x59mm (Length x Height)

Standard profile TV card size: 128 x 68.4 mm (Length x Height)

TV card weight: 68g

Package gift box size: 200 x 140 x 50 mm (Length x Width x Height)

Package gift box weight: 270g

System Requirements:

Windows 2000/XP/Vista/7/8/10 or Linux

DirectX9.0 or later version

Available PCI Express x1,x4, x8 or x16 slot

Satellite dish and LNB

For DVB-S:

1GHz CPU or above

256MB RAM or above

Graphic card with at least 16MB RAM

For DVB-S2 HDTV:

Dualcore CPU

1GB RAM or above

Graphic card with at least 64MB RAM
