PINK FAUN Audio Bridge

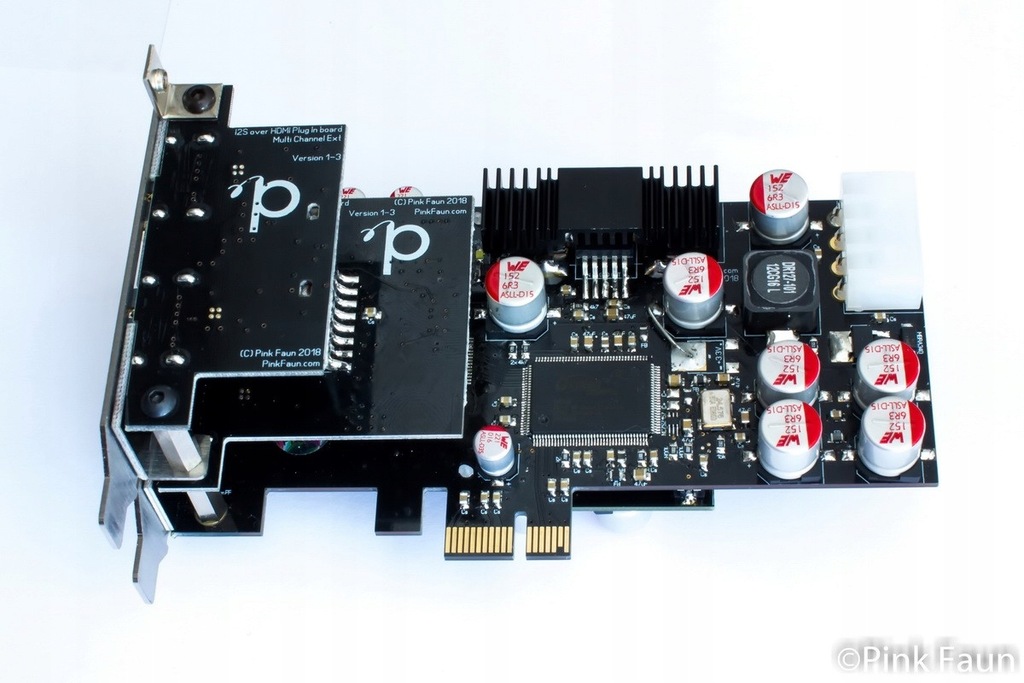

The Pink Faun Audio Bridge is a PCIe card that can be equipped with a variety of digital audio outputs by a modular system. The digital output can be easily adjusted with various modules which are placed on the Audio Bridge. This makes the Pink Faun Audio Bridge very easy to adapt to future DAC upgrades. The Pink Faun Audio bridge has a standard 4-pin molex that allows the Audio bridge to be supplied with the standard computer PSU. If you want to use a better (linear) external PSU then you can use the standard 5V DC-in which is also present on the Pink Faun Audio Bridge, the Audio Bridge automatically switches to the external PSU.

The standard clock on the Pink Faun Audio Bridge is a very accurate TCXO clock, which can be upgraded to a low-noise OCXO clock at any time through a very easy to install module. The Pink Faun Audio Bridge automatically switches to the best clock.

The current available digital output modules are:

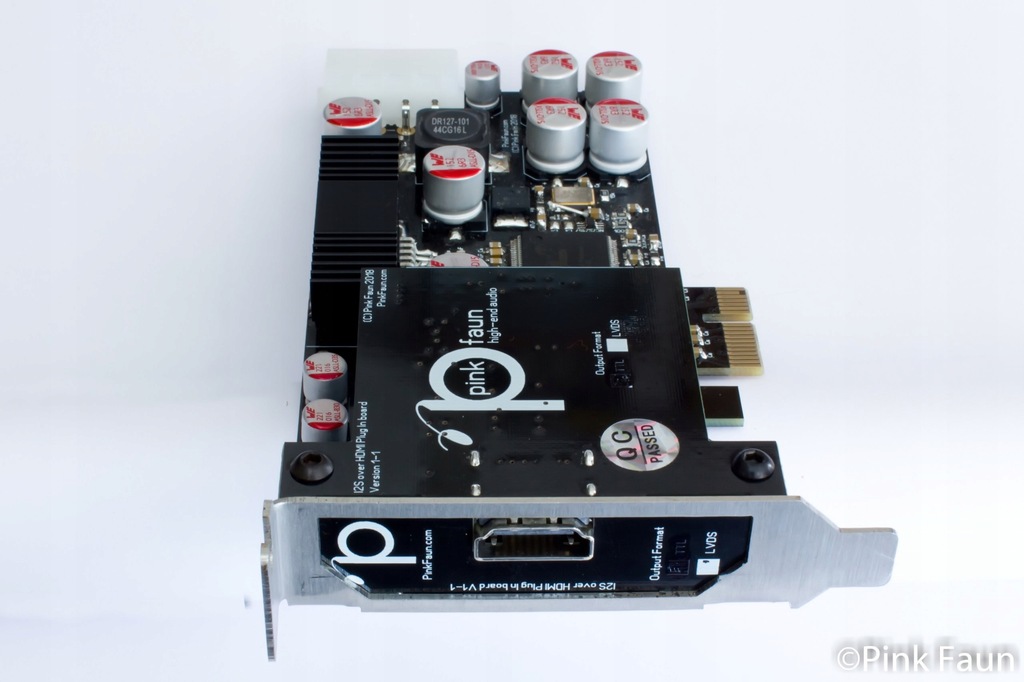

HDMI – TTL 3.3V

HDMI – TTL 5V

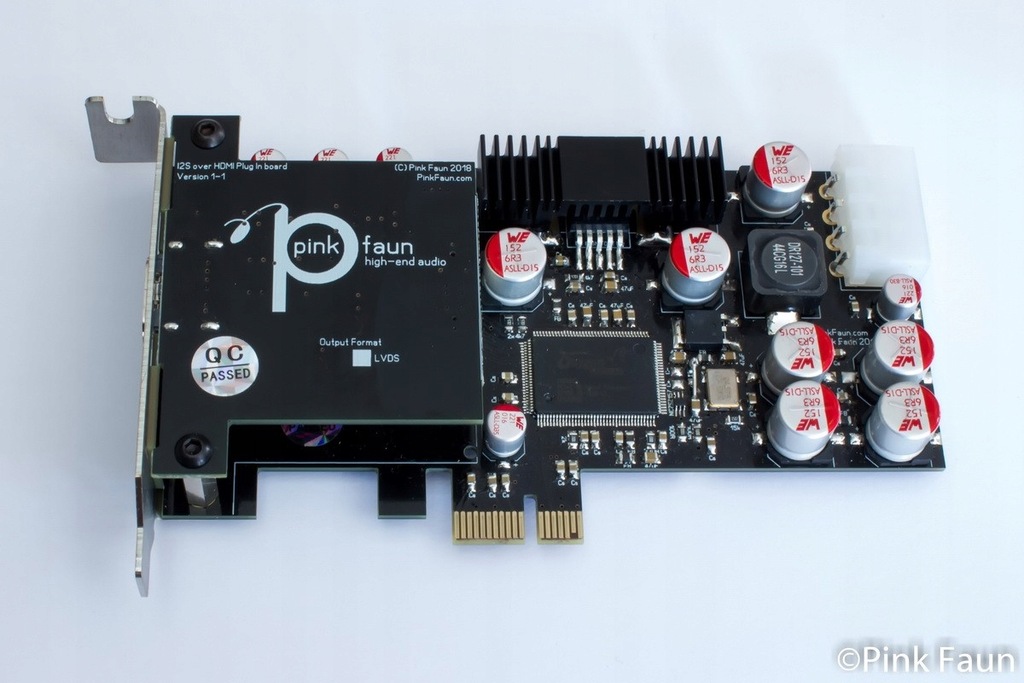

HDMI – LVDS

HDMI – LVDS L/R invert

HDMI – custom pin assignment

RJ45 – TTL 3.3V

RJ45 – TTL 5V

RJ45 – custom pin assignment

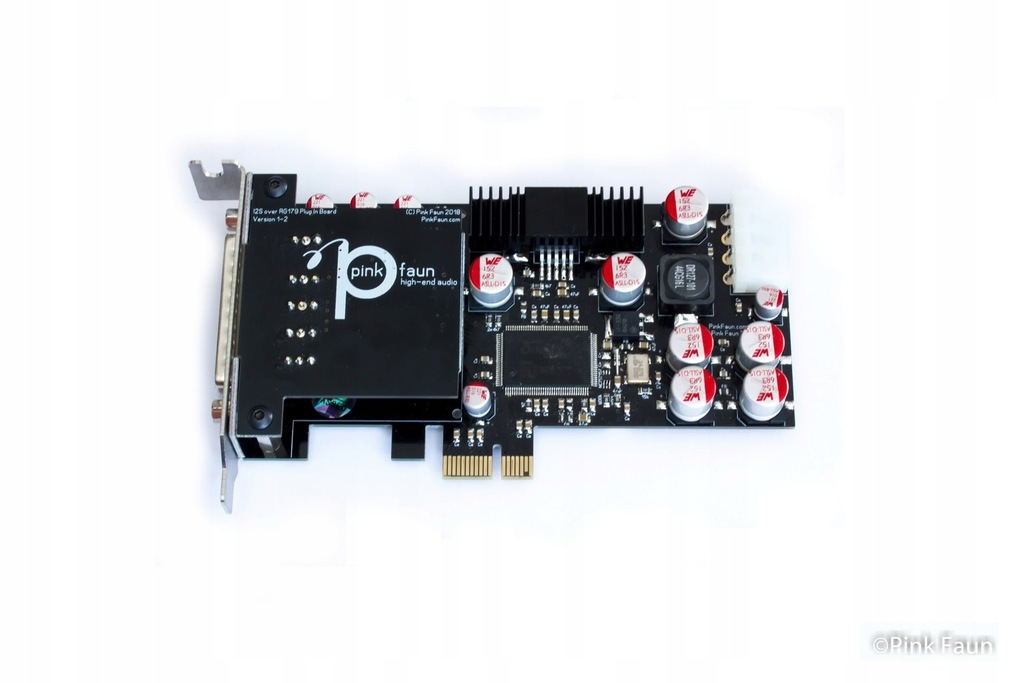

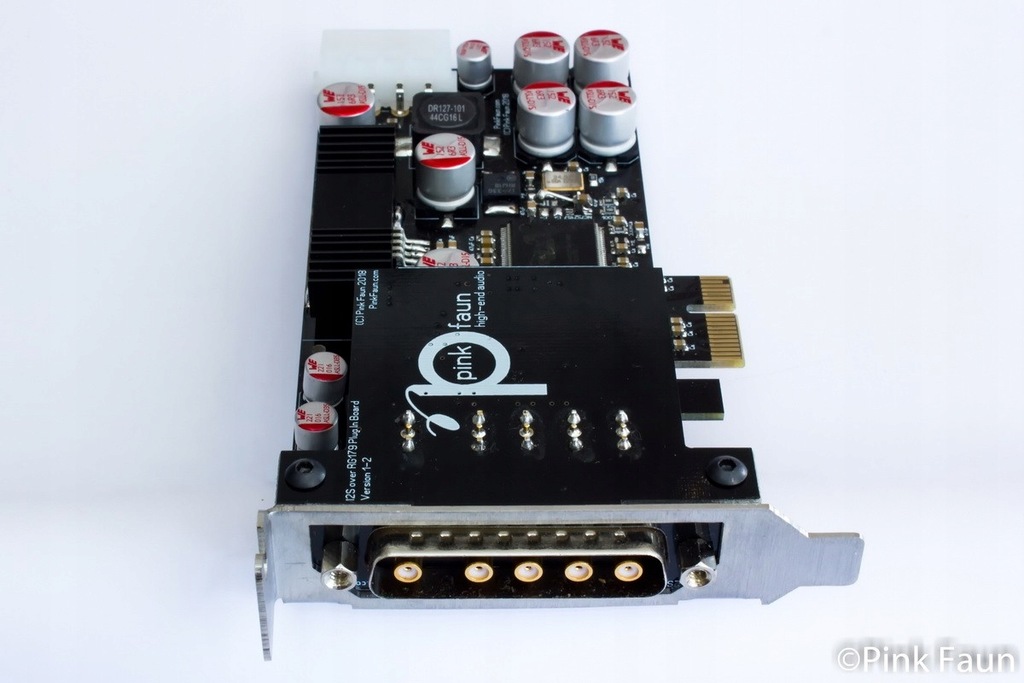

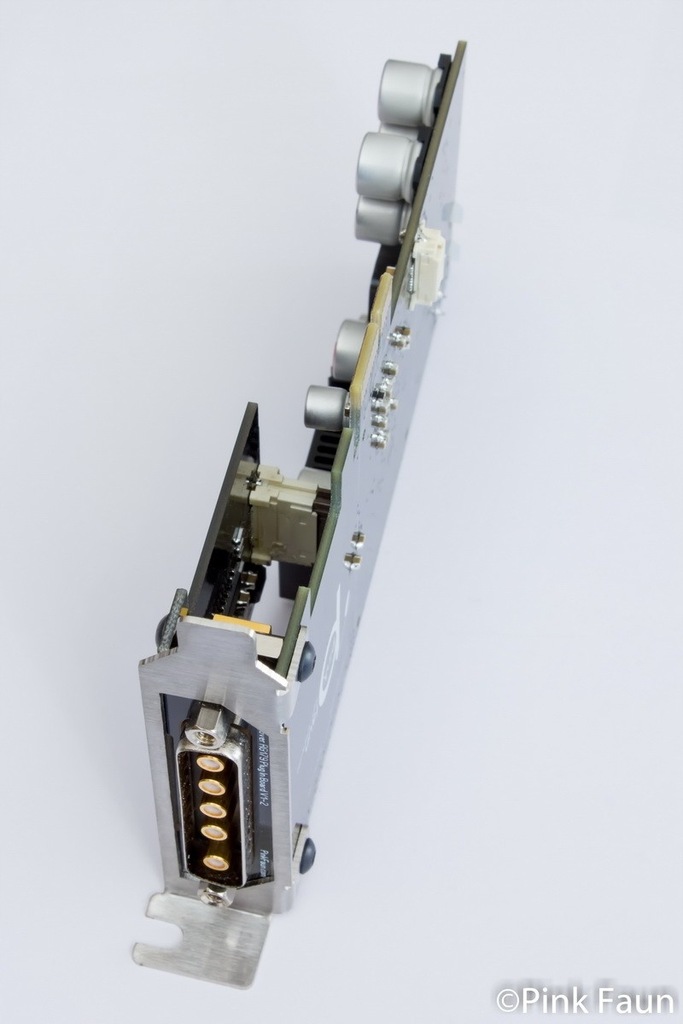

RG179 Sub D – TTL 3.3V / 5V

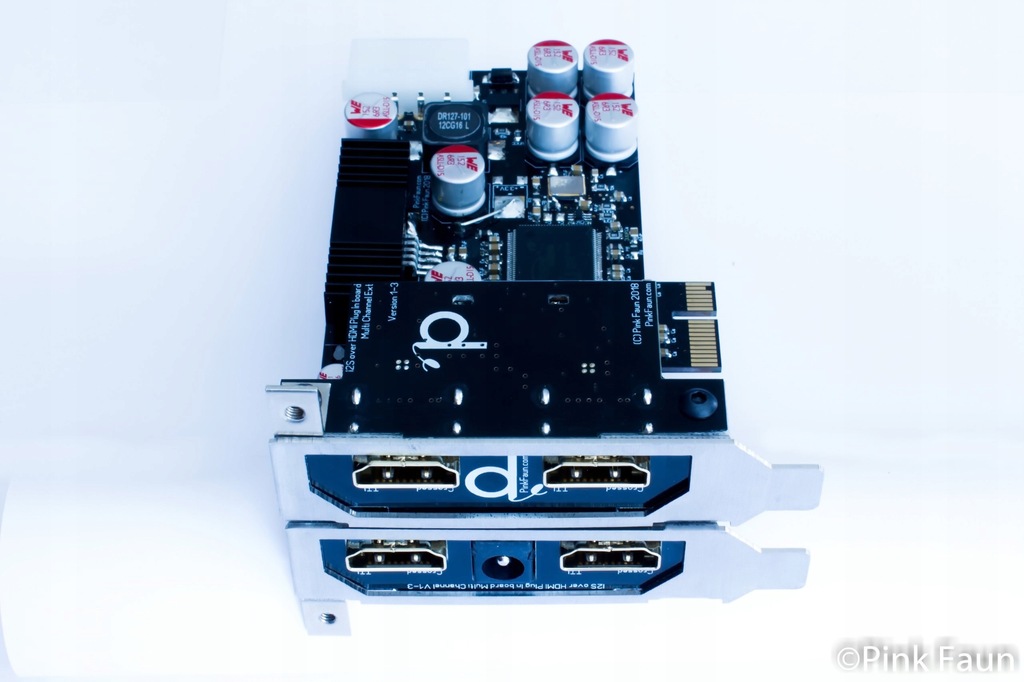

Multi-Channel I2S

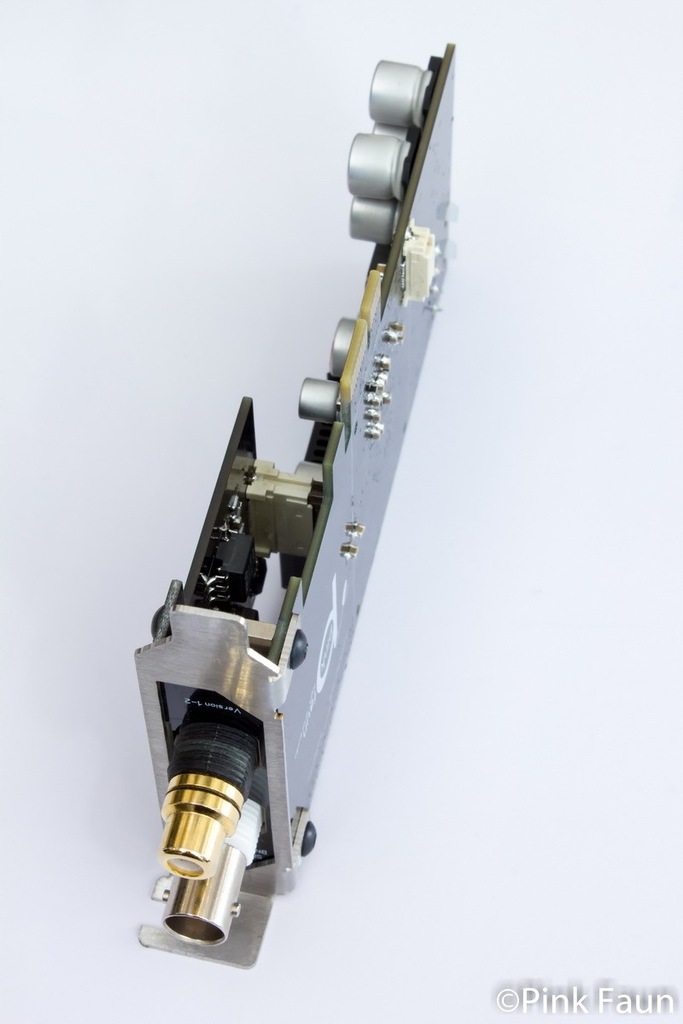

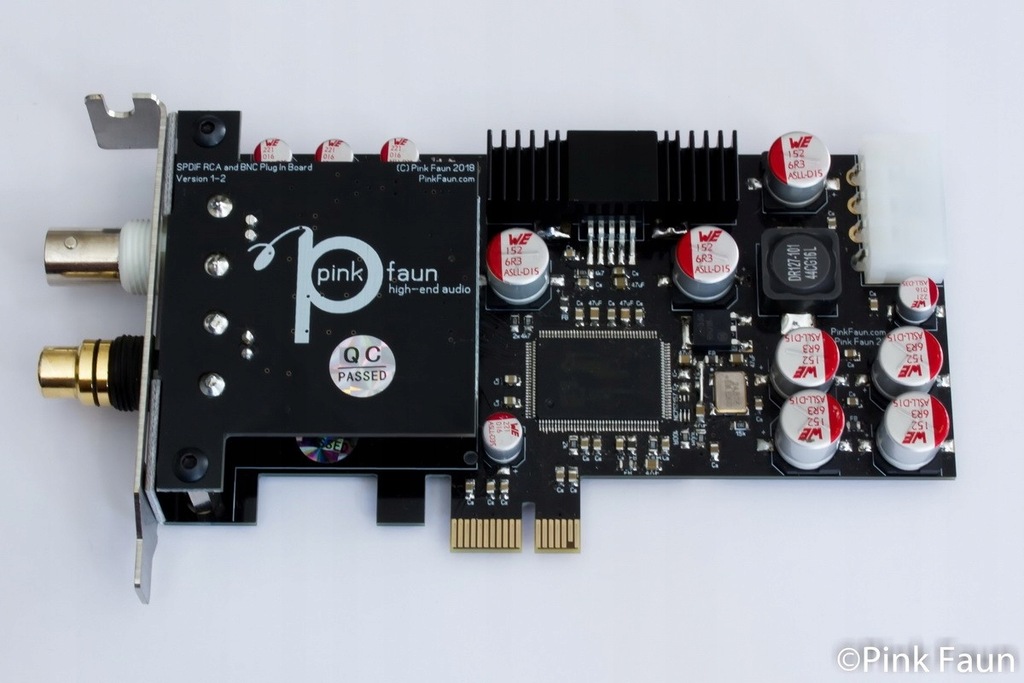

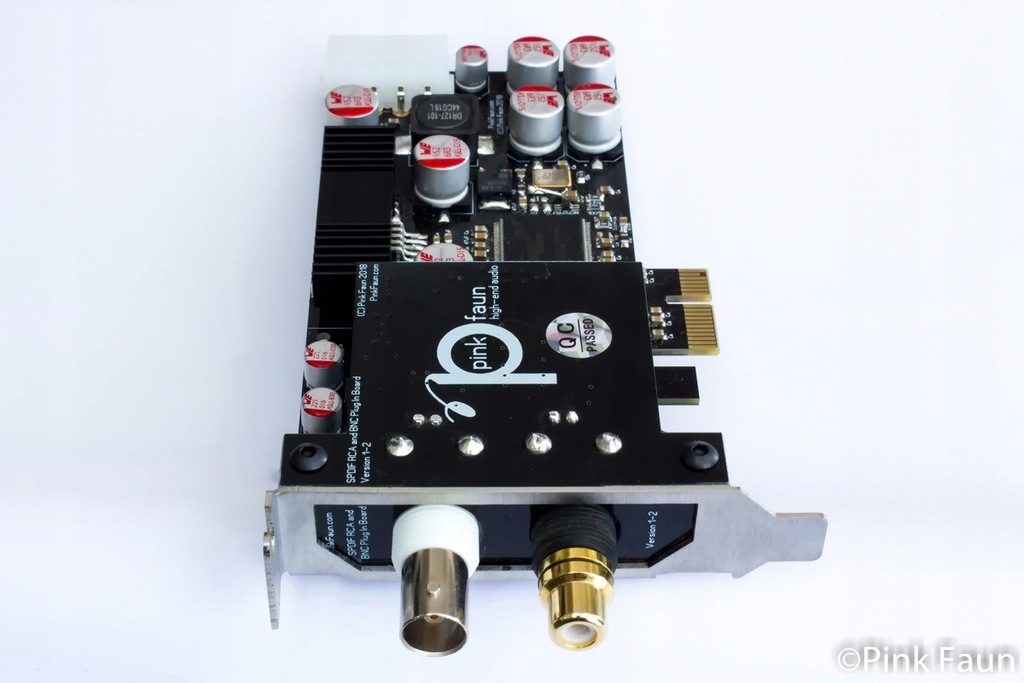

SPDIF COAX RCA and BNC

SPDIF AES/EBU + COAX RCA

SPDIF AES/EBU + COAX BNC

SPDIF AES/EBU + BNC clock out

Na innej aukcji dostępne jest ulepszenie w postaci modułu oscylatora OCXO!
