• Intel® P35/ICH9 chipset
• - Intel® Core™2 Quad / Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 - Processors
• - FSB 1600/1333/1066/800
• - Dual-channel DDR2 1200(O.C.)/1066/800/667 MHz
• - ASUS EPU (Energy Processing Unit)
• - ASUS 3rd Generation 8-phase Power Design
• - Precision Tweaker 2
• Procesor Intel Core 2 Quad Q6600 4x 2,40GHz (4 rdzenie - 4 wątki, 8MB)
• Pamięć RAM DDR2 Kingston 4GB (4x1GB)

Stan wizualny: bardzo dobry

• brak maskownicy

Stan techniczny: bardzo dobry

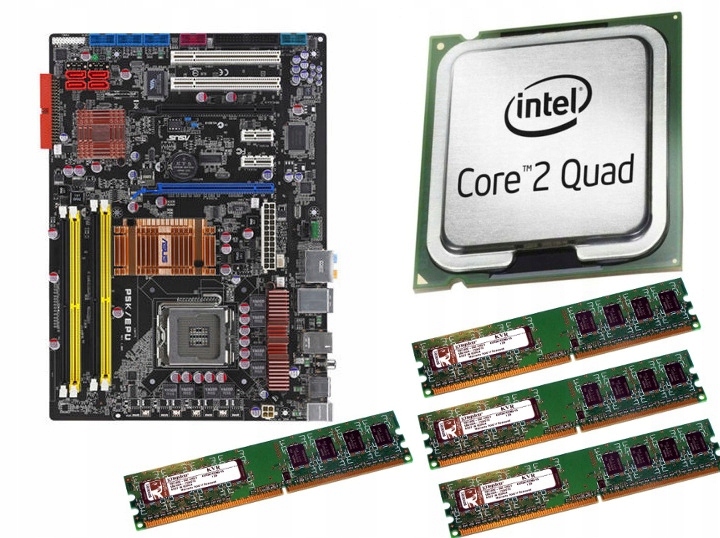

W zestawie:

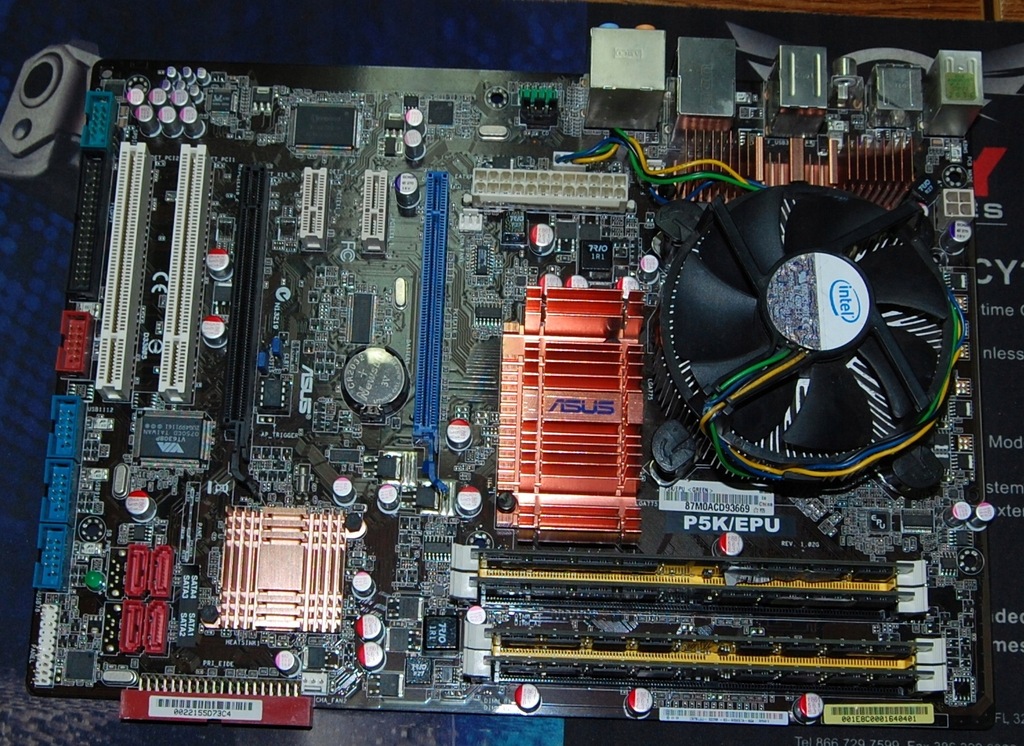

• płyta główna Asus P5K/EPU
• procesor Intel Core 2 Quad Q6600
• 4x pamięć RAM DDR2 Kingston 1GB
• oryginalny układ chłodzenia

Dane Techniczne

CPU

• Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors
• Compatible with Intel® 05B/05A/06 processors
• Support Intel® 45nm CPU

Chipset

• Intel P35
• Intel ICH9
• Intel Fast Memory Access Technology

Front Side Bus 1600/1333/1066/800 MHz

Memory

• 4 x DIMM, Max. 8 GB, DDR2 1200*/1066/800/667 Non-ECC,Un-buffered Memory
• Dual Channel memory architecture
• *Overclock speed
• **When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

• 2 x PCIe x16 (blue @ x16 mode, black @ x4 or x1 mode) supports CrossFire Technology
• 2 x PCIe x1
• 2 x PCI

Storage

• Southbridge 4 xSATA 3 Gb/s ports
• Marvell 88SE6102 PATA controller 1 xUltraDMA 133/100/66 for up to 2 PATA devices

LAN PCIe Gigabit LAN controller featuring AI NET2

Audio

• Realtek ALC 883, 8 -Channel High-Definition Audio CODEC
• Coaxial / Optical S/PDIF out ports at back I/O
• Support Enumeration, Multi-streaming

IEEE 1394 VIA VT6308P controller supports 2 x 1394a ports (one at midboard; one at back panel)

USB 12 USB 2.0 ports (6 ports at mid-board, 6ports at back panel)

ASUS Unique Features

• ASUS Power Saving Solution
• - ASUS EPU (Energy Processing Unit)
• - ASUS AI Nap
• - ASUS Q-Fan 2
• ASUS Crystal Sound
• - ASUS Noise Filter
• ASUS EZ DIY
• - ASUS Q-Connector
• - ASUS AI Direct Link
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 2

Overclocking Features

• Intelligent overclocking tools
• - ASUS AI Booster Utility
• Precision Tweaker 2
• - vDIMM: 64 -step DRAM voltage control
• - vCore: Adjustable CPU voltage at 0.00625V increment
• - vChipset 33-step Chipset voltage control
• - vFSB Termination: 15-step reference voltage control
• - vCPU PLL: 64-step CPU PLL voltage control
• SFS (Stepless Frequency Selection)
• - FSB tuning from 200MHz up to 800MHz at 1MHz increment
• - DDR2 Memory tuning from 667MHz up to 1333MHz
• - PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
• Overclocking Protection
• - ASUS C.P.R.(CPU Parameter Recall)

Special Features ASUS MyLogo 3

Back Panel I/O Ports

• 1 x PS/2 Keyboard
• 1 x PS/2 Mouse
• 1 x S/PDIF Out
• 1 x IEEE 1394a
• 1 x LAN(RJ45) port
• 6 x USB 2.0/1.1
• 8 -Channel Audio I/O

Internal I/O Connectors

• 3 x USB connectors support additional 6 USB ports
• 1 x Floppy disk drive connector
• 1 x IDE connector
• 4 x SATA connectors
• 1 x IEEE 1394a connector
• 1 x CPU Fan connector
• 2 x Chassis Fan connector
• 1 x Power Fan connector
• 1 x S/PDIF Out connector
• 1 x4-pin ATX 12V Power connector
• 24-pin Power connector
• Front panel audio connector
• COM connector
• Chassis Intrusion connector
• CD/AUX audio in
• System Panel

BIOS

• 8 Mb Flash ROM
• DMI 2.0
• AMI BIOS
• PnP
• WfM 2.0
• SM BIOS 2.3
• ACPI 2.0a
• ASUS EZ Flash 2
• ASUS CrashFree BIOS 3

Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

CrossFire Support ATI CrossFire graphics cards

Form Factor

• ATX Form Factor
• 12 inch x8.6 inch ( 30.5 cm x21.8 cm )
