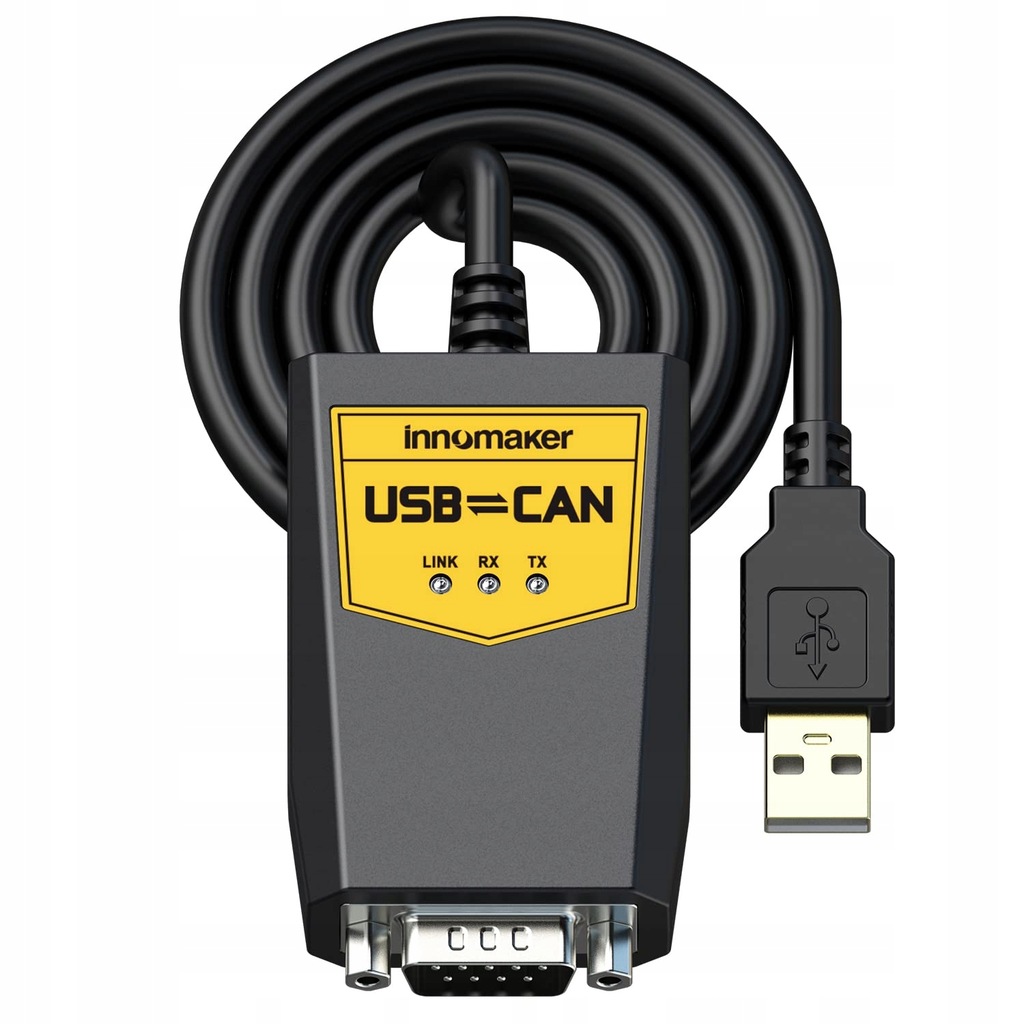

USB to CAN Converter Cable for Raspberry Pi4/Pi3B+/Pi3/Pi Zero(W)/Jetson Nano/Tinker Board and Any Single Board Computer Support Windows Linux and Mac OS

Producent: innomaker

Moduł konwertera USB do CAN obsługuje wszystkie serie Raspberry Pi/Jetson Nano/Tinker Board/dowolny komputer jednopłytowy, stacjonarny i przenośny. Konwerter USB do CAN obsługuje system Windows, Mac OS i Linux (Raspbian, Ubuntu). Urządzenie CAN USB wtyczka i gra. Nie wymagane zewnętrzne zasilanie. Obsługuje szerszą prędkość transmisji CAN, od 20Kbps do 1Mbps można programować dowolnie. Wsparcie dla CAN bus 2.0A i 2.0B.

• The USB to CAN converter module compatible with all series Raspberry Pi/Jetson Nano/Tinker Board/any single board computer, desktop and laptop.
• The USB to CAN converter supports Windows System, Mac OS and Linux (Raspbian, Ubuntu).
• Plug and play USB CAN device. No external power required. Support wider CAN baud rate, from 20Kbps to 1Mbps can be programmed arbitrarily. Support for CAN bus 2.0A and 2.0B specification.
• Provides 3000 V voltage insulation and 2500 V ESD isolated protection on signal pins. 120 Ohm resistor selectable jumper feature.
• Provide C/Python demos with Socket-CAN for Raspbian(Linux), Dynamic library and demo with IOUSBKit for Mac Os.

• punkt znaku wypunktowania: The USB to CAN converter module compatible with all series Raspberry Pi/Jetson Nano/Tinker Board/any single board computer, desktop and laptop., The USB to CAN converter supports Windows System, Mac OS and Linux (Raspbian, Ubuntu)., Plug and play USB CAN device. No external power required. Support wider CAN baud rate, from 20Kbps to 1Mbps can be programmed arbitrarily. Support for CAN bus 2.0A and 2.0B specification., Provides 3000 V voltage insulation and 2500 V ESD isolated protection on signal pins. 120 Ohm resistor selectable jumper feature., Provide C/Python demos with Socket-CAN for Raspbian(Linux), Dynamic library and demo with IOUSBKit for Mac Os.
• ilość sztuk w opakowaniu: 1
• typ złącza: USB Typ A
• Opis produktu: The USB to CAN Cable is a plug and play device and bi-directional port powered USB to CAN converter which realizes long-distance communication between your Raspberry Pi/SBC/PC and other devices stably though CAN- Bus connection. With small size and convenient operation, It's a cost-effective solution that are safe and reliable for all your data-conversion / device-protection applications for any experienced engineer interfacing to expensive industrial equipment yet simple enough for home use by an amateur hobbyist.Support Normal mode, Silent mode and Loopback mode, three modes in all system. and we provide a simple test demo tools for customer in Linux/WINDOWS/Mac Os(Big Sur), So it can be used as a portable CAN data analyzer. The USB to CAN module can also be applied to obtain the data of car via the OBD connector, but you need to configured and secondary development by yourself.
• marka: innomaker
• płeć łącznika: DB9
• zewnętrznie przypisany identyfikator produktu: 781520762608, 0781520762608
• Liczba przedmiotów: 1
• numer części: USB2CAN-C
• waga opakowania przedmiotu: 0.11 kilograms
• producent: innomaker
• zalecane węzły przeglądania: 26955244031
• numer modelu: USB2CAN-C
• nazwa przedmiotu: USB to CAN Converter Cable for Raspberry Pi4/Pi3B+/Pi3/Pi Zero(W)/Jetson Nano/Tinker Board and Any Single Board Computer Support Windows Linux and Mac OS
• data uruchomienia strony produktu: 2021-10-22T03:10:05.947Z
• kompatybilne urządzenia: Laptop
