GPU Water Cooling Block PC Copper Liquid W40

Description:

GPU Water Cooling Block PC Copper High Performance Liquid W40

2 holes on the side of the cover, the water flows from the side.

0.4 mm copper columns on the copper base. The area becomes large, so can carry more heat from GPU quickly.

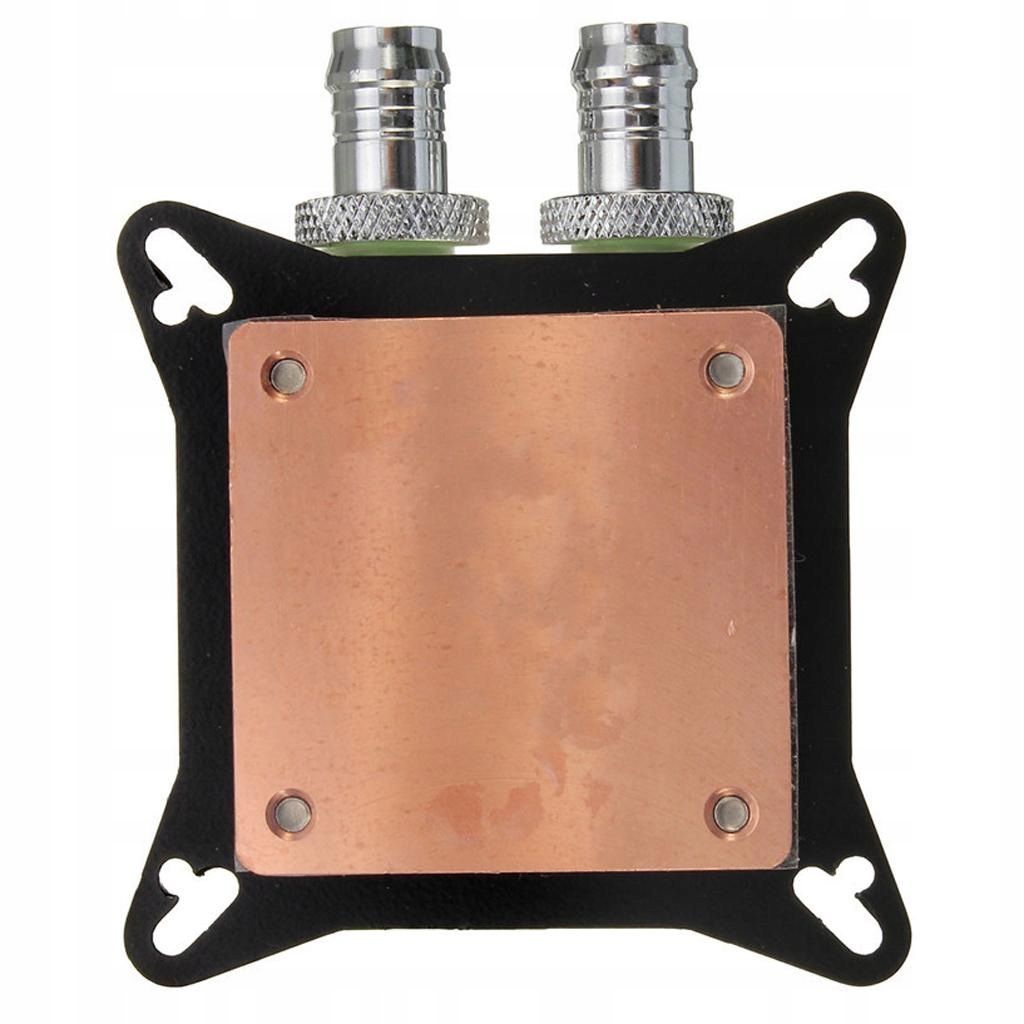

The base is made of T2 ( of 99.9%) cut copper. The surface flatness is less than 0.01 mm. The base can fit the GPU better, so that it can absorb more heat.

The copper base is processed with anti-oxidization technology.

Specification:

Copper base dimension: 50*50*3mm

Fitting thread: G1/4"

Supported tube: 9.5 mm(ID)*12.7 mm(OD) PU tube, or 10 mm(ID)*16 mm(OD) solid tube, or 8 mm(ID)*12 mm(OD)silicon tube

Material:

Base: Copper

Cover: Clear acrylic

Fitting: Brass, plated

Compatibility: Compatible for GPU with fan hole distance of 53 mm- 61 mm.

The support list is as follows:

card: 6800GT, 6600GT, 7800GT, 7800GTX, 7900GT, 7950GT, 7900GTO, 7900GTX, 8600GTS, 9600GT, 9500GT, 8800GT(G92), 8800GTS(G92), 9800GT, 9800GTX, 9800GTX+, , GTS450, GTX550, GTX260, GTX260+, GTX275, GTX285, GTX570, GTX580, GTX660, GTX660TI, GTX670, GTX680, GTX560, GTX460, GTX460TI, GTX560TI. card: X1900PRO, X1900XT, X1900XTX, X1950PRO, X1950GT, X1950XT, X1950XTX, 2600XT, 2900XT HD3850, HD3870, HD4750 HD4770, HD4850, HD4870, HD4890, HD5830, HD5850, HD5870, HD6970, HD6950, HD6870, HD6850, HD6790, HD7870, HD7850, HD7950, HD7970.

Package Includes:

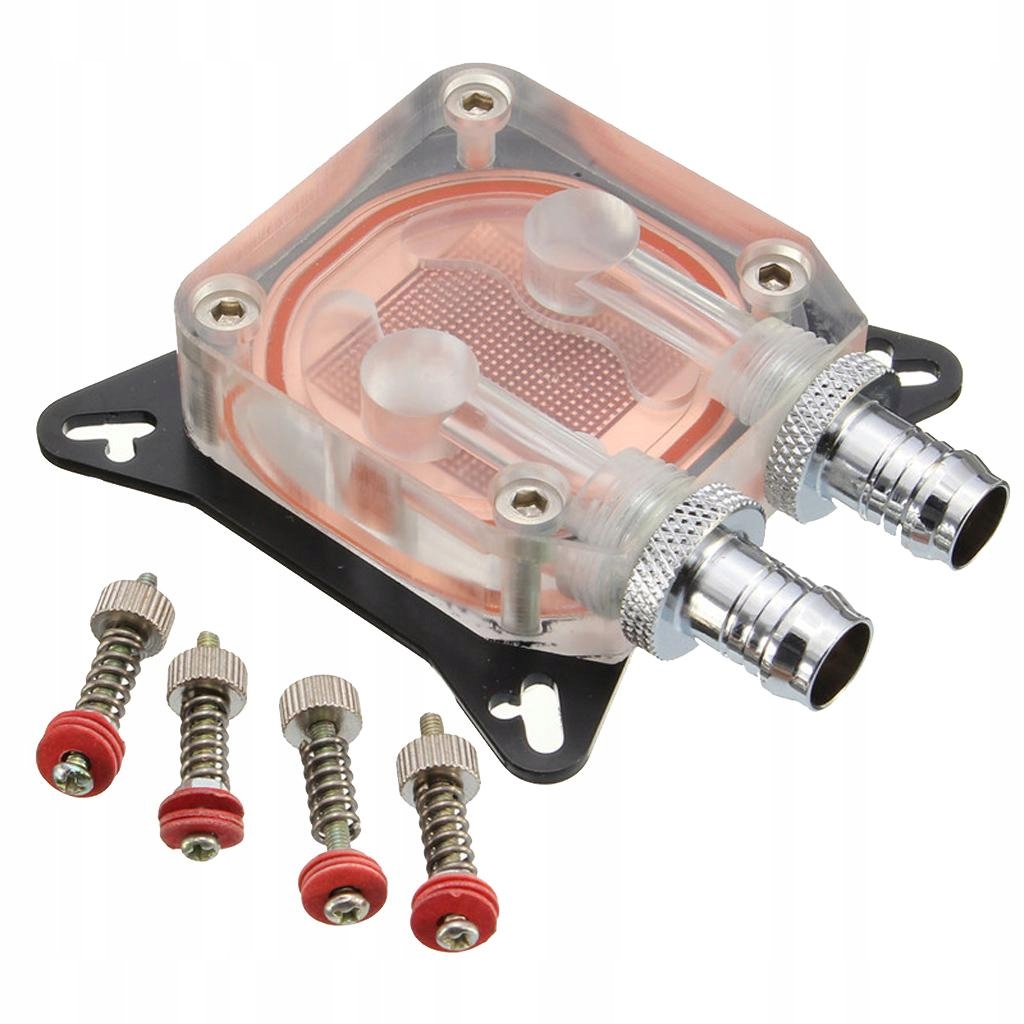

1x Water cooling block

2x Barb fittings

4x Mounting screws
