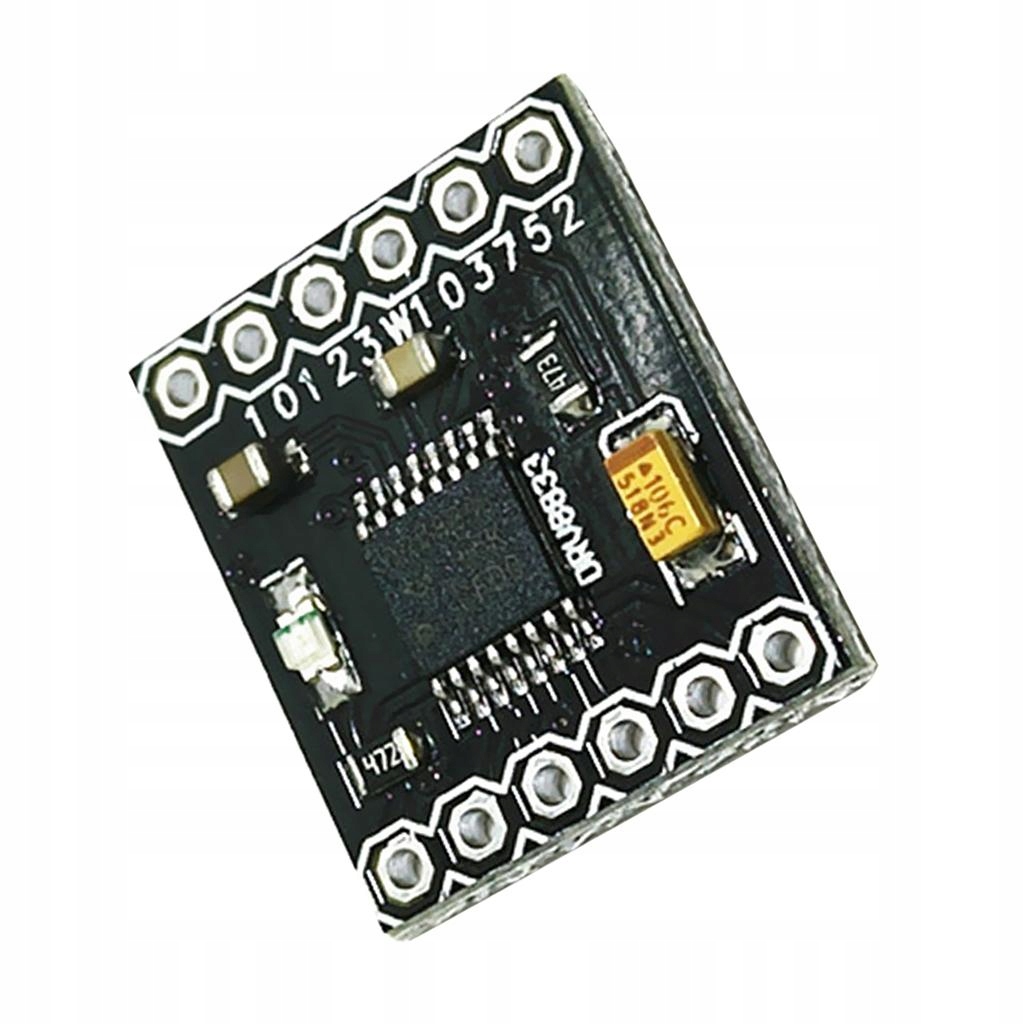

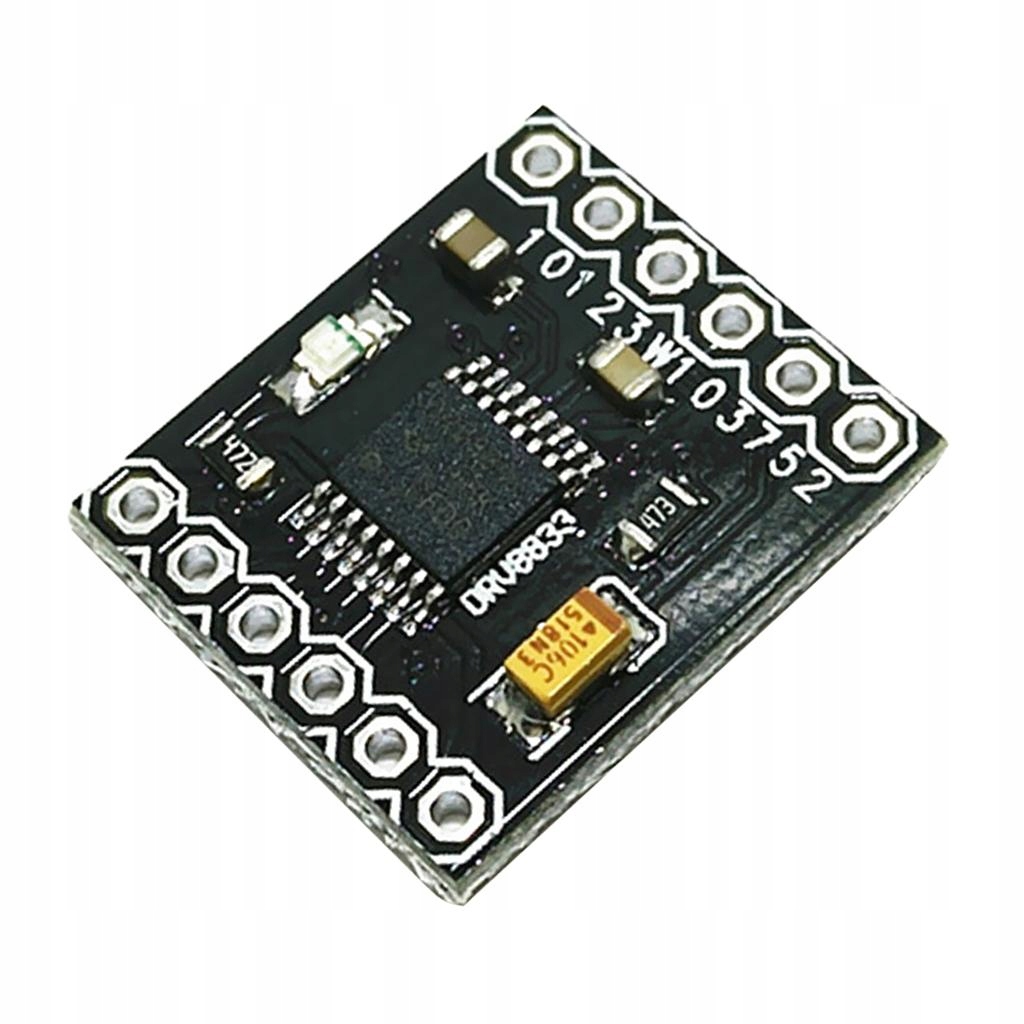

2 Channel DRV8833 DC Motor Driver Module 3V-10V 1.5A H-Bridge for

Description:

ULT PIN: set.Low level

OUT1,OUT2: 1-channel H-bridge controlled by IN1/IN2

OUT3,OUT4: 2-channel H-bridge controlled by IN3/IN4

EEP PIN: Output protection. Default no need to connect.

VCC:3-10V

GND

Input voltage:3V-10V

Single H-Bridge output current:1.5A(It can drive two DC motor)

Overcurrent protection:YES

Short circuit protection:YES

Undervoltage lockout:YES

Overheating protection:YES

With a low-power sleep

Size Chart:

Size: Approx.18.5mmx16mmx5mm/ 0.73x0.63x0.2 inches

Package Includes:

1 × DRV8833 DC Motor Driver Module (with pins)
