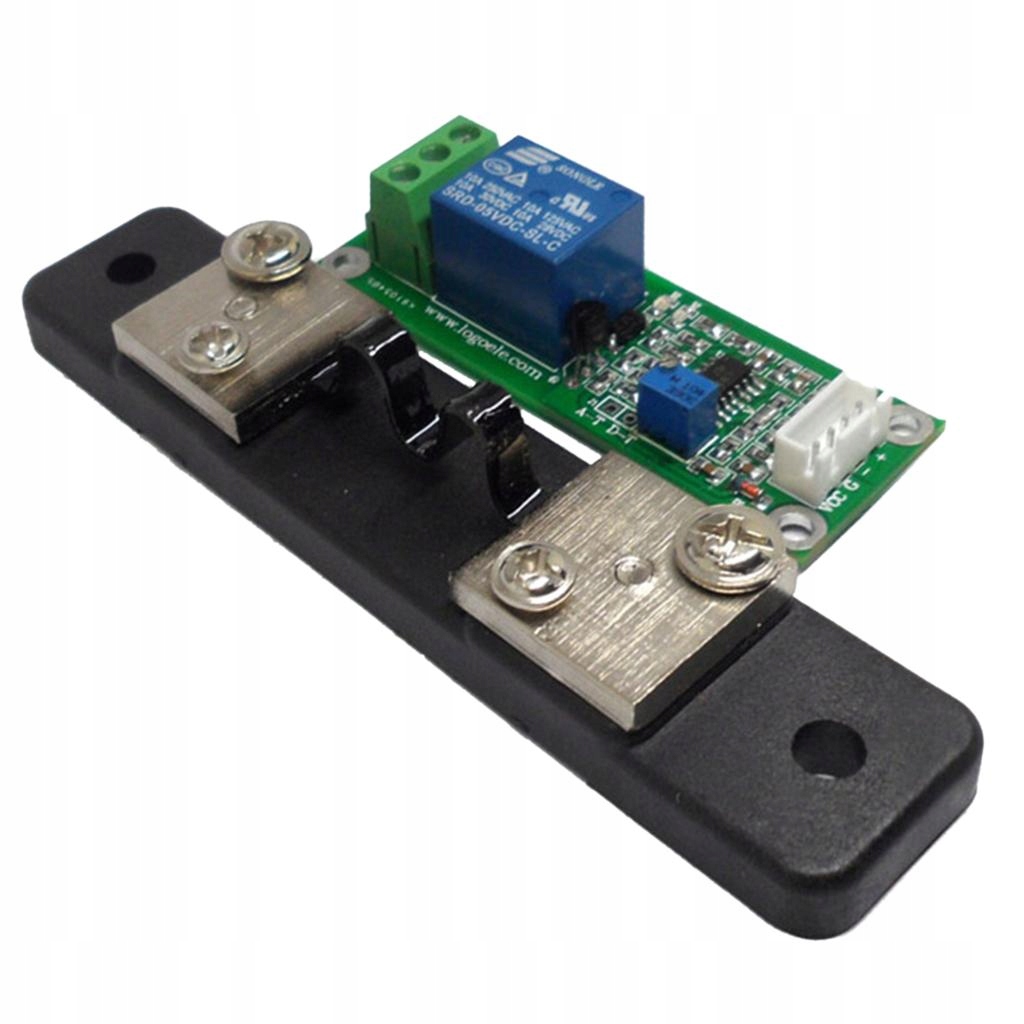

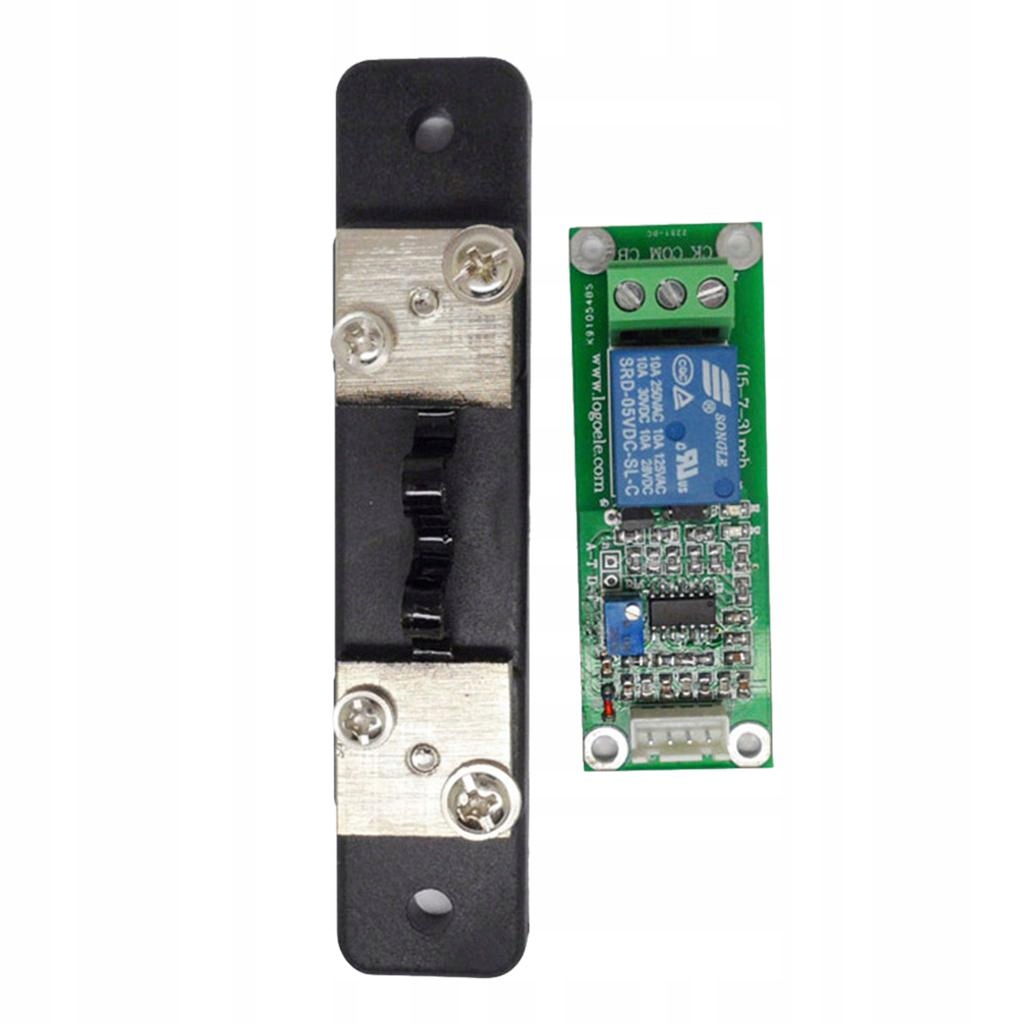

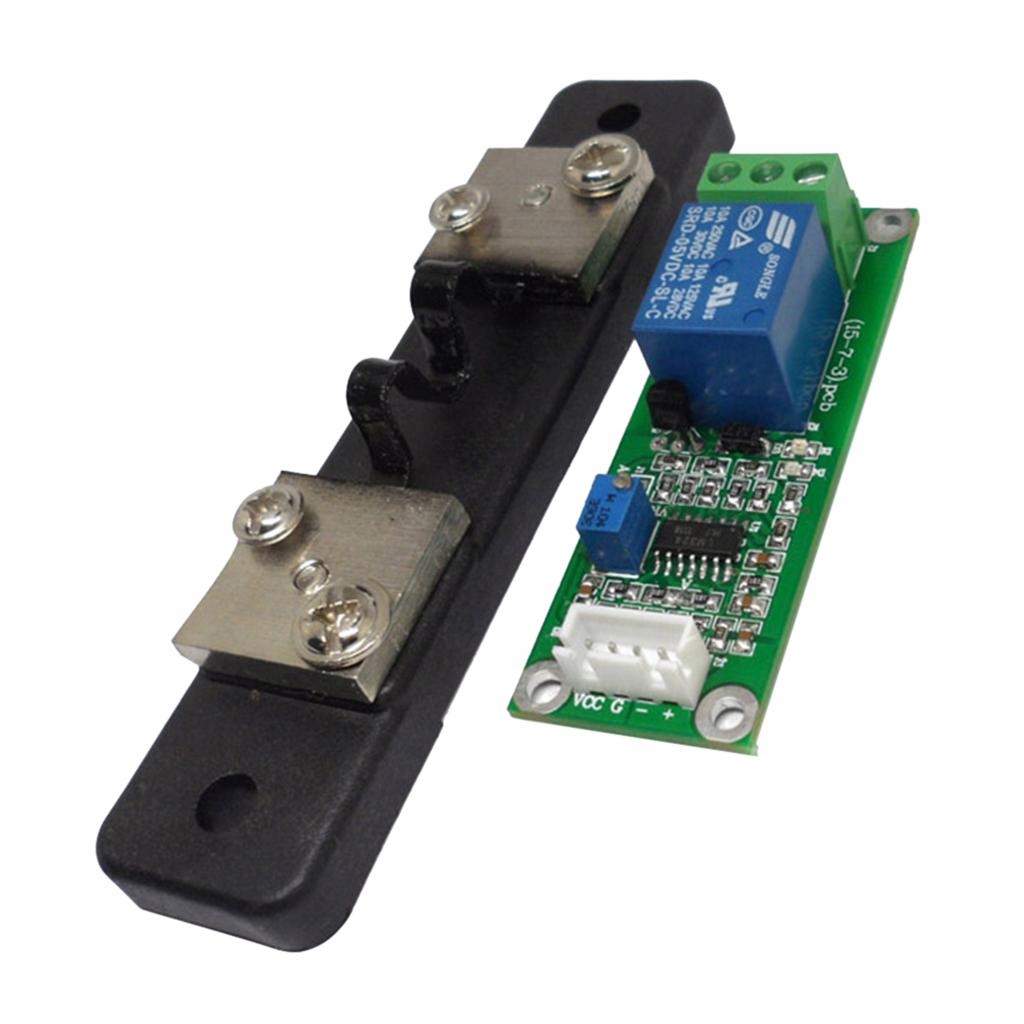

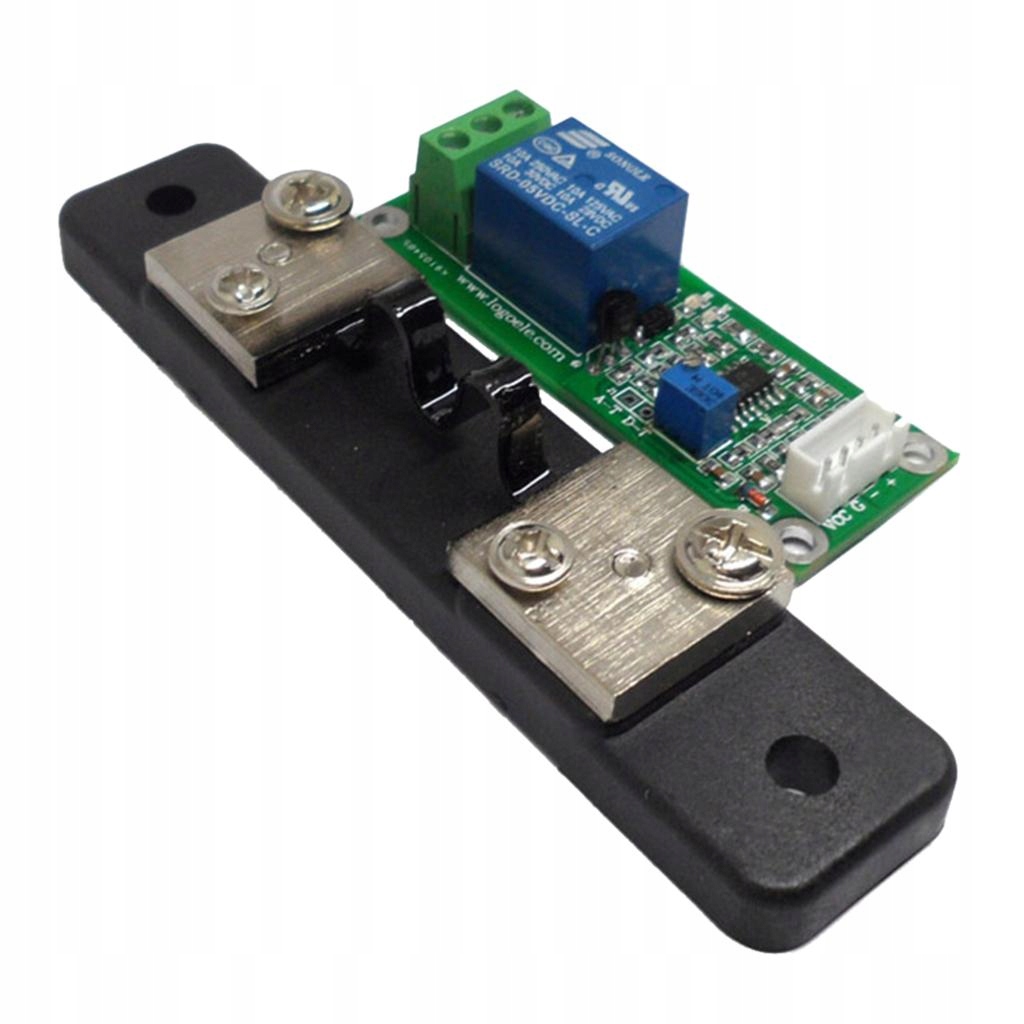

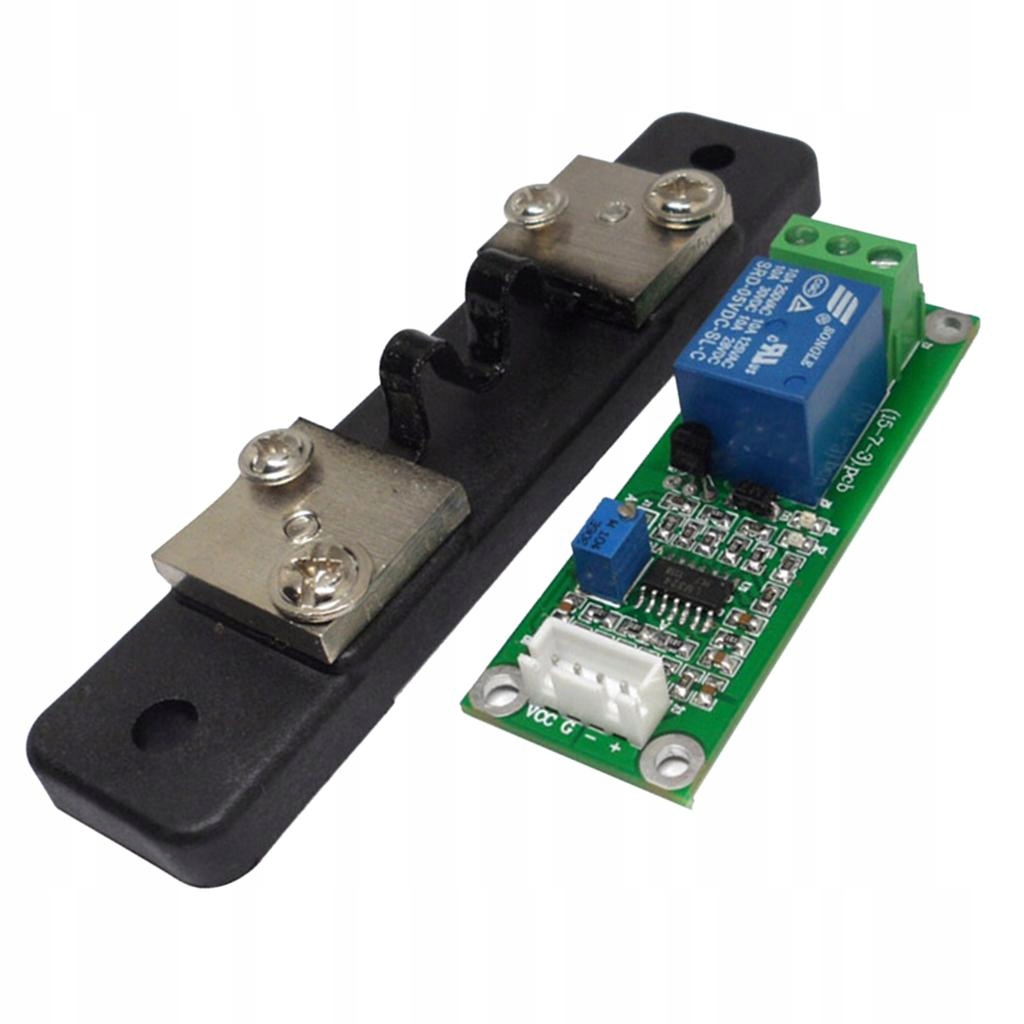

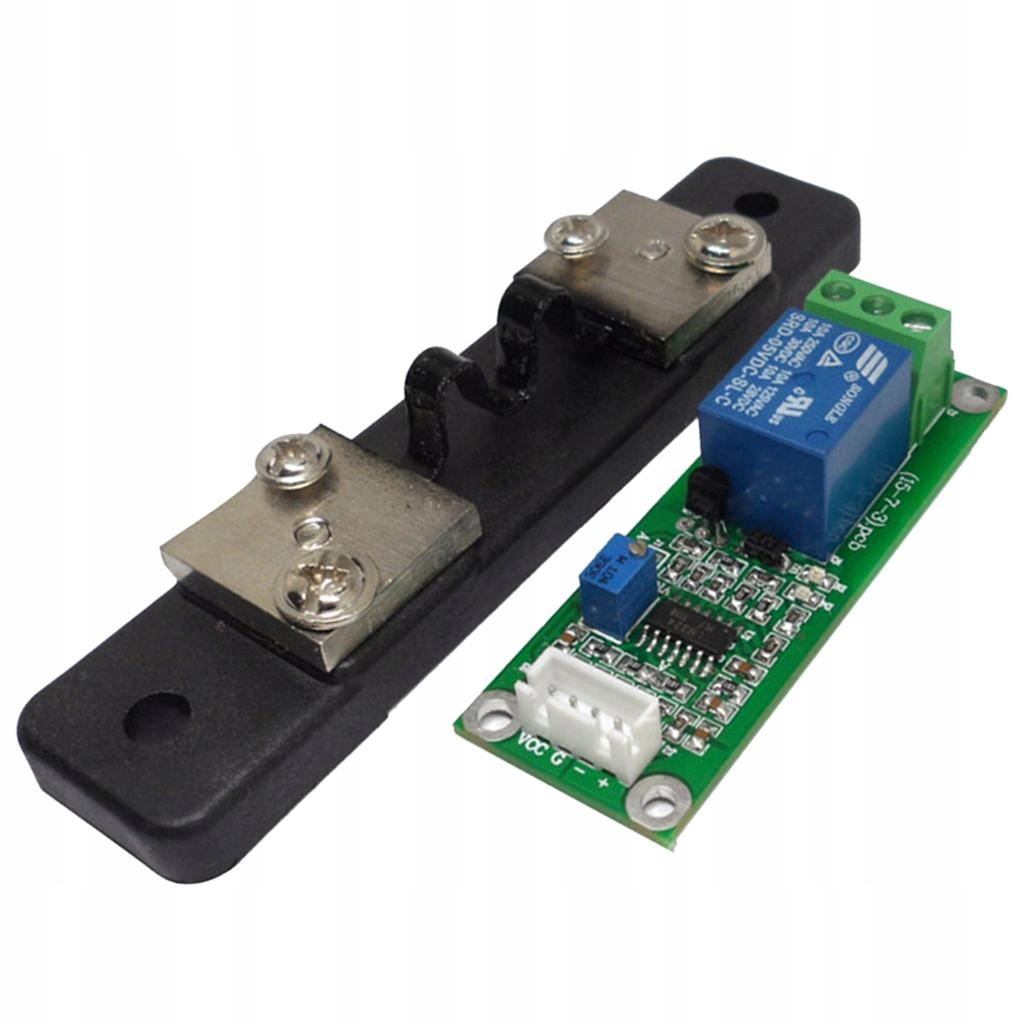

Current Detect Sensor DC300A Full Range of Linear Adjustable 20A 5V

Description:

Product Name: DC Current Sensor 20A Full Series Linear Output

Function: realize DC loop current detection, overcurrent detection, output switching after overcurrent and short circuit, overcurrent protection function, module adopts accurate shunt current acquisition, accurate sampling.

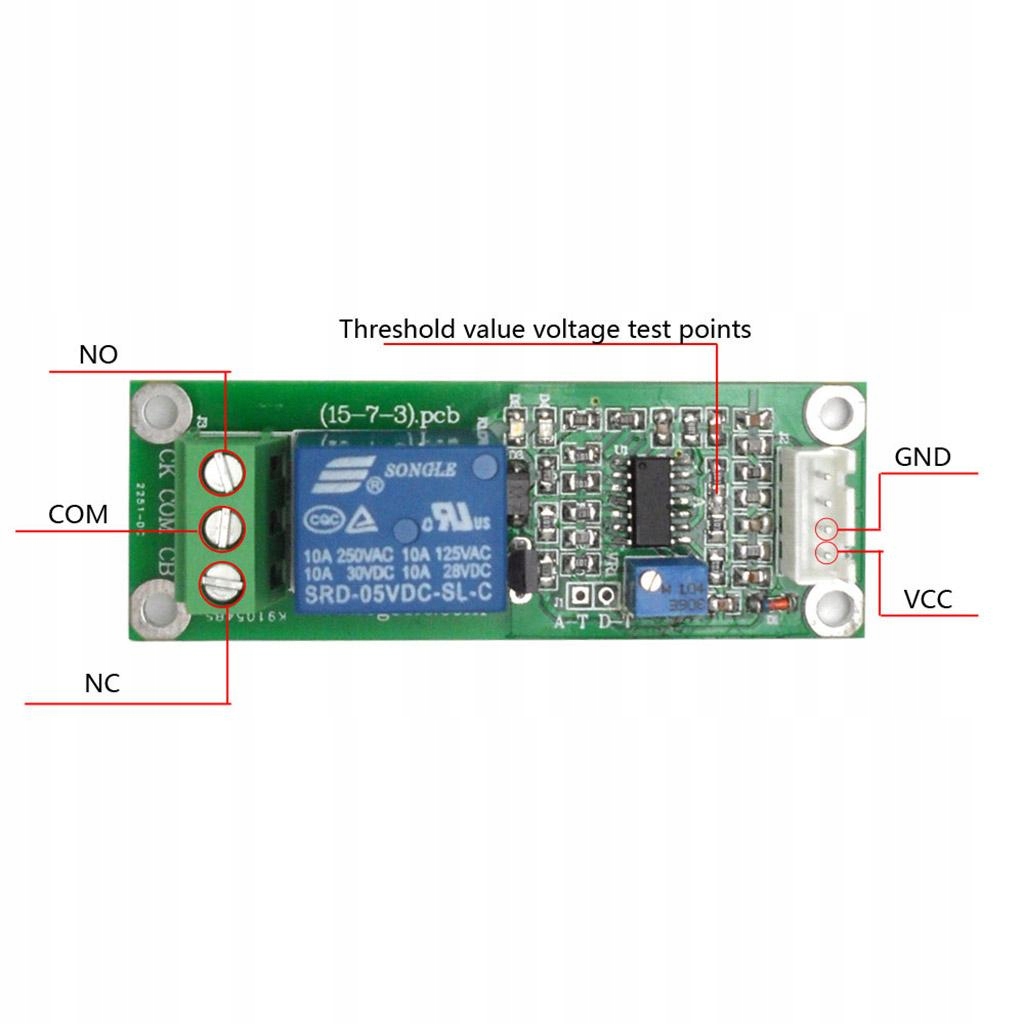

Specific debugging method: measure the voltage threshold voltage test point. At this time, the voltage is equivalent to the current 20A.

Detection does not exceed 20A DC current, on the board is analog output, linear corresponds to 0-20A, can be welded and collected, can also be used as overcurrent protection, can be directly powered

The module is automatically restored and is not directly used to control the on/off of subsequent circuits. It needs to be connected to the controller or add a delay relay.

Specification:

Material: electronic components

Product detailed size: 72x25x18mm/2.83x 0.98x0.71inch(single module)

Technical Parameters:

Working voltage: DC5V;

Working current:
