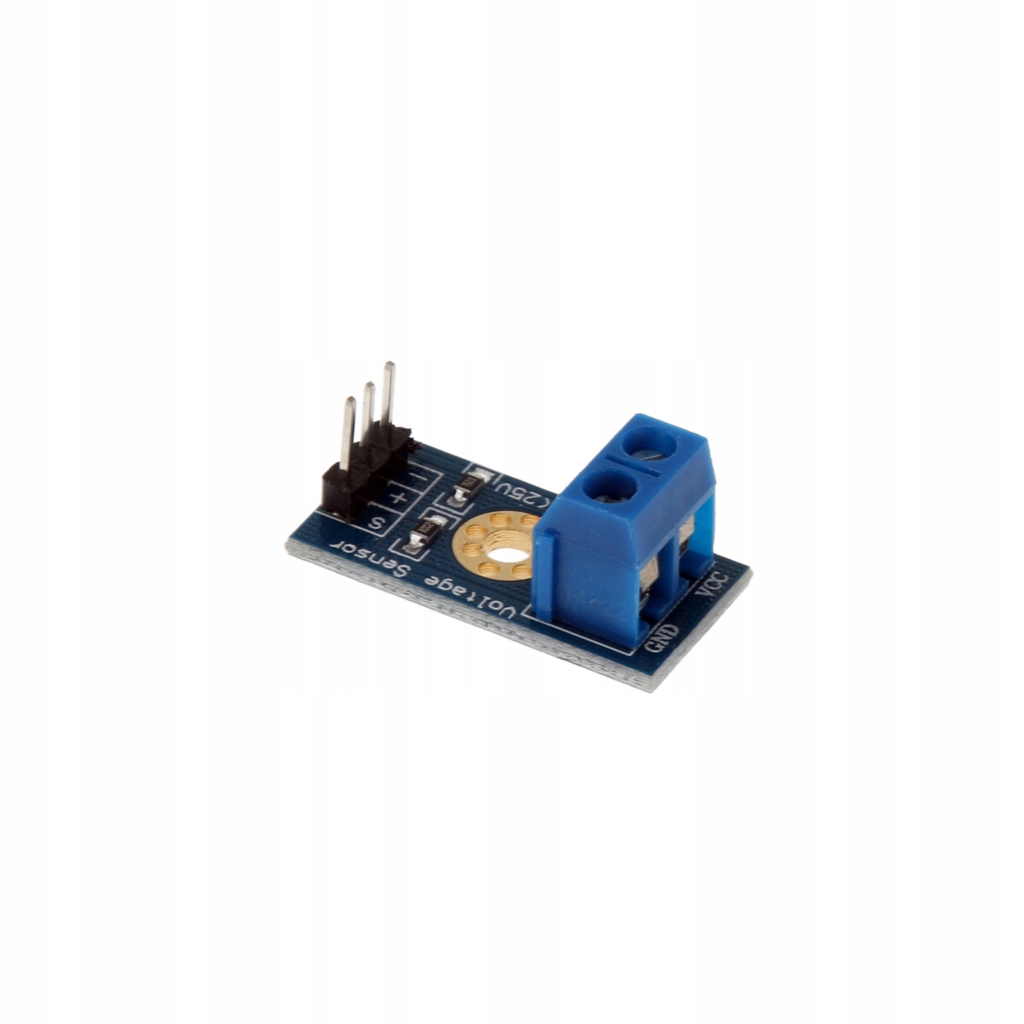

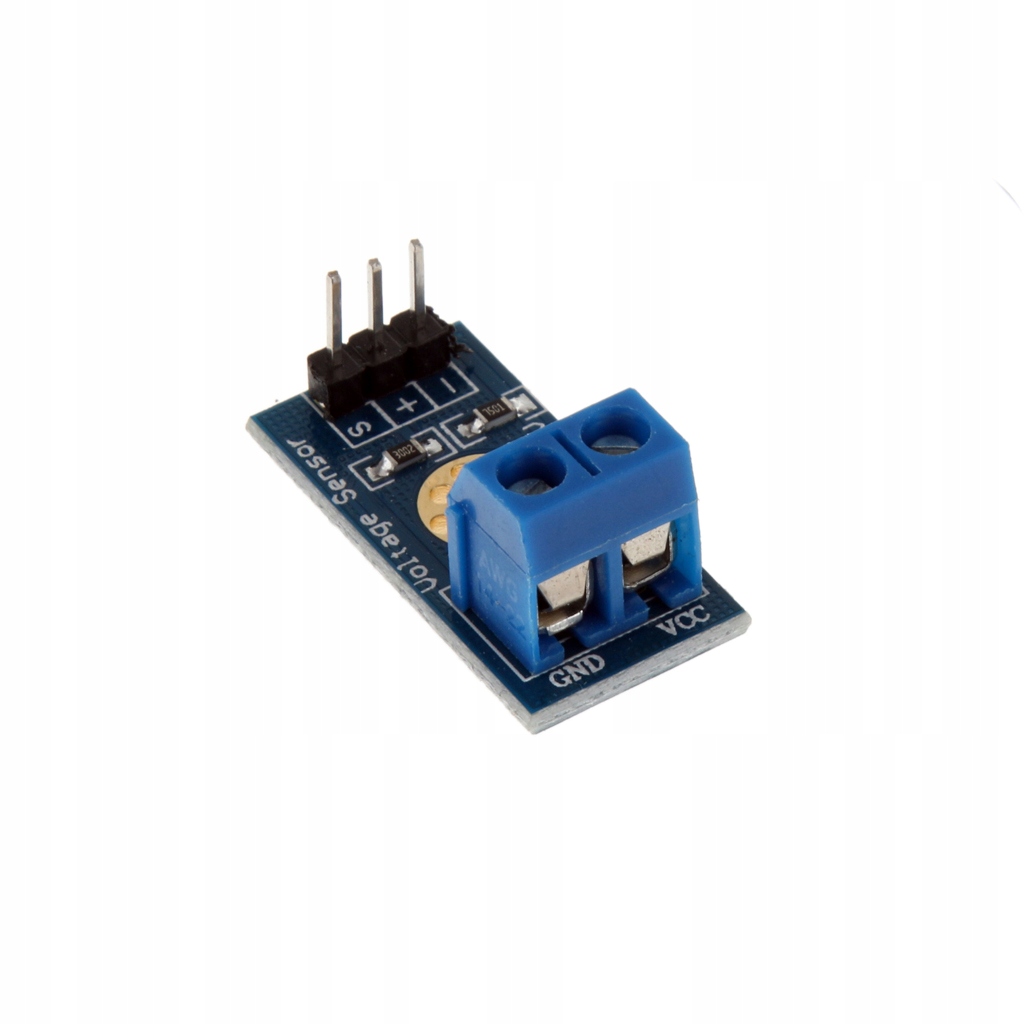

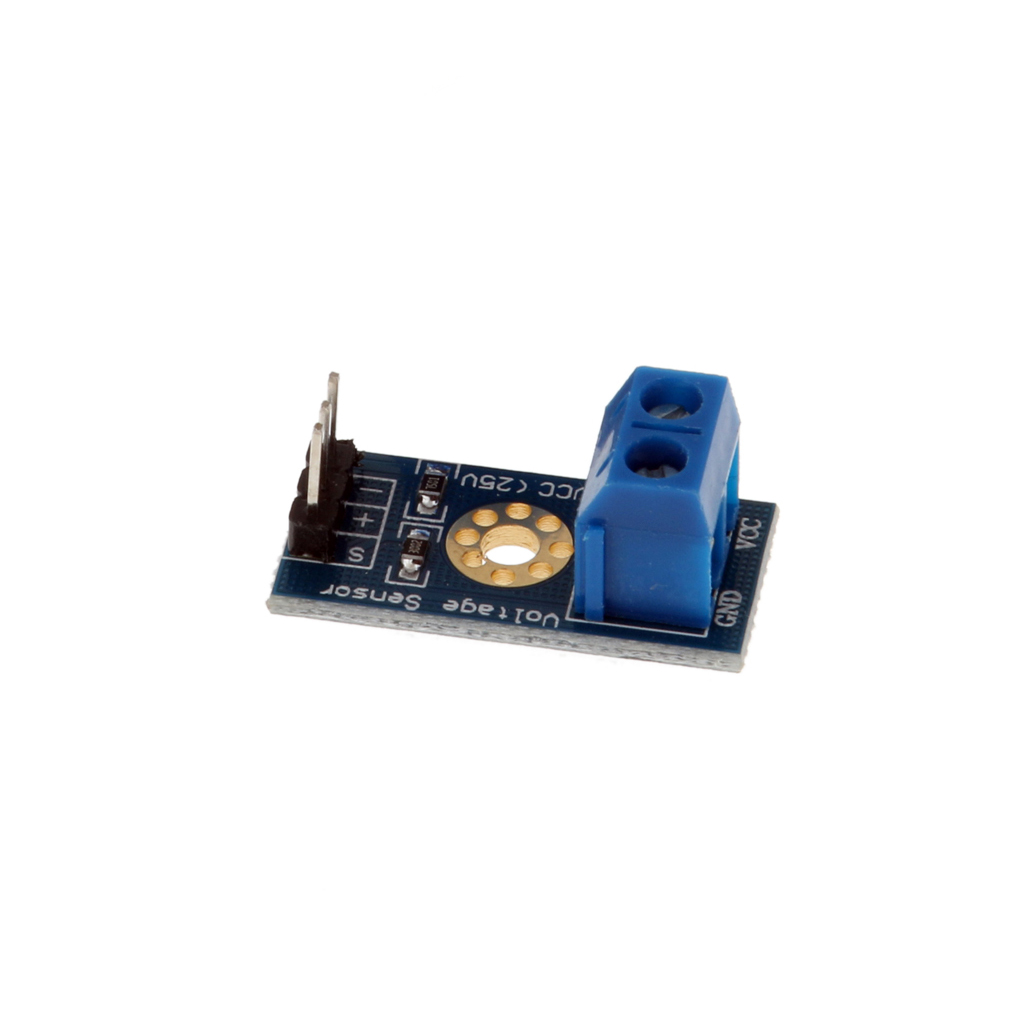

Standard Voltage Sensor Module for Robot GM Electronics

Description:

This module is based on principle of resistive divider design

Make the red terminal connector input to 5 times smaller. analog input voltages up to 5 v,

The detection module input not greater than 5Vx5=25V

(if using 3.3V systems, input not greater than 3.3Vx5=16.5V).

AVR chips have 10 , so this module simulates a resolution of 0.00489V (5V/1023),

The minimum of input detection module is 0.00489Vx5=0.02445V.

input range : DC0-25 V

detection range : DC0.02445 V

analog resolution : 0.00489 V

Output Interface : "+ " connected 5/3.3V, "-" connected GND, "s" connected

DC input interface : red terminal positive with VCC, negative with GND

By 3P connector, connect this module with the expansion of board ,

Makes it easier for you to detect battery

Material:

Size: 2.6*1.4cm

Package include:

1x Standard Sensor Module
