Broadcast FM Band Reject Filter 88-108 MHz FM Trap with Accessories Module

Description:

Blocks the broadcast FM band between 88 – 108 MHz with over 50dB of attenuation.

Designed for maximum attenuation between 88 - 108 MHz and the 3dB roll off points are at 76 MHz and 122 MHz.

Insertion loss is less than 0.5 dB between 0 – 1 GHz, and mostly less than 1.5 dB between 1 – 3 GHz.

Uses . Comes with a to adapter.

A broadcast FM block can help if you have very strong broadcasts in your area that are overloading the .

Specification:

Size: 27.5x25.5mm/1.1x1"

Package Includes:

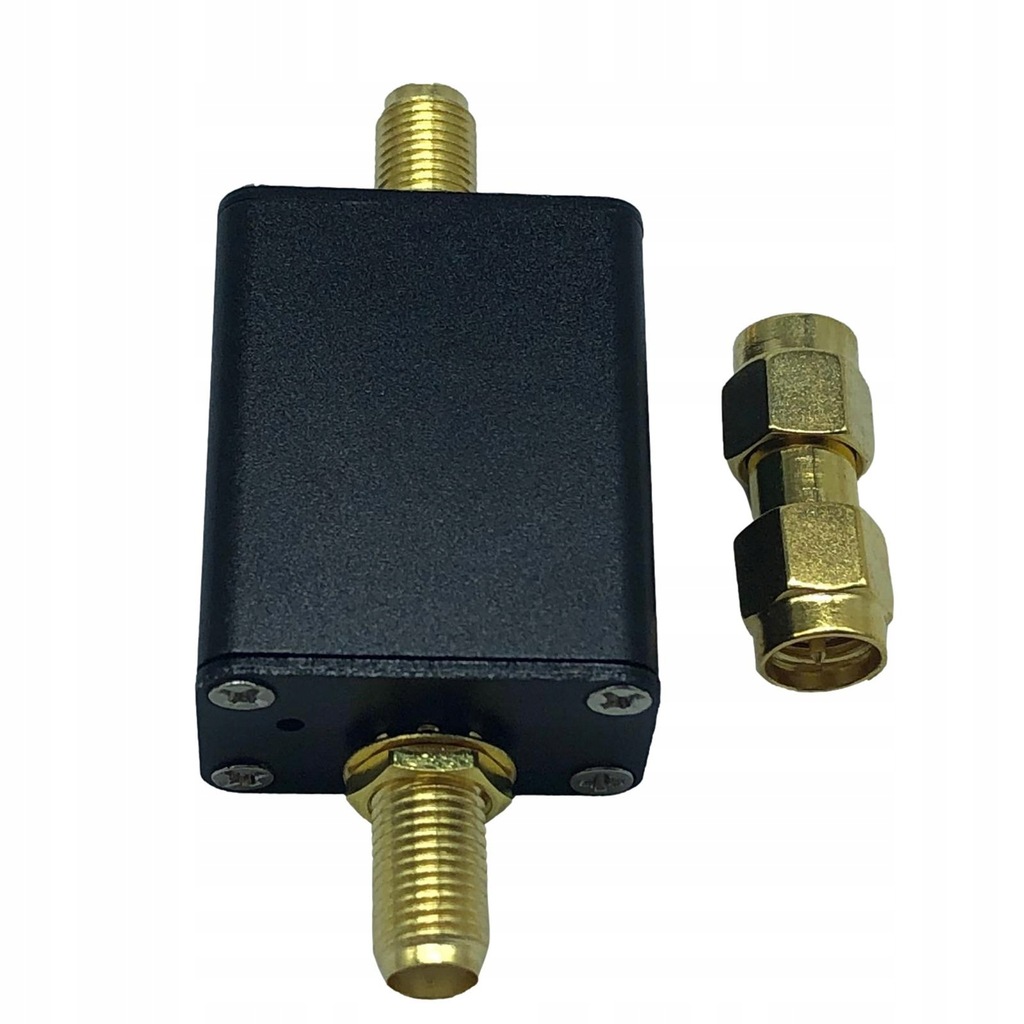

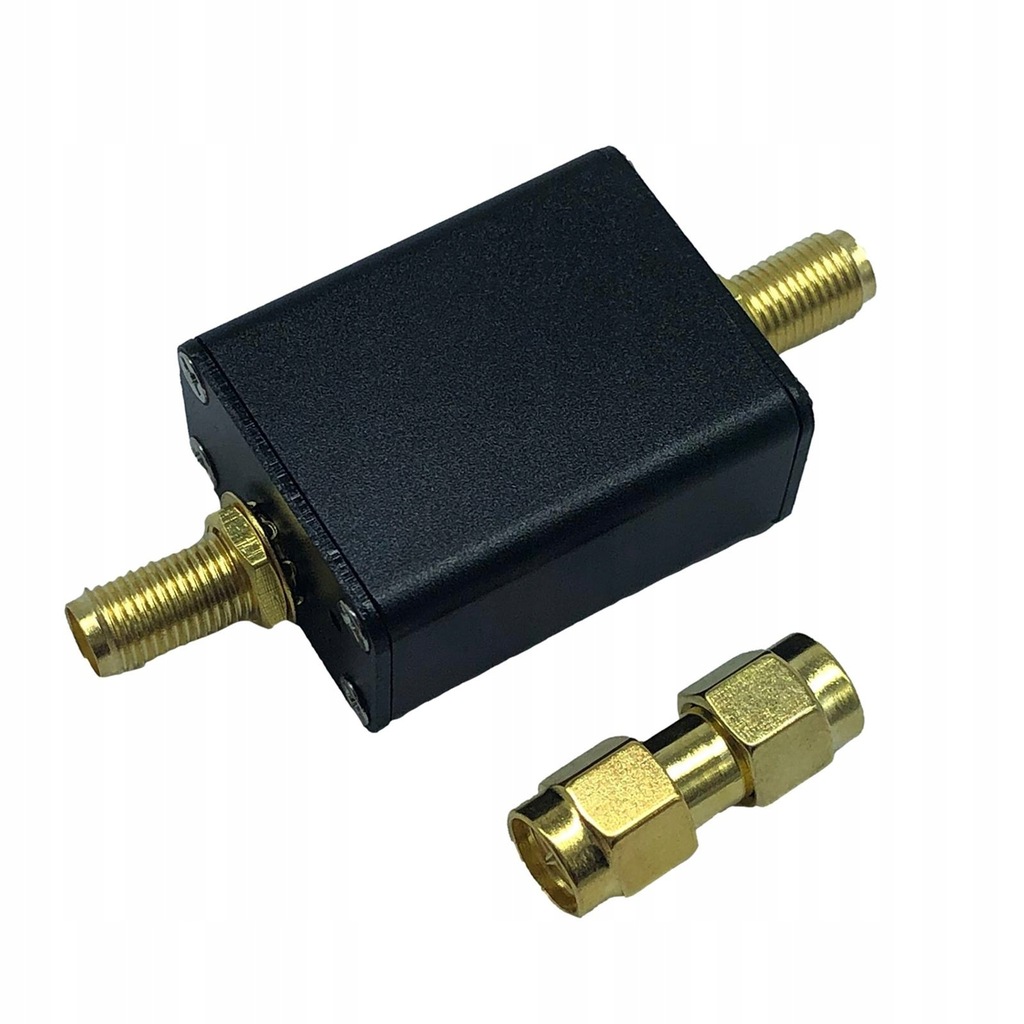

1x Broadcast FM Band Stop

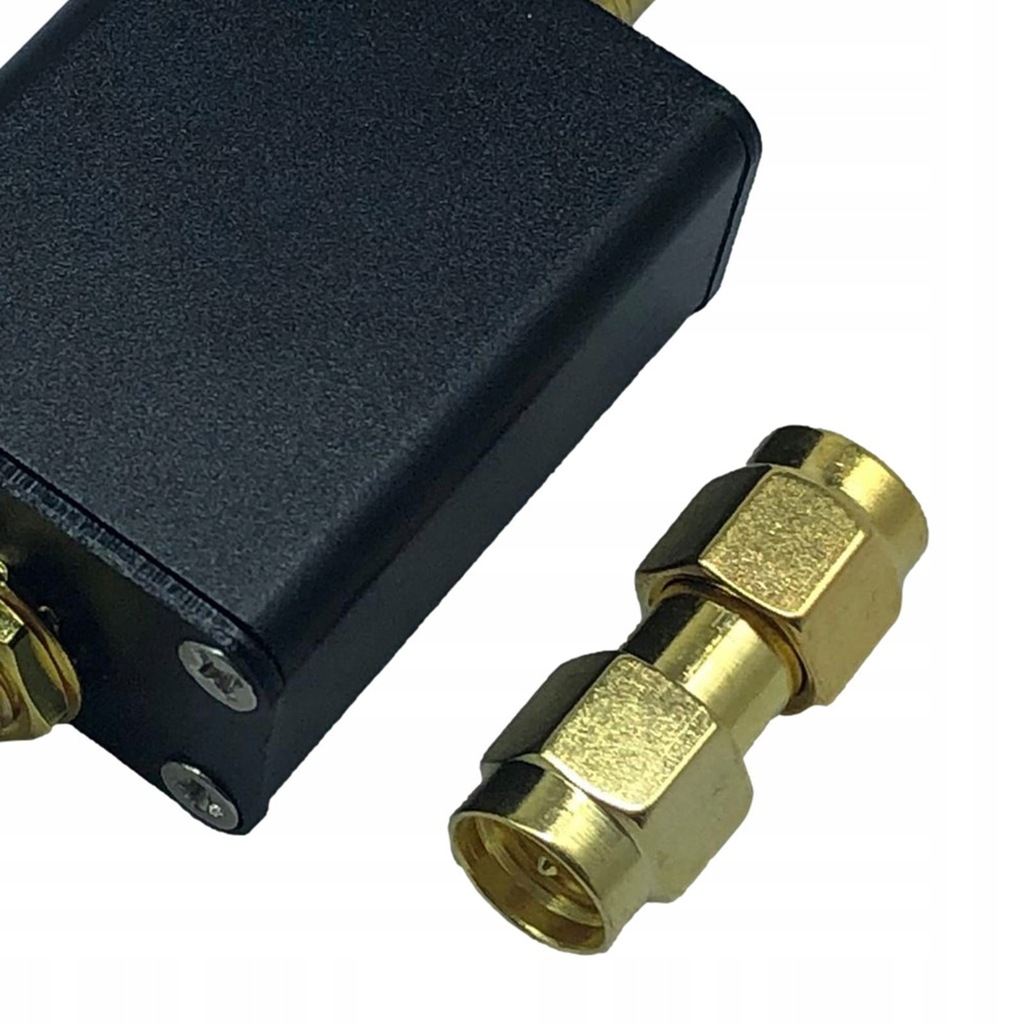

1x to adapter
