Opis oryginalny od dystrybutora:

The ASRock Z370 Killer SLI is an ATX motherboard with Intel's Z370 chipset for the 8th generation of Intel processors (Coffee Lake), which uses Socket LGA 1151 as a foundation. The Z370 chipset is therefore a refresh of the "Kaby Lake" chipsets and comes with a maximum of 24 PCI-Express 3.0 lanes and plenty of HSIO-Lanes (High Speed I/O) to enable multiple internal connections (such as SATA or PCIe-slots) to be connected simultaneously. As a Z370 this enables the ASRock Z370 Killer SLI to overclock K-series CPUs which come with an unlocked multiplier.

The Features of the ASRock Z370 Killer SLI at a Glance:

2× PCIe (3.0) x16 (x16/x8) & 4× PCIe x1

9× USB 3.0 / 4× USB 2.0

2× M.2 (PCIe 3.0 x4) / 6× SATA 6G

Supports max. 64 GB DDR4-RAM at 4.266 MHz (OC)

Integrated RGB-LED lighting

Convenient CPU overclocking via multiplier

The ASRock Z370 Killer SLI in Detail

The ASRock Z370 Killer SLI is an ATX motherboard with an extensive feature set as well as the cutting edge Z370 chipset from Intel which is designed for Intel's 8000-series of Core processors. The board comes with a total of two PCIe x16 slots, one of which is connected to the chipset via 16 full lanes while the other uses eight. This allows the board to support NVIDIA's SLI- as well as AMDs CrossFireX technologies for multiple graphics cards. For upgrades and expansion cards the board offers four PCIe 3.0 x1 slots. Equipped with a total of four DIMM slots for DDR4-RAM in fast dual-channel mode, up to 64 GB RAM can be installed in the four memory banks. The Coffee Lake processors support memory frequencies of 2.666 MHz, and overclocking allows modules of up to 4.266 MHz to be used.

In terms of connections for data storage devices, the board comes with two M.2-slots for ultra fast NVMe-M.2 SSDs as well as six SATA 6G ports for 3,5"- or 2,5" hard drives and SSDs (incl. RAID support). The M.2 port are connected to the chipset via four PCIe 3.0 lanes and in combination with the NVMe protocol this enables a data transfer rate of nearly 4 GB/s. This makes M.2 PCIe SSDs up to eight times faster than SATA 6G SSDs!

The I/O of the motherboard includes a new USB 3.1 Type C port and five additional USB 3.0 Type A ports. Network connectivity is provided by the Intel I219V Gigabit LAN port and the board provides first class 7.1 sound thanks to the Realtek ALC892.

Should no graphics card be present, the integrated GPU of the Coffee Lake processor outputs to a display via HDMI and DVI-D. The range of internal connectivity options include connectors for USB, fans, LEDs and much more. RGB-LED lighting is also available as a matter of course, and that's why this board offers multiple lighting zones for superb illumination.

Technical Details:

Format:

ATX (305 x 224 mm)

Chipset:

Intel Z370

Socket:

1151 for 8th generation Intel CPUs ("Coffee Lake")

RAM:

4× DDR4 (Coffee Lake: DDR4-2.666; max. 64 GB; OC max. 4.266 MHz)

Dual-Channel

Slots (physical):

1× PCIe 3.0 x16

1× PCIe 3.0 x16 (electrical x8)

Compatible Multi-VGA Configurations: 2-Way NVIDIA SLI & 2-Way AMD CrossFireX

4× PCIe 3.0 x1

Internal Connectors:

6× SATA 6G

2× M.2 (PCIe 3.0 x4 & SATA; 2230 / 2242 / 2260 / 2280)

1× USB 3.0 Type C (Front Panel Header)

2× USB 3.0 (one header)

4× USB 2.0 (two headers)

1× COM Port Header

1× TPM Header

1× Chassis Intrusion Header

1× Power LED & Speaker Header

1× RGB LED Header

1× CPU Fan Connector (4-Pin)

2× Case Fan (4-Pin)

1× Case Fan- / Pump (4-Pin)

1× Front-Panel Audio Connector

1× Thunderbolt AIC Connector (5-Pin)

1× Performance Mode / Easy OC Header

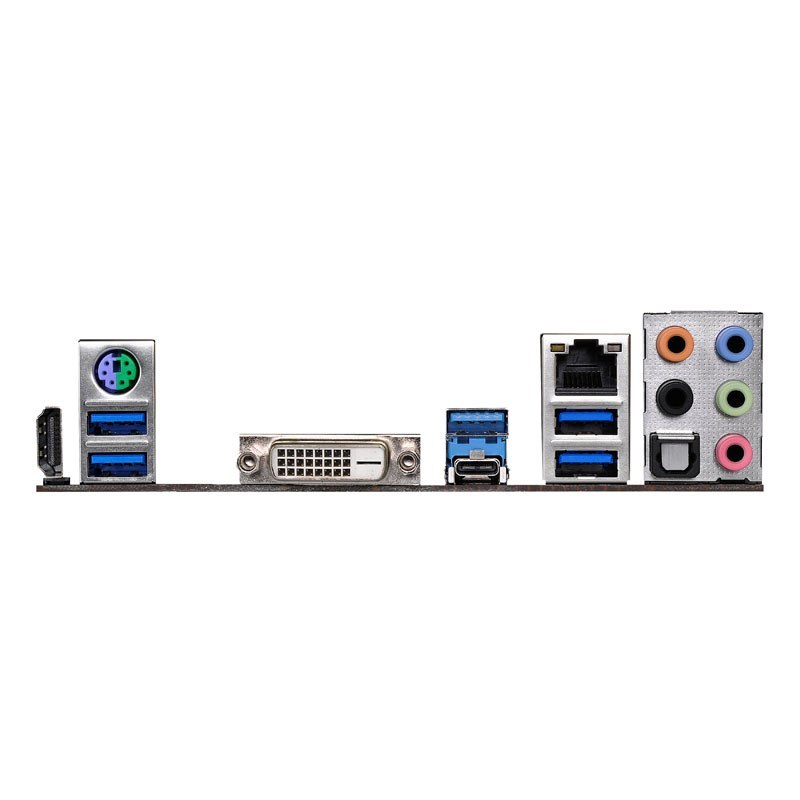

External Connectors:

1× PS/2 Keyboard/Mouse

6× USB 3.0 (5× Type-A, 1× Type-C)

1× HDMI

1× DVI-D

1× Gigabit LAN (Intel I219V)

1× S/PDIF (optical)

5× Audio (Realtek ALC892 Codec)

Power Supply:

1× 24-Pin

1× 8-Pin

MBAR-260

4717677334241

WAGA: 0.2 kg.

PRODUCENT: ASRock
