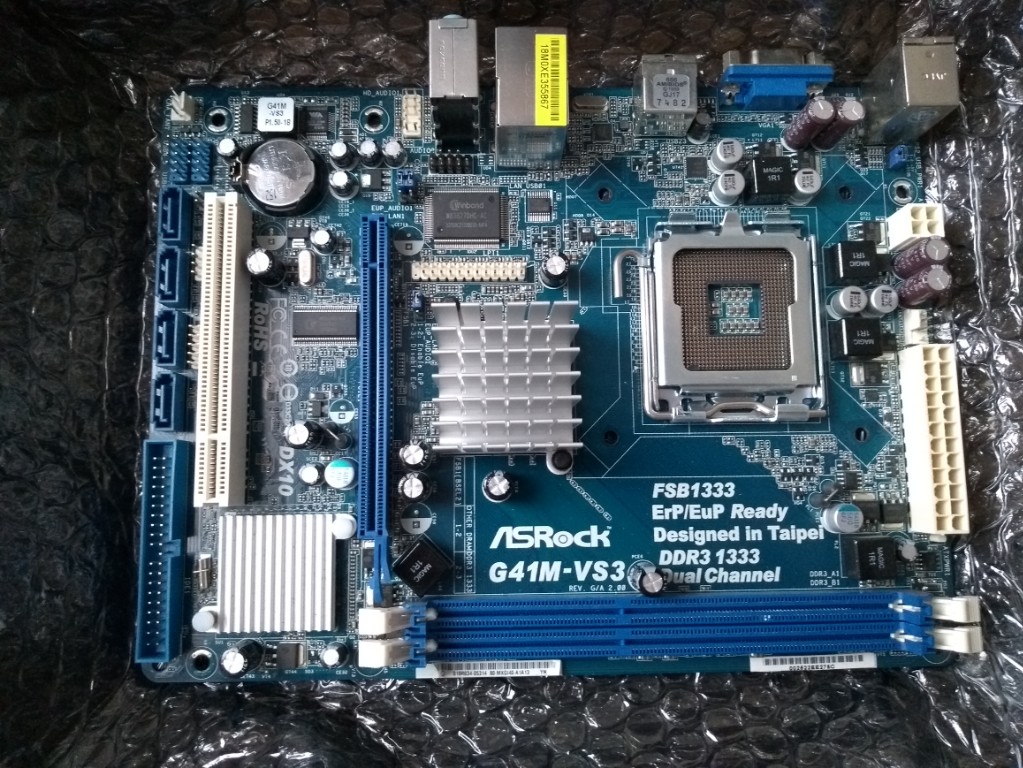

Zdjecie na miniaturze przedstawia pochodzi ze strony producenta, sprzedaje w opakowaniu zastępczym bez akcesoriów.

Kupilem uzywana, w celu złożenia komputera, ale zabrakło czasu. Lezy w pudełku od 2 miesięcy i już raczej czasu nie znajdę.

Zapraszam do licytacji.

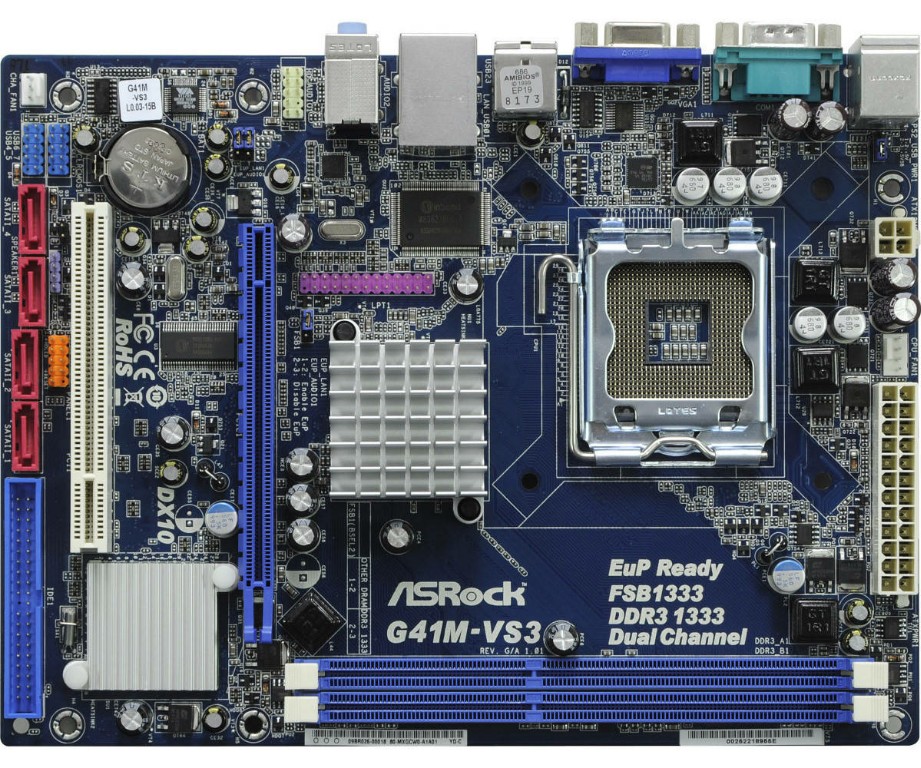

WG41M-VS3

Supports FSB1333/1066/800/533 MHz CPUs

Supports Dual Channel DDR3 1333(OC)

Intel® Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10, Max. shared memory 1759MB

EuP Ready

Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies

Supports Instant Boot, Instant Flash, OC DNA, ASRock OC Tuner (Up to 158% CPU frequency increase)

Supports Intelligent Energy Saver (Up to 20% CPU Power Saving)

CPU

- LGA 775 for Intel® Core™ 2 Extreme / Core™ 2 Quad / Core™ 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors

- Supports FSB1333/1066/800/533 MHz

- Supports Hyper-Threading Technology

- Supports Untied Overclocking Technology

- Supports EM64T CPU

Chipset

- Northbridge: Intel® G41

- Southbridge: Intel® ICH7

Pamięć

- Dual Channel DDR3 memory technology

- 2 x DDR3 DIMM slots

- Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory

- Max. capacity of system memory: 8GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

**In order to maximize the system memory, please install 4GB memory module with 16 cells or 2GB memory modules with at least 8 cells.

BIOS

- 8Mb AMI Legal BIOS

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- SMBIOS 2.3.1 Support

- VCCM, NB, VTT Voltage Multi-adjustment

Karta graficzna

- Intel® Graphics Media Accelerator X4500

- Pixel Shader 4.0, DirectX 10

- Max. shared memory 1759MB*

- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz

*The shared memory size is dynamically controlled by VGA driver, and the Max. shared memory size will be available only when more than 4GB memory is installed under 64-bit OS.

Audio

- 5.1 CH HD Audio (VIA® VT1705 Audio Codec)

LAN

- Atheros® PCIEx1 LAN AR8132L

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

- Supports PXE

Sloty

- 1 x PCI Express x16 slot

- 1 x PCI slot

Złącza

- 4 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)

- 1 x ATA100 IDE connector (supports 2 x IDE devices)

- 1 x Print port header

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

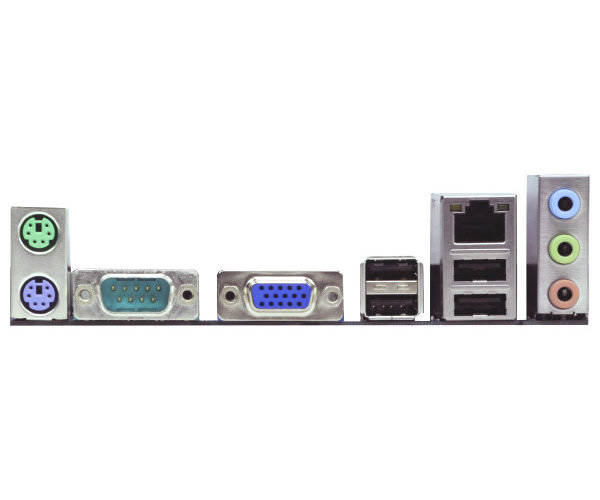

Tylny panel

I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x VGA Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Line in / Front Speaker / Microphone

Cechy szczególne

- ASRock OC Tuner

- Intelligent Energy Saver

- Instant Boot

- ASRock Instant Flash

- ASRock OC DNA

- Hybrid Booster:

- CPU Frequency Stepless Control

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)

Akcesoria

- Quick Installation Guide, Support CD, I/O Shield

- 2 x SATA Data Cables

Hardware Monitor

- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Wymiary

- Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm

System operacyjny

- Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Certyfikaty

- FCC, CE

- EuP Ready (EuP ready power supply is required)
