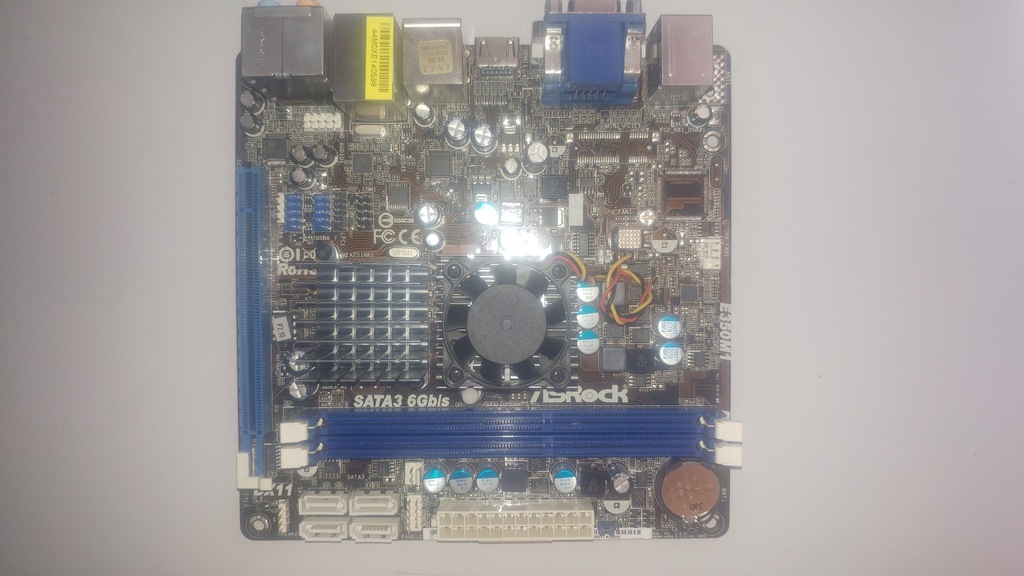

Płyta główna ASROCK E350M1

PŁYTA JEST SPRAWNA PO TESTACH !!

BRAK TYLNEJ ZAŚLEPKI

PŁYTA POSIADA ZINTEGROWANY PROCESOR AMD E350 DUAL CORE

GWARANCJA 3 MIESIĘCY

SPECYFIKACJA :

• CPU - AMD Dual-Core Zacate E350/E350D APU - Supports AMD's Cool 'n' Quiet Technology - UMI 2.5 GT/s

• Chipset - AMD A50M Chipset

• Memory - 2 x DDR3 DIMM slots - Supports DDR3 1066/800 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB* *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS - 32Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - DRAM, FCH, +1V, +1.8V Voltage Multi-adjustment

• Graphics - Integrated AMD Radeon HD 6310 graphics - DX11 class iGPU, Pixel Shader 5.0 - Max. shared memory 512MB - Three graphics output options: D-Sub, DVI-D and HDMI - Supports HDMI Technology with max. resolution up to 1920x1200 (1080P) - Supports DVI with max. resolution up to 1920x1200 @ 75Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 85Hz - Supports HDCP function with DVI and HDMI ports - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports - Supports Dolby® TrueHD and DTS-HD Master Audio through HDMI port

• Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray audio support

• LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E - Supports Wake-On-LAN - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az

• Slots - 1 x PCI Express 2.0 x16 slot (blue @ x4 mode)

• SATA3 - 4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions

• Connector - 4 x SATA3 6.0 Gb/s connectors - 1 x CIR header - 1 x COM port header - CPU/Chassis FAN connector - 24 pin ATX power connector - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports)

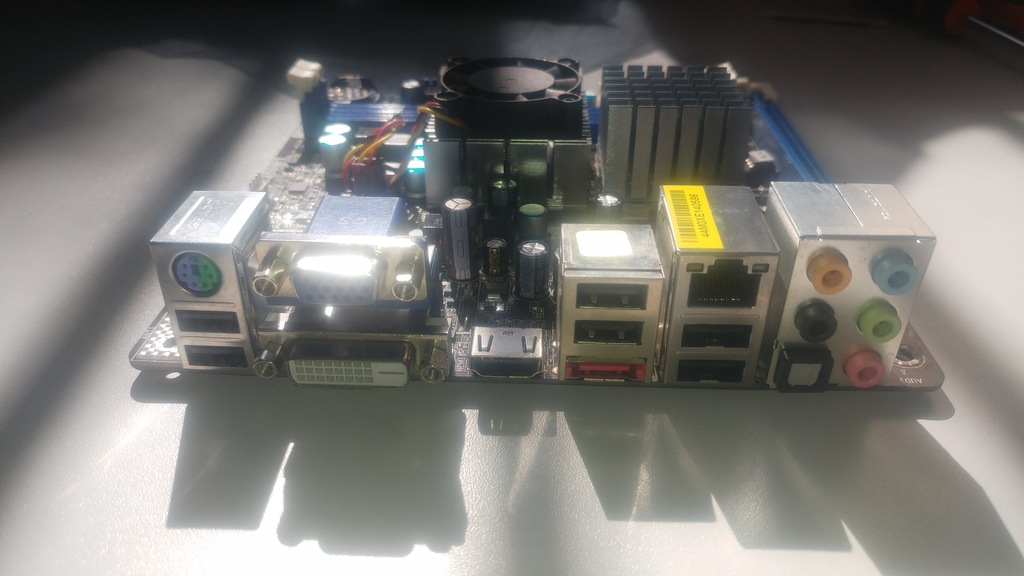

• Rear Panel I/O I/O Panel - 1 x PS/2 Keyboard/Mouse Port - 1 x VGA/D-Sub Port - 1 x VGA/DVI-D Port - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 6 x Ready-to-Use USB 2.0 Ports - 1 x eSATA3 Connector - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

• Unique Feature - ASRock Instant Boot - ASRock Instant Flash - ASRock APP Charger - Hybrid Booster: - ASRock U-COP - Boot Failure Guard (B.F.G.)

• Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar

• Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables

• Hardware Monitor - CPU Temperature Sensing - Chassis Temperature Sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU or MB Temperature) - CPU/Chassis Fan Multi-Speed Control - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

• Form Factor - Mini-ITX Form Factor - Solid Capacitor for CPU power

• OS - Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant

• Certifications - FCC, CE - ErP/EuP Ready (ErP/EuP ready power supply is required)
