Witam

.

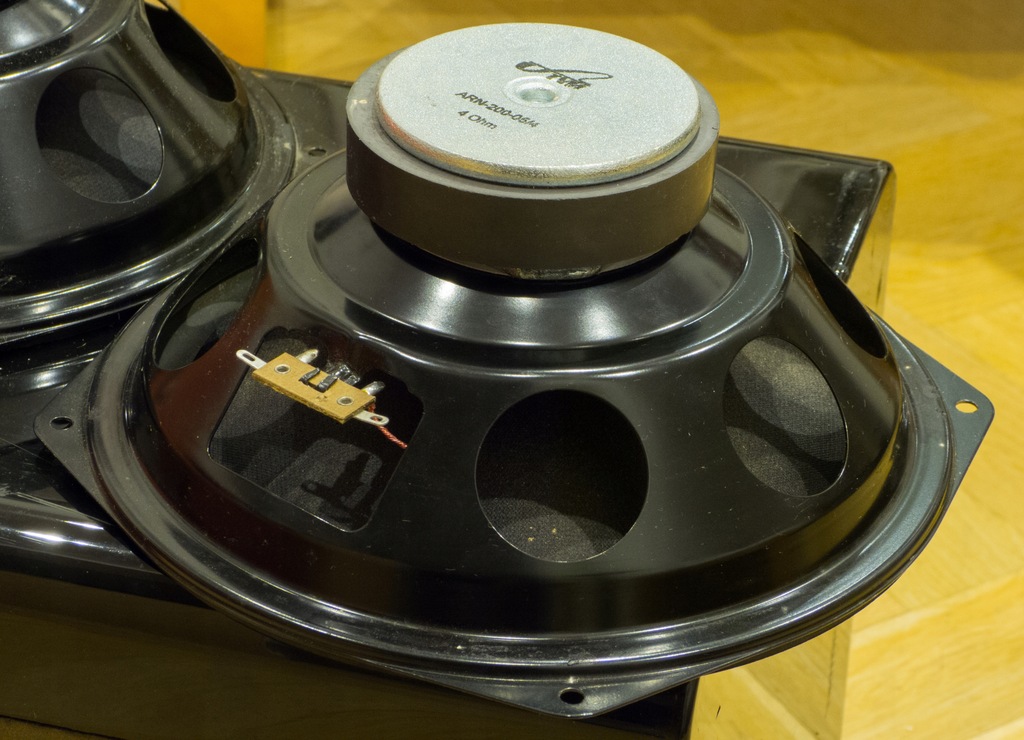

Na sprzedaż oferuje 8calowy niewiele używany głośnik ARN 200-05/4(ohm)

Jego parapetry przedstawia dokładnie ta intrukcja w pdf:

http://www.elektronikjk.pl/elektroakustyka/glosniki/glosniki/ARN-200-05-4.pdf

ACOUSTICAL DATA

Rated noise power 1) 70 W

Short term maximum power 2) 140 W

Rated impedance 4 Ohm

Resonance frequency Fs 4) 30.000 Hz

Rated frequency range 30 - 3000 Hz

Sensitivity 3) 86 dB

TS PARAMETERS

Acquired by MLSSA D-0-10

Effective piston area Sd 216.420 cm2

DC resistance of voice coil Re 3.546 Ohm

Mechanical Q factor Qms 4.716

Electrical Q factor Qes 0.679

Total Q factor Qts 0.593

Voice coil inductance Le 0.493

Equivalent volume Vas 84.309 l

Moving mass (including air load) Mms 18.642 g

Suspension compliance Cms 1281.561 uM/Newton

Force factor Bl 4.464 Tm

Maximum linear displacement Xmax5) 7 mm

MECHANICAL DATA

Voice coil carrier material aluminium

Voice coil diameter 25.4 mm

Winding height of voice coil 13 mm

Yoke diameter 25 mm

Air gap height 5 mm

Magnet external diameter 82 mm

Magnet internal diameter 32 mm

Magnet height 15 mm

Weight 1.1 kg
