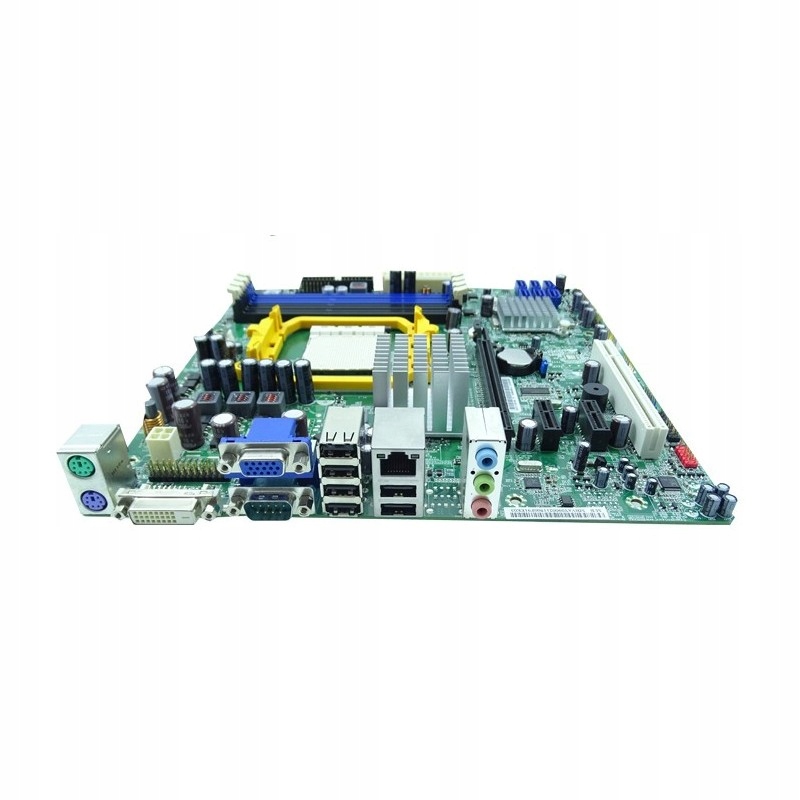

Płyta główna RS880M05A1 z komputera Gateway DT55 w zestawie z maskownicą

Producent:

Acer

Model:

RS880M05A1

Chipset:

AMD 880G

Gniazdo procesora:

Socket AM3

Obsługiwane procesory:

Phenom II X4 (Quad-Core) – 965, 955, 945, 925, 910, 910e

Athlon II X4 (Quad-Core) – 620, 630, 635, 640, 650

Phenom II X3 (Triple-Core) – 710, 720, 740

Athlon II X3 (Triple-Core) – 425, 435, 440, 445

Athlon II X2 (Dual-Core) – 260, 255, 250, 245, 240, 245e, 240e, 235e, 260u, 250u, B22, B24

Pamięć:

4 x 240-pin DDR3 DIMM slots Supports Dual Channel DDR3 1066/1333 MHz non-ECC, un-buffered memory (Max 16GB)

Porty kart rozszerzeń:

1 x PCI (v2.3)

2 x PCI Express x1 (2.0)

1 x PCI Express x16 (2.0)

Karta dźwiękowa:

Realtek – High Definition

VGA:

LAN:

Realtek – (Gigabit)

Porty I/O tylnego panelu:

1 x VGA port

6 x USB 2.0 ports

1 x RJ45 LAN Port

1 x DVI-D port – (HDCP support)

1 x Audio I/O – line-in/out, Microphone-in

1 x PS/2 for keyboard (purple color)

1 x PS/2 for mouse (green color)

Złącza I/O na płycie:

3 x USB headers

1 x Clear CMOS jumper

1 x SPDIF output header

1 x 3-pin CPU Fan connector

1 x 3-pin SYS Rear Fan connector

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x Front Audio header

1 x Front Panel header
