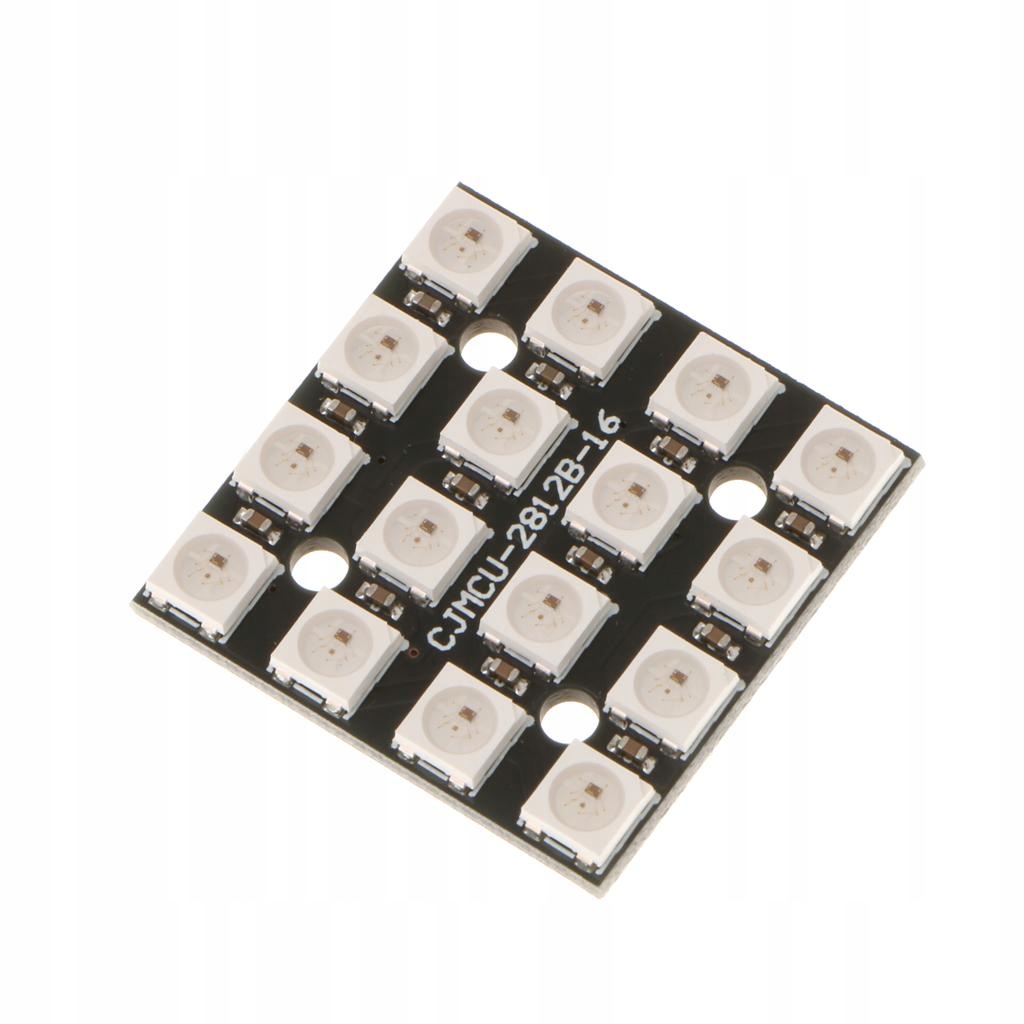

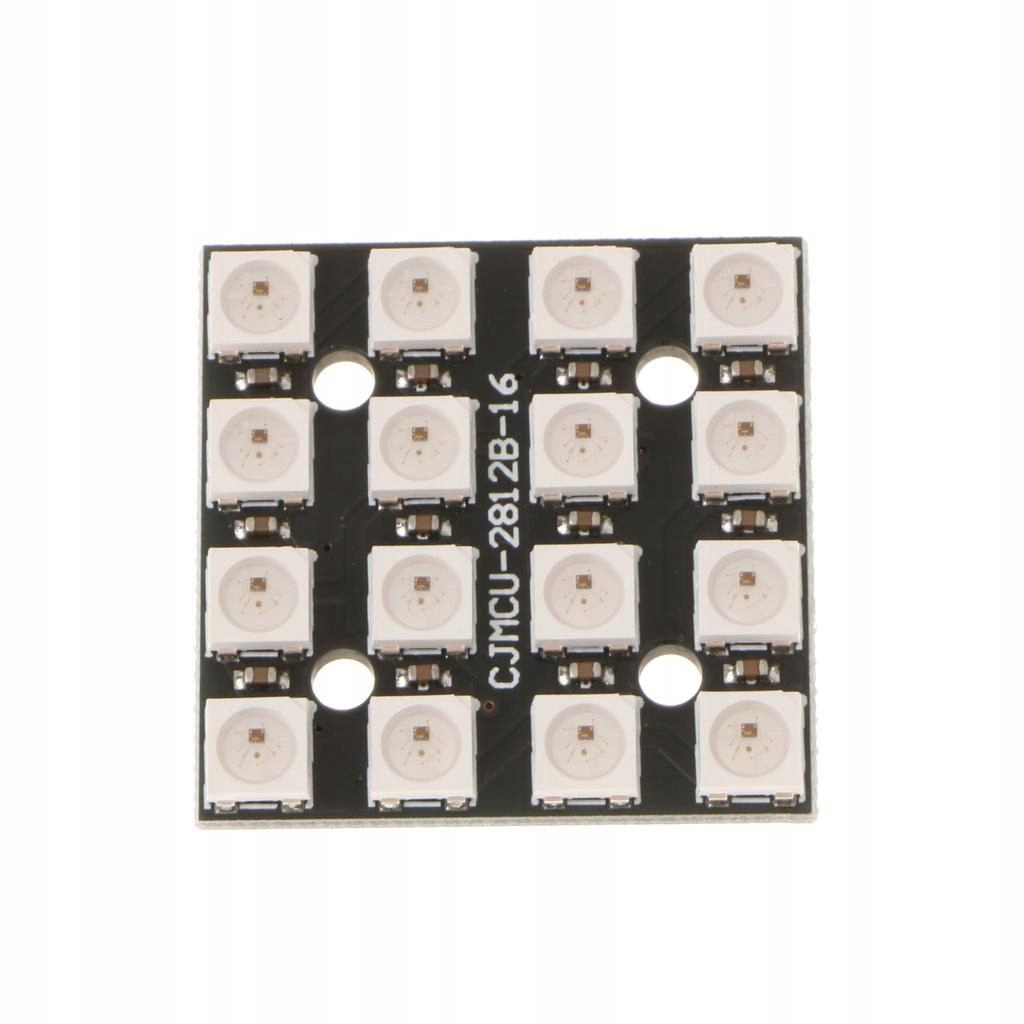

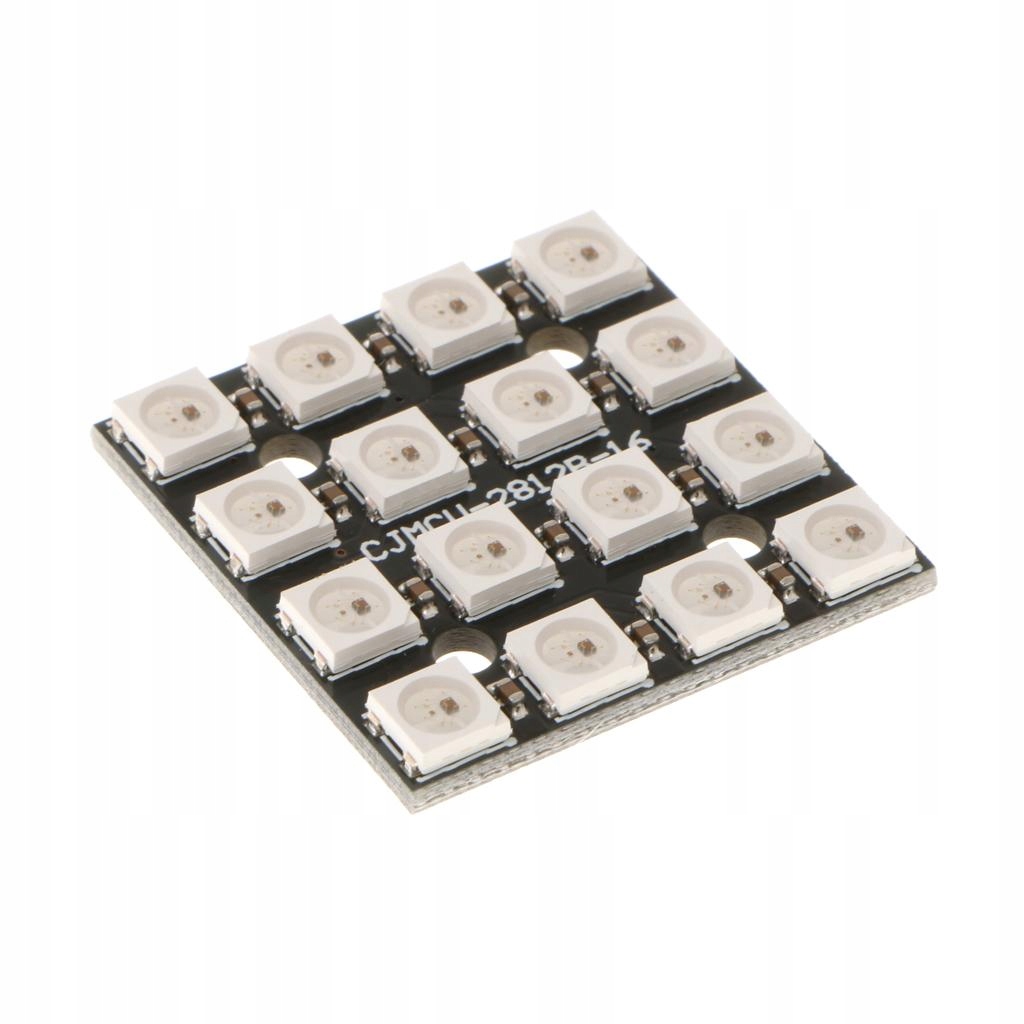

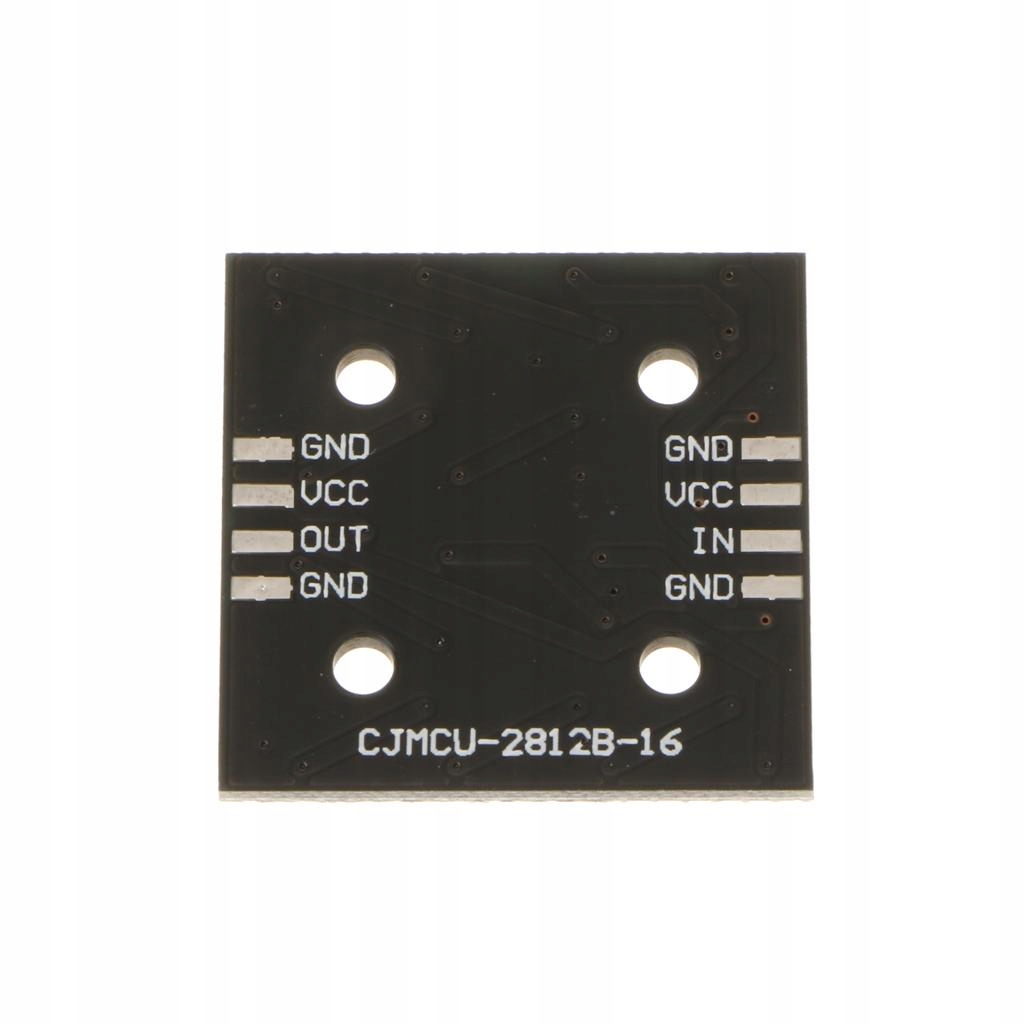

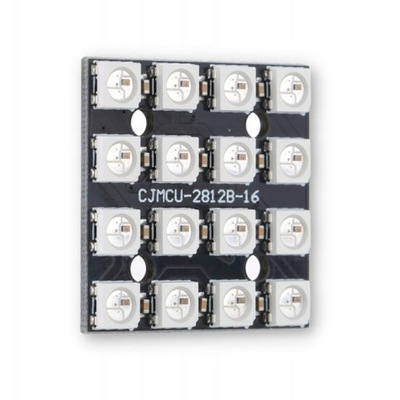

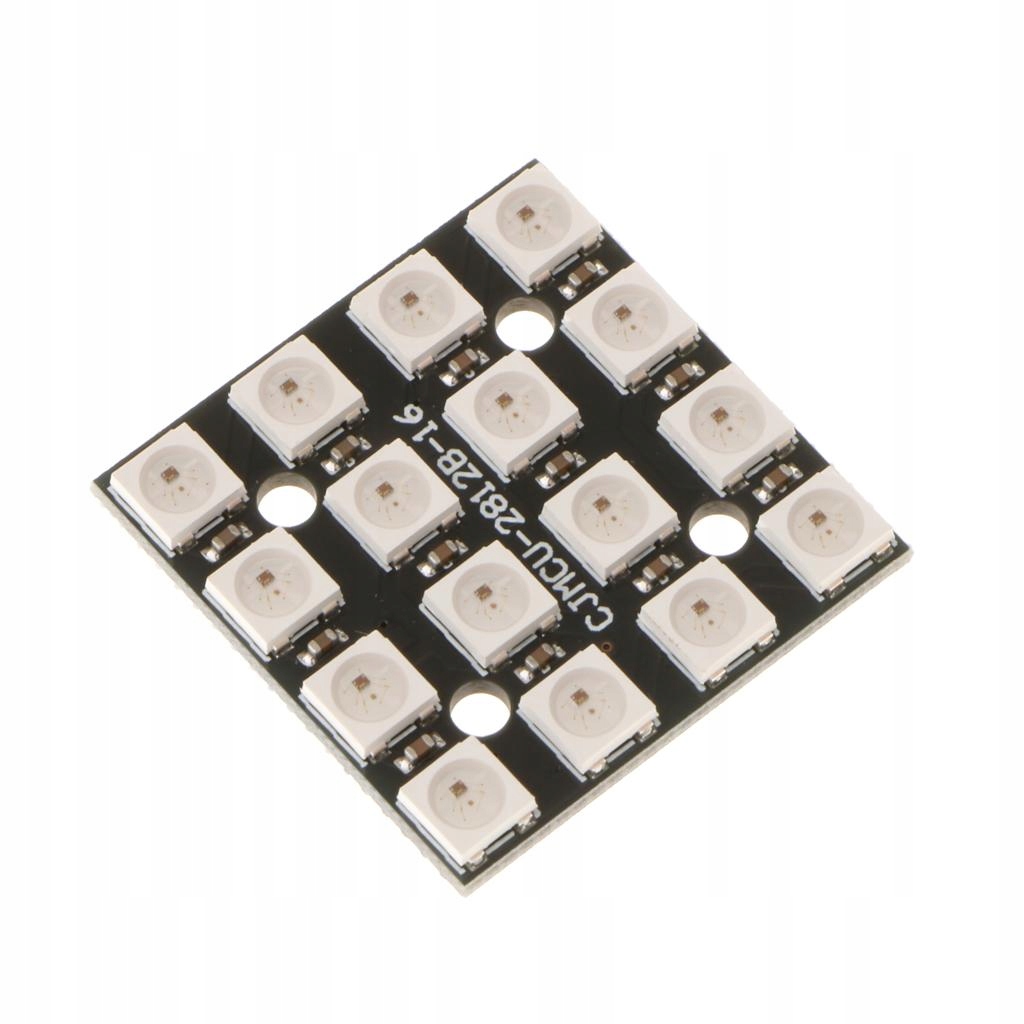

4xWS2812B 16-Bit 5050 RGB Full Color LED Lamp Panel Light 4x4 for

Description:

Cost-effective, color of the light is highly consistent

Send data at a speed of 800 kbps

Each pixel of the three primary colors can achieve 256 brightness, scan frequency is not less than 400 Hz/s

When the rate of refresh is 30 feet per second, the number is not less than 1024 points

Built-in electric reset circuit and power lost reset circuit

Specification:

Board Color: Black

Size: Approx. 3 ×3 cm/ 1.18 ×1.18 inch

Cascading port transmits signal by single line

Any two points whose distance is more than 5m, transmits signal without any increase circuit

Control circuit and LED share the source

Control circuit and RGB chip integrated a 5050-component package, form a complete control of

, all reshaping circuits reshape to the next driver, so ensure wave-form distortion does not accumulate

Package Includes:

1 Piece of 16-Bit Full Color LED Panel(4 Pack)
