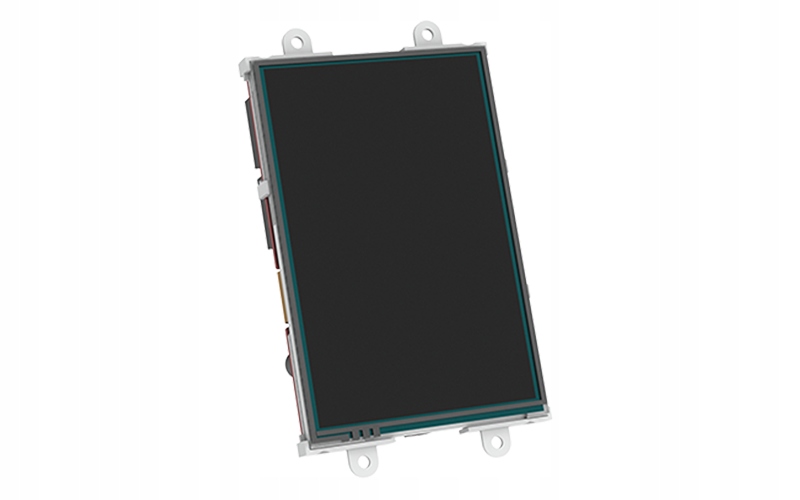

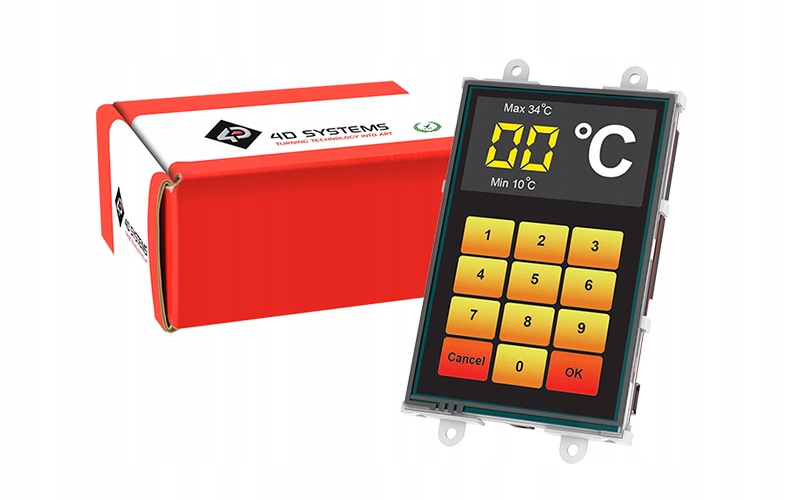

4D Systems - Moduł wyświetlacza dotykowego LCD  3.5" - Picadillo-35T

Kompleksowy moduł wyświetlacza LCD, dotykowego o przekątnej 3.5" dedykowany do komputerów bazujących na systemie Linux jak Raspberry Pi czy Ardurino

Dane techniczne: https://4dsystems.com.au/products/picadillo-35t/

Information about the display module

• Powerful 3.5″ Embedded LCD-TFT display module powered by a Microchip PIC32MX795F512L 32bit microcontroller.
• 320×480 HVGA Resolution, RGB 65K true to life colours, TFT Screen with integrated 4-wire Resistive Touch Panel.
• 512 Kbytes of Flash memory for User Application Code and Data.
• 128 Kbytes of SRAM.
• 47 General Purpose I/O pins for user interfacing, which include 12 Analog Inputs.
• Analog Inputs are 0V – 3.3V DC
• chipKIT Uno32 style headers, compatible with Arduino style shields, for easy interfacing.
• The GPIO is variously configurable for alternative functions such as:

  Up to 4 I2C channels available

  Up to 3 SPI channels available, with an additional channel dedicated for the microSD card.

  Up to 4 TTL Serial Comm ports available

  Up to 4 GPIO for PWM, can also be used for Audio and Backlight control

• Open Source Software
• On-board FTDI USB to TTL converter for power/programming.
• Breakout of the PIC32 on-board USB connections.
• On-board micro-SD memory card connector for multimedia storage and data logging purposes.
• Mono PWM Audio selectable using 1 of the PWM channels, filtered and fed to an on-board 1W amplifier, driving an on board speaker.
• 5.0V Supply, available to be powered from the on-board USB port, or 5V DC Jack. Compatible international 1Amp DC Adaptors are available.
• Module dimensions: 57 x 85.2 x 15.8mm (including corner plates). Weighing ~56 g.
• Display Viewing Area: 49.7 x 77.0mm
• 4x corner plates with 2.6mm holes for mechanical mounting.
• RoHS and CE Compliant.

• Diagonal Display Size INCHES: 3.5
• Resolution: 320×480
• Brightness: ~216 cd/m2
• Backlight LEDs: 1×6
• Touch: Resistive-Touch
• Controller: PIC32
• Operating Ambient Temperature: -15°C to +65°C
• Storage Temperature: -30°C to +70°C
• Display Viewing Area (mm): 73.4 x 49.0
• Module Dimensions (mm): 56.90 x 97.60 x 15.70
• RoHS?: Yes
• Country of origin: Philippines
• CCCN / tarif code: 85312000
• ECCN export control code: EAR99
• TARIC Code: 8531209590
• AHECC Code: 85312000
• Package Dimensions L x W x H (mm): 125 x 105 x 41
• Product Weight (g): 56
• Weight with Packaging (g): 100
• REACH: Yes
• CE Mark: Yes
• Supply Voltage: 5.0V DC
• Supply Current: ~250mA
• colours: RGB 65K
• SD Card Slot: Yes
• Flash: 512KB
• RAM: 125KB SRAM
• I2C: 4 x Channels
• GPIO: 47 x GPIO
• SPI: 3 channels available
• Codeless Programming: No
• IDE: UECIDE / MPIDE and MPLAB X
• Viewing Angle: Standard Viewing Angle
