3 portowy sumator Wilkinsona.

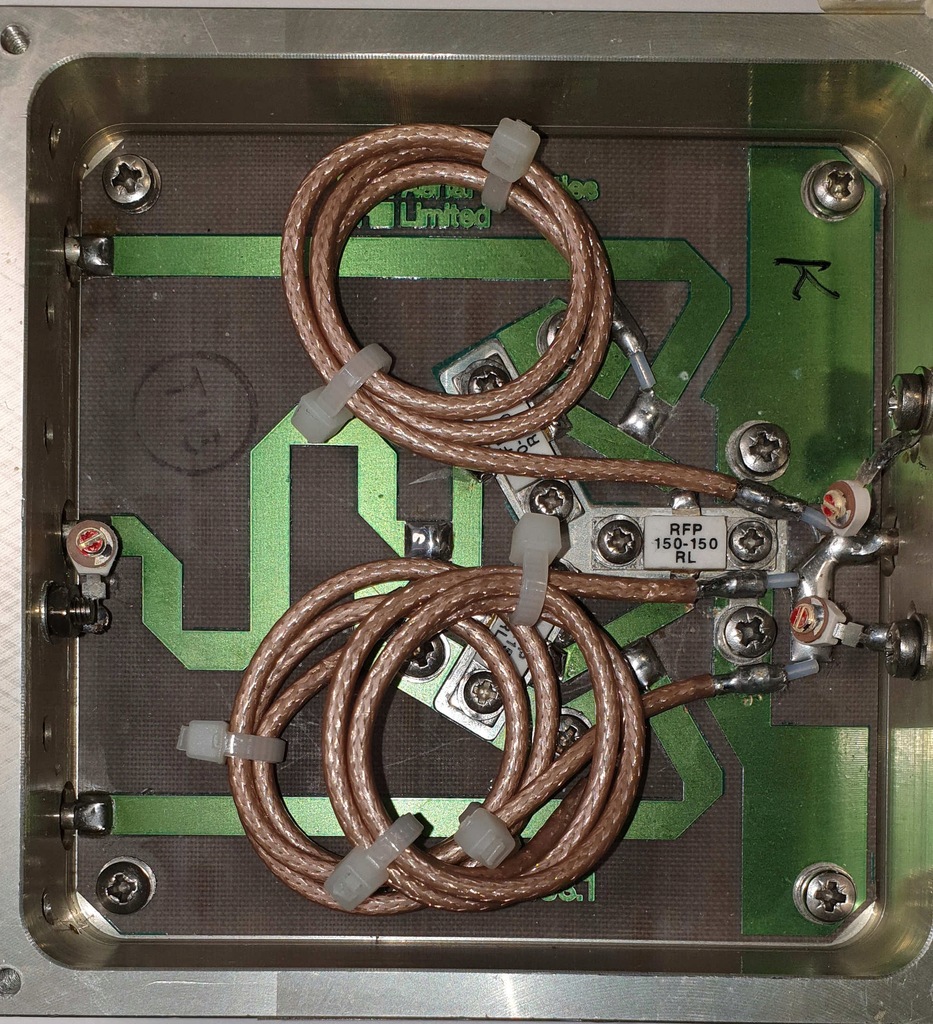

A Wilkinson combiner is used in this instance to maximise the isolation and return losses at the expense of the insertion loss. The is the most cost effective solution when the frequencies of signals to be combined are closely spaced and consideration to adjacent channel breakthrough must be given.

Being passive devices, the combiners should have an extremely long operational life and require no maintenance.

Frequency range: 148MHz

Bandwidth:10% of range (typically)

Insertion loss:<5dB

Return loss:>20dB

VSWR:1.22:1

Input to input isolation:>25dB

Power rating:<50W

Temperature range:operational:-10BC to +55BC

storage:-40BC to +70BC
