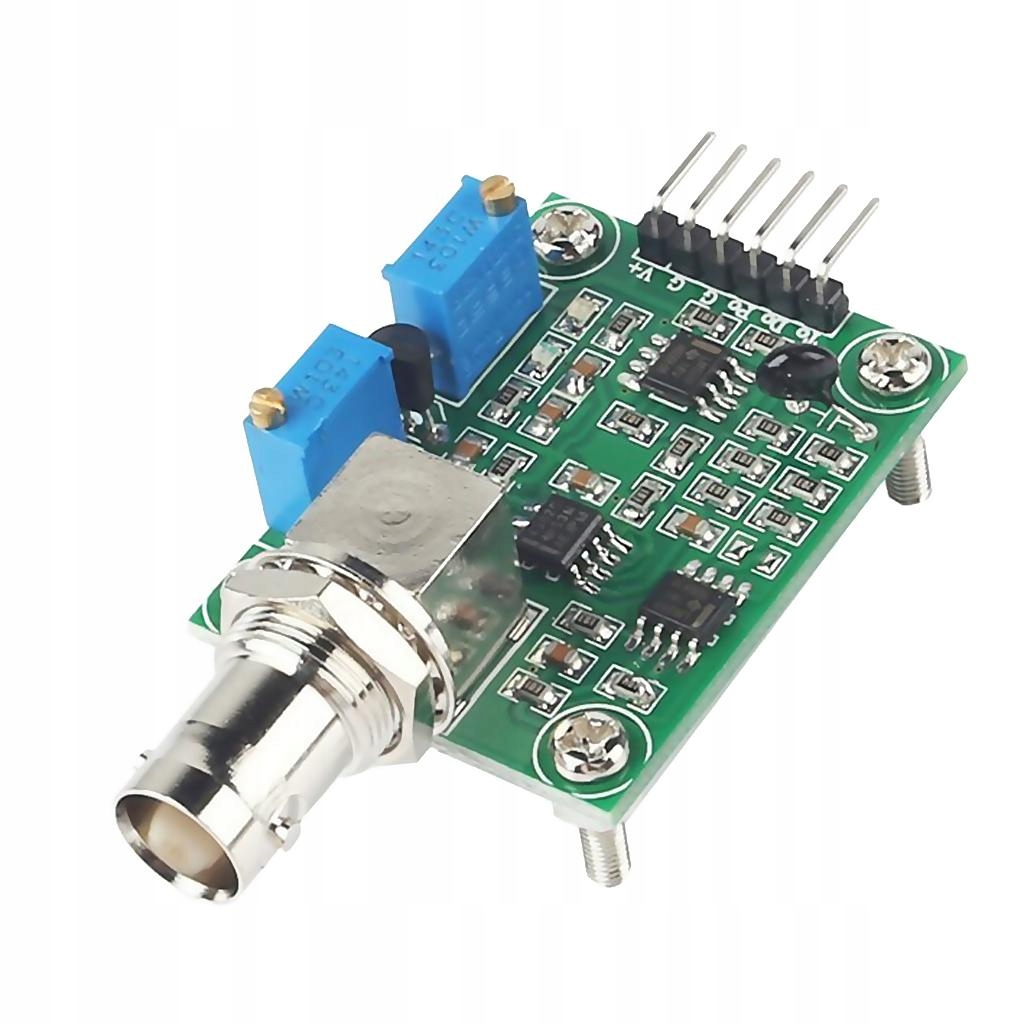

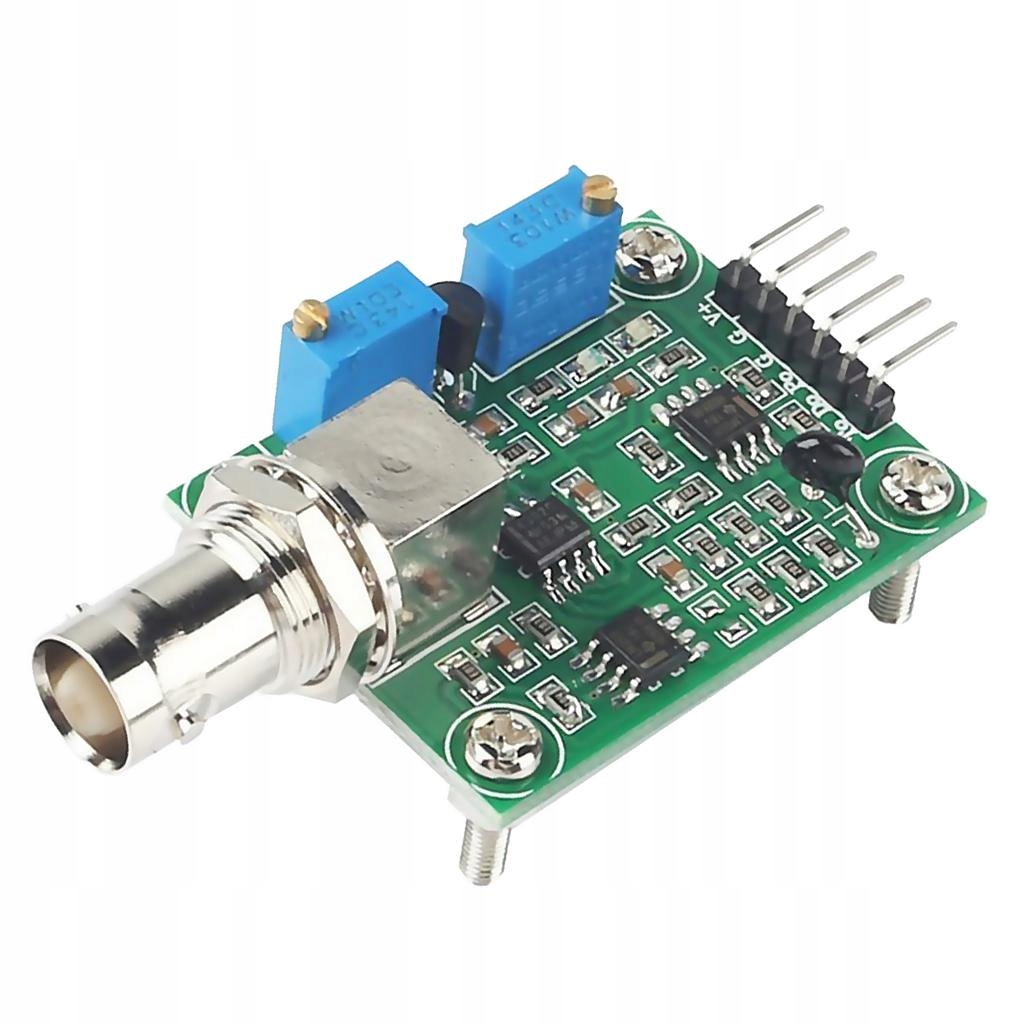

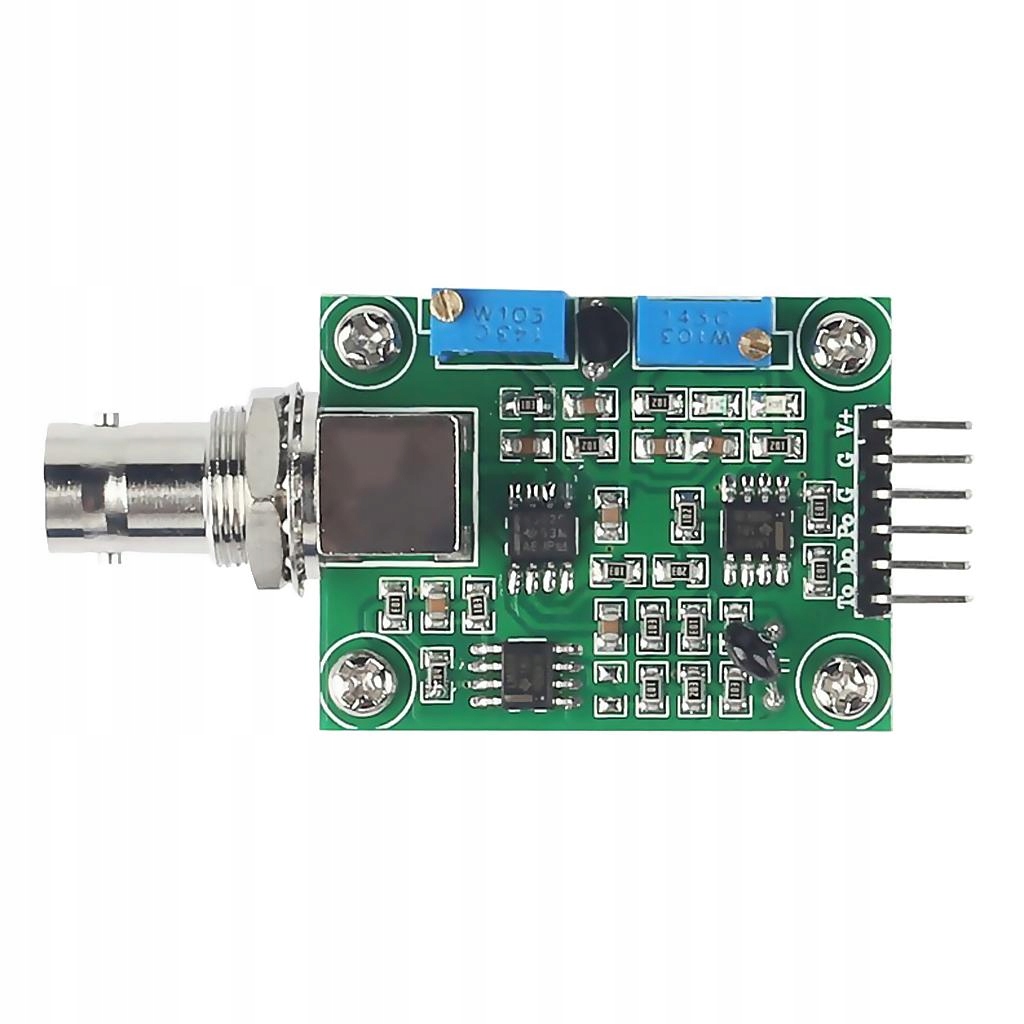

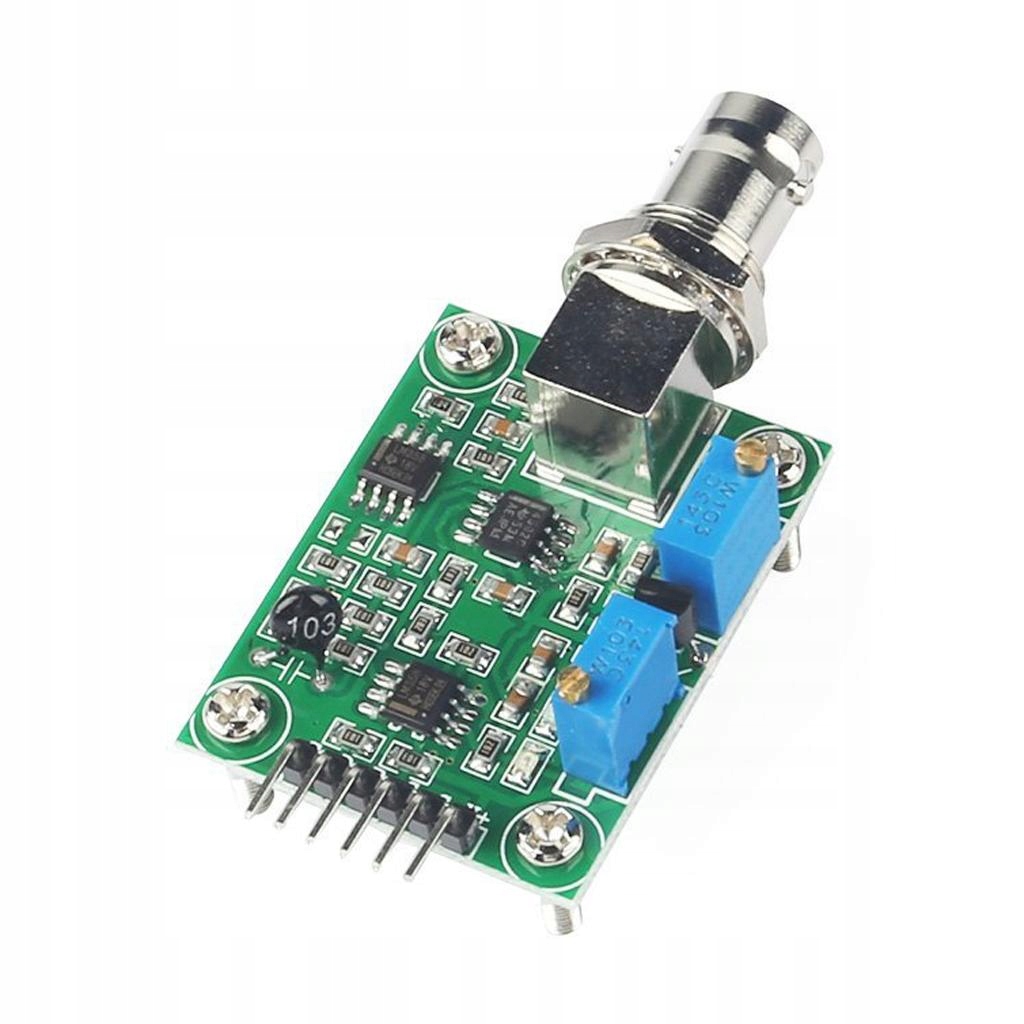

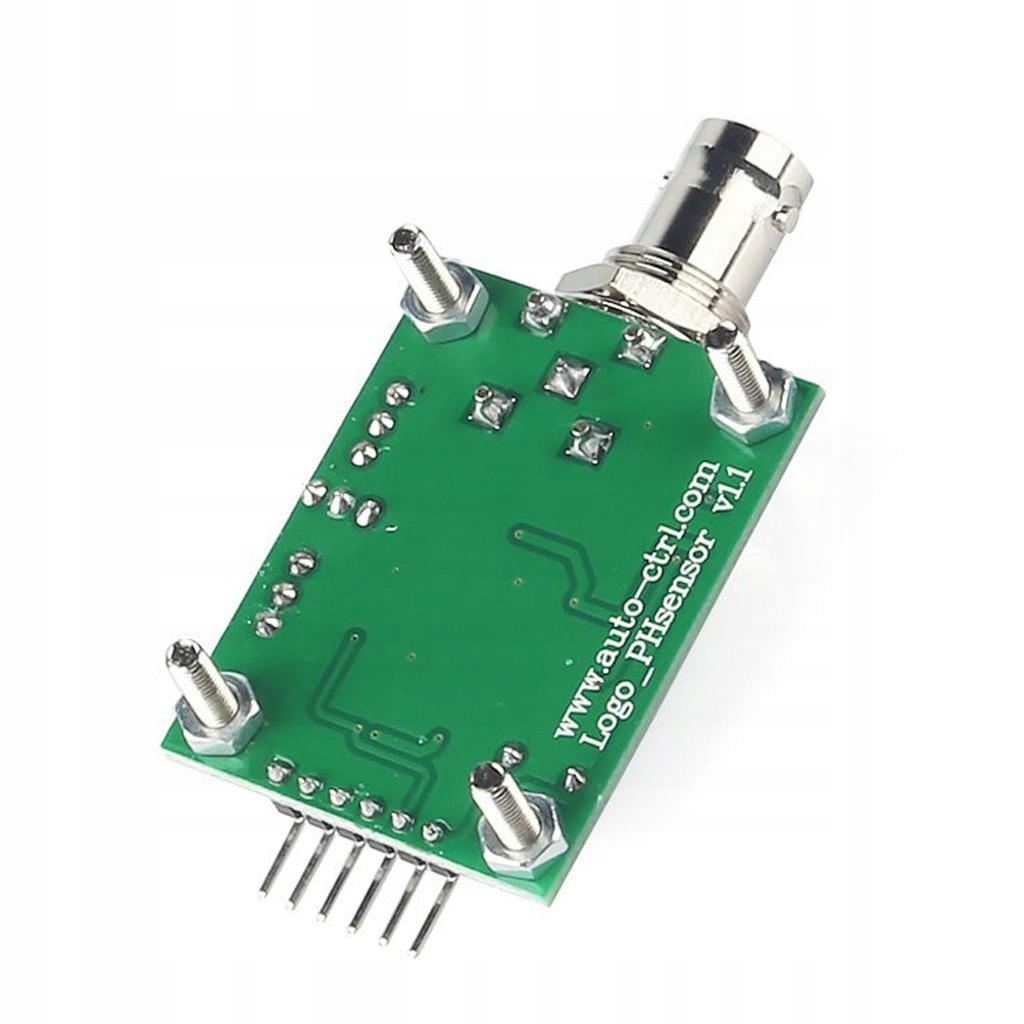

Liquid PH Value Detection Sensor Module PH Monitoring Control for

Description:

Heating voltage: 5 ± 0.2V (AC · DC)

Working current: 5-10mA

Detection concentration range: PH0-14

Detection temperature range: 0-80 ℃

Operating temperature: -10 ~ 50 ℃ (nominal temperature 20 ℃)

Operating Humidity: 95% RH (nominal humidity 65% RH)

Output mode: Analog voltage signal output

Specification:

Material: PCS Board

Color: As picture show

Size: Approx. 42x32x20mm/1.65x1.26x0.79inch

Response time: ≤5S

Settling time: ≤ 60S

Component power consumption: ≤0.5W

Life: 3 years

Package Includes:

1 piece PH Sensor Module

Note:

Due to the light and screen setting difference, the item's color may be

slightly different from the pictures. Please allow slight dimension

difference due to different manual measurement.
